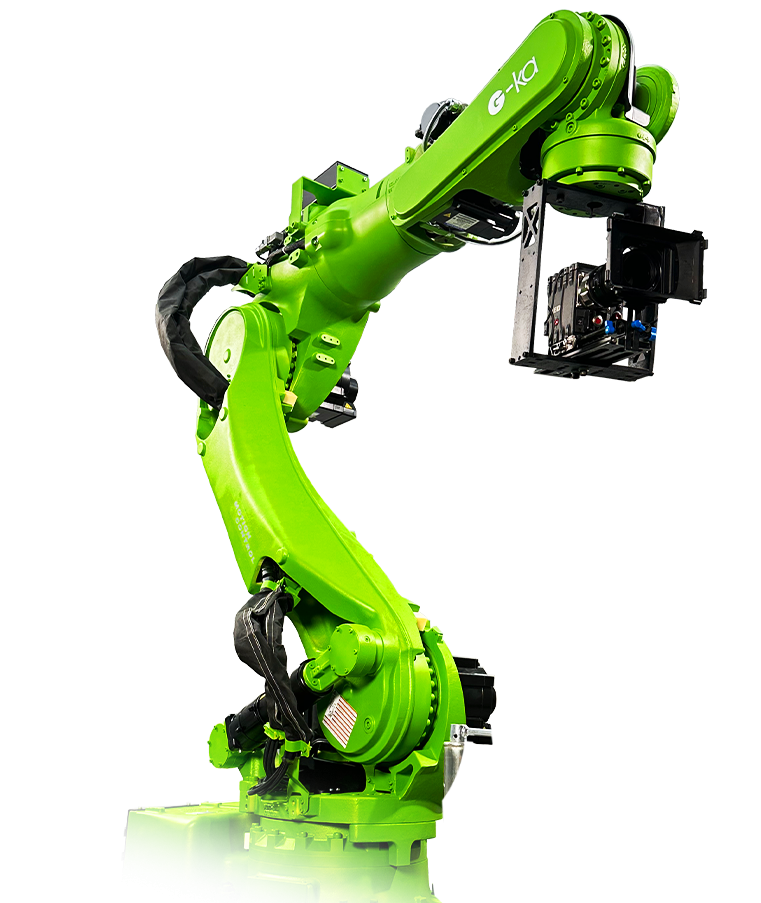

G-ka HULK Motion Control Robotic Arm System

Brand: G-ka

MFR: G-ka HULK

SKU: SF-2443-7ZVC

620,980.00 ᄍ

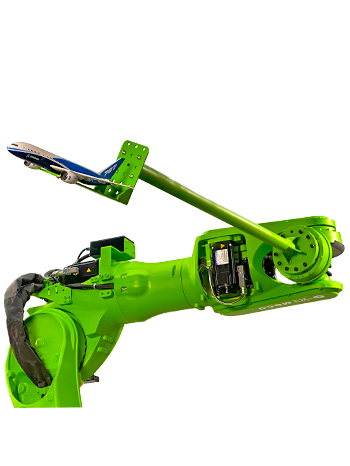

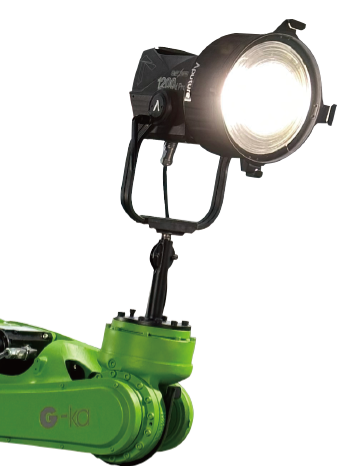

This model has a large load capacity and strong compatibility. In addition to shooting, it can also be used to support props, models, lighting, large screens, and even actors performing complex simulated actions. For example, it was used in the creation and filming of the movies "The Sacrifice" and "Moon Man".

On backorder
Quantity

Equipped with peripheral control interfaces, power sockets, and a modular design, the Hulk is versatile and future-proof. With impressive specs like 0.06mm repeatability, 210kg payload, 2.6m reach, and IP67 protection, the Hulk is a heavyweight champion ready to elevate your productions. Unleash your creativity with the unstoppable force of the Hulk!

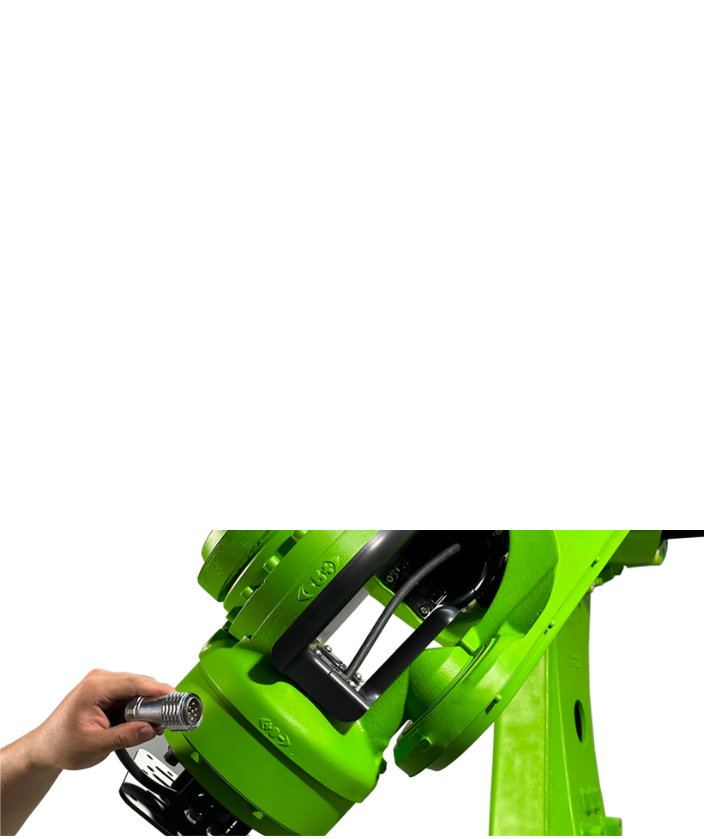

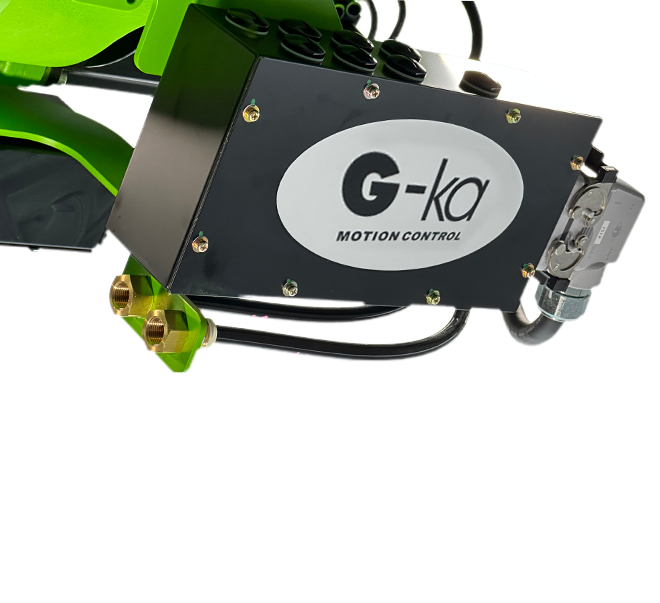

The integrated interface box is equipped with air and circuit interfaces, facilitating the linkage of large special tracks. The hollow structurefrom the arm body to theflange facilitates the instal-lation of various cables forlighting and special pur-poses, avoiding safety hazards caused by cablesthrown up duringhigh-speed movement.

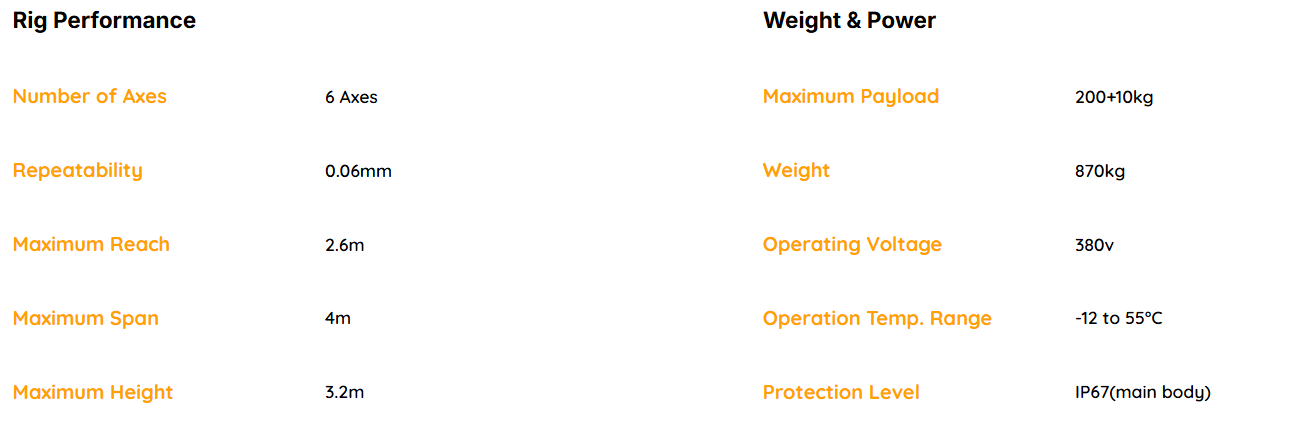

AttributeValue
Number of Axes6 Axes
Repeatability0.06 mm
Maximum Reach2.6 m
Maximum Span4.0 m
Maximum Height3.2 m
Maximum Payload200 + 10 kg
Weight870 kg
Operating Voltage380 V
Operating Temperature Range-12°C to 55°C
Protection LevelIP67 (Main Body)
