G-ka LUNA MINI MOTION CONTROL Motion Control Robotic Arm System

Brand: G-ka

MFR: GK-LUB+

SKU: SF-2443-53UB

160,150.00 ᄍ

Key Features

  • Compact mini motion-control robotic camera arm.
  • Payload capacity up to 7kg.
  • High-precision repeatability of 0.02mm.

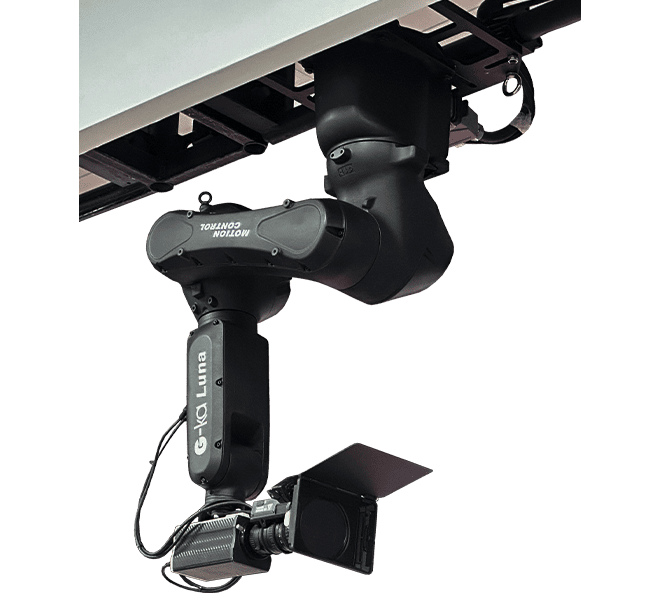

  • Supports upright, side, and upside-down installation.
  • Compatible with CNC tracks and CNC turntables.
  • Game-based operation interface designed for simplified control.
  • Supports Bluetooth controller operation.
  • Embedded interface box with integrated film-production connections.
  • Compatible with G-ka ecosystem software and accessories.
  • Air transport supported.

Items Included


  • Luna Motion Control Standard Kit
  • Multi Angle Connection Adapter
  • 1.5 Meter CNC Track
  • Blue Tooth Controller
  • Laser Disc Locator
  • Camera Movement Digital Library
  • On Location Case
On backorder
Quantity

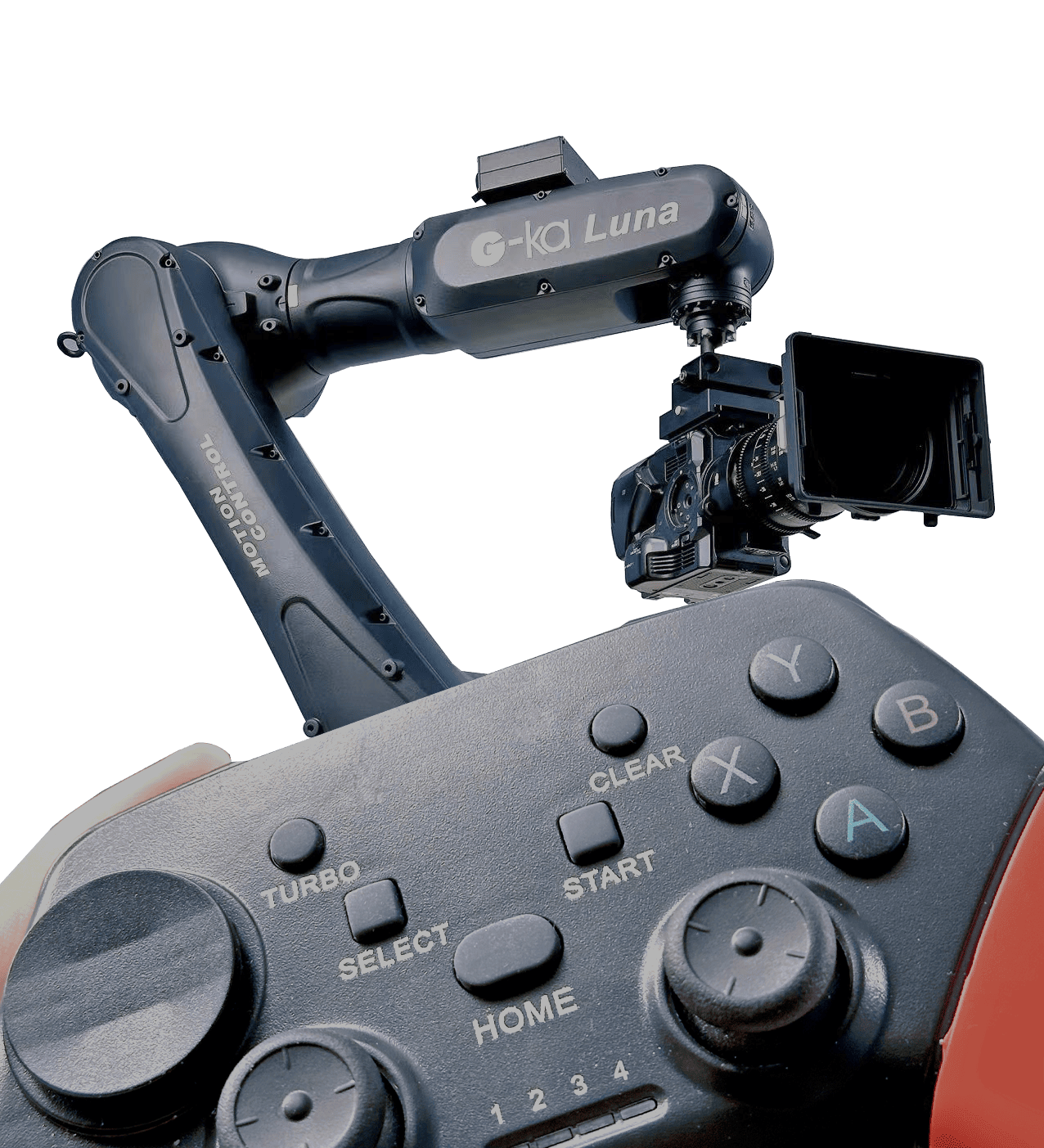

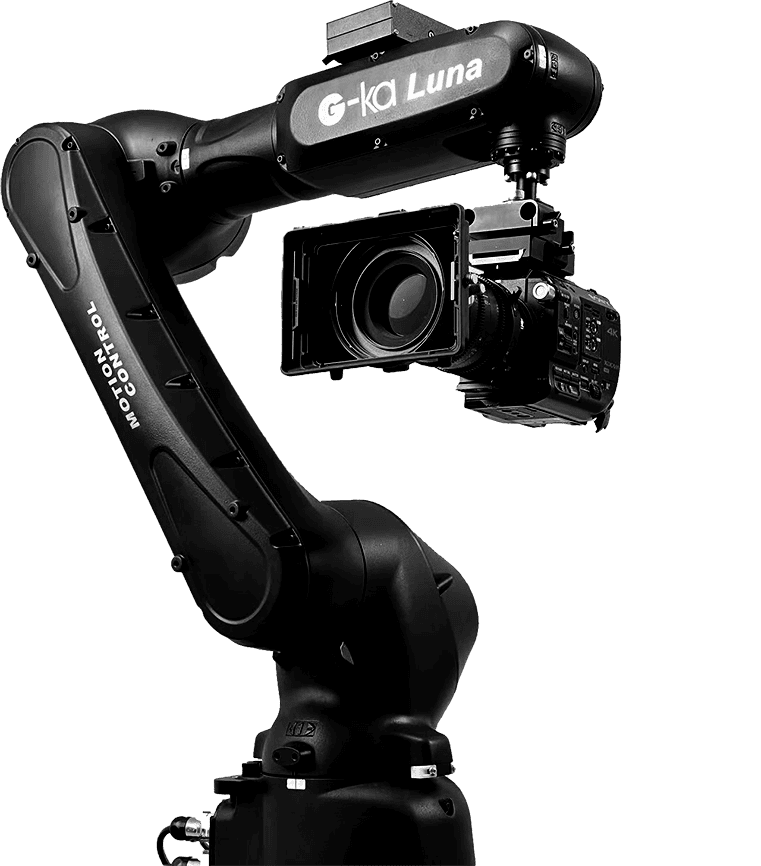

The G-ka LUNA Mini Motion Control Robot is a compact CNC-controlled camera motion system designed for filmmakers, content creators, product videography, and commercial production. Featuring up to 7kg payload capacity, 0.02mm repeatability, game-style operation software, and compatibility with CNC tracks and turntables, LUNA delivers precise, repeatable cinematic camera movement in a lightweight package that can be transported by SUV and supports air freight.

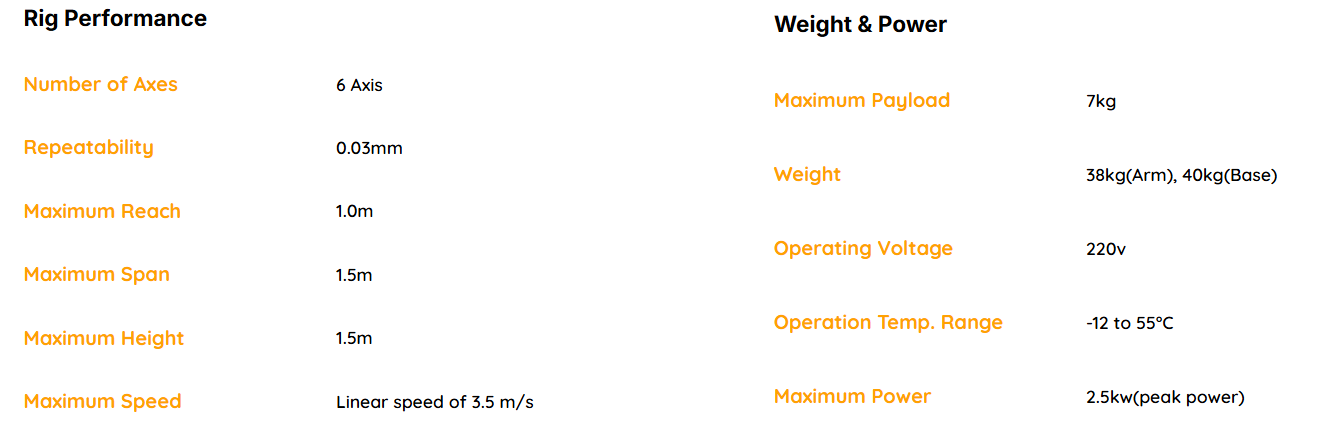

Specifications

AttributeValue
BrandG-ka
ModelLuna
SKUGK-LUNA-7KG-PRO
Product TypeRobotic Camera Motion Control Arm
Number of Axes6 Axis
Repeatability0.03 mm
Maximum Payload7 kg
Maximum Reach1.0 m
Maximum Span1.5 m
Maximum Height1.5 m
Maximum Linear Speed3.5 m/s
Arm Weight38 kg
Base Weight40 kg
Operating Voltage220 V
Maximum Power2.5 kW (Peak)
Operating Temperature-12°C to 55°C

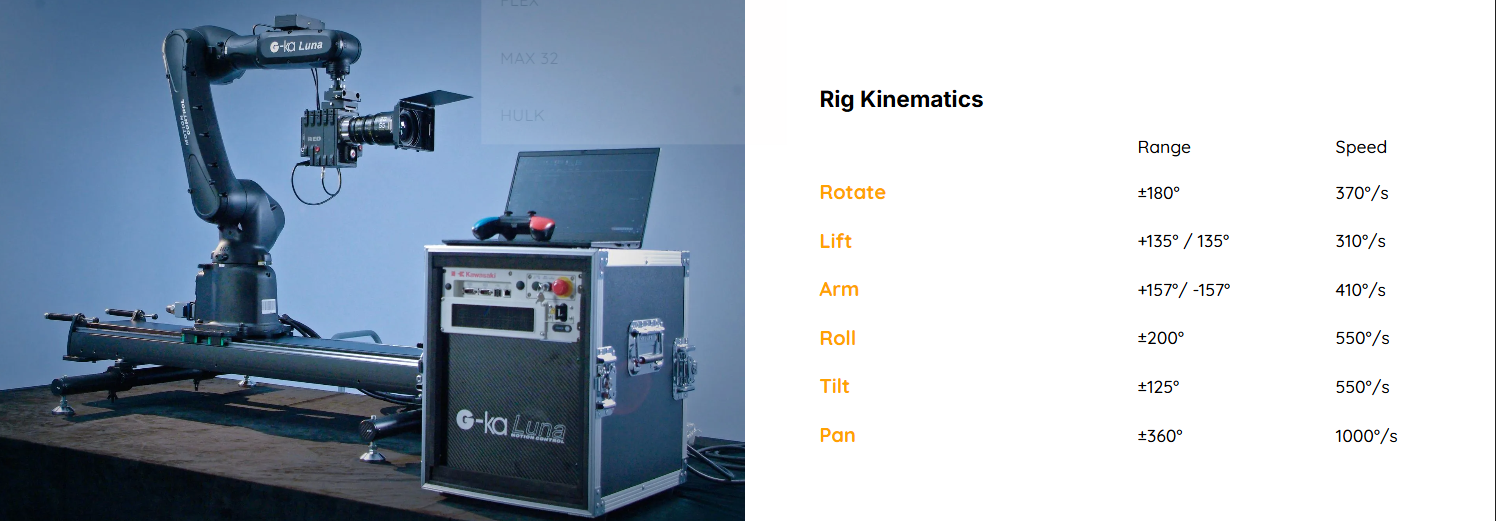

Rig Kinematics

AxisRangeSpeed
Rotate±180°370°/s
Lift+135° / -135°310°/s
Arm+157° / -157°410°/s
Roll±200°550°/s
Tilt±125°550°/s
Pan±360°1000°/s
