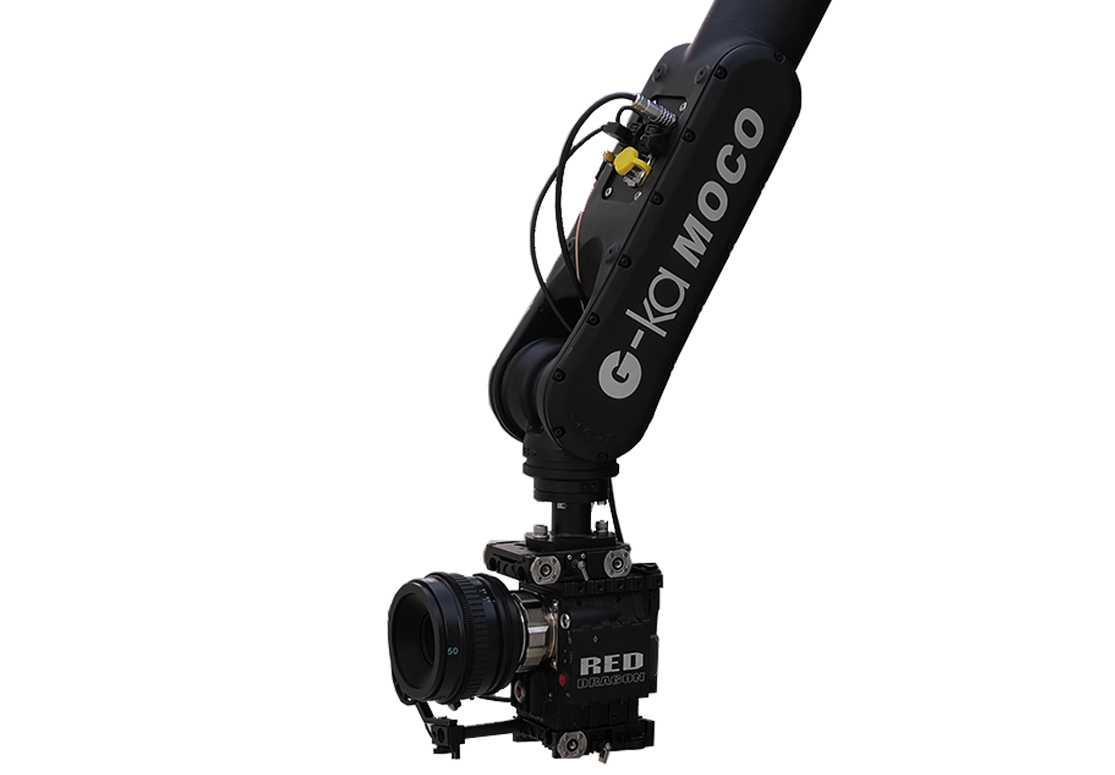

With its extensive reach, fast speeds, and wide range of applications, the G-ka Motion Control is widely used in film, television dramas, web dramas, TV commercials (TVCs), music videos (MVs), and educational settings. It is particularly suitable for equipment companies, high-end production companies, television stations, and XR virtual production companies.

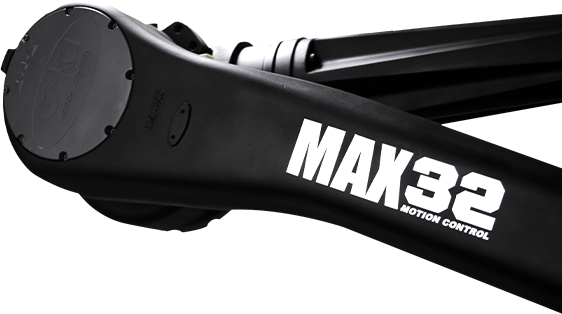

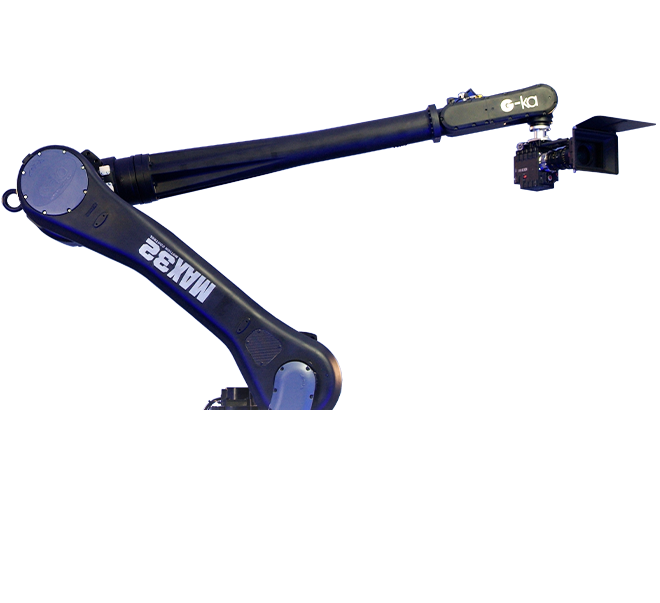

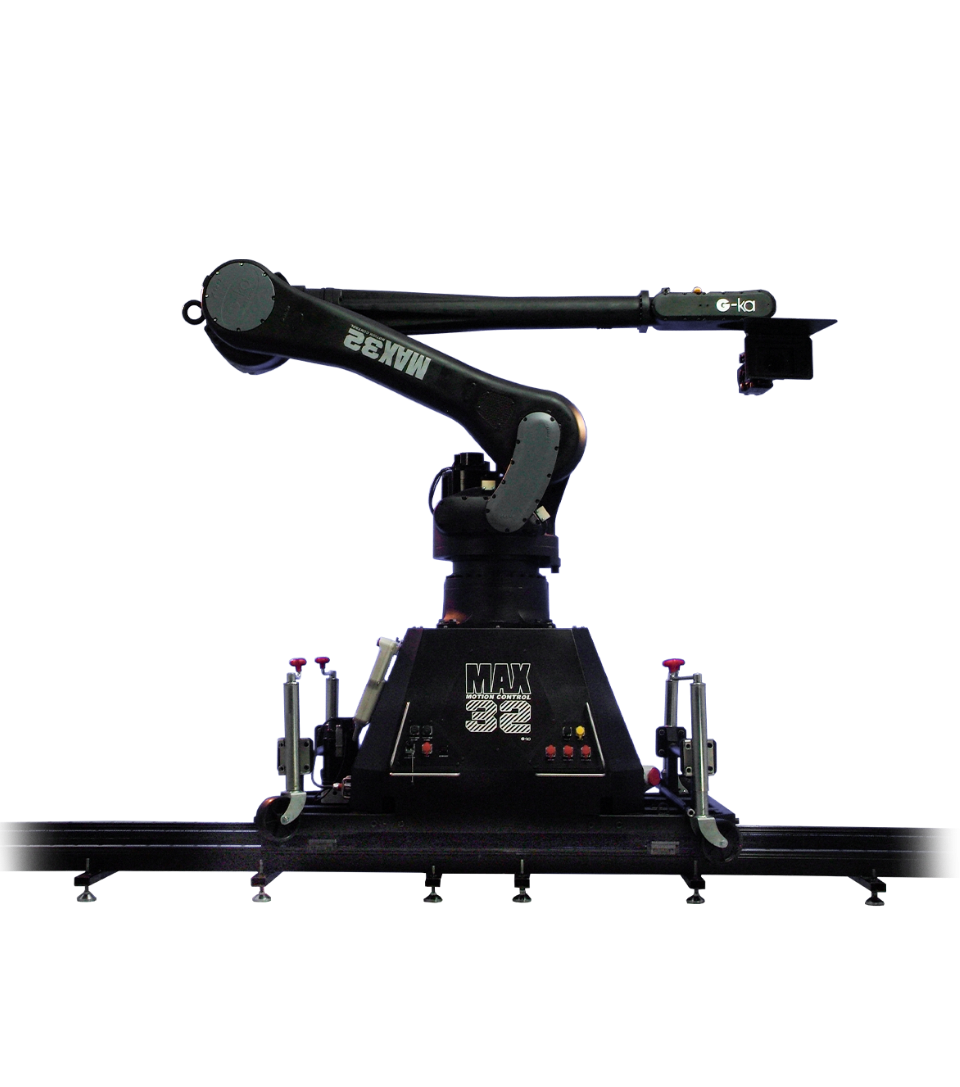

MAX-32-MOTION-CONTROL-RIG

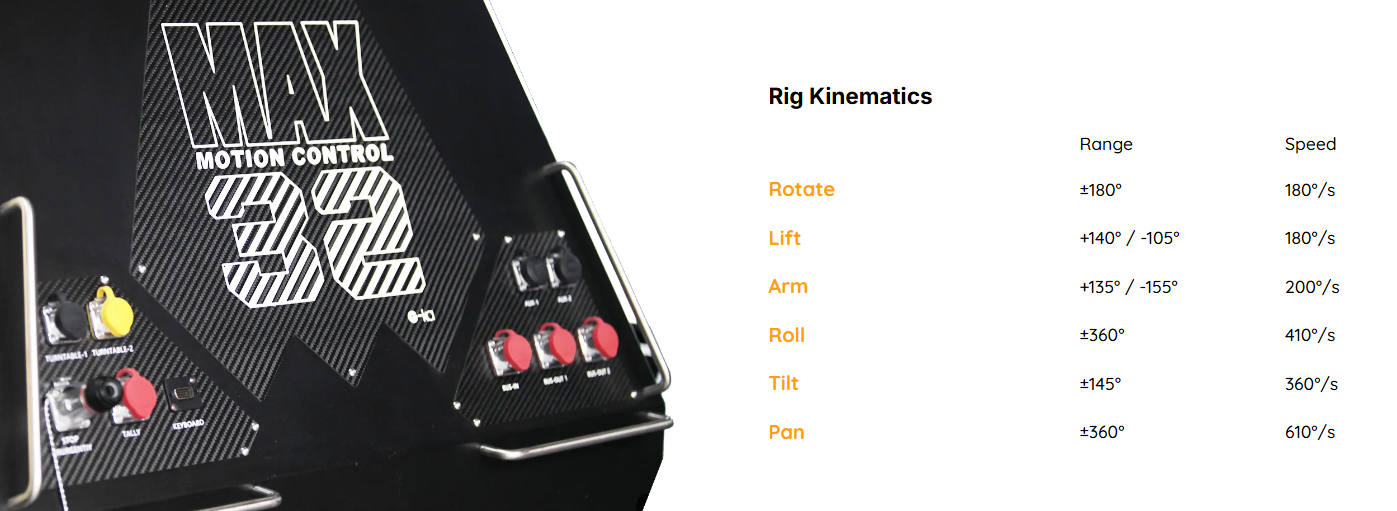

Key Specs :
| Axis | Range | Speed |
|---|---|---|
| Rotate | ±180° | 180°/s |
| Lift | +140° / -105° | 180°/s |
| Arm | +135° / -155° | 200°/s |
| Roll | ±360° | 410°/s |
| Tilt | ±145° | 360°/s |
| Pan | ±360° | 610°/s |

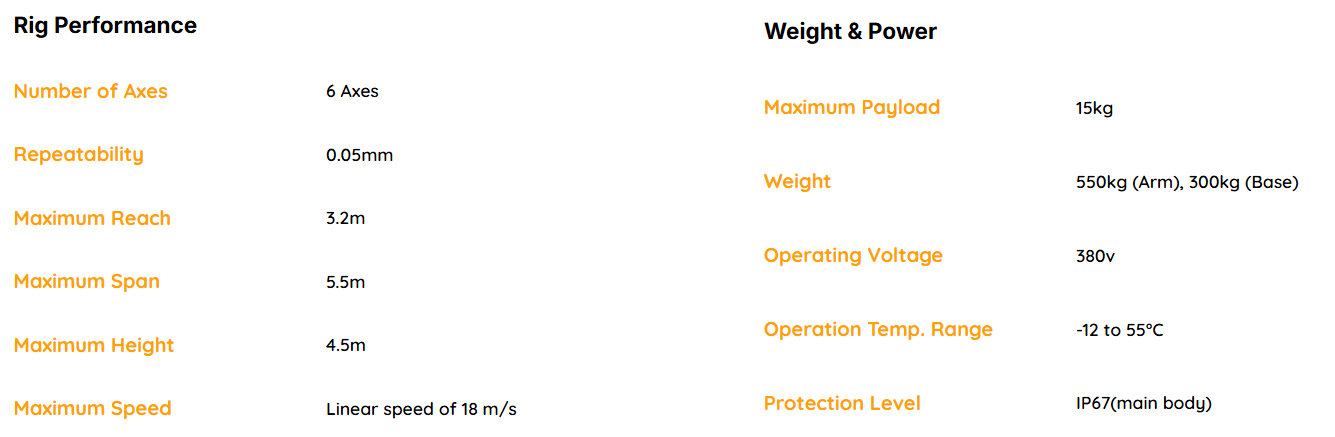

| Category | Specification |
|---|---|
| Number of Axes | 6 Axes |
| Repeatability | 0.05 mm |
| Maximum Reach | 3.2 m |
| Maximum Span | 5.5 m |
| Maximum Height | 4.5 m |
| Maximum Speed | Linear speed of 18 m/s |
| Maximum Payload | 15 kg |
| Arm Weight | 550 kg |
| Base Weight | 300 kg |
| Operating Voltage | 380 V |
| Operating Temperature Range | -12°C to 55°C |
| Protection Rating | IP67 (Main Body) |
