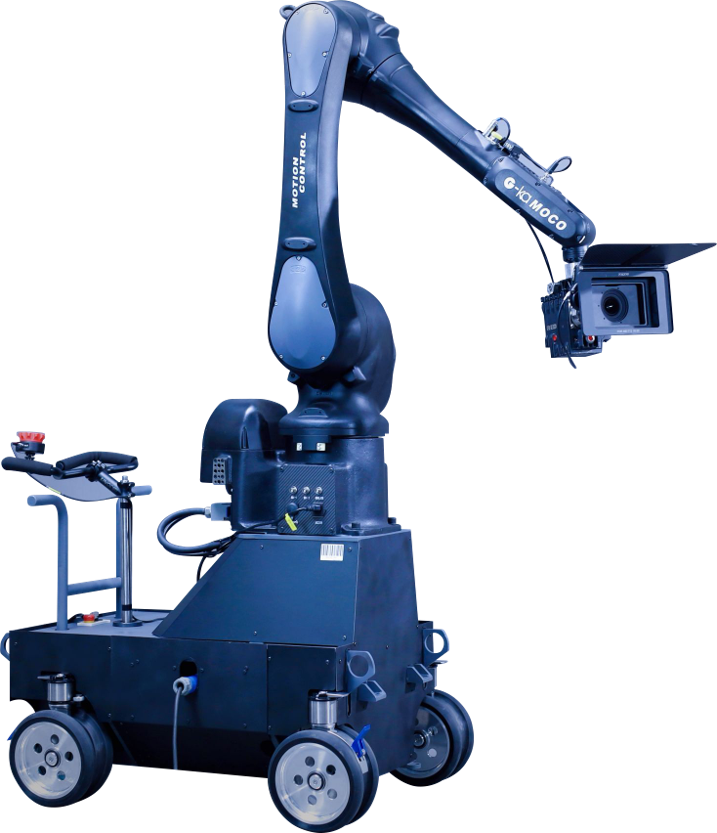

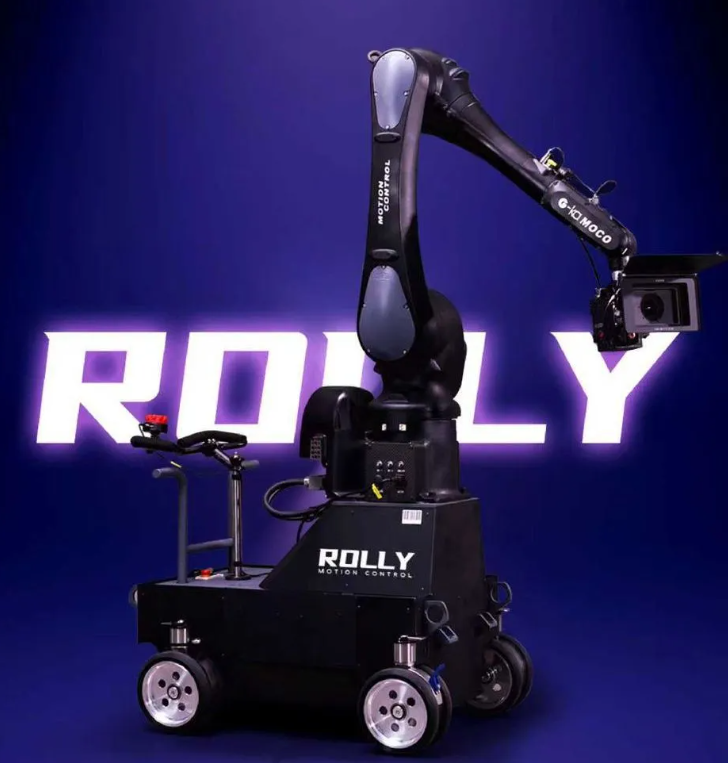

Comprehensive mobile shooting: No need to replace multiple accessories, and can simulate comprehensive motion modes of PV, Slider, Jib, Crane, and Remote head.
Compatible with standard rails: Fully compatible with 620mm gauge standard rails.
Easy and free movement and steering: Handle with straight-through large-angle self-locking steering wheels, enabling easy movement and convenient transition.
Single-sided base: Increases arm span efficiency by 15%, allowing the cart body to be closer to the subject, facilitating arm shooting in scenarios such as drilling into car windows.

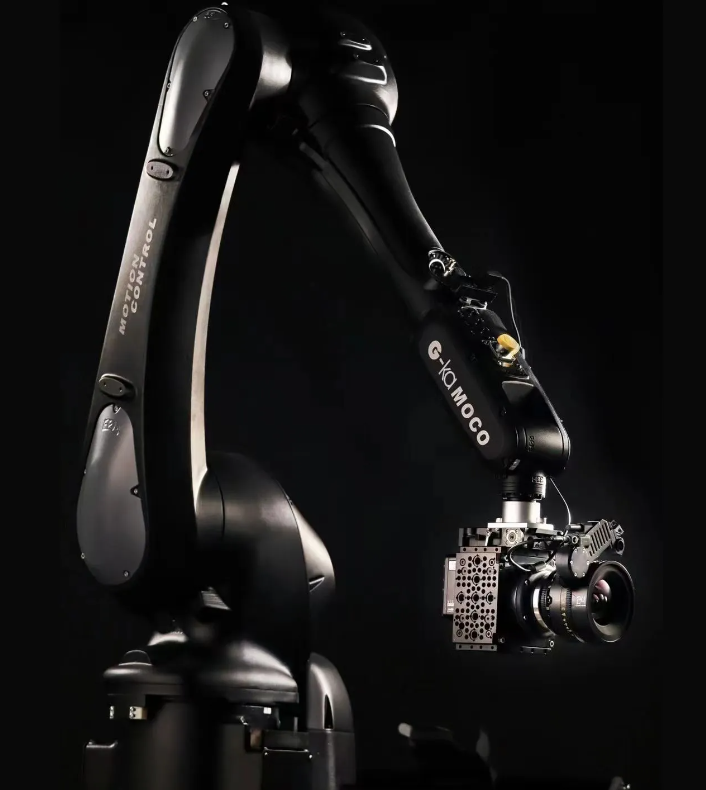

A CNC shooting dolly enables filming with multiple common mobile devices, applicable to the shooting of movies, TV dramas, TVCs, etc.

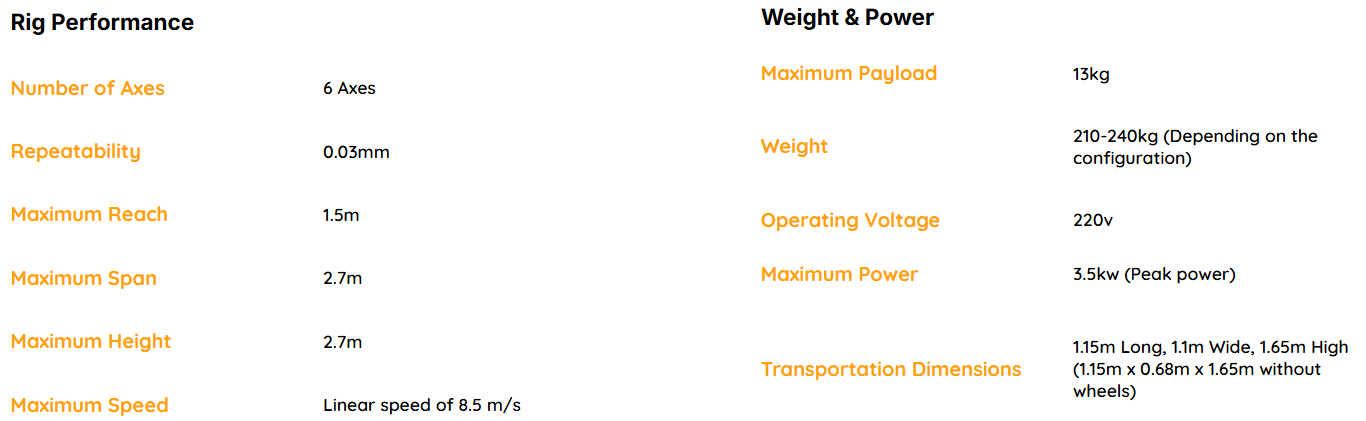

| Category | Specification |
|---|---|
| Number of Axes | 6 Axes |
| Repeatability | 0.03 mm |
| Maximum Reach | 1.5 m |
| Maximum Span | 2.7 m |
| Maximum Height | 2.7 m |
| Maximum Speed | Linear Speed of 8.5 m/s |
| Maximum Payload | 13 kg |
| Weight | 210-240 kg (Depending on Configuration) |
| Operating Voltage | 220 V |
| Maximum Power Consumption | 3.5 kW (Peak Power) |
| Transportation Dimensions | 1.15 m (L) × 1.10 m (W) × 1.65 m (H) |
| Transportation Dimensions (Without Wheels) | 1.15 m × 0.68 m × 1.65 m |
| Protection Rating | Industrial Motion Control Platform |
