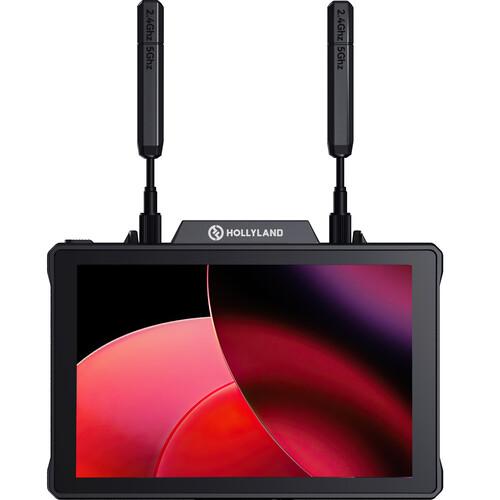

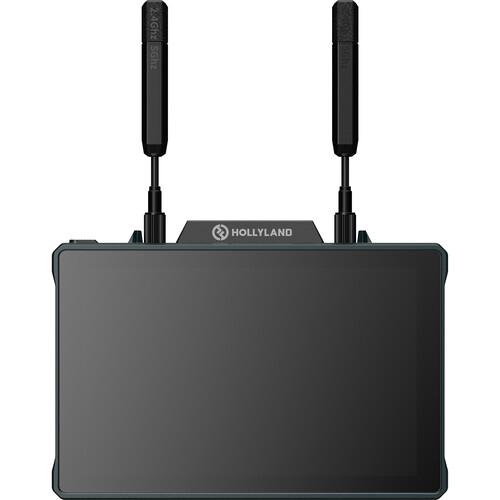

The Hollyland Pyro 7 is a versatile 7-inch wireless transceiver monitor built for high-quality on-set video monitoring and transmission. It combines a bright touchscreen display, HDMI/SDI connectivity, SD-card recording, RTMP streaming, and reliable dual-band wireless performance in one flexible production tool.
Switch the Pyro 7 between transmitter and receiver modes as needed. Its wireless broadcast technology supports sending video from one transmitter to as many as four receivers, while its long-range transmission reaches up to 1,300 ft line of sight with as little as 60 ms latency.
Choose Smooth Mode for the lowest-latency transmission over longer distances, or HD Mode for a stable image bitrate of up to 12 Mb/s. Auto Frequency Hopping and Auto Dual-Band Hopping help the Pyro 7 select the clearest available channel for dependable performance in busy wireless environments.

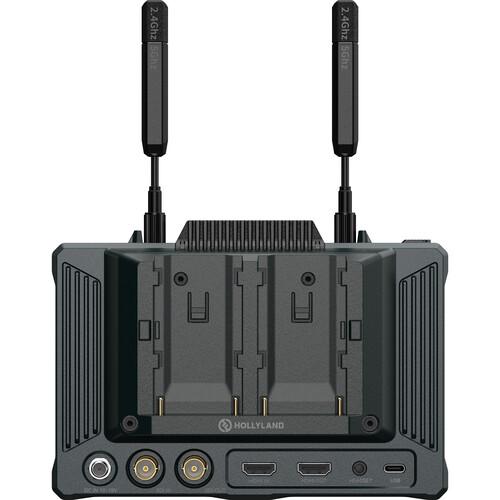

In transmitter mode, the Pyro 7 provides HDMI and SDI inputs plus HDMI and SDI loop outputs. In receiver mode, it provides HDMI and SDI outputs with SDI loop output. Group compatible Pyro-series units for fast switching between camera feeds and streamlined multi-camera monitoring.
| Display | Specification |
|---|---|
| Panel type | LCD |
| Display size | 7.0 in / 17.8 cm |
| Native resolution | 1920 × 1200 |
| Touchscreen | Yes |
| Maximum brightness | 1200 nits |
| Contrast ratio | 1000:1 |
| HDR support | No |
| LUT support | Yes |
| Image tools | Focus peaking, waveform |
| Video & Audio | Specification |
| HDMI input/output | 1 × HDMI 1.4b input; 1 × HDMI 1.4b output |
| SDI input/output | 1 × 3G-SDI BNC input; 1 × 3G-SDI BNC output |
| HDMI video formats | UHD 4K up to 30p; 1080p up to 60p; 1080i and 720p |
| SDI video formats | 1080p up to 60p; 1080i and 720p |
| Embedded audio | HDMI/SDI, up to 8-channel |
| Audio output | 1 × 3.5 mm headphone output |
| Timecode support | Yes |
| Built-in speaker | No |
| Wireless | Specification |
| Wireless type | Proprietary wireless |
| Maximum range | Up to 1300 ft / 396.2 m line of sight |
| Additional range rating | 650 ft / 198.1 m |
| Frequency range | 2.412–2.484 GHz and 5.1–5.8 GHz (US) |
| Channel bandwidth | 20 / 40 MHz |
| Latency | 60 ms |
| RF power | 23 dBm |
| RF sensitivity | -80 dBm |
| Antenna connections | 2 × RP-SMA male |
| Wi-Fi / Bluetooth | No / No |
| Mobile app | HollyView for Android and iOS |
| Recording & Storage | Specification |
| Card slot | 1 × SD/SDHC/SDXC slot |
| Recording | Supported |
| Video compression | Compressed |
| USB-C | Firmware input |
| Power & Mounting | Specification |
| DC input | 10–18 VDC at 2.5 A |
| Battery plate | Dual L-series interchangeable battery plate |
| Maximum power draw | 22 W |
| Accessory mounting | 1 × 1/4"-20 female thread on bottom, left, and right sides |
| Physical | Specification |
| Construction | Aluminum and magnesium |
| Dimensions | 18 × 12.7 × 3.18 cm, excluding antennas |
| Weight | 0.545 kg, excluding antennas |
| Operating temperature | -10 to 45°C |
| Storage temperature | -40 to 60°C |
| Environmental resistance | None |
