Icon Pro Audio Touch 8 12x12 USB-C Touchscreen Audio Interface

Icon Pro Audio Touch 8 12x12 USB-C Touchscreen Audio Interface

Name: Icon Pro Audio Touch 8 12x12 USB-C Touchscreen Audio Interface
Brand: ICON
SKU: SF-2443-VHEL
Availability: InStock

Brand: ICON

MFR: TOUCH8

SKU: SF-2443-VHEL

Price Available Upon Request

For Recording, Performing, and Streaming
4x4 Analog I/O: 1/4", XLR, and Combo Ins
75 dB of Gain on Preamps
10" Multitouch Color LCD Screen
Virtual Faders and 15-Segment Meters
-20 dB Pad and Polarity Control
Phantom Power and Direct Monitoring
Dual Headphone Outputs
Optical 8-Channel ADAT I/O
Includes AC Adapter and USB Cable

Items Included

Icon Pro Audio Touch 8 12x12 USB-C Touchscreen Audio Interface
AC Power Adapter
USB-C Data Cable

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Studio Recording

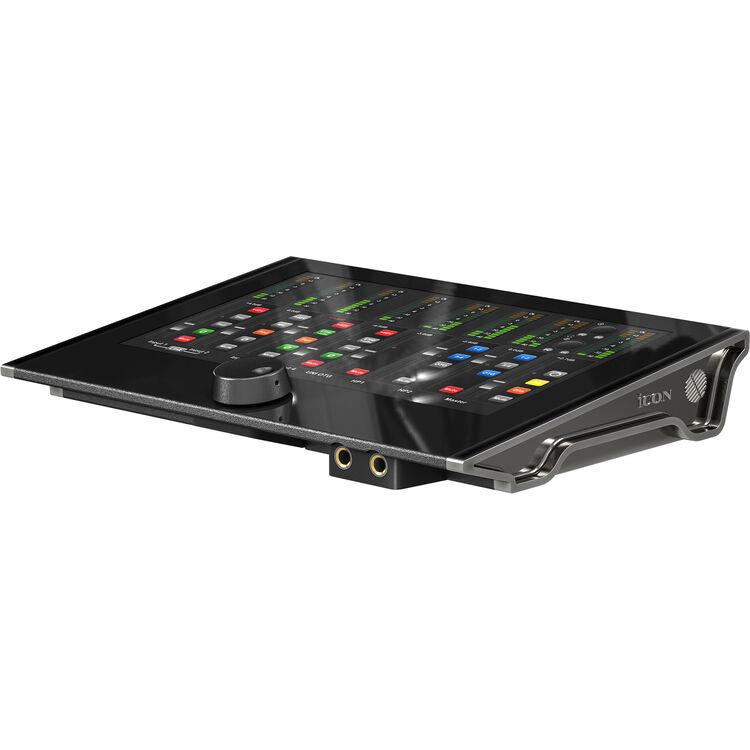

Designed for serious audio production in studio, live streaming, and live performance applications, the Icon Pro Audio Touch 8 is a compact 12x12 audio interface with a 10" color multitouch display for seamless and intuitive control. With four XLR-1/4" combo inputs that each sport phantom power and up to 75 dB of gain, the Touch 8 can handle a range of audio setups.

The touchscreen offers virtual faders, buttons, 15-segment meters, and much more on its vibrant display, making operation a breeze. You can engage a -20 dB pad, flip polarity of individual channels, and switch between two different sets of speakers. The Touch 8 also features a large precision encoder knob for fine control. I/O includes 1/4" stereo outputs, two headphone outputs, BNC word clock I/O (ideal for syncing with video), and optical ADAT I/O ports for providing an additional eight channels of digital audio I/O at up to 24-bit / 192 kHz. The unit also includes two USB-C ports, one for OTG connections with Android and iOS devices, and one for host connections with Windows and macOS computers. The Touch 8 includes an AC power adapter and a USB-C cable.

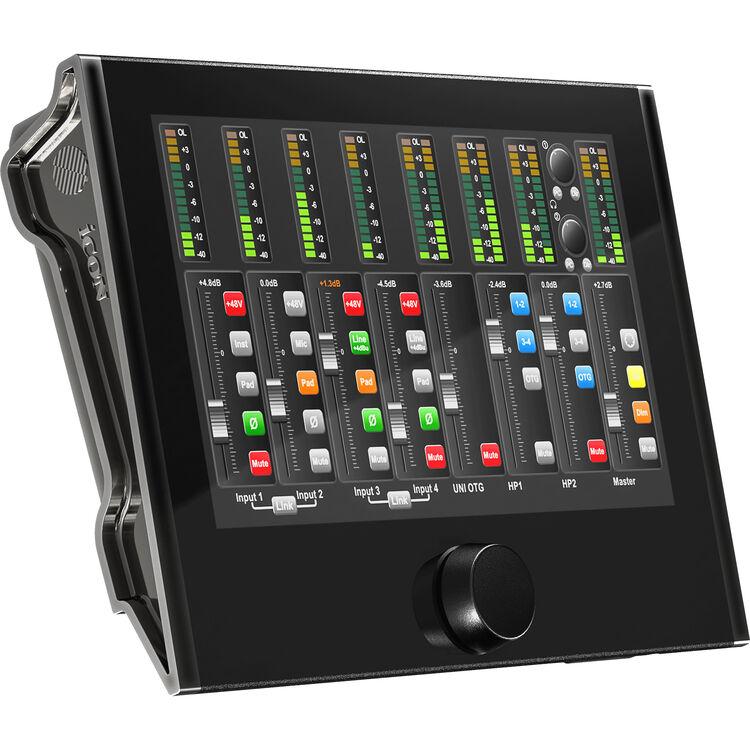

Clear, Responsive Touchscreen

The Touch 8 is equipped with a 10" capacitive multitouch LCD screen, designed for optimal viewing from any angle. The highly responsive virtual faders glide smoothly with a simple touch, while the buttons activate effortlessly with light pressure. The interface includes vibrant 15-segment metering, along with essential controls like a -20 dB pad, +48V phantom power, and polarity adjustment for each channel. The intuitive layout also features precise dB level readouts and direct monitoring controls, all presented in a sleek and ergonomic design.

Exceptional Sonic Clarity and Power

Equipped with high-end preamps delivering an impressive 75 dB of gain, the Touch 8 doesn’t compromise on audio quality. This interface features digital-to-analog and analog-to-digital converters that match or exceed the performance of premium competitors. With 128 dB analog-to-digital conversion, the Touch 8 offers a stellar 130 dB D/A conversion, ensuring expansive, crystal-clear sound in every session.

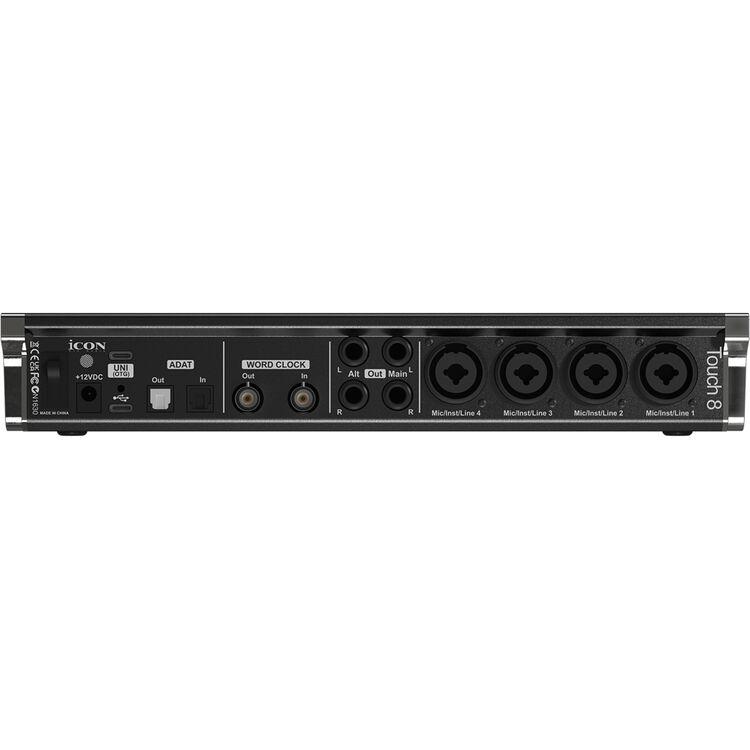

Flexible Connectivity

The Touch 8 is equipped with:

Four Neutrik XLR-1/4" combo input jacks for mic/line/Hi-Z instrument inputs
Four 1/4" outputs (two stereo pairs for switching between speaker systems)
Two 1/4" stereo headphone outputs on the front panel
Optical ADAT input and output for adding up to eight additional channels at up to 192 kHz

Seamless Software/Hardware Integration

The iO Pro software works flawlessly with the Touch 8, providing seamless control over every aspect of your setup. With just a click, users can access the monitoring panel to manage headphone levels, master outputs, direct monitoring, and OTG inputs. These controls are also easily accessible directly on the device's touchscreen for added convenience. Users can simultaneously connect to the iO Pro software to apply host-based plugins like reverb, compressors, and delays during live streaming or performances.

Effortless Live Streaming with Pristine Audio Quality

The UNI OTG connector port on the Touch 8 allows direct connection to internet streaming services on your mobile device, making it perfect for producers, engineers, or artists who broadcast to social media. With specially developed coding and dual ARM M7 500 MHz chips, this interface provides a stable streaming environment while delivering impeccable audio quality, ensuring your broadcast sounds flawless every time.

Powerful Software Bundle

Unlock your full creative potential with the cutting-edge software suite bundled with the Touch 8. This impressive collection includes:

iZotope VEA (Voice Enhancement Assistant): AI-driven audio enhancer for flawless voice recordings.
Harrison AVA Live: real-time, ultralow-latency channel strip for precise audio processing.
Harrison VIP (Vocal Intensity Processor): boost vocal presence and clarity for standout performances.
Bitwig 8-Track Studio DAW: a versatile digital audio workstation for all your production needs.
Tracktion DAW Essentials: must-have tools and plugins for flexible audio editing and mixing.
Kilohearts Toolbox: a suite of creative sound design plugins.
Dotec Audio Plugins: high-quality effects and processors to enhance your sound.

General

Display	10" Color LCD Touchscreen (Backlit)
Channels of I/O	12 Inputs / 12 Outputs
Built-In DSP	Yes
Maximum Sampling Rate	192 kHz / 24-Bit
Number of Microphone Inputs	4
Built-In Microphone	No
Input Level Adjustment	8x Fader

Signal Processing

Pad

-20 dB

Connectivity

Analog Audio I/O	4x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 4x 1/4" TRS Balanced Line Output 2x 1/4" TRS Headphone Output
Phantom Power	48 V
Digital Audio I/O	1x TOSLINK Optical ADAT Input 1x TOSLINK Optical ADAT Output
Host Connection	1x USB-C (Class-/USB OTG-Compliant)
Host Connection Protocol	Not Specified by Manufacturer
USB (Non-Host)	1x USB-C (Device Charging, Power Input)
Sync I/O	1x BNC Word Clock Input 1x BNC Word Clock Output
Network I/O	No
MIDI I/O	No
Expansion Slots	No
Wireless	No

Performance

Frequency Response	20 Hz to 20 kHz ±0.1 dB
Maximum Input Level	Combo XLR-1/4" Mic/Hi-Z: 18 dBu (Unity Gain, -20 dB Pad Engaged) Combo XLR-1/4" Line: +24 dBu
Maximum Output Level	1/4" Line: +24 dBu 1/4" Headphone: +21 dBu (No Load) +21 dBu (600 Ohms / 11.4 Vrms) +20 dBu (100 Ohms / 10 Vrms) +14.6 dBu (32 Ohms / 5.4 Vrms) +8.6 dBu (16 Ohms / 2.7 Vrms)
Impedance	Combo XLR-1/4" Mic Inputs: 150 to 2 Kilohms (Balanced) Combo XLR-1/4" Line Inputs: 20 Kilohms Combo XLR-1/4" Hi-Z Inputs: 1 Megohm
Dynamic Range	A/D Converters: 125 dBA D/A Converters: 130 dBA
SNR	A/D Converters: -125 dBA D/A Converters: -130 dBA
THD+N	A/D Converters: -117 dB (-1 dBFS) D/A Converters: -120 dB (-1 dBFS)
