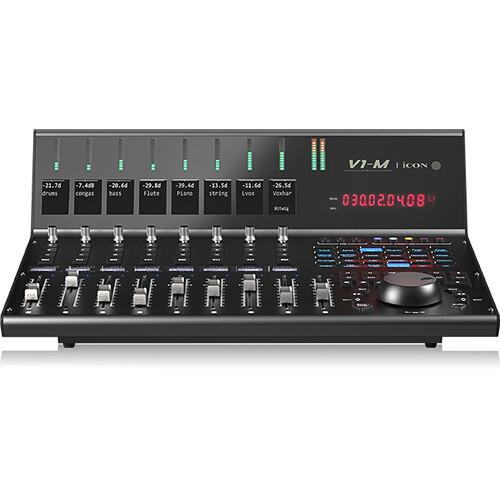

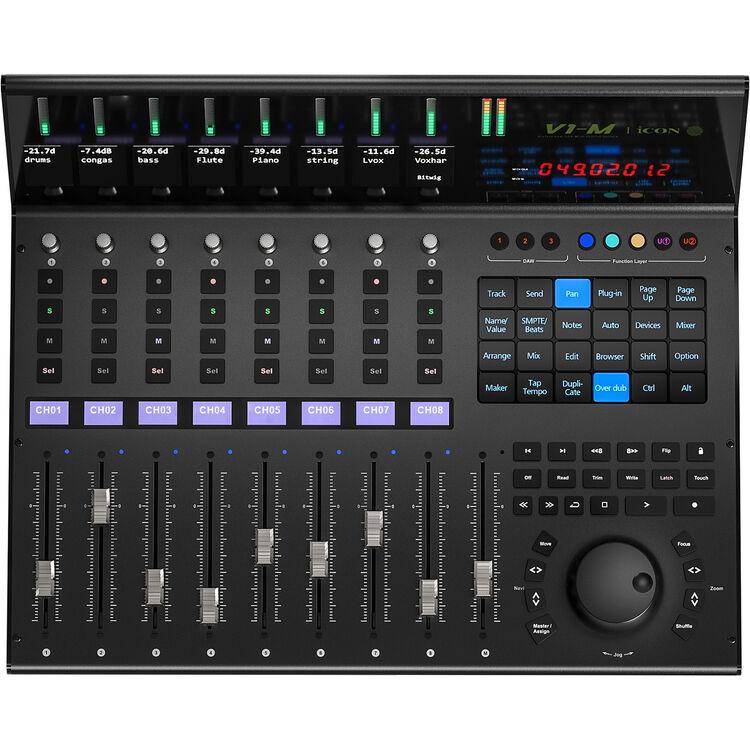

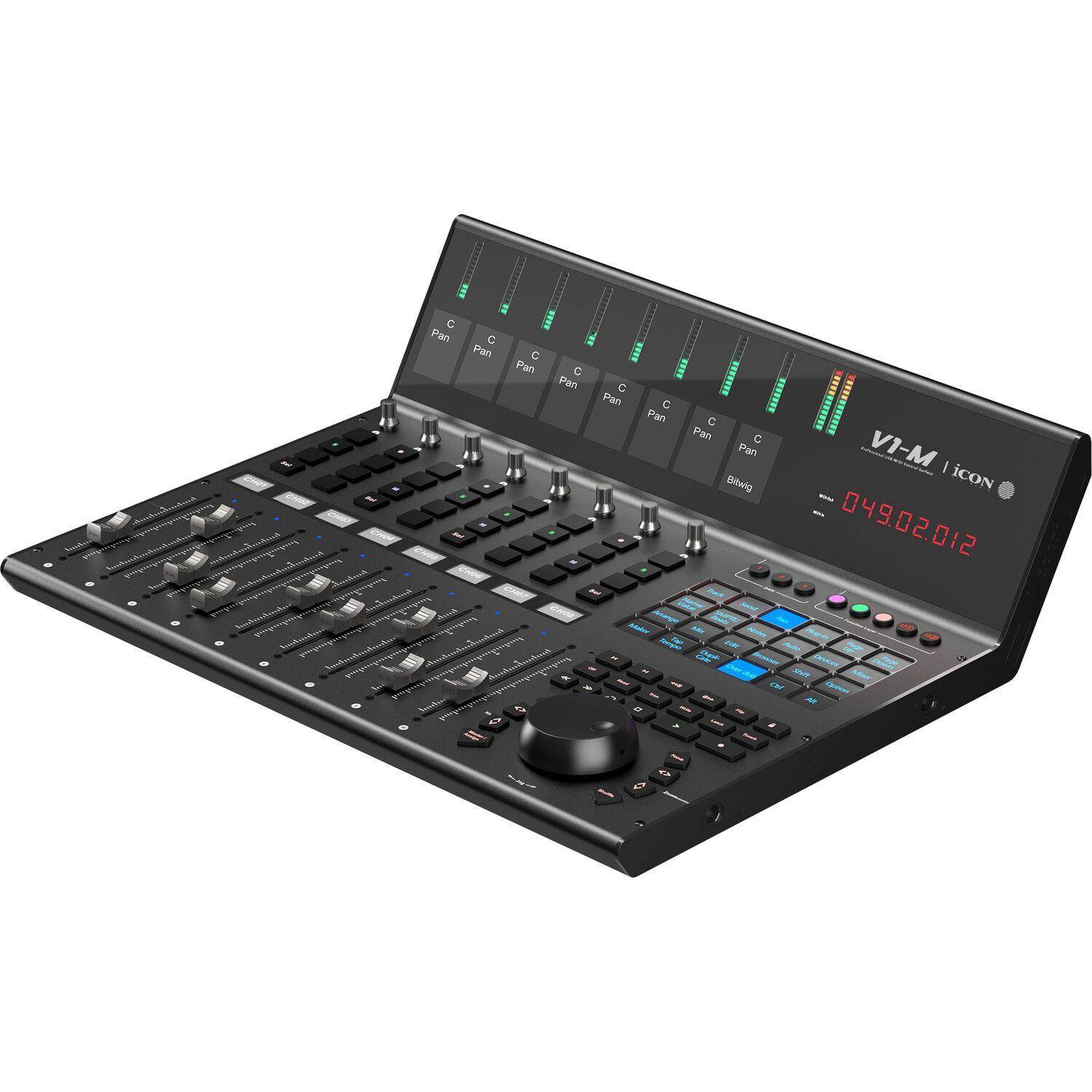

Icon Pro Audio V1-M DAW Control Surface

Name: Icon Pro Audio V1-M DAW Control Surface
Brand: ICON
SKU: SF-2443-JNMG
Availability: InStock

Brand: ICON

MFR: V1M

SKU: SF-2443-JNMG

Price Available Upon Request

Nine Touch-Sensitive Motorized Faders
100mm Faders with 12-Bit Resolution
Five-Layer Commands, Hi-Res Jog Wheel
7" 24-Panel TFT Touchscreen
Meter Bridge and TFT Display
LED for Time/SMPTE
Transport Controls, Eight Encoder Knobs
Drag-and-Drop DAW Functions to Buttons
120 Displayable and Actionable Functions
Expandable via V1-X DAW Control Expander

Items Included

Icon Pro Audio V1-M DAW Control Surface
USB-C Cable
Power Adapter

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Studio Recording

Well suited for a wide range of professional and project studios, the Icon V1-M is a powerful and feature-rich DAW controller with a large 7" 24-panel, programmable digital touchscreen, nine 100mm motorized faders, eight dual-function encoder knobs, a beautifully designed meter bridge, highly advanced software, easy plug-in control and an intuitive, intelligent design. In addition to providing a hands-on, console-style mixing experience, the V1-M allows you to connect up to three DAWs at the same time and assign up to 120 functions per DAW (360 in total) to the color-coded touchscreen, greatly speeding up your workflow by putting commonly used functions at your fingertips.

A Powerful DAW Controller

Hands-on control: the V1-M has eight channels of motorized faders, which can be expanded up to 64 channels (depending on your DAW) with the addition of optional V1-X DAW Control Expanders. This gives you plenty of control over your mix, even if you’re working on a complex project.
Customizable touchscreen: the V1-M has a large, customizable touchscreen display with five color-coded layers of commands that can be used to control your DAW and match your specific workflow. This makes it easy to quickly access the controls you need, without having to take your eyes off the mix.
TFT display and meter bridge: the large TFT display and meter bridge show the current levels, pan positions, and other information. This makes it easy to see what’s going on with your mix, even if you’re not looking at the computer monitor.
Integration with popular DAWs: the V1-M is compatible with a wide range of popular DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools. Additionally, you can run up to three DAWs at one time with no interruption to your workflow.

Recording and Mixing

The V1-M's motorized faders and touchscreen display make it easy to navigate through large sessions. You can quickly zoom in and out of the session, and you can easily see the levels and pan positions of your tracks with the large TFT screen and meter bridge. This allows you to use your ears for recording and mixing, not your mouse.

Content Creation

You can use the faders, knobs, buttons, and touchscreen to adjust the levels, pan positions, and other parameters of your tracks. Customizable control means you can put your most used commands right where you want them, helping you create engaging content quickly and efficiently.

Music Production

The V1-M can help you to stay creative. The touchscreen display and motorized faders give you a tactile experience that can help you to feel more connected to your music. The V1-M's customizable controls also allow you to set up your controller the way that works best for you.

Expandable for Large Mixes, Postproduction, and Sound Design

Expand your V1-M to 16, 32, or even 64 channels—depending on your DAW—with the V1-X DAW Control Expander. This can be especially helpful when you're working on a complex project with a lot of dialog tracks or Foley sounds, or if you're designing lush soundscapes or creating new worlds.

Each V1-X houses eight touch-sensitive motorized channel faders with 12-bit resolution, eight dual-function encoder knobs, mute, solo, select, and record buttons, plus an TFT display showing channel names and different control parameters for each channel. It also includes LED level meter bridge in a robust metal casing and a second LCD display. (Expandability is totally dependent on your Digital Audio Workstation. Please consult your DAW's manual to determine how many extenders your DAW allows.)

At a Glance

Nine touch-sensitive, motorized faders with 12-bit resolution
Large, programmable 7", 24-panel digital touchscreen display showing DAW functions per five color modes—a potential total of 120 displayable and actionable functions
Organize DAW functions in the 24-panel touchscreen easily via drag and drop in the iMAP—changes made in real time
Capability of connecting to three DAWs at one time via the DAW select buttons
Extremely durable and versatile
Onboard 2" TFT display, showing channel name, control values, channel colors, etc. (DAW dependent)
Attractive, modern meter bridge, featuring precise, clear, and eye-catching LED meters
Additional lower 1.14" TFT display for each channel (some DAWs are equipped to display additional information on this screen)
Extremely high-quality, large optical encoder jog wheel with very precise, smooth control, for fast search, scrub, etc.
Eight smooth-action, dual-function encoder knobs (Rotate and Enter)
Two-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats
Illuminated function buttons for Read, Write, Touch, Latch, Trim, and Off—activated/deactivated as required per DAW
Illuminated buttons for channel control, including Mute, Solo, and Record
Six illuminated transport buttons including Play, Stop, Record, Rewind, Fast Forward, and Loop
Dedicated Master/Assign button, for quick switching the master fader from the master channel to a pre-designated track
Illuminated Zoom button with 2-D directional keys (Left/Right and Up/Down), also used in combination with the jog wheel
Illuminated Focus button, which allows the user to focus in and adjust plug-in, EQ parameters, and more via the smooth-action jog wheel
Two illuminated Track buttons, for selecting individual channels
Two illuminated Bank buttons, for shifting eight channels at a time
Supports Universal Mackie Control and HUI protocols, for seamless integration with compatible music production software
Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One, and Tracktion Waveform
iMap software downloadable from the product page
USB-C high-speed connectivity
Firmware upgrade available via USB-C connection and iMap software

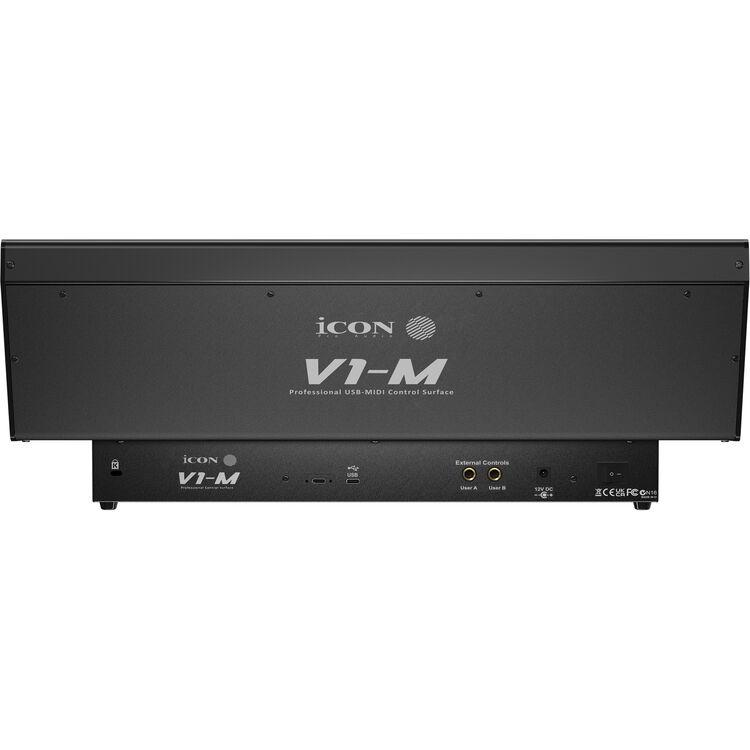

User A and User B 1/4" inputs, for connecting footswitch pedals
Class-compliant with MacOS 10.15 or above and Windows 10 or above
Superior build quality and robust metal casing with Kensington lock port
