Icon Pro Audio V1-X DAW Control Expander for V1-M
Icon Pro Audio V1-X DAW Control Expander for V1-M
Icon Pro Audio V1-X DAW Control Expander for V1-M
Icon Pro Audio V1-X DAW Control Expander for V1-M
Icon Pro Audio V1-X DAW Control Expander for V1-M
Icon Pro Audio V1-X DAW Control Expander for V1-M
Icon Pro Audio V1-X DAW Control Expander for V1-M
Icon Pro Audio V1-X DAW Control Expander for V1-M

Icon Pro Audio V1-X DAW Control Expander for V1-M

Brand: ICON

MFR: V1X

SKU: SF-2443-WJSJ

Price Available Upon Request
  • 8-Channel Expander for V1-M Controller
  • Additional Tactile Control over DAW
  • Eight Touch-Sensitive Motorized Faders
  • 100mm Faders with 12-Bit Resolution
  • Eight Dual-Function Encoder Knobs
  • 2" TFT Display, LED Level-Meter Bridge
  • 1.14" TFT Display for Each Channel
  • iMAP Mapping Software
  • USB-C Port for Mac/Windows

Items Included

  • Icon Pro Audio V1-X DAW Control Expander for V1-M
  • USB-C Cable
  • AC Power Adapter with Plug
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Studio Recording

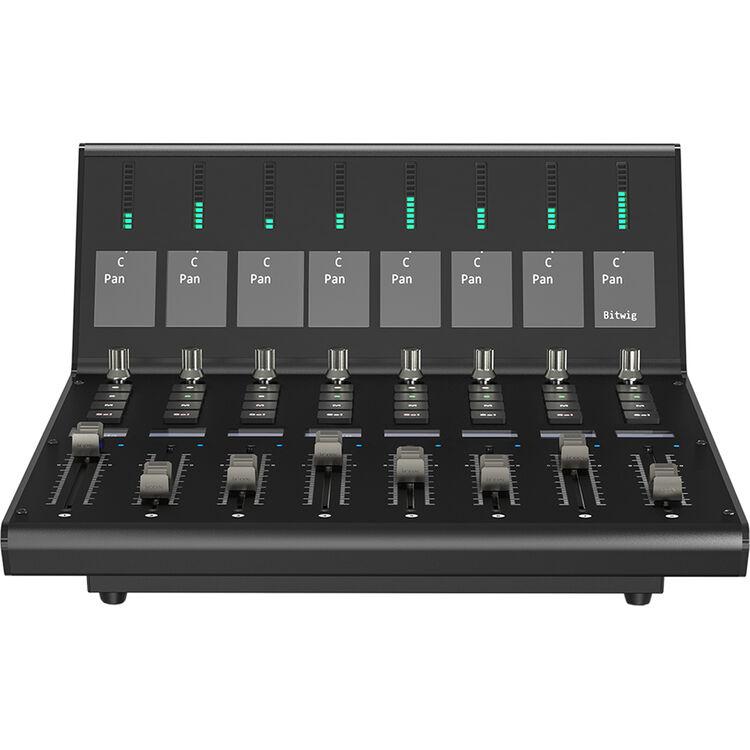

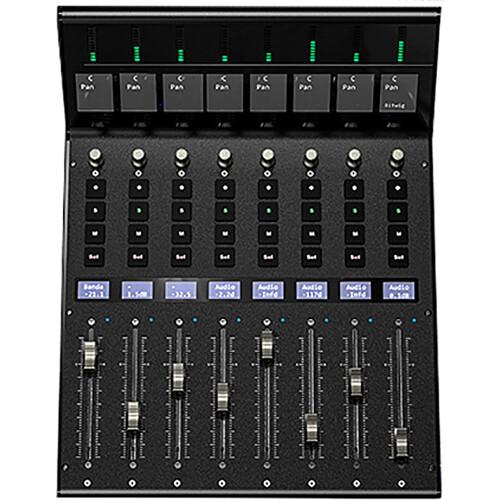

Add additional tactile channel control to your V1-M DAW control surface with the V1-X DAW Control Expander from Icon. This 8-channel extender module provides an additional eight 100mm faders and eight encoder knobs, providing hands-on access to additional channels quickly and easily without having to change banks as often. Visual feedback is provided via several displays: a 2" TFT screen shows main channel information, the LED meter bridge displays levels, and a 1.14" screen for each channel shows additional DAW-dependent information.

8 Channels of Additional Control for Your V1-M System

  • Incorporate the V1-X DAW Control Expander to unlock unparalleled potential for your V1-M. Each V1-X module boasts eight touch-sensitive motorized channel faders with 12-bit resolution, complemented by eight dual-function encoder knobs, and essential mute, solo, select, and record buttons.
  • The 2" TFT display shows you channel information, including names, pan positions, and various control parameters for each channel, while the meter bridge shows you levels at a glance.
  • A lower 1.14" TFT display shows additional information, depending on your DAW's capabilities.
  • As with the V1-M, the V1-X features the super-stable Cortex-M7 at 500 MHz ARM chip to help ensure reliability and durability along with ground breaking functionality for many years to come.

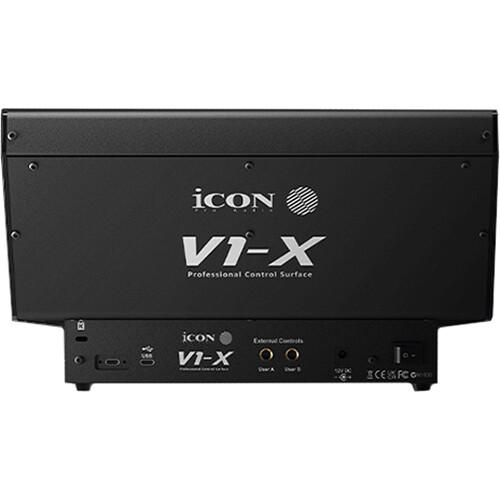

  • The unit connects to your Mac/Windows computer via USB-C; a USB-C cable and power adapter are included.
  • Please remember that the expandability of the V1-X relies on your Digital Audio Workstation’s capabilities. Refer to your DAW’s manual to determine the number of extenders supported. Elevate your audio prowess with the V1-X DAW Control Expander, and unleash an entirely new level of control in your music production journey.
At a Glance
  • Functions as an extender for the Icon Pro Audio V1-M MIDI DAW controller
  • 8 touch-sensitive, 100mm motorized faders with 12-bit resolution
  • Extremely hardwearing, durable, and versatile
  • Onboard 2" TFT display showing channel name, control values, and channel colors (DAW dependent)
  • Attractive, modern meter bridge featuring precise, clear, and eye-catching LED meters
  • Additional, lower 1.14" TFT display for each channel (some DAW’s are equipped to display additional information)
  • 8 smooth-action, dual-function encoder knobs (Rotate and Enter)
  • Illuminated buttons for channel control including Mute, Solo, and Record
  • Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
  • Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One, and Tracktion Waveform
  • iMap software downloadable from product page on website
  • USB-C high-speed connectivity
  • Firmware upgrade available via USB-C connection and iMap software
  • Superior build quality and robust metal casing with Kensington lock port
  • Superb reliability with Cortex-M7 500 MHz ARM chip

General
Compatibility
Icon V1-M
Display
Panel Type
TFT LCD
Display Size
2"
Touchscreen
No
Inputs/Outputs
USB I/O
1 x USB-C Female Input/Output
Wireless
Mobile App Compatible
No
Power
Power Source
AC Adapter with Power Brick (Included)
DC Input Power
12 VDC at 2.5 A
Operating Current
2 A (Maximum)
Physical
Color
Black
Dimensions
15.1 x 12.2 x 7" / 384.5 x 309 x 178 mm
Weight
7.98 lb / 3.62 kg
Packaging Info
Package Weight
11.9 lb
Box Dimensions (LxWxH)
20.5 x 18.2 x 10.9"
