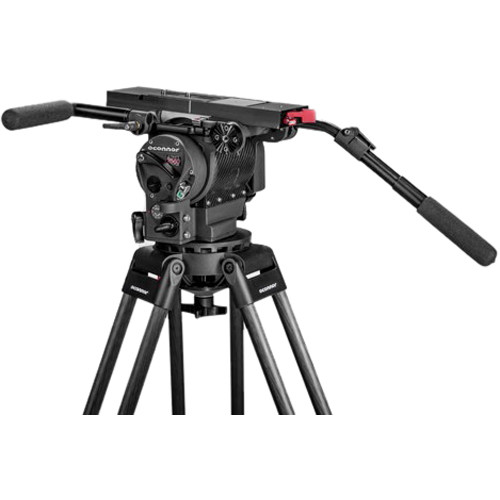

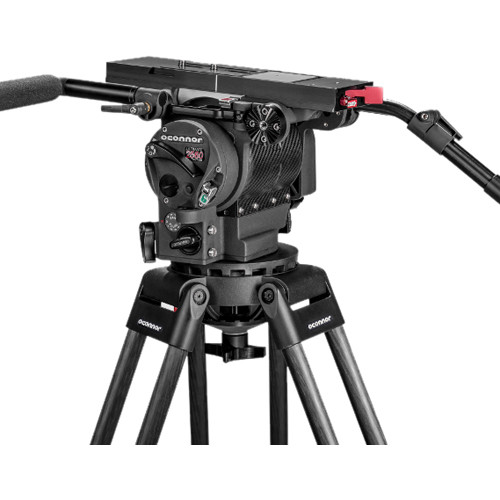

OConnor Ultimate 2560 Fluid Head Package
OConnor Ultimate 2560 Fluid Head Package
OConnor Ultimate 2560 Fluid Head Package
OConnor Ultimate 2560 Fluid Head Package

OConnor Ultimate 2560 Fluid Head Package

Brand: OCONNOR

MFR: C1260-0001

Price Available Upon Request
  • Playload: 66 lb at 6" Center of Gravity
  • Mitchell Base & Tiedown
  • 150mm Ball Base Adapter & Tiedown
  • Sinusoidal Counterbalance System
  • Stepless Pan & Tilt Fluid Drag
  • Euro-Style Quick Release
  • Pan Handle & Pan Handle Extension
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Video Tripod Heads , Video Tripod Heads

The Ultimate 2560 Fluid Head Package from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 18 pounds, 2560 is capable of supporting camera payloads up to 66 pounds at a 6" center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.

Crafted for cine-style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor's patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the step-less, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.

Key Features

  • Supports up to 66 pounds at 6" center of gravity above the platform
  • Magnesium frame and carbon fiber cover keeps weight under 18 lb
  • Cinema standard positioning of controls, including brakes and rosettes
  • Sinusoidal counterbalance system
  • Stepless pan and tilt fluid drag
  • Mitchell base and 150mm ball base adapter with tiedowns
  • Euro-style quick release
  • Pan handle with pan handle extension

Camera Plate

Camera Plate FeaturesSliding Balance Plate
Camera Plate TypeOConnor 2575-120

Head

Base Mount150 mm Half Ball
Mitchell Flat Base
Counter BalanceContinuous

Pan & Tilt

Drag Control9-Step
Vertical Tilt+90° to -90°

General

Load Capacity83 lb / 37.7 kg at CoG 4" / 10.2 cm
65 lb / 29.5 kg at CoG 6" / 15.2 cm
53 lb / 24.1 kg at CoG 8" / 20.3 cm
Weight16.2 lb / 7.3 kg

Packaging Info

Package Weight36 lb
Box Dimensions (LxWxH)16.6 x 15.9 x 15.9"
