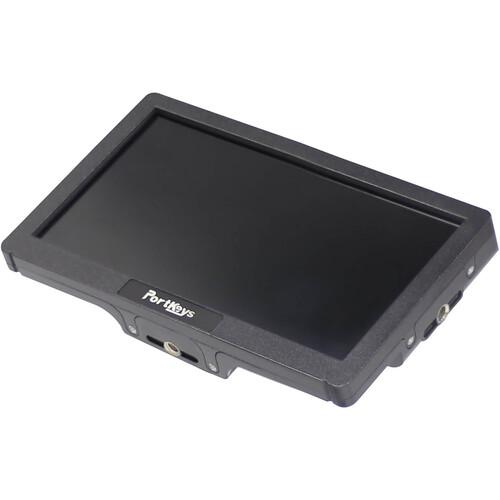

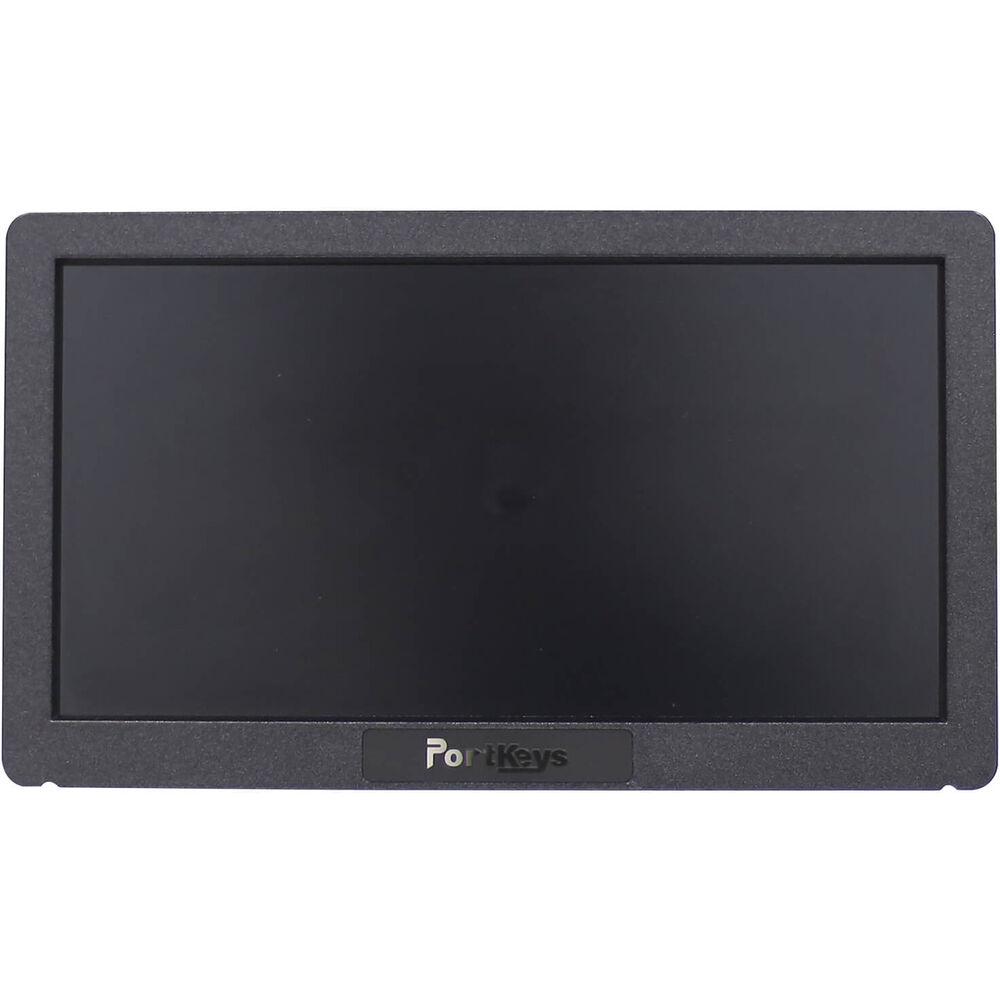

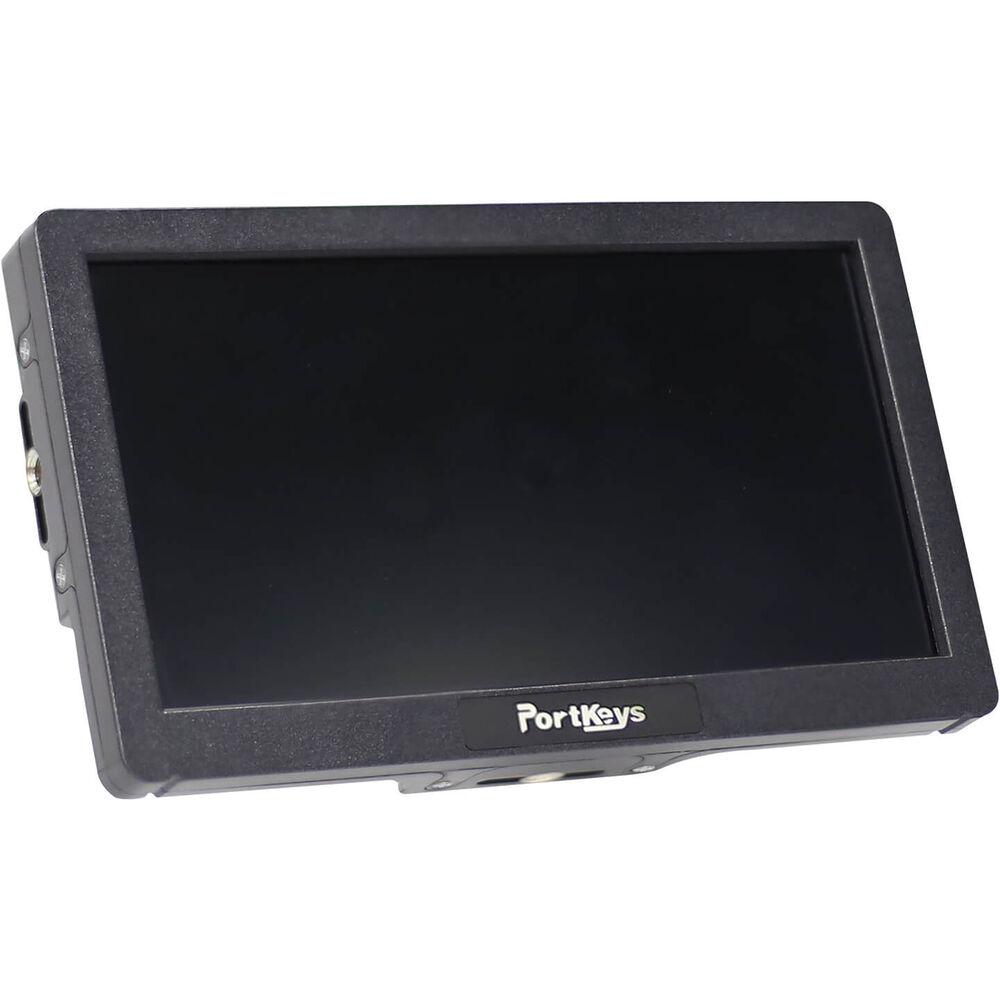

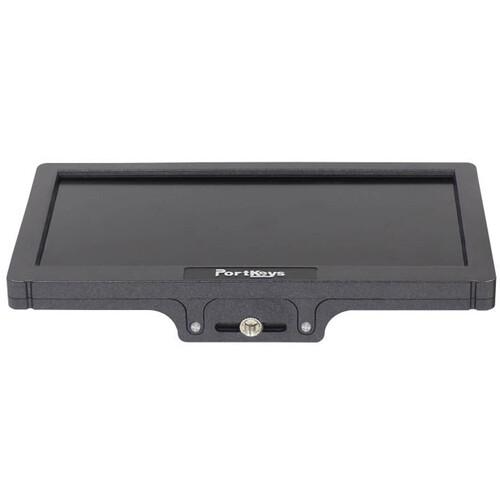

The HD7H 7" High-Bright HDMI Monitor from PORTKEYS enables you to view up to DCI 4K24 or UHD 4K30 video even in bright locations. This 1280 x 720 LCD panel features one HDMI input and one AV input, a 16:9 aspect ratio, a 1000:1 contrast ratio, and a 1000 cd/m² brightness for easy viewing outdoors as well as inside. The LCD provides a 178° viewing angle, enabling you to see an image without being directly in front of the monitor.

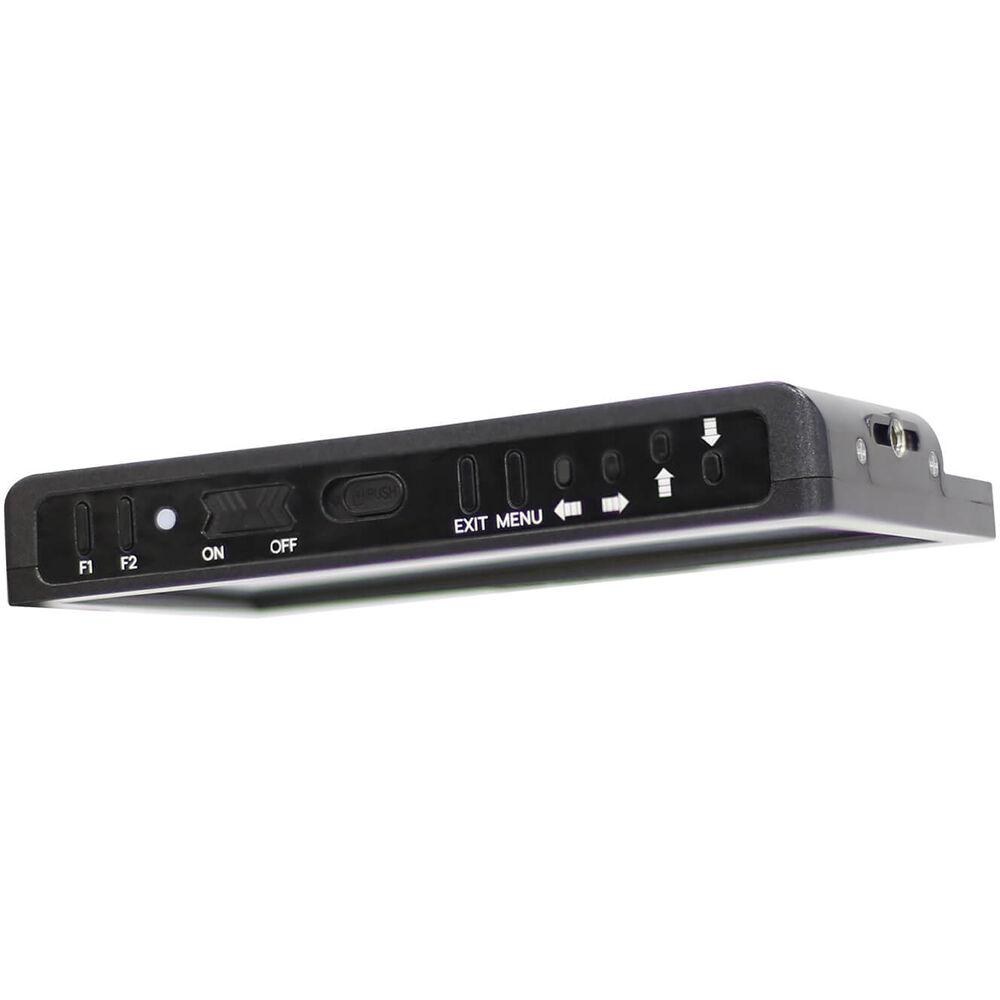

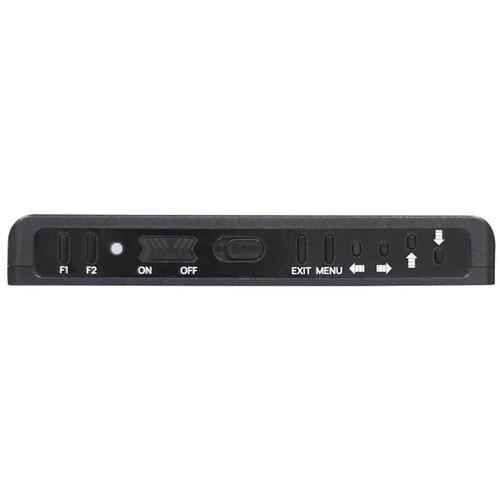

Power this monitor using the one Sony L-series-type battery or a separately available power supply. Control buttons are located on top of the monitor with a built-in speaker and a headphone output providing audio monitoring. The HD7H monitor features a variety of image-evaluating tools, including a histogram, false color, exposure, focus peaking, anamorphic de-squeezing, and frame markers.
Panel Type | LCD |
Display Size | 7.0" / 17.8 cm |
Native Resolution | 1280 x 720 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 178° Vertical: 178° |
Touchscreen | No |
Maximum Brightness | 1000 nits / cd/m2 |
Contrast Ratio | 1000:1 |
Color Support | 16.7 Million Colors (8-Bit) |
HDR Support | No |
Color Gamut | 75% Rec. 709 |
LUT Support | No |
Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, OSD Flip, Screen Markers, Zebra |

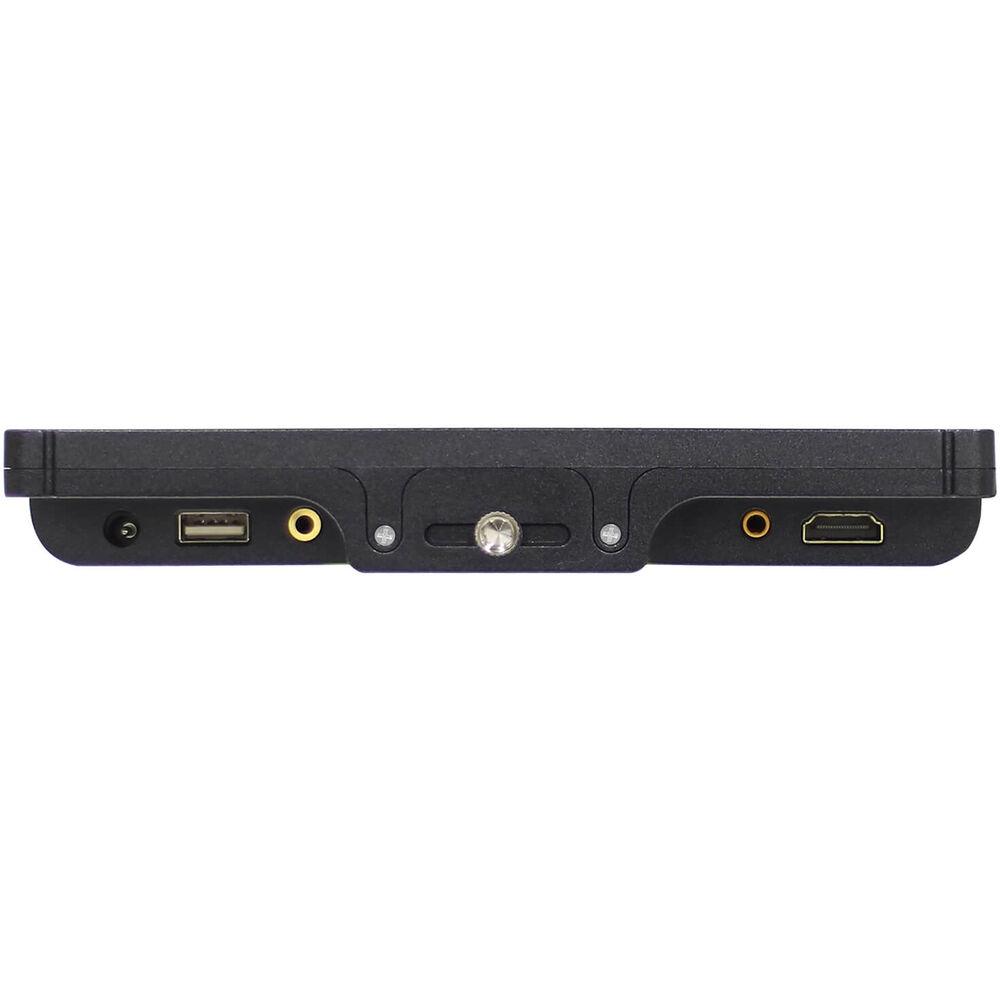

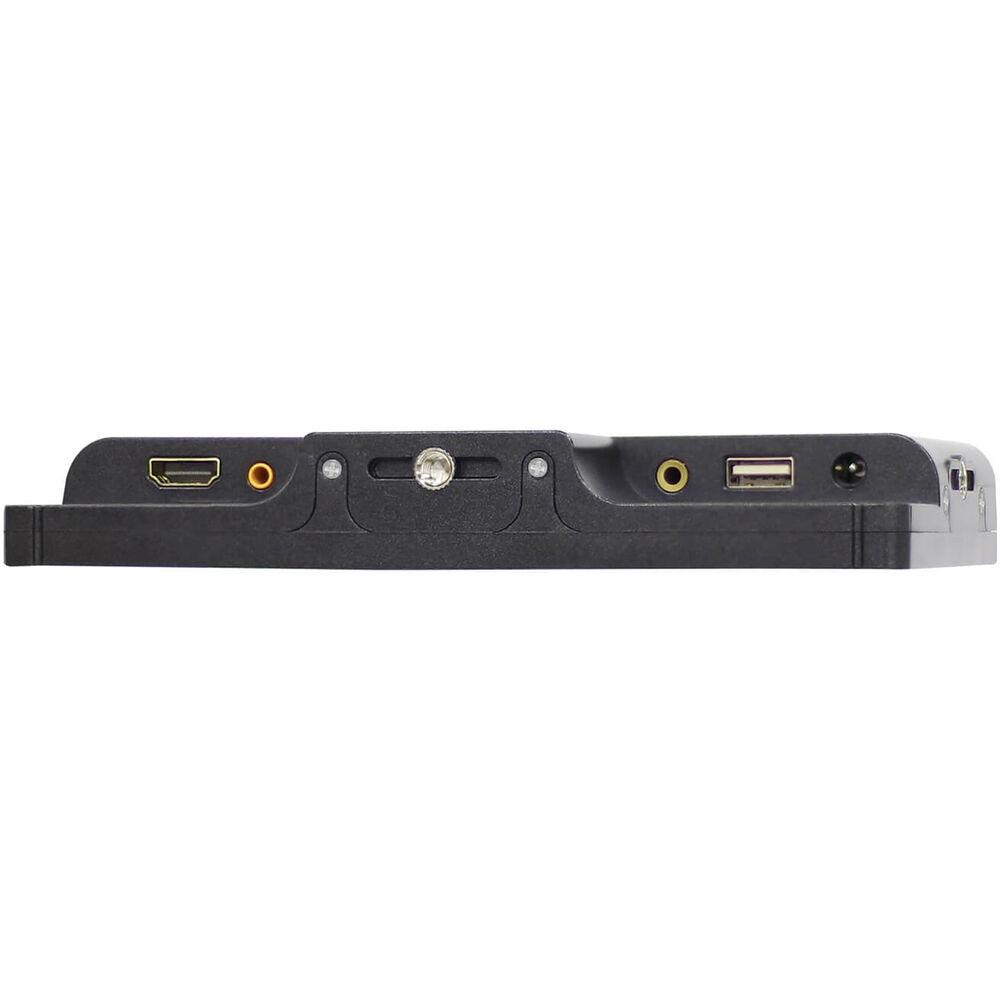

Video I/O | 1 x HDMI (Unspecified Signal) Input 1 x 1/8" / 3.5 mm TRRS A/V Input |
Embedded Audio | HDMI |
Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | Mono |
Other I/O | 1x USB-A |
Media/Memory Card Slot | No |
Wi-Fi | No |
Bluetooth | No |
Mobile App Compatible | No |
Video Format | HDMI DCI 4K: 24 UHD 4K: 30 |
Input Power | 7 to 24 VDC |

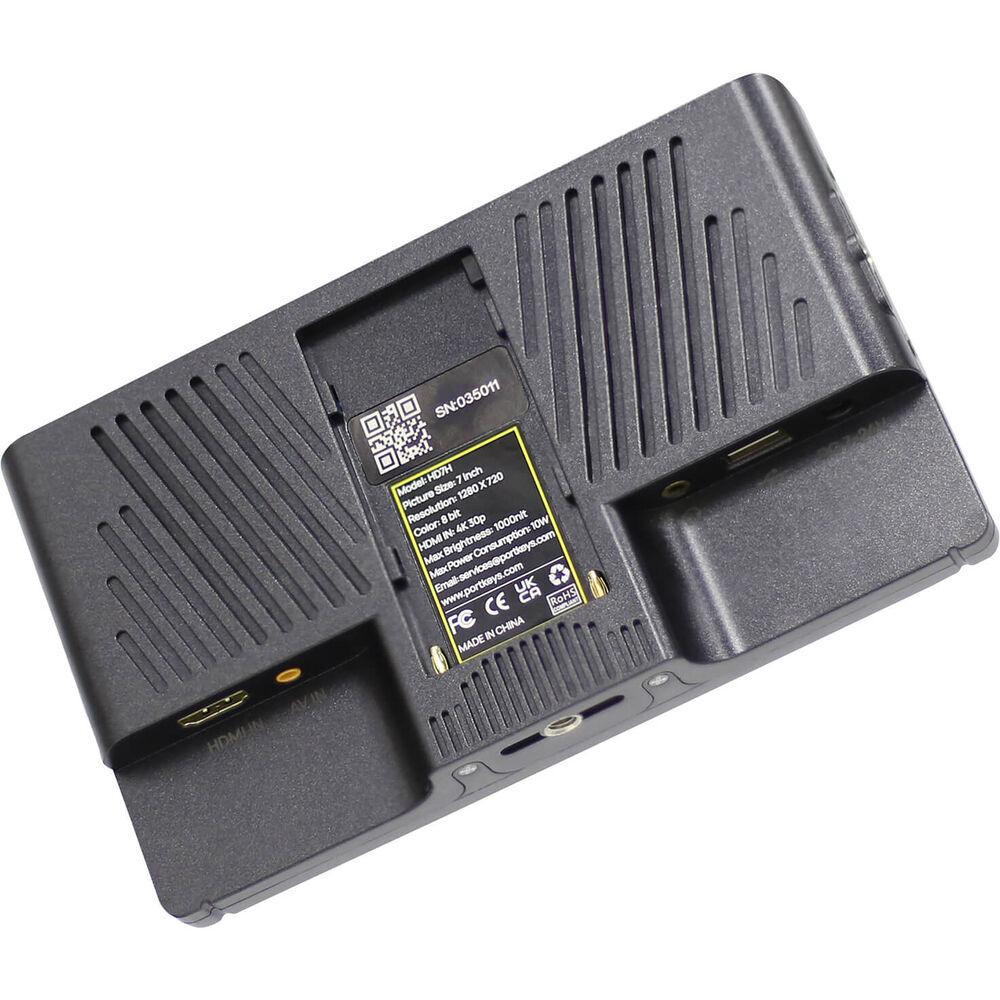

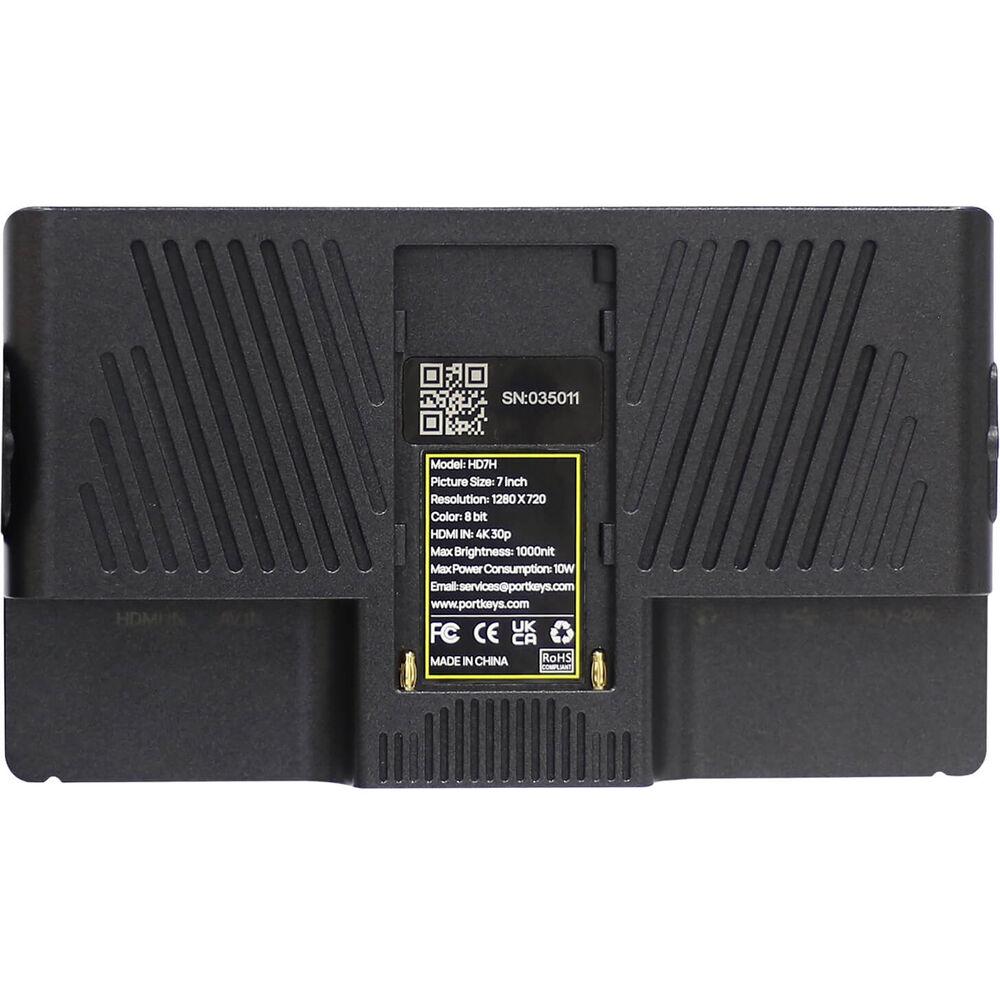

Battery | 1x L-Series Mount on Fixed Plate |
Power Consumption | 10 W |

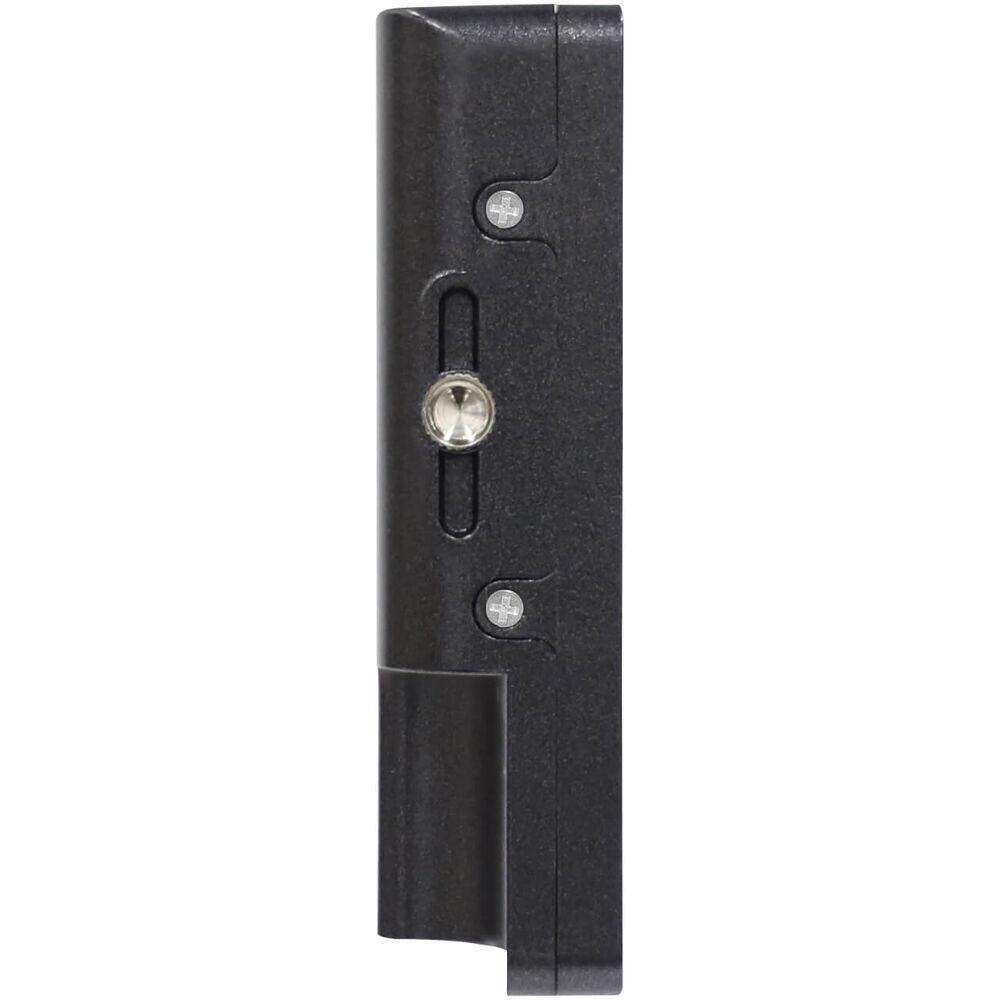

Tripod/Accessory Mounting | 1x 1/4"-20 Female |
Material of Construction | Aluminum |
Dimensions | 7 x 4.1 x 1" / 178 x 104 x 25.8 mm |
Weight | 9.81 oz / 278.00 g |
Package Weight | 1.37 lb |
Box Dimensions (LxWxH) | 8.3 x 7.9 x 1.8" |
