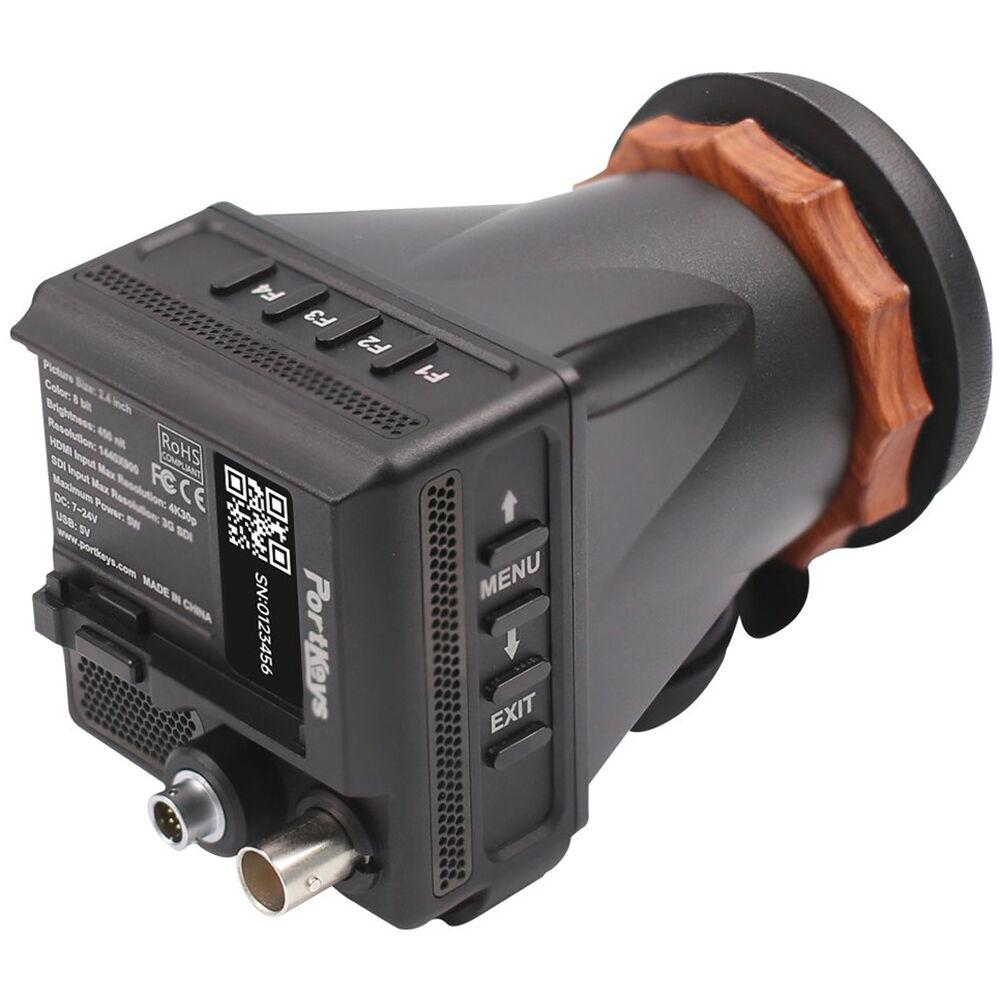

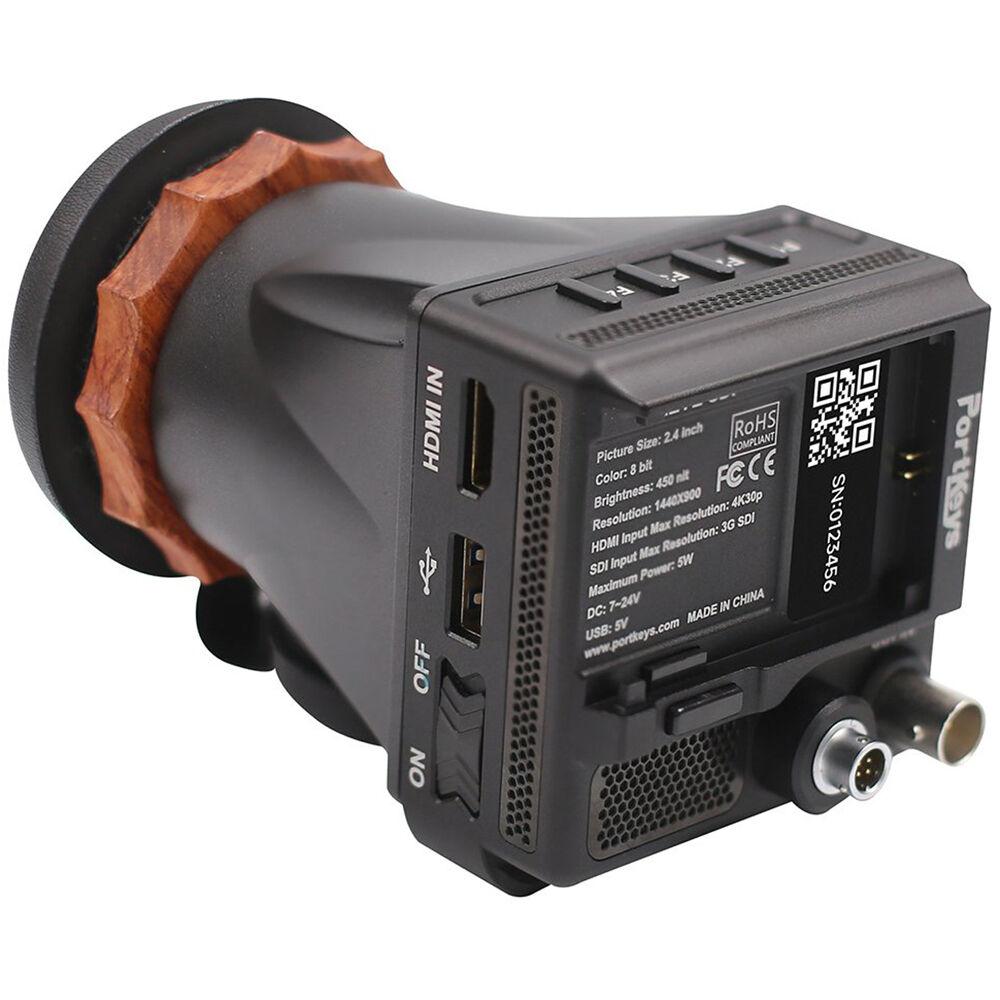

PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder

PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder

Brand: PORTKEYS

MFR: LEYE-SDI

SKU: SF-2443-9YKP

1,654.00 ﾹ

  • EVF with 1440 x 900 Resolution
  • Supports UHD 4K via HDMI, 1080p via BNC
  • 2.4" LCD Screen, 8-Bit Color
  • 450cd/m² Brightness, 1100:1 Contrast
  • -3 to +8 Diopter Adjustment
  • Rosette, NATO Rail, 3 x 1/4"-20 Threads
  • 3D LUT Support via USB-A
  • Canon LP-E6 Battery Plate
  • Various Video Assist Functions
  • Round Sponge Eye Mask

Items Included

  • PORTKEYS LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder
  • USB Stick
  • D-Tap to 4-Pin Power Cable
  • Round Eye Cushion
  • HDMI Adapter
  • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: Viewfinders

The LEYE 3G-SDI & HDMI 2.4" LCD Electronic Viewfinder from PORTKEYS expands upon the capabilities of the previous model by adding a 3G-SDI input and an integrated LP-E6 battery plate to the interface. The 3G-SDI input supports up to 1080p video, while the HDMI input supports up to UHD 4K. This viewfinder features a 2.4" LCD screen with 1440 x 900 resolution, 450 cd/m² brightness, and 1100:1 contrast for viewing images clearly in bright conditions. A round sponge eye mask further ensures viewability by preventing direct sunlight from burning the LCD screen.

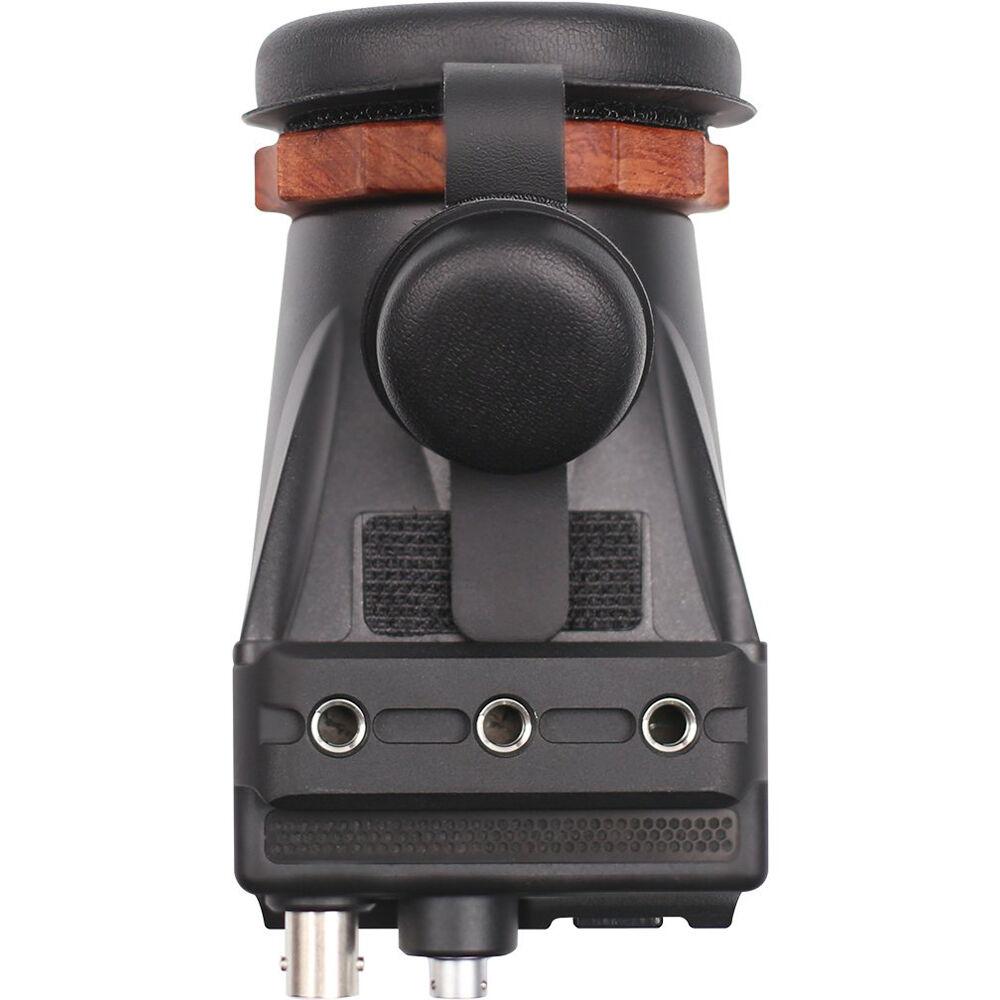

Several mounting options are integrated into the viewfinder for attachment to your camera rig configuration: a rosette, three 1/4"-20 threads, and a NATO rail. Various video assist functions can be enabled to monitor the quality of your image, and a -3 to +8 diopter range allows you to adjust focus to comfortably suit your vision. Power for the device, when not provided with an LP-E6 compatible battery or power bank, can also be achieved with the self-locking 4-pin aviation connector input. You can upload custom 3D LUTs of your choice to the viewfinder or upgrade the firmware using the USB-A input.

Features at a Glance
  • Upload 3D LUTs and upgrade firmware via the USB-A input
  • Integrated Canon E6 battery plate for power via compatible battery or power bank
  • Four customizable function keys to make programming settings quick and efficient
  • Added passive heatsink vent for improved heat dissipation
  • Round sponge eye mask for barrier-free monitoring with or without glasses
Video Assist Functions
  • Anamorphic de-squeeze
  • Audio meters
  • Backlight
  • Brightness
  • Check field
  • Chroma
  • Color temperature
  • Contrast
  • Cross hair
  • Display flip
  • False colors
  • Grids
  • Guides
  • Histogram
  • H/V delay
  • Image flip/crop
  • Luma waveform
  • OSD flip
  • Peaking
  • Sharpness
  • Tint
  • Underscan
  • Zebra

Display
Panel Type
LCD
Display Size
2.4" / 6.1 cm
Screen Resolution
1440 x 900
Aspect Ratio
16:10
Viewing Angle
160°
Maximum Brightness
450 nits / cd/m2
Contrast Ratio
1100:1
Color Support
16.7 Million Colors (8-Bit)
Image Controls
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, R/G/B/Chroma Only, Underscan, Waveform, Zebra
Optics
Diopter Correction
-3.0 to +8.0

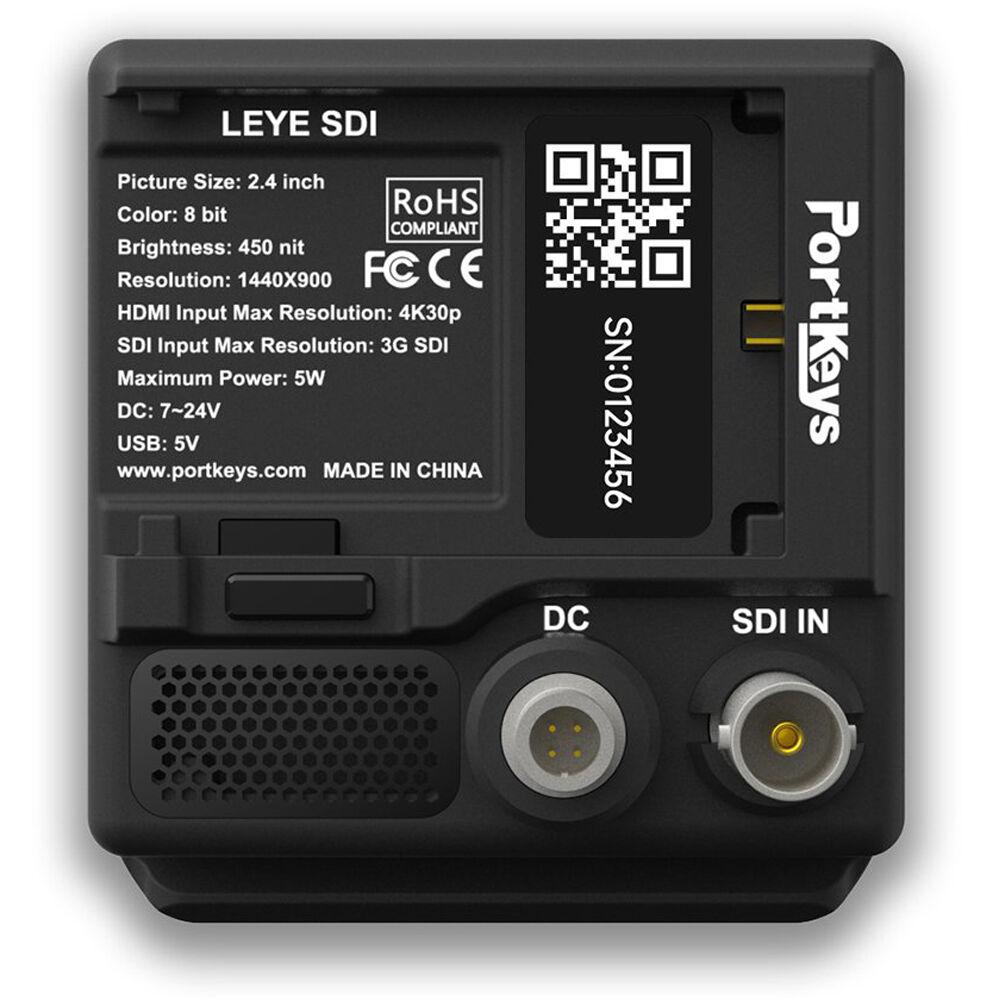

Inputs / Outputs
Inputs/Outputs
1x BNC (3G-SDI) Video Input
1x HDMI 1.4 Video Input
1x LEMO 4-Pin Power Input
1x USB-A Data Input
Video Format
SDI (8-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
480i: 59.94
576i: 50
HDMI (8-Bit)
UHD 4K: 30/25/24/23.98
DCI 4K: 24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 30/29.97/25/24/23.98
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50
Input Power
7 to 24 VDC
Battery Type
1x LP-E6
Power Consumption
5 W (Maximum)
General
Tripod/Accessory Mounting
Bottom
1x NATO Rail
3x 1/4"-20 Female
1x Rosette
Material of Construction
Aluminum, Plastic
Dimensions
4.9 x 3.1 x 2.8" / 125 x 78 x 70 mm
Weight
9.3 oz / 265.00 g
Packaging Info
Package Weight
0.9 lb
Box Dimensions (LxWxH)
6.4 x 4.5 x 4"
