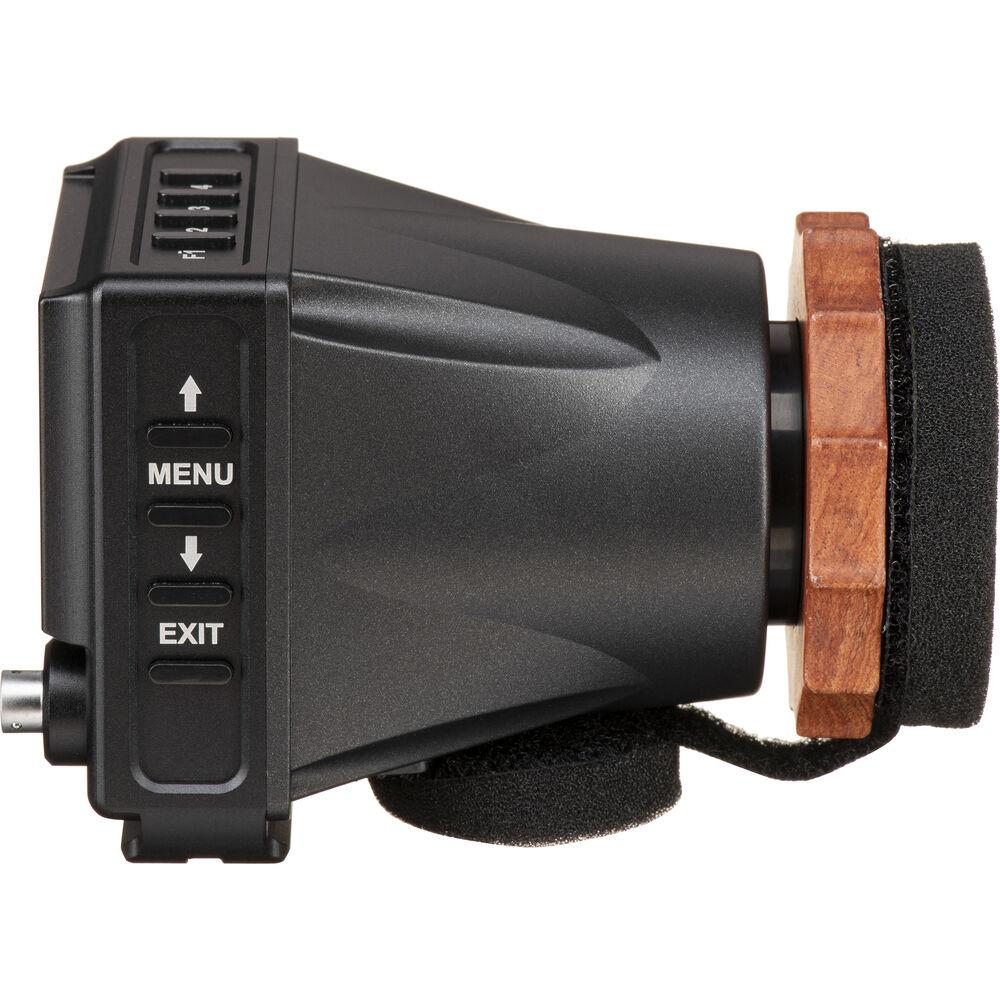

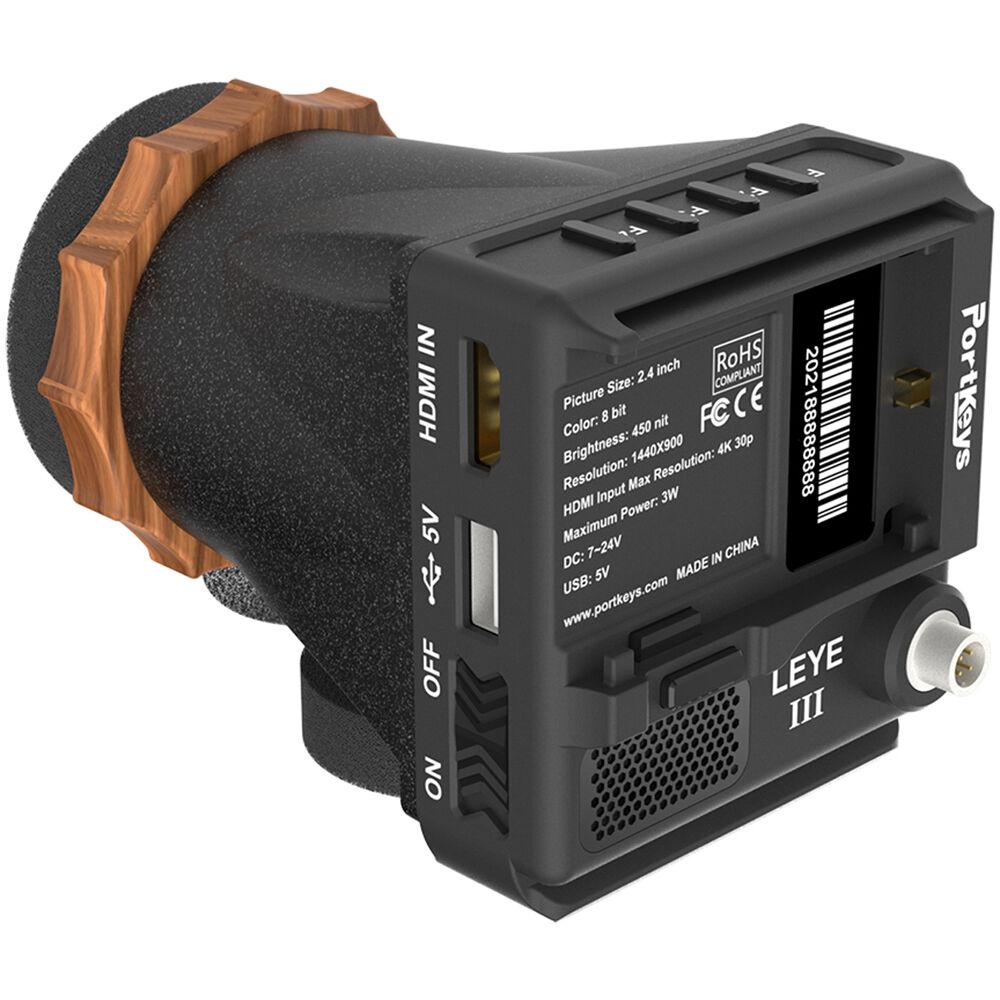

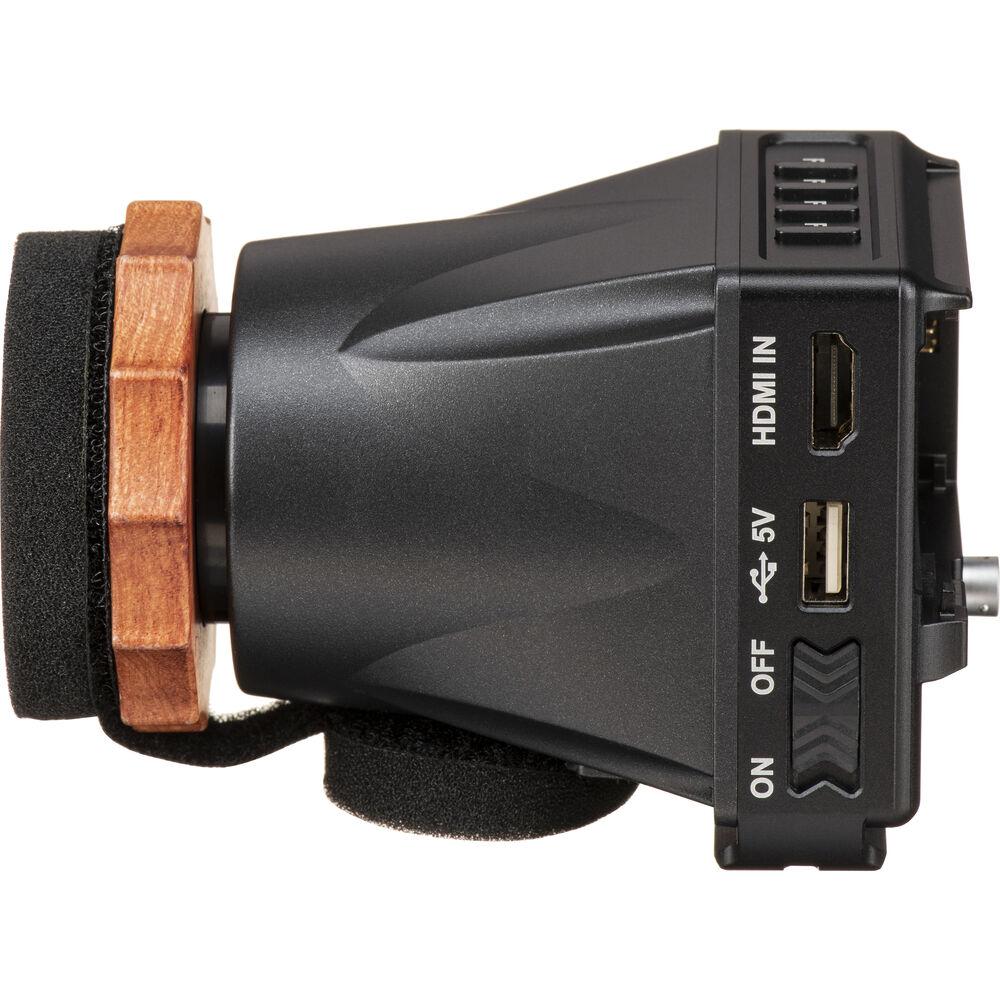

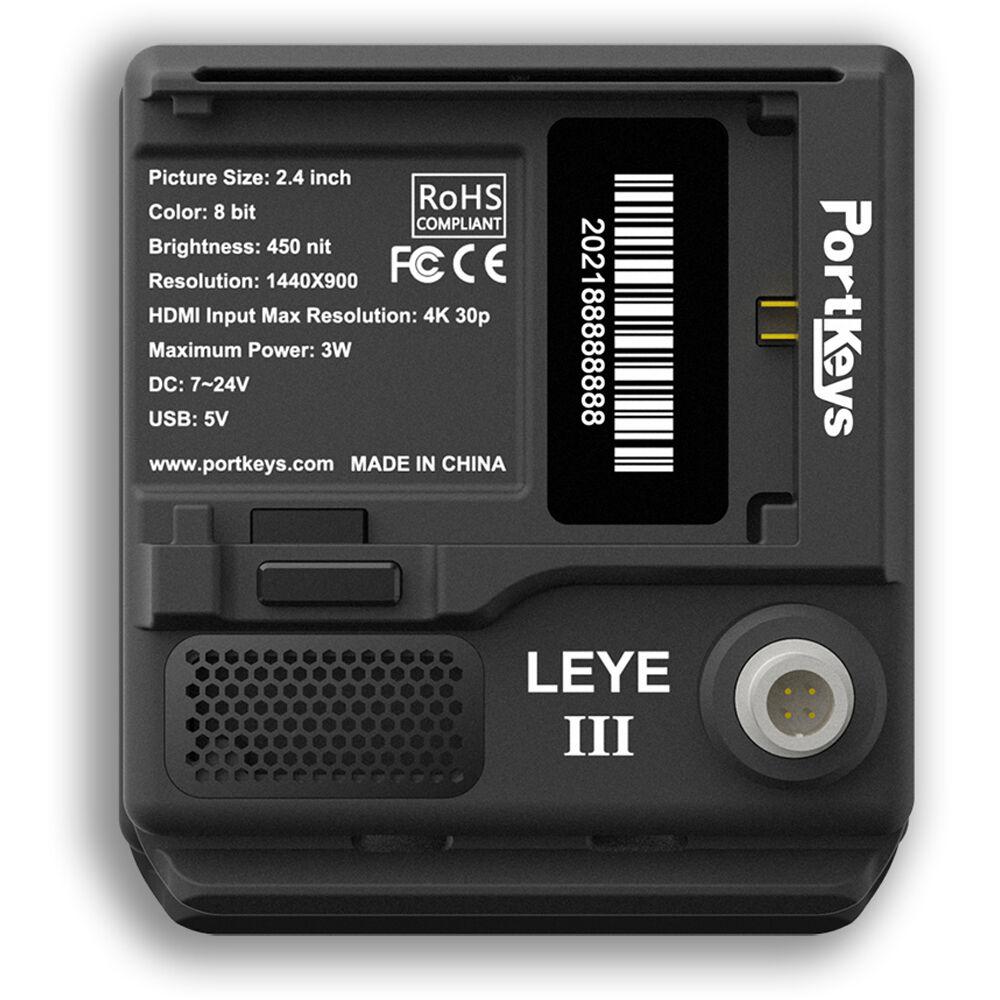

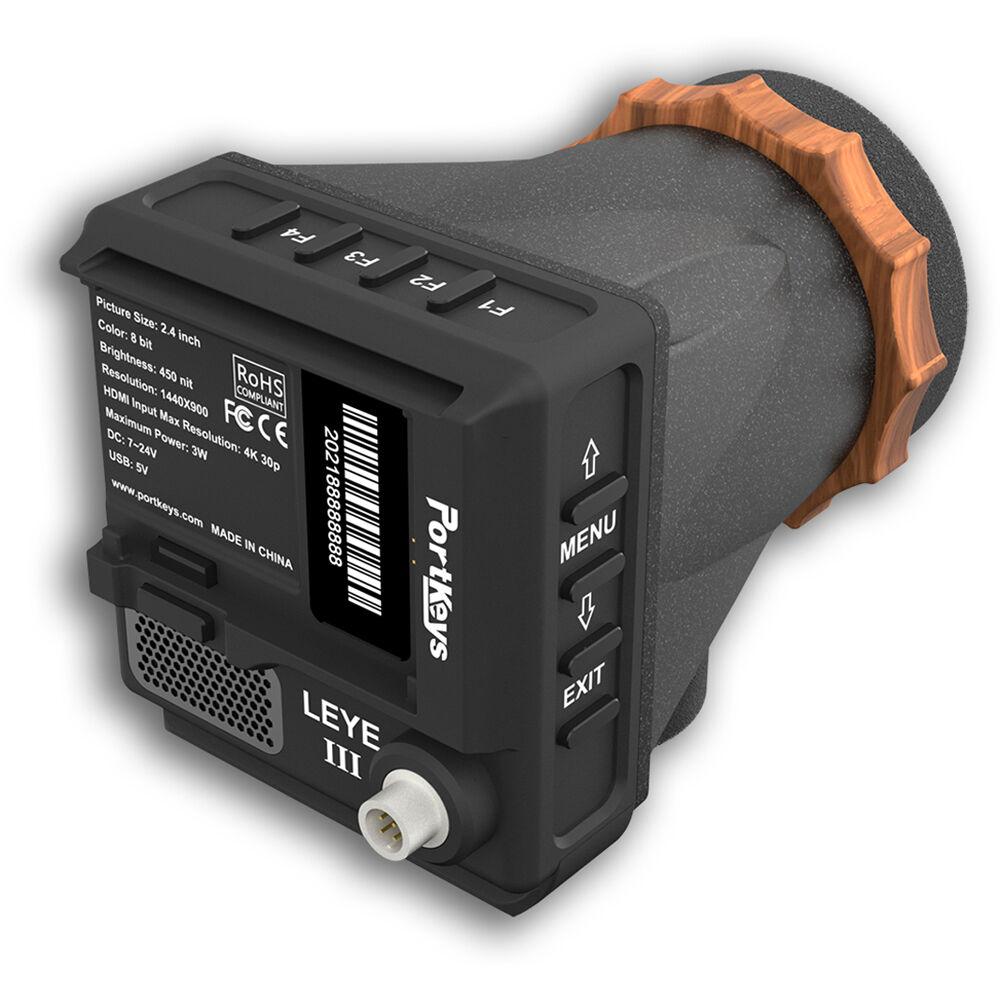

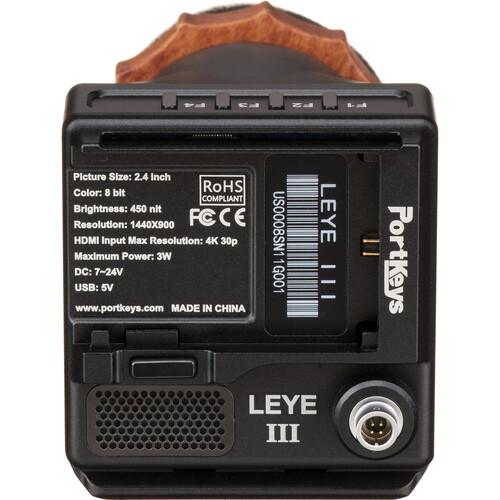

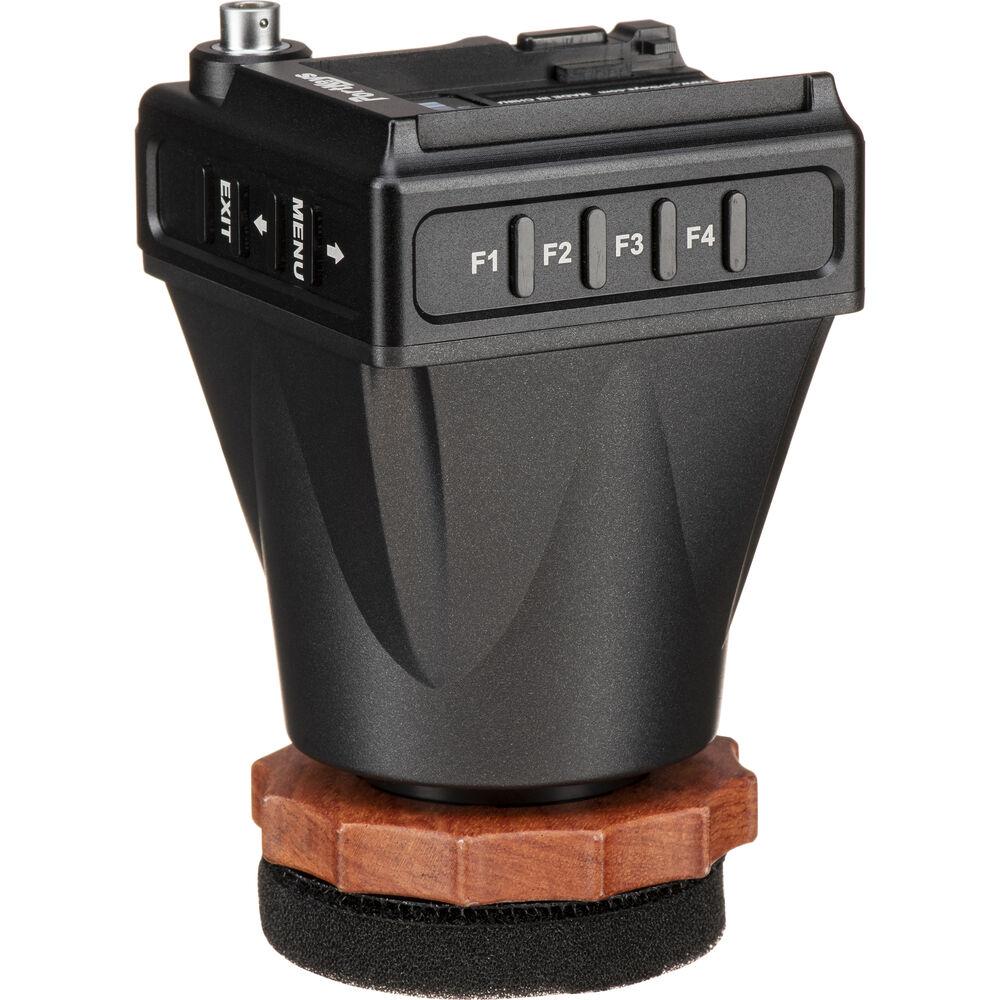

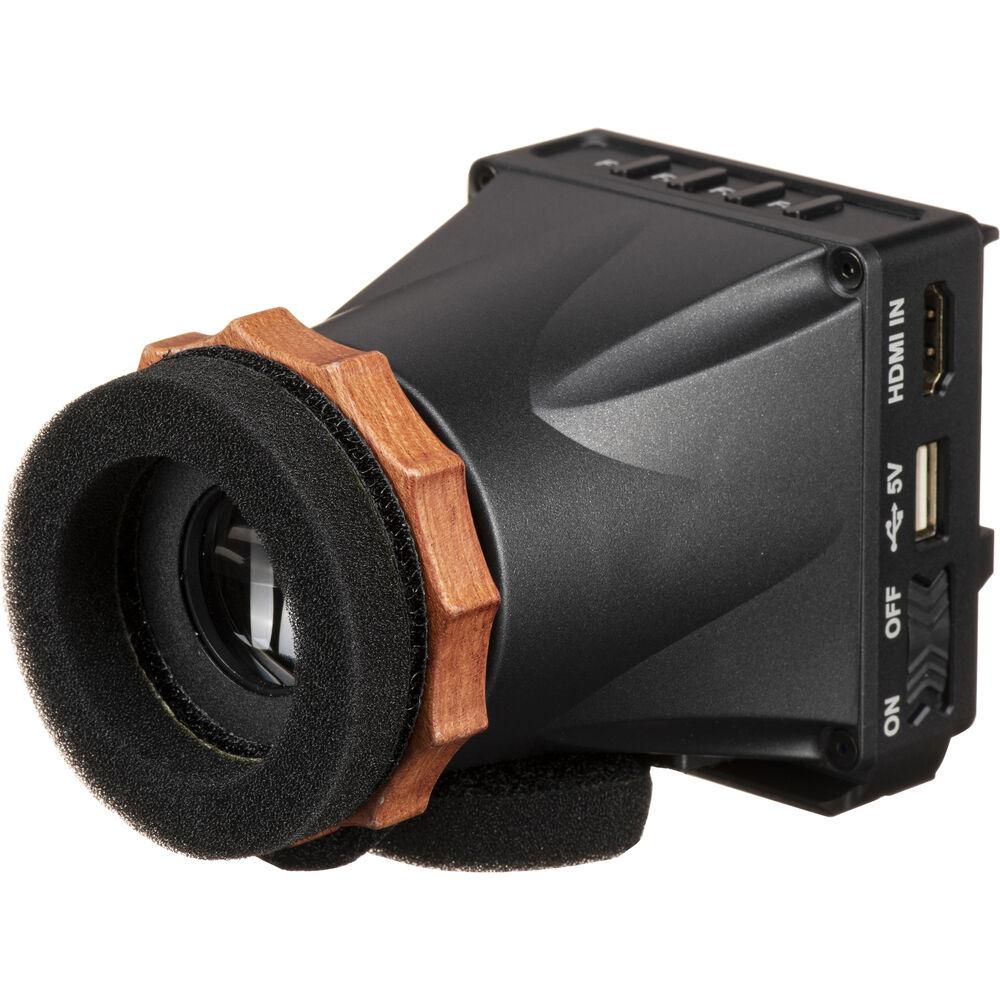

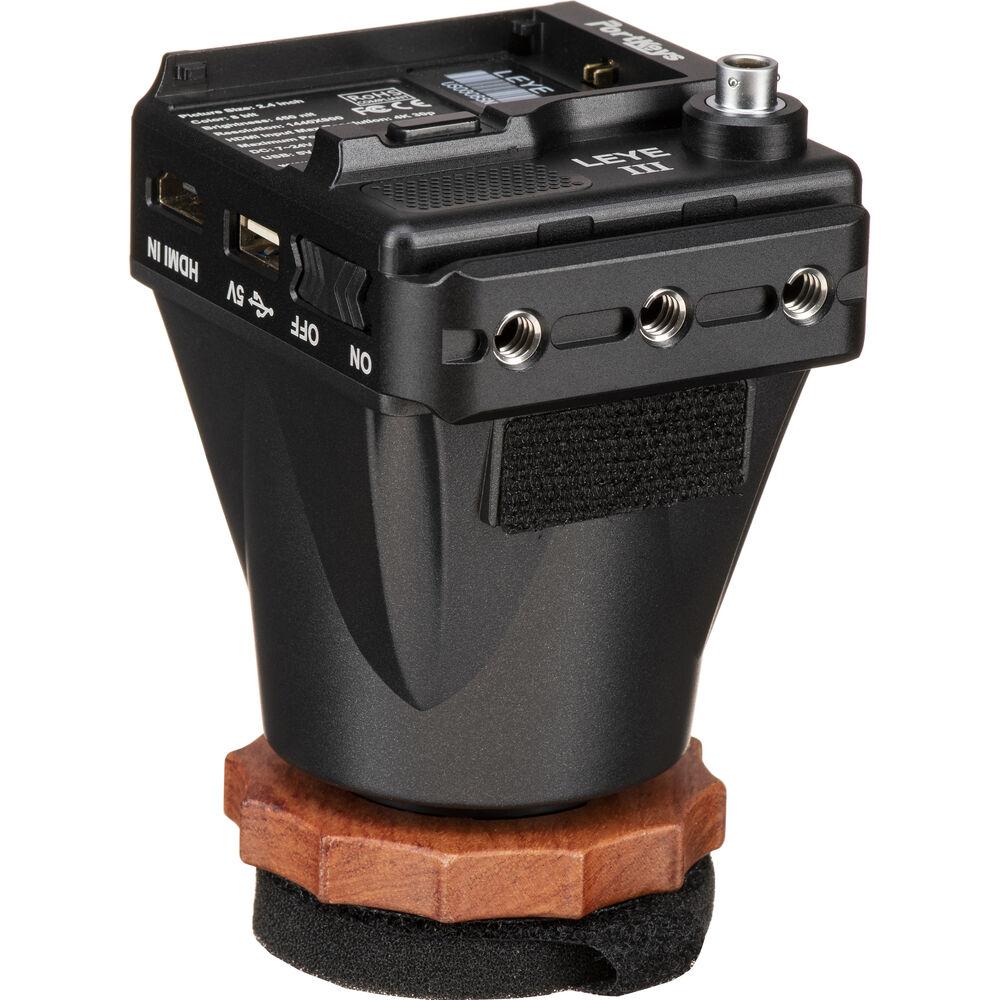

PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder

PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder

Brand: PORTKEYS

MFR: LEYE III

SKU: SF-2443-XZZL

1,470.00 ﾹ

  • Camera EVF with 1440 x 900 Resolution
  • Integrated Canon LP-6 Battery Plate
  • Supports up to DCI 4K Input via HDMI
  • 2.4" LCD, 8-Bit Color
  • 450 cd/m² Brightness, 1100:1 Contrast
  • ARRI-Style, 1/4"-20 & NATO Rail Mounts
  • 3D LUT Support via USB Type-A
  • Histogram, False Color, Waveform
  • Image Flip & Image Crop
  • Eye Sponge, Durable Metal Construction

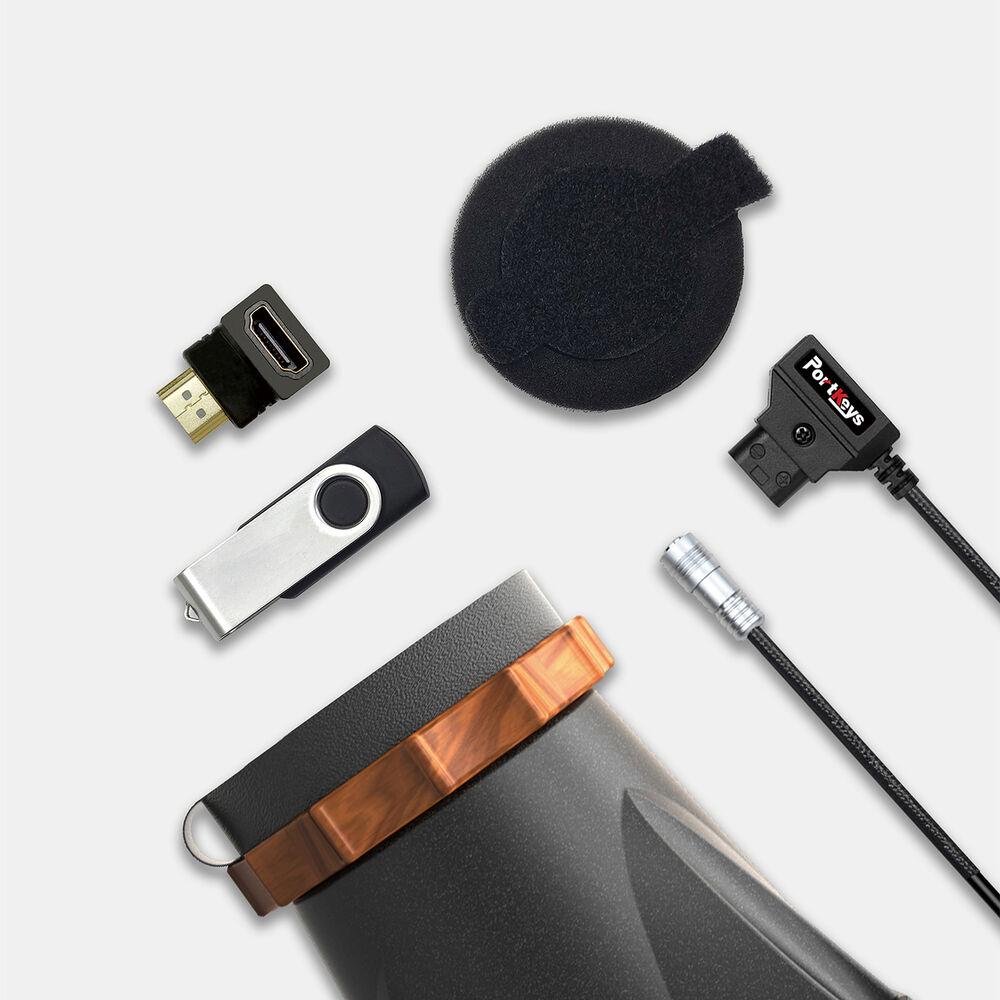

Items Included

  • PORTKEYS LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder
  • Self-Locking 4-Pin to D-Tap Power Cable
  • HDMI Right-Angle Adapter
  • Sponge Eye Cover
  • USB Flash Drive
  • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: Viewfinders

The LEYE III 4K HDMI 2.4" LCD Electronic Viewfinder from PORTKEYS is a compact EVF with an HDMI input that allows you to view up to DCI 4K30 video originating from your camera's HDMI output. A 2.4" LCD screen with 1440 x 900 resolution, a 450 cd/m² brightness, and a 1100:1 contrast ratio provides crisp and vibrant images that can be viewed in bright shooting conditions.

The LEYE III's diopter provides -3 to +8 adjustment parameters, and the software boasts numerous functions such as waveform, histogram, scaling, flip, guides, zoom, and image flip and crop. Import 3D LUTs via its USB Type-A port with waveform optional detect data before or after loading 3D LUT.

A passive heatsink vent ensures adequate heat dissipation and improves overall performance. The rugged metal enclosure gives the electronic viewfinder a sturdy feel, and mounting on a vast variety of rigs is achieved via its ARRI-style anti-twist mount, a NATO accessory rail, or a 1/4"-20 thread. A self-locking 4-pin aviation-grade power connector to D-Tap cable is included for powering the EVF, and an integrated Canon LP-E6 plate gives you the option to power using a separately available battery. Also included are an HDMI right-angle adapter, a USB flash drive for updating firmware, and a soft, flat eye sponge for the viewfinder for viewing while wearing glasses.

EVF with 1440 x 900 LCD screen; supports up to DCI 4K30 video input
One HDMI input
Soft eye sponge to allow viewing with glasses
2.4" screen size, 300 cd/m² brightness, 1100:1 contrast ratio, and 8-bit color depth
3D LUT import via USB Type-A port
Waveform optional detect data before or after loading 3D LUT
Passive heatsink vent for improved heat dissipation and performance
Numerous software functions such as image flip, false color, histogram, tint, scaling, zebra, underscan, grids, image crop, and more
Peaking no longer grabs guides
-3 to +8 diopter adjustment

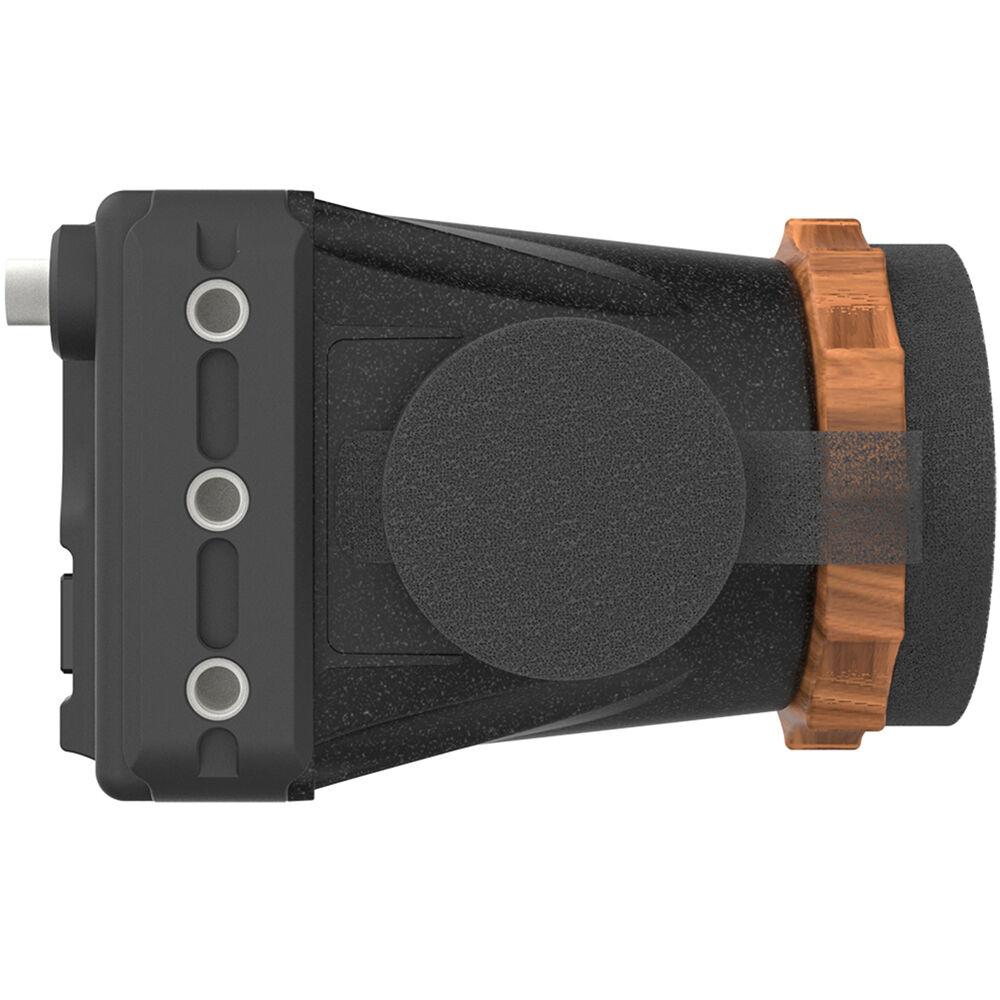

ARRI-style accessory mount, 1/4"-20 thread, and NATO rail mounting
Constructed from durable metal to withstand rough environments
D-Tap to self-locking 4-pin aviation-grade power cable included

Display
Panel Type
LCD
Display Size
2.4" / 6.1 cm
Screen Resolution
1440 x 900
Aspect Ratio
16:9
Maximum Brightness
450 nits / cd/m2
Contrast Ratio
1100:1
Color Support
16.7 Million Colors (8-Bit)
Image Controls
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel-to-Pixel Zoom, Scaling, Screen Markers, Underscan, Waveform, Zebra
Optics
Diopter Correction
-3.0 to +8.0
Inputs / Outputs
Inputs/Outputs
1x HDMI 1.4 Video Input
1x USB-A 2.0 Data Input
1x LEMO 4-Pin Power Input
Video Format
HDMI (8-Bit)
DCI 4K: 30
UHD 4K
1080p
1080i
576p
576i
480p
480i
Input Power
7 to 24 VDC
Battery Type
1x LP-E6
Power Consumption
3 W
General
Tripod/Accessory Mounting
Bottom
1x 1/4"-20 Female
1x Accessory Rail
Material of Construction
Aluminum, Plastic
Dimensions
4.5 x 3.1 x 2.8" / 11.4 x 7.8 x 7 cm
Weight
8.2 oz / 233.00 g
Packaging Info
Package Weight
0.8 lb
Box Dimensions (LxWxH)
6.2 x 4.6 x 3.9"
