PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)

PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)

Brand: PORTKEYS

MFR: LH7P-B

SKU: SF-2443-RTUY

1,283.00 ﾹ

  • 7" HDMI 1920 x 1080 Touchscreen
  • Sony/BMD Wireless Camera Control
  • Up to DCI 4K24 Video Input Support
  • 1000 cd/m² Brightness, HDR Preview
  • HDMI Input & Output, Headphone Jack
  • Anamorphic Correction via HDMI Output
  • 3D LUT Support, L-Series Battery Plate
  • Control Record, Shutter, Focus & More
  • HDMI Cable Included

Items Included

  • PORTKEYS LH7P 7" High-Bright Touchscreen Monitor with Wireless Control (Black)
  • Micro-USB Flash Drive
  • HDMI Type A Cable
  • Cleaning Wipe
  • 2 x Screen Protector
  • MH-2 Mount
  • Storage Box
  • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: On Camera Monitors , On Camera Monitors

Add pro monitoring tools and control for select Sony cameras to your camera rig with the LH7P 7" High-Bright Touchscreen Monitor with Wireless Control from PORTKEYS. This bright, 7" on-camera touchscreen display offers 1920 x 1080 resolution, 1000 cd/m² brightness, and the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. The monitor comes in a black color.

Compatible with Sony and Blackmagic Design cameras with wireless control capability, this monitor features a built-in wireless module that enables select camera functions, and a separately available control cable also allows you to connect your device to the monitor. Other features include 3D LUT support, vertical shooting stretching, anamorphic correction on HDMI output, cropping, and a variety of image monitoring tools, including peaking, color temperature, waveform, histogram, and more.

Wireless Camera Control Functions
Camera control is available via the integrated wireless module for Blackmagic Design cameras such as the Pocket Cinema Camera 4K/6K/6K Pro and Sony cameras, including the a1, a9, a7C, FX3, FX10, a7S III, a7 IV, RX0, and a7 III.
Control functions include iris, shutter, zoom, frame rate, ISO, color temperature, focus, and more.

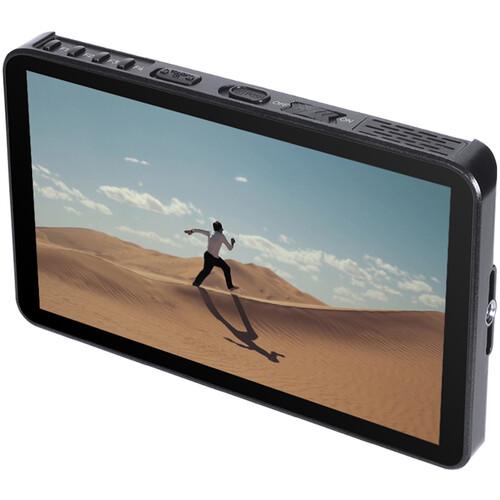

High-Bright 7" Touchscreen Monitor
This 7" LCD on-camera monitor features 1000 cd/m² and a 1000:1 contrast ratio for daylight visibility.
DCI/UHD 4K Video
Supports HDMI input and output up to DCI 4K24 or UHD 4K30.

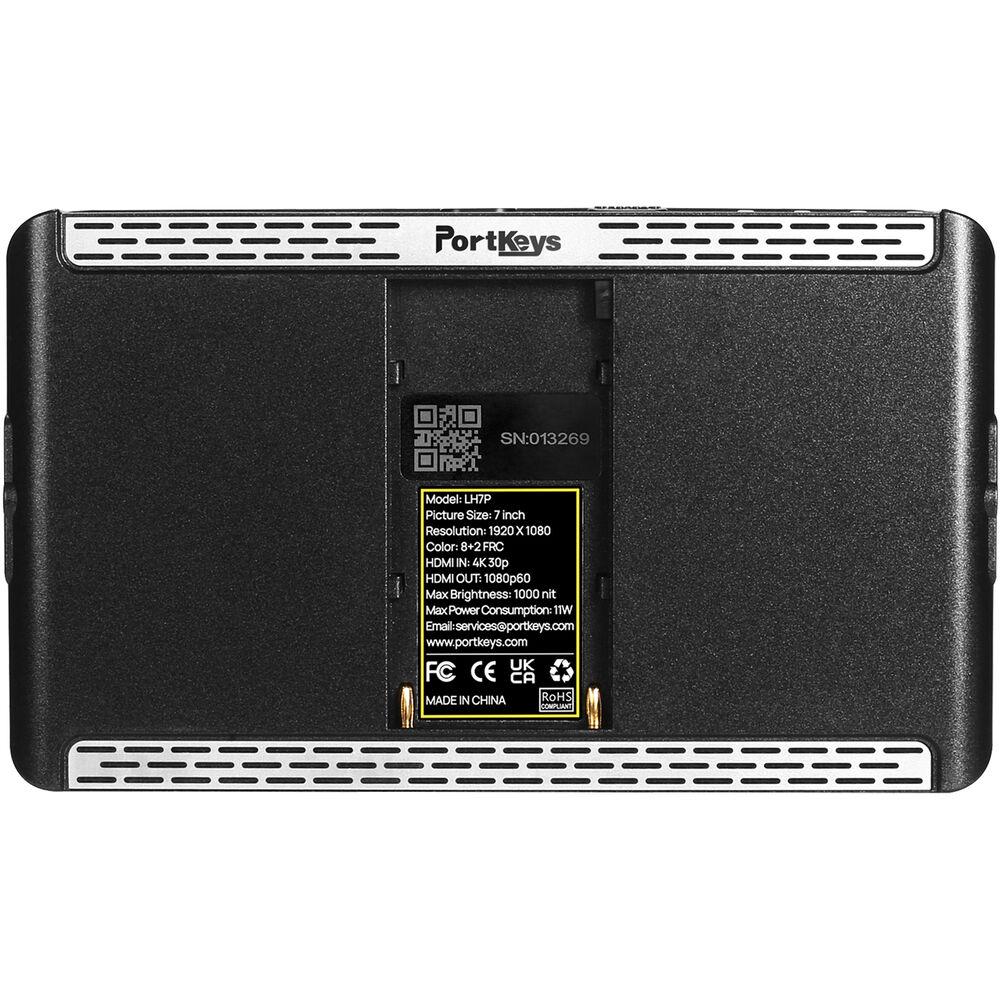

Sony L-Series Battery Plate
Power with the built-in L-Series battery plate or power your camera with a separately available dummy battery using the DC output.
Image Tools
  • 3D LUT support with custom LUTs via USB
  • Peaking
  • False color
  • Luma
  • Waveform
  • Real-time eye focus
  • Anamorphic de-squeeze
  • Anamorphic lens calibration
  • Frame guides, crosshairs, grids
  • Color temperature
  • Brightness
  • Sharpness
  • Cropping
  • Check field
  • Zebra
  • Luma histogram
  • Custom RGB
  • Audio meters
  • HDR/HLG support

Display
Panel Type
LCD
Display Size
7.0" / 17.8 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 170° (85/85)
Vertical: 170° (85/85)
Touchscreen
Yes
Maximum Brightness
1000 nits / cd/m2
Contrast Ratio
1000:1
Color Support
1.07 Billion Colors (8-Bit+FRC)
HDR Support
No
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Focus Peaking, Histogram, Image Flip, Waveform, Zebra

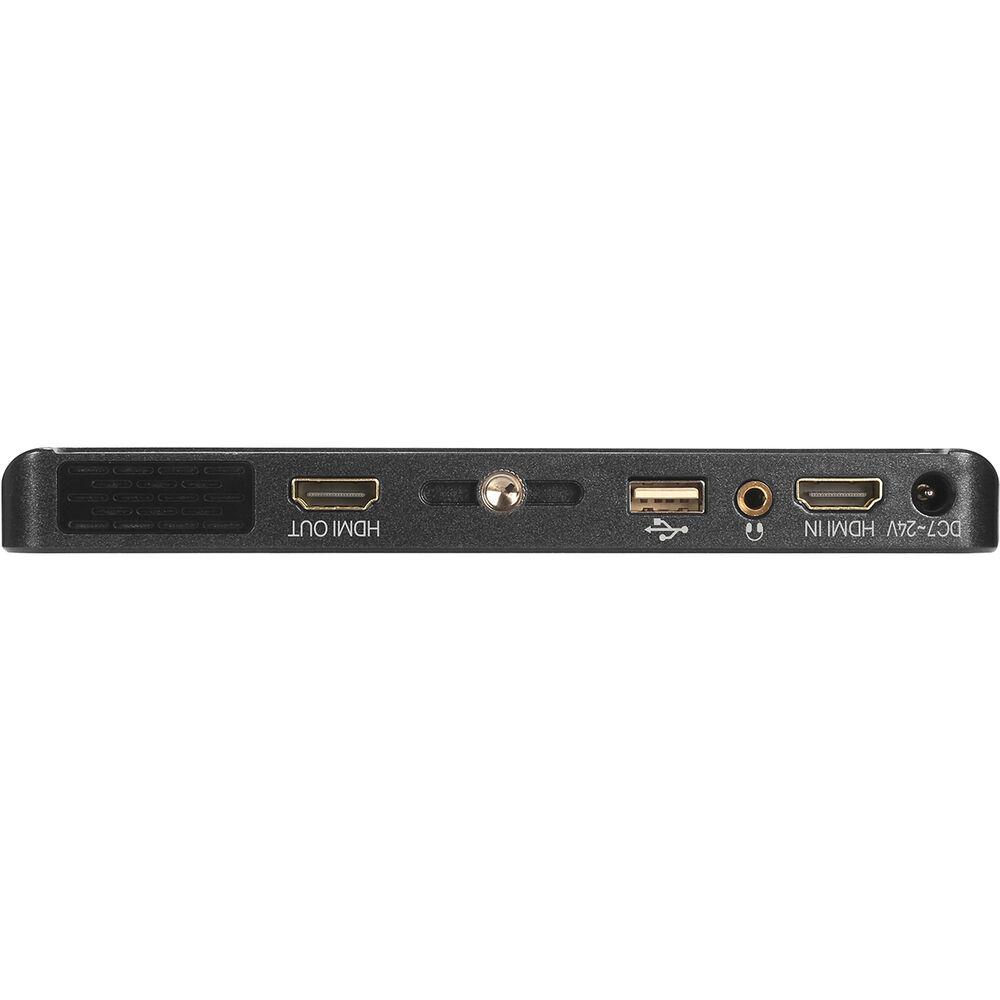

Inputs/Outputs
Video I/O
1 x HDMI 1.4 Input
1 x HDMI 1.4 Output
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel (24 VDC) Input
1x USB-A (5 VDC / 2 A) Input
Other I/O
1x USB-A (Firmware/LUT Upload) [Shared with USB-A Power Input]
Media/Memory Card Slot
No
Wireless
Wi-Fi
Yes
Bluetooth
Yes
Mobile App Compatible
No
Format Support
Video Format
HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50
Power
Input Power
7 to 24 VDC
Battery
1x L-Series Mount on Fixed Plate
Power Consumption
9 W
Mounting
Tripod/Accessory Mounting
2x 1/4"-20 Female
General
Environmental Resistance
No
Material of Construction
Plastic
Dimensions
6.9 x 4.1 x 0.7" / 176.2 x 103.8 x 18.4 mm
Weight
8.64 oz / 245.00 g
Packaging Info
Package Weight
1.255 lb
Box Dimensions (LxWxH)
8.3 x 5.6 x 2.4"
