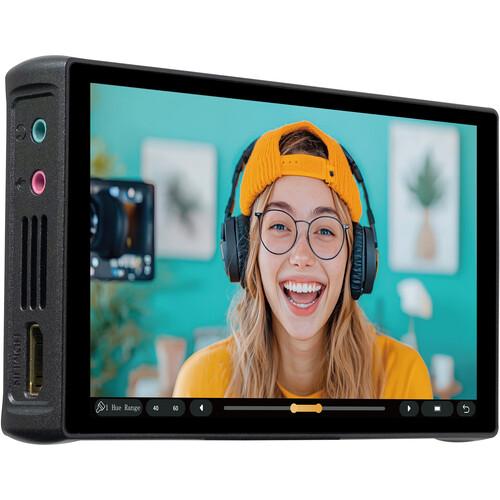

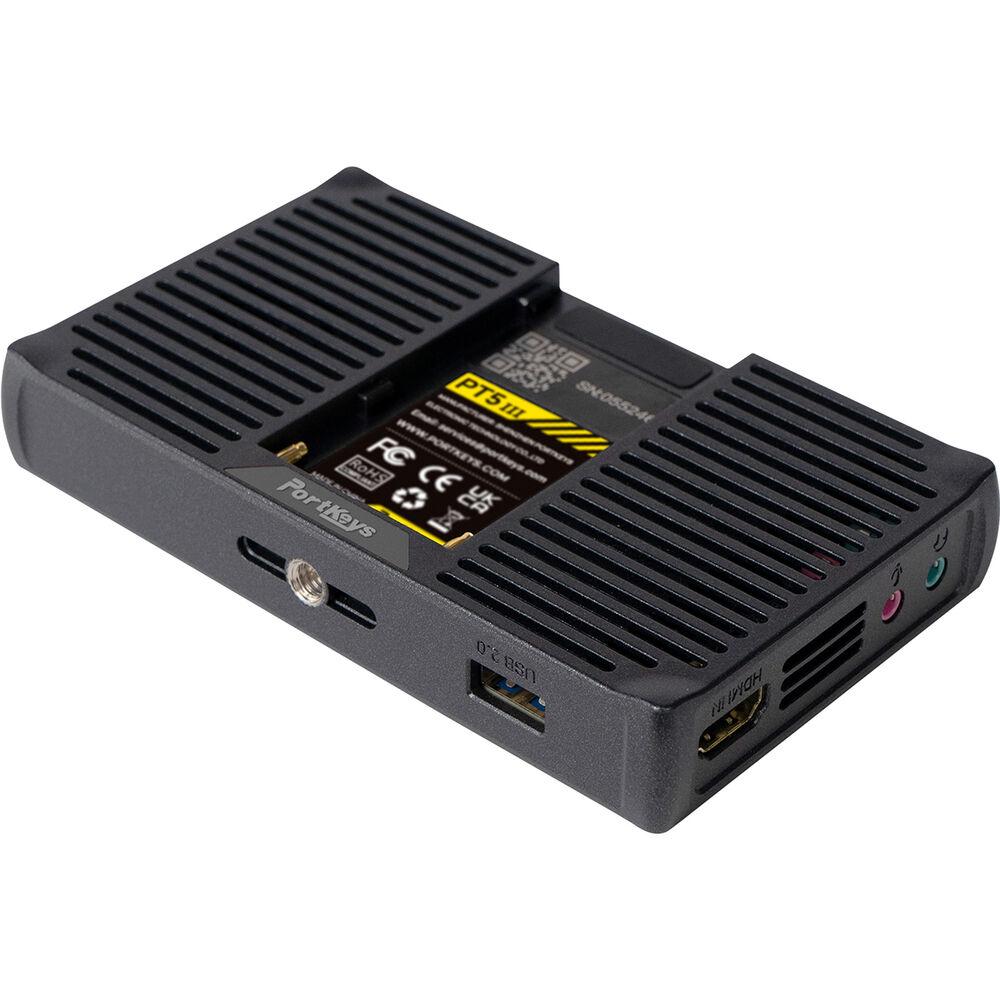

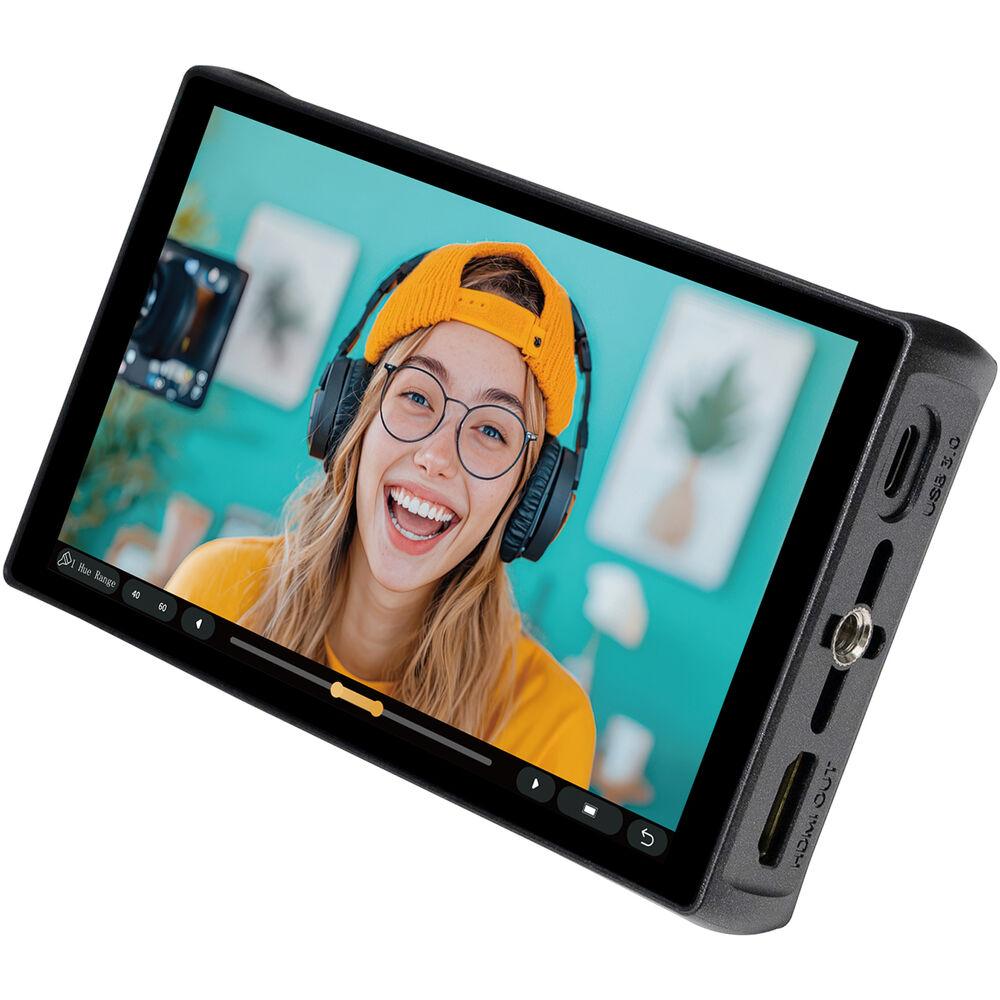

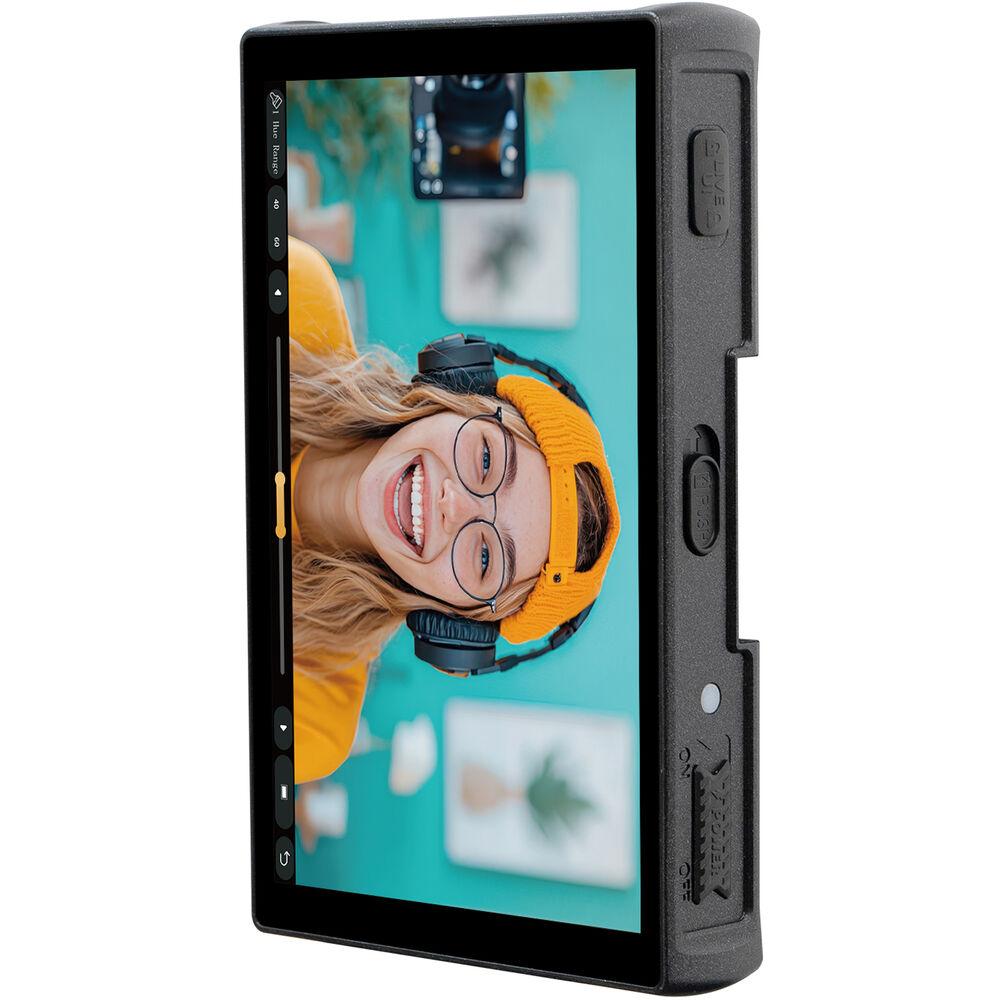

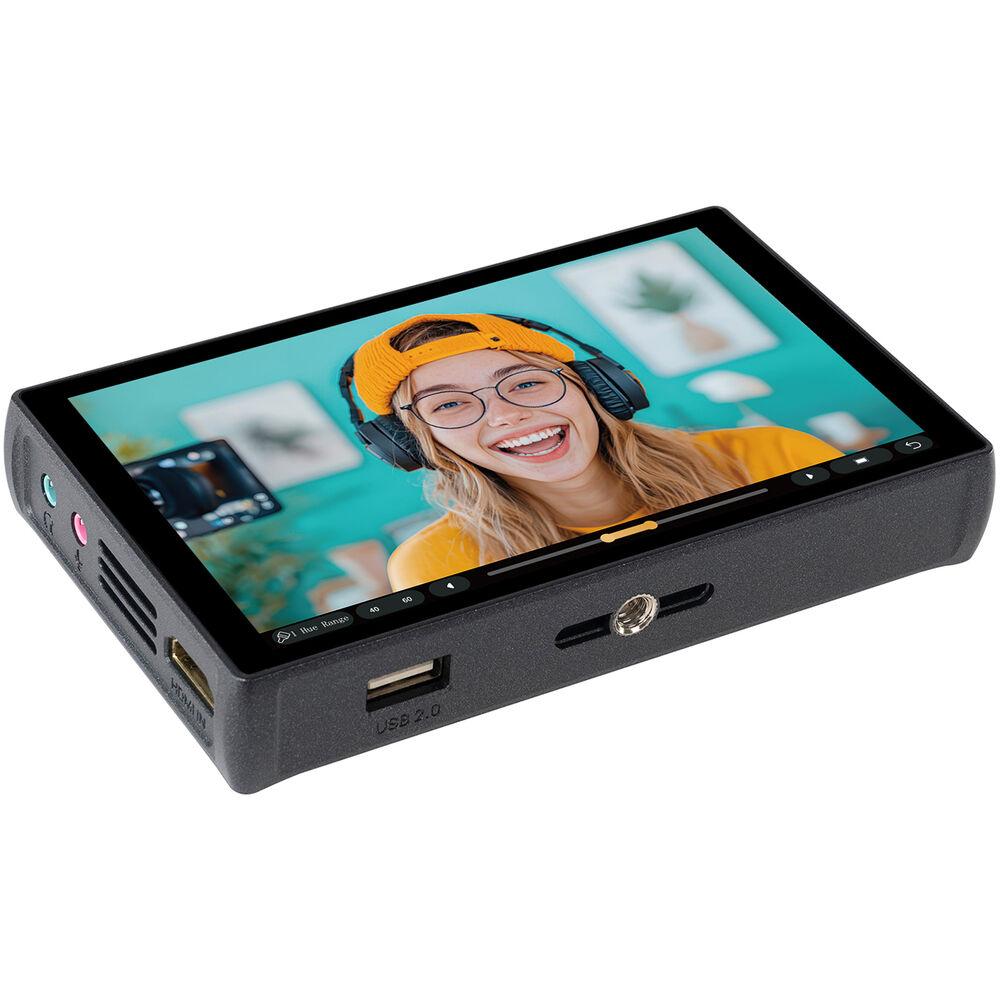

PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor
PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor

PORTKEYS PT5 III 5.4" 4K Touchscreen Monitor

Brand: PORTKEYS

MFR: PT5 III

SKU: SF-2443-K2SB

625.00 ﾹ

  • 5.4" 1920 x 1152 Touchscreen Display
  • 4K HDMI I/O, 3D LUT Import via USB Port
  • 800 cd/m² Brightness, 1000:1 Contrast
  • Updated MOVNORM OS
  • Numerous Professional Monitoring Tools
  • 3.5mm Audio Input, Headphone Jack
  • USB-C Power Input, L-Series Plate
  • Sunshade & Tilting Shoe Bracket
Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity

Categories: On Camera Monitors , On Camera Monitors


Display
Panel Type
LCD
Display Size
5.4" / 13.7 cm
Native Resolution
1920 x 1152
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
800 nits / cd/m2
Contrast Ratio
1000:1
Color Support
16.7 Million Colors (8-Bit+FRC)
HDR Support
Yes: Hybrid Log Gamma
Color Gamut
85% NTSC
LUT Support
Yes
Image Controls
Color Temperature Selection, False Color, Focus Peaking, Histogram, Waveform
Inputs/Outputs
Video I/O

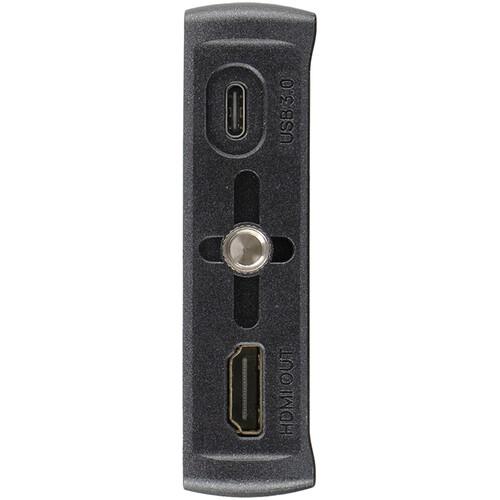

1 x HDMI 1.4 Input
1 x HDMI 1.4 Output
Embedded Audio
HDMI
Audio I/O

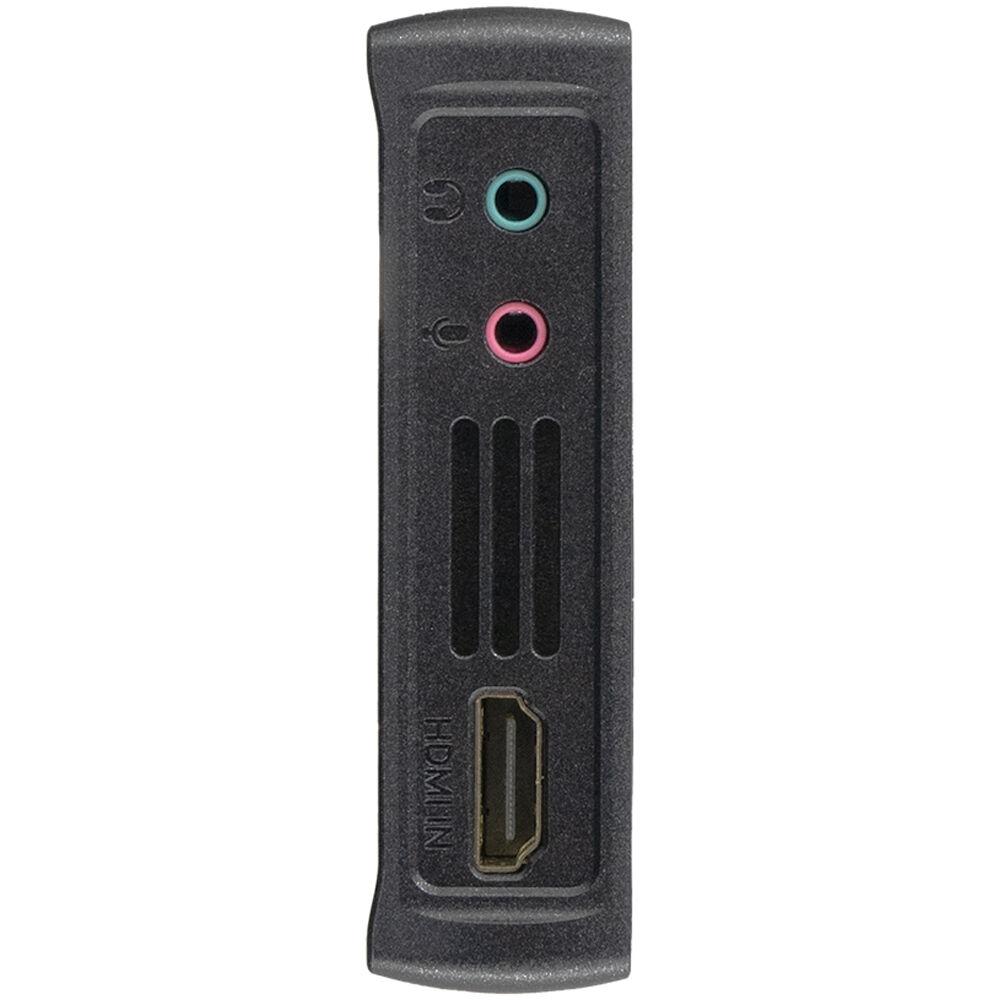

1x 1/8" / 3.5 mm Headphone Output
1x 1/8" / 3.5 mm Mic Input
Built-In Speaker
No
Power I/O
1x USB-C (5 VDC) Input
Other I/O
1x USB-A (Firmware/LUT Upload)
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI (8-Bit)
DCI 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Power
Input Power
7 to 24 VDC
Battery

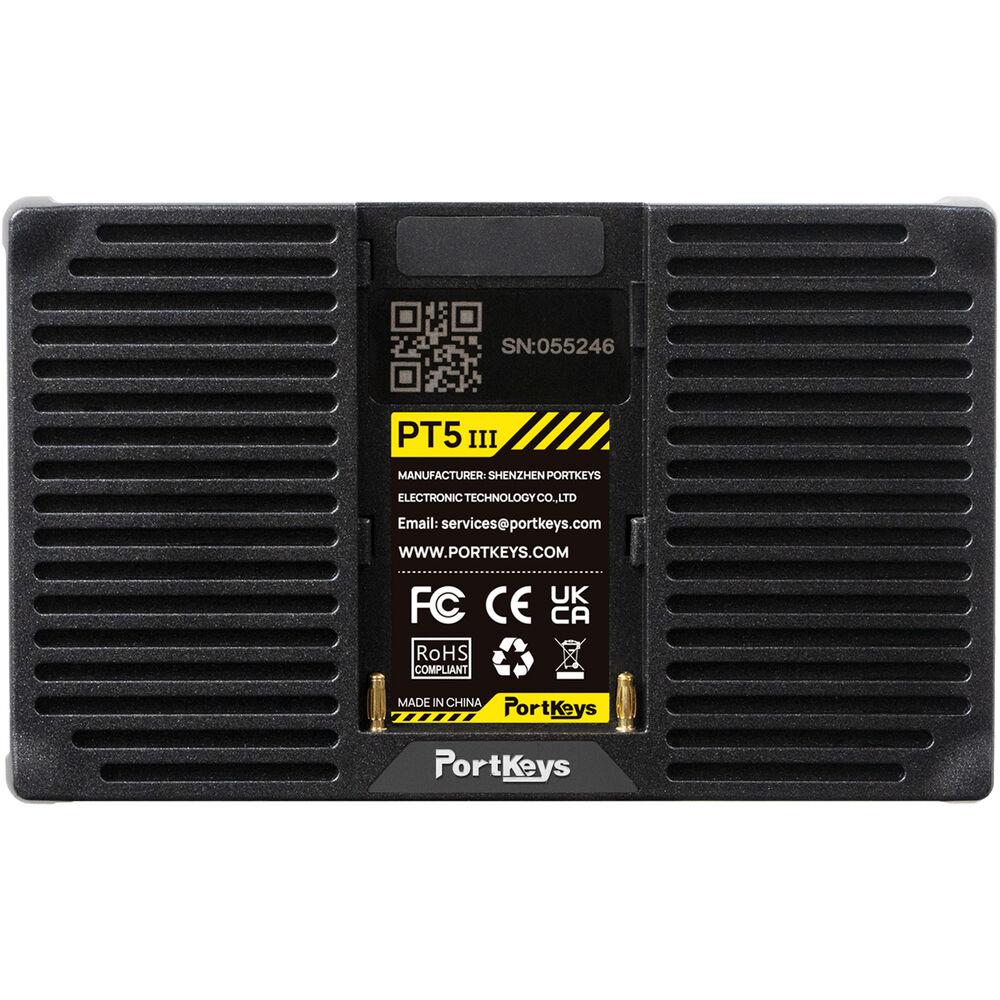

1x L-Series Mount on Fixed Plate
Power Consumption
7.5 W
Mounting
Tripod/Accessory Mounting
Bottom
1x Anti-Twist 1/4"-20 Female
Right
1x Anti-Twist 1/4"-20 Female
General
Environmental Resistance
No
Material of Construction
Plastic, Polycarbonate
Dimensions
5.3 x 3.2 x 0.9" / 135.1 x 82.5 x 22 mm
Weight
5.7 oz / 162.00 g
