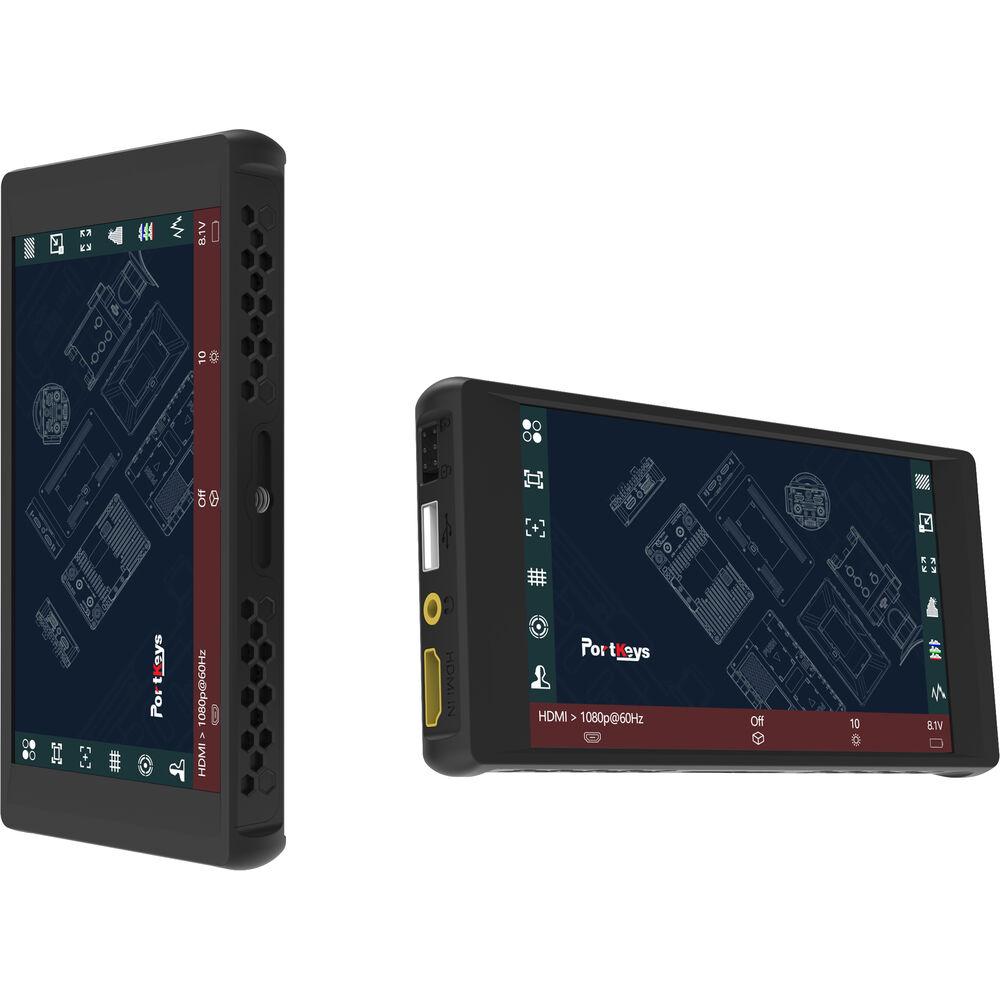

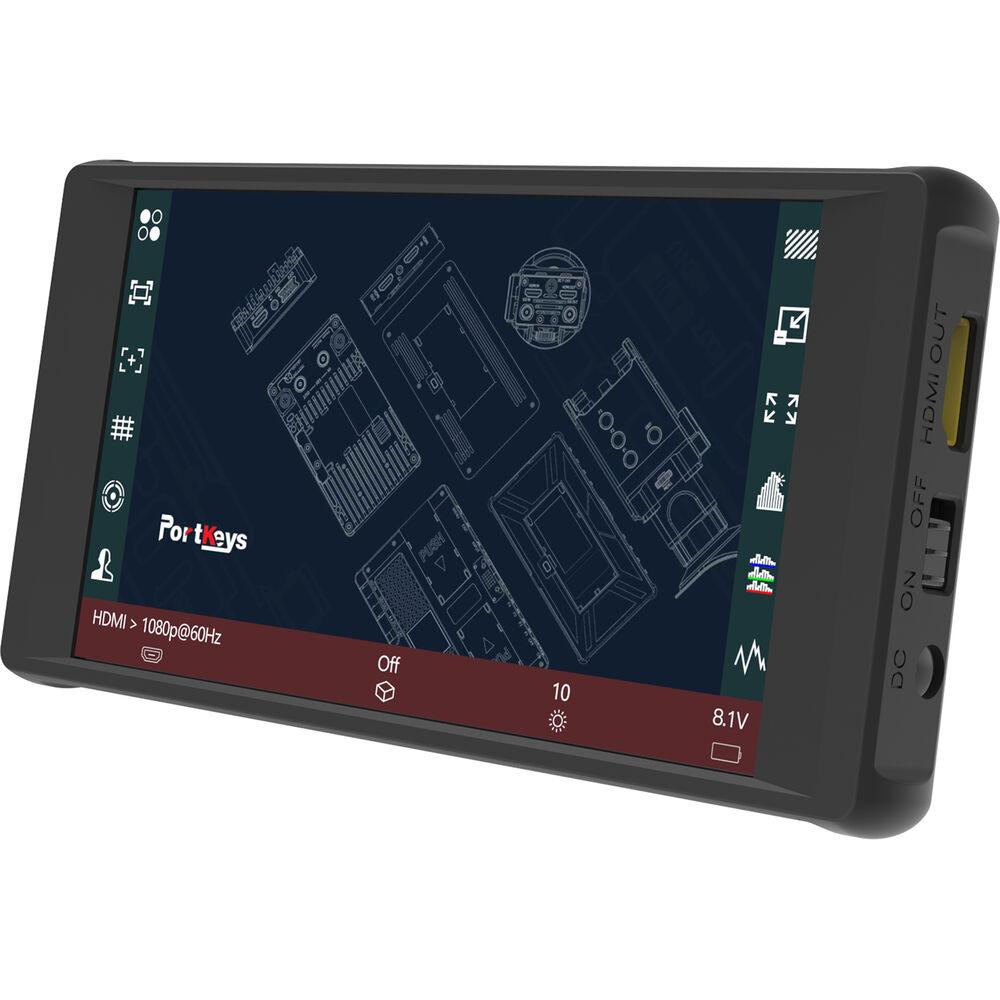

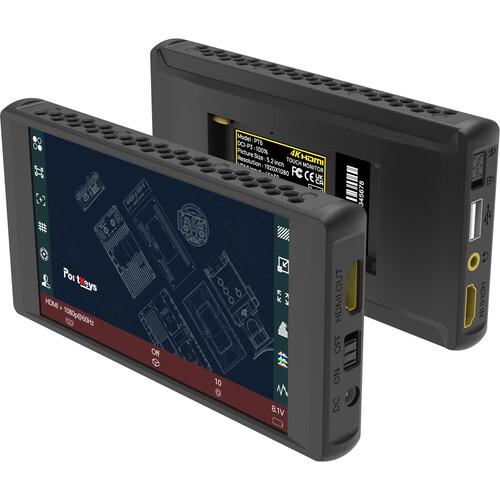

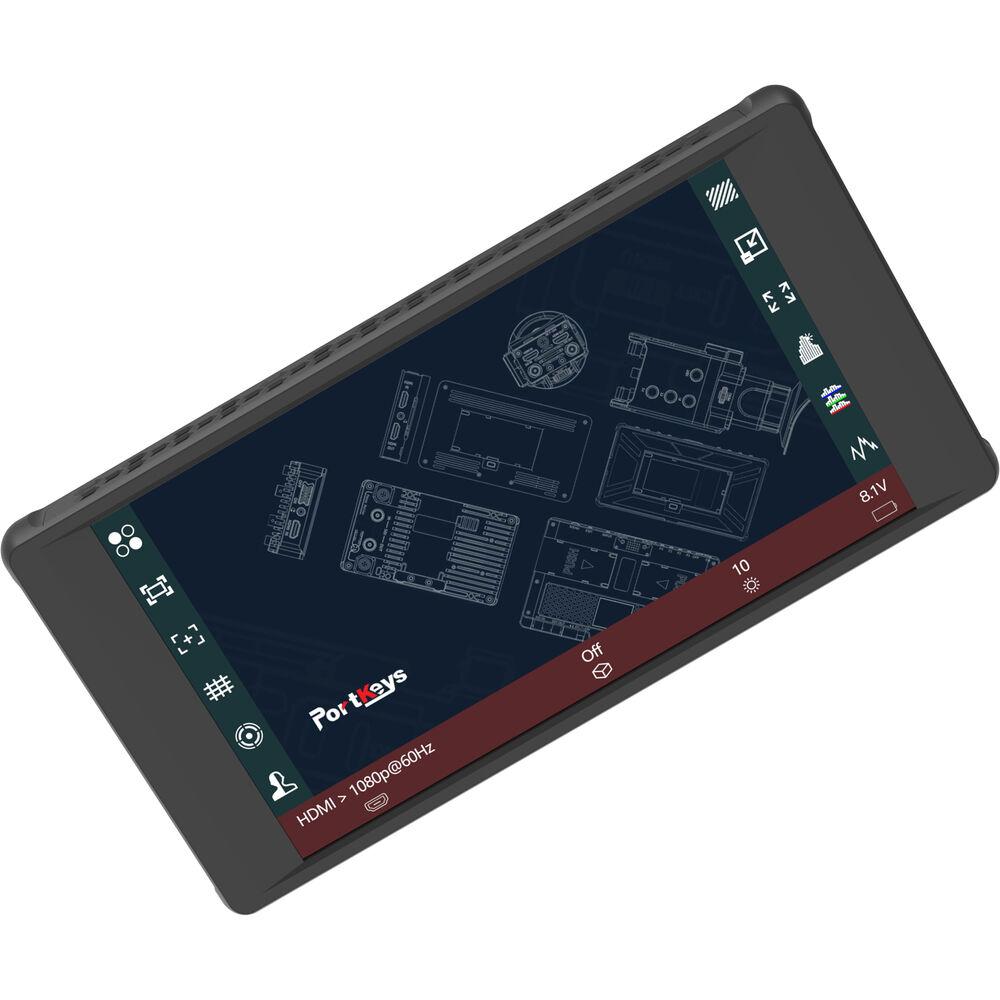

PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor

PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor

MFR: PT6

SKU: SF-2443-HVA4

622.00 ﾹ

  • 5.2" 1920 x 1080 Touchscreen Display
  • 4K30 HDMI Input/1080p60 HDMI Output
  • 3D LUT Output, UI Output, DCI-P3 Color
  • 600 cd/m² Bright/1500:1 Contrast Ratio
  • Vertical Output with Stretch Feature
  • Anamorphic Output, Brightness, Tint
  • DC Input, USB-A Output Port
  • Customized Peaking & Cropping
  • Sunshade & Tilting Shoe Bracket
  • L-Series & LP-E6 Battery Support

Items Included

  • PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
  • Sunshade
  • HDMI Cable
  • Micro-HDMI to HDMI Cable
  • 2 x Rubber Cover
  • MH-2 Mount
  • Storage Box
  • Limited 1-Year Manufacturer Warranty
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: On Camera Monitors , On Camera Monitors

Add nuanced, LUT-enhanced imagery to your video monitoring using the PT6 5.2" 4K HDMI Touchscreen Monitor from PORTKEYS. This compact, 5.2" touchscreen monitor supports the DCI-P3 wide color gamut and offers a host of imaging tools like focus peaking, image cropping, and anamorphic output. It features up to 4K30 HDMI input and 1080p60 output, UI output, and a stretch function for vertical monitoring.

3D LUT Output
Provides the ability to output 3D LUTs for customized, nuanced monitoring.
Vertical Stretch
Real-time image stretching for vertical-mode capture.
Up to 4K HDMI Input
Supports up to DCI 4K30 input and 1080p60 output, both via HDMI.
Wide Color Gamut
Covers 100% of the DCI-P3 wide color gamut, producing detailed, refined images.
Anamorphic HDMI Output
  • Calibrates anamorphic lenses, outputs via HDMI.
  • Supports 1.0/1.33/1.4/1.5/1.6/1.85/2/2.35x ratios and 0.25-4x user-defined adjustment range.
Touchscreen
Bright, compact, 5.2" touchscreen for on-camera monitoring.
Imaging Tools
  • 3D LUTs, anamorphic calibration
  • Vertical extension for portrait mode
  • Exposure: RGB and luma waveforms
  • Luma histogram, zebra
  • ARRI false color, false color
  • Focus: Zoom functions, customized peaking
  • Cropping: Customized cropping for viewing image details
  • Framing: Check field, grids, image flip, and crosshair marks
  • Display: Anamorphic, color temperature, contrast, and sharpness
  • Display: Brightness, tint, backlight, and underscan
  • Battery: Remaining power
  • Audio: Metering

Display
Panel Type
IPS-Type LCD
Display Size
5.2" / 13.2 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178°
Vertical: 178°
Touchscreen
Yes
Maximum Brightness
600 nits / cd/m2
Contrast Ratio
1500:1
Color Support
1.07 Billion Colors (10-Bit)
HDR Support
Yes
Color Gamut
100% DCI-P3
100% Rec. 709
LUT Support
Yes
Image Controls
Anamorphic De-Squeeze, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, OSD Flip, Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O
1 x HDMI (Unspecified Signal) Input
1 x HDMI (Unspecified Signal) Output
Embedded Audio
HDMI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Power I/O
1x Barrel (24 VDC) Input
Other I/O
1x USB-A 2.0 Input
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Format Support
Video Format
HDMI (10-Bit 4:4:4/4:2:2)
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
Power
Input Power
7 to 24 VDC
Battery
1x L-Series/LP-E6 Combination Mount on Fixed Plate
Power Consumption
6 W (Maximum)
Mounting
Tripod/Accessory Mounting
1x 1/4"-20 Female
General
Material of Construction
Plastic, Polycarbonate
Dimensions
5.9 x 3.1 x 0.3" / 150.7 x 77.8 x 8.5 mm
Weight
6.00 oz / 170.00 g
Packaging Info
Package Weight
1.15 lb
Box Dimensions (LxWxH)
8.5 x 5.6 x 2.4"
