Sennheiser EW 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System (AW+: 470 to 558 MHz)

Sennheiser EW 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System (AW+: 470 to 558 MHz)

Name: Sennheiser EW 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System (AW+: 470 to 558 MHz)
Brand: SENNHEISER
SKU: SF-2443-IPJN
Availability: InStock

Brand: SENNHEISER

MFR: EW 512P G4-AW+

SKU: SF-2443-IPJN

Price Available Upon Request

For Professional Filmmaker, Videographer
MKE 2 Miniature Omnidirectional Lav Mic
Rugged Bodypack Transmitter
Diversity Camera-Mount Receiver
3520 Auto-Scan Frequencies
Adjustable RF Output Power Up to 50 mW
Advanced Controls for Flexible Use
Balanced Output & Headphone Output
8-Hr AA Batteries
Up to 32 Mics on Set / 330' Range

Items Included

Sennheiser EW 512P G4 Camera-Mount Wireless Omni Lavalier Microphone System (AW+: 470 to 558 MHz)
Fur Windscreen

Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks

Request Now

Categories: Wireless Microphone Systems

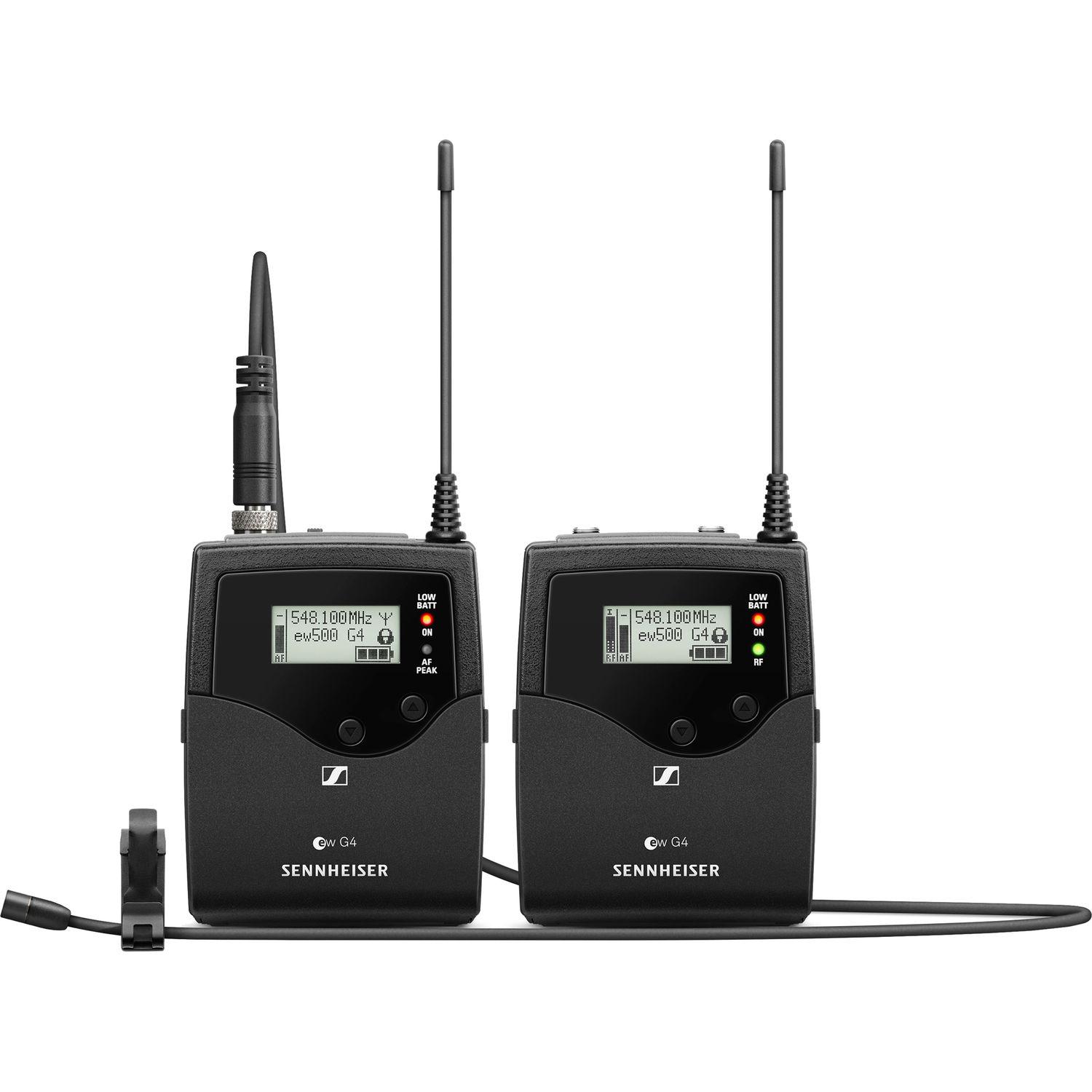

The Sennheiser EW 512P G4 is a camera-mount wireless lavalier microphone system that brings advanced features to the EW Series, expanding this industry-standard system into a fully professional, yet cost-effective solution that filmmakers, videographers, and journalists can rely on—even in challenging shooting environments like big cities.

The rugged EW 512P G4 combines a wide 88 MHz bandwidth with 3520 frequencies and an RF output level up to 50 mW for a clean transmission and broadcast-quality sound. Depending on your location, you can operate up to 32 mics in one space.

For pristine sound capture, the EW 512P G4 features a high-grade MKE 2 omnidirectional lavalier mic with a sweat-resistant, easy-to-conceal miniature design. Also included is a bodypack transmitter and a camera-mount receiver. The system connects to a camcorder, a DSLR/mirrorless, or a cinema camera to capture crisp-sounding speech or dialog for projects ranging from films and documentaries to wedding videos, corporate spots, and hands-free interviews.

The EW 512P G4 is backward-compatible with previous evolution systems, including EW 100 models, giving you the ability to mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters.

Built for Reliable Performance in the Field

The EW 512P G4 features rugged, all-metal chassis well suited for extended use on location.

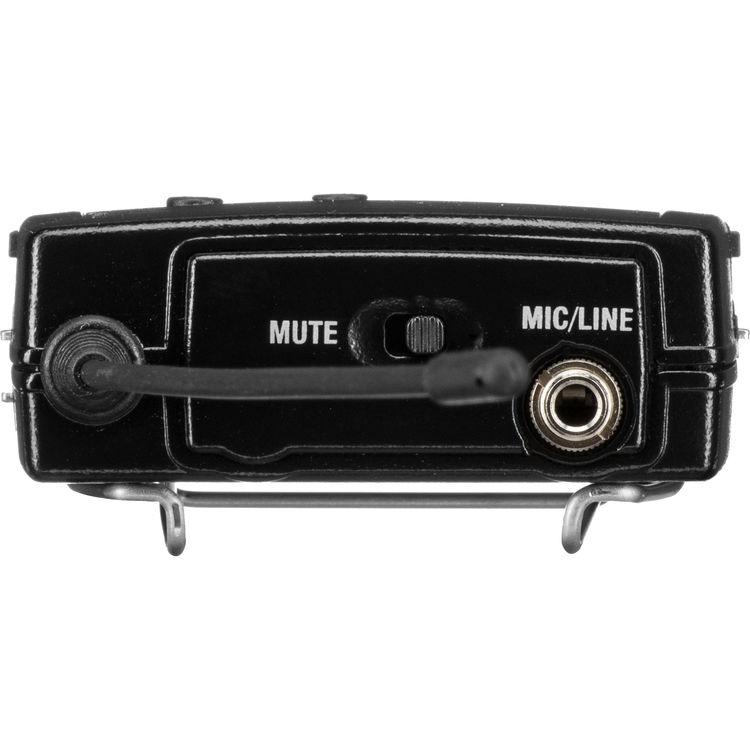

The lightweight, compact bodypack transmitter is moisture-resistant, easy to conceal, and offers rounded edges that are soft to the touch and comfortable for the talent to wear. A locking connector ensures that your lav doesn’t detach at a critical moment, while a convenient switch allows you to mute your mic.
Using the included shoemount adapter, the equally compact receiver easily mounts on your camera without adding much weight. The included CL 500 cable provides a balanced connection from the receiver to the XLR audio input of your camcorder, cinema camera, or recording device. The CL 1 cable is for DSLR/mirrorless cameras and devices with 3.5mm inputs. A headphone output lets you monitor the quality of your sound while recording.
Both transmitter and receiver feature daylight-readable LED displays showing reception quality, battery status, and audio level.

Advanced Controls for Flexible Use

The frequency scan function automatically searches for the cleanest frequency at your location.
To get you going quickly, the transmitter and receiver synchronize via infrared interface with the simple push of a button.
10/30/50 mW switchable RF output helps overcome interference or save battery life.
The adjustable input sensitivity on the transmitter accommodates mic levels ranging from booming voices to quiet speech, and even line-level audio.
The receiver has an adjustable output range of 42 dB to match the audio input of your camera or recording device.

Proven Broadcast-Quality Sound

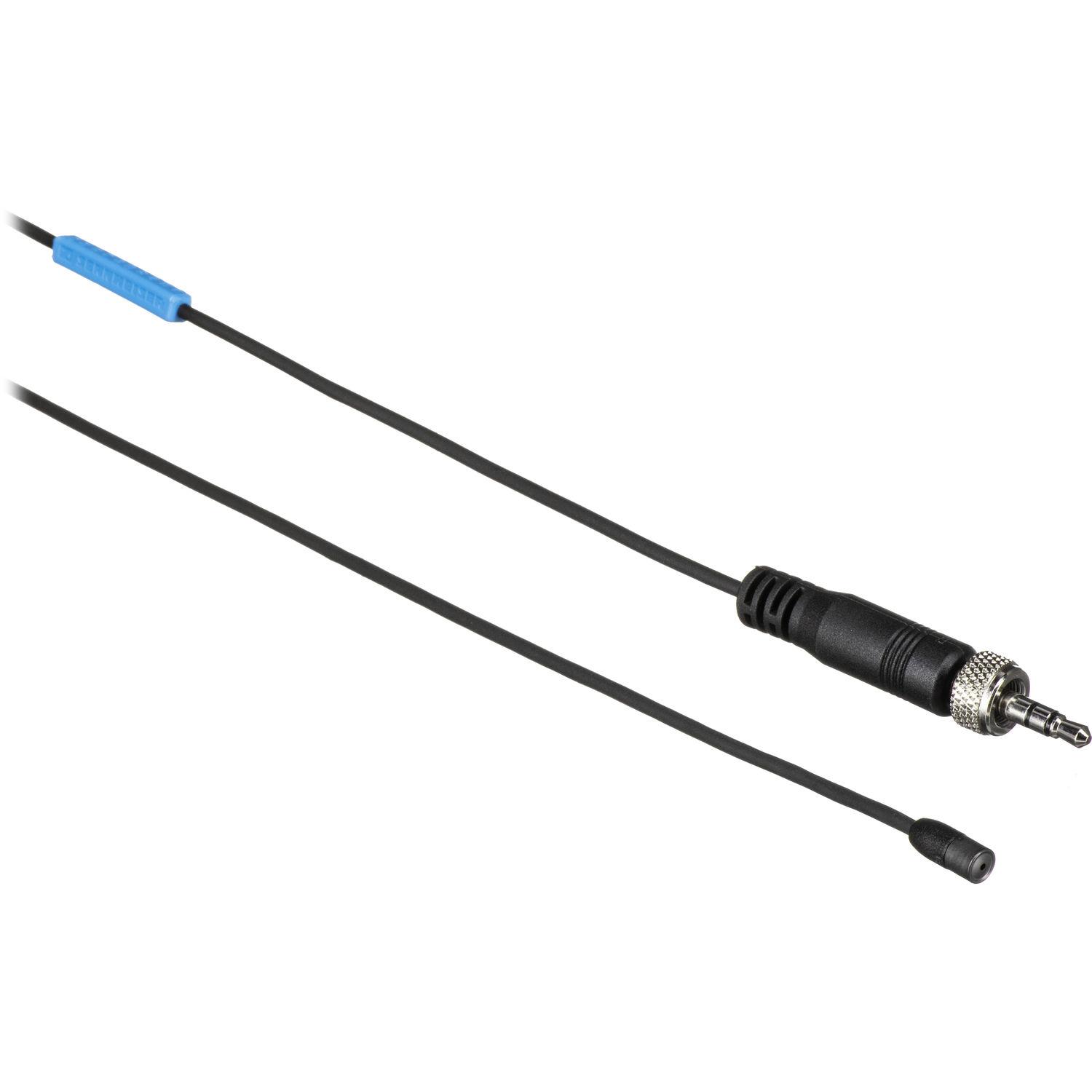

Popular with industry professionals, the MKE 2 omnidirectional lavalier microphone delivers a natural, broadcast-quality sound optimized for speech intelligibility. Its omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker’s head moves away from the mic.
To take full advantage of the MKE 2’s dynamic range, the system employs proprietary HDX compander technology, preserving your sound without adding unwanted noise during transmission—delivering audio with remarkable accuracy and quality.

Additional Features

Adaptive-diversity reception for reliable transmission up to 330'
20 frequency banks, each with up to 32 factory-preset channels to prevent intermodulation
Pilot tone squelch for eliminating RF noise when transmitter is turned off
User-friendly menu operation with flexible control options
Transmitter and receiver feature 4-step battery-life indicator
Auto-Lock function avoids accidental changing of settings
RF Mute function
8 hours of battery life
Powered via AA batteries or rechargeable BA 2015 Accupack batteries (available separately)
Side contacts for recharging the Accupacks without removing them from either transmitter or receiver—requires the L 2015 quick-charging unit (available separately)
Unlike digital wireless systems, the SK 500 G4 transmitter can transmit to an unlimited number of EW series receivers
Wide range of accessories adapts the system to a variety of applications

EW 100 G4 vs EW 500 G4 Systems at a Glance

Bandwidth: Up to 46 MHz vs up to 88 MHz
UHF Frequencies: 1680 vs up to 3520
RF Output Power: Fixed 30 mW vs adjustable 10/30/50 mW
Mics at Once: Up to 12 mics vs up to 32 mics
Included Lavalier Mic: ME 2-II omni or ME 4 cardioid vs professional MKE 2 omni
Headphone Output: No vs yes
Audio Output: Unbalanced vs balanced
Plug-On Transmitter: No phantom vs +48V phantom power

System

Wireless Technology	Analog UHF
Diversity	Yes
RF Frequency Band	470 to 558 MHz
Number of RF Channel Frequencies	3520
Max Operating Range	330' / 100.6 m (Line of Sight)
Max Transmitters per Band	32
Encryption	No
Built-In Recorder	No
Timecode Support	No
Mobile App Compatible	No

Receiver

Receiver Type	1x Camera-Mount
Mounting Options	Shoe-Mount (with Included Hardware)
Antenna	1x Fixed External (Top-Mount)
Number of Audio Channels	1
Audio I/O	1x 1/8" / 3.5 mm Locking TRS Balanced Line Output 1x 1/8" / 3.5 mm Locking TRS Headphone Output
Network I/O	No
USB/Lightning Connectivity	No
Gain Range	42 dB (6 dB Steps)
Display	Backlit LCD
Power Requirements	Battery

Transmitters

Included Transmitters	1x Bodypack
RF Output Power	10 / 30 / 50 mW (Selectable)
Antenna	Internal
Input Level	Microphone / Line
Audio I/O	1x 1/8" / 3.5 mm Locking TRS Female Input
USB I/O	No
Muting	Mute Switch
Gain Range	60 dB (3 dB Steps)
Auto-Level/Gain	Yes
Frequency Response	80 Hz to 18 kHz (Mic) 25 Hz to 18 kHz (Line)
Sync Method	IR
Display	Backlit LCD

Microphones

Microphone Type	1x Lavalier
Polar Pattern	Omnidirectional
Frequency Response	20 Hz to 20 kHz
Maximum SPL	142 dB
Sensitivity	5 mV/Pa (at 1 kHz)
Output Connector	1x 1/8" / 3.5 mm Locking TRS Male
Cable Length	5.25' / 1.6 m
Color	Black

Power

Receiver Battery Type	2x AA (Included) or 1x Sennheiser Battery Pack (Not Included)
Receiver Battery Life	8 Hours (Alkaline)
Transmitter Battery Type	2x AA (Included) or 1x Sennheiser Battery Pack (Not Included)
Transmitter Battery Life	8 Hours (Alkaline)
Included Charging Case	No

Physical

Environmental Resistance	No
Housing	Metal
Dimensions	Receiver: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm Transmitter: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
Weight	Receiver: 4.6 oz / 130 g (with Batteries) Transmitter: 5.6 oz / 160 g (with Batteries) Microphone: 0.6 oz / 17 g
