Sennheiser EW-DX MKE 2-835-S SET Dual-Channel Digital Combo Wireless System with Omni Lavalier and Handheld Mic (Q1-9: 470 to 550 MHz)

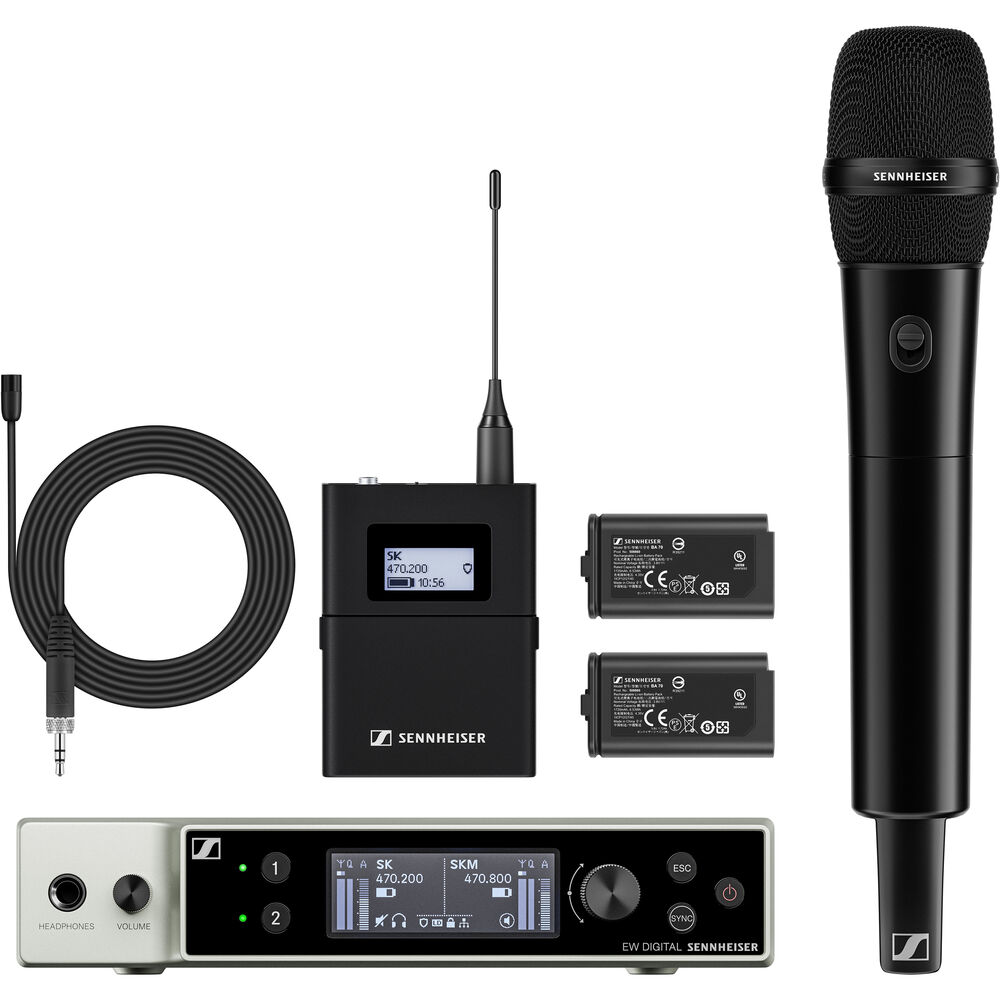

Rigorously engineered to meet the needs of demanding professionals working in business and educational settings, houses of worship, or on stage, the Sennheiser EW-DX MKE 2-835-S SET is a dual-channel digital UHF wireless system with an impressive feature set designed to simplify your workflow while delivering uncompromising audio quality. This configuration includes a dual-channel, 1/2-rack receiver, a bodypack transmitter with subminiature MKE 2 omnidirectional lavalier mic, and a handheld transmitter/mic with mute switch and MMD 835 cardioid capsule.

With a remarkable 134 dB dynamic range on the transmitters, the mics can handle just about any input level you throw at them. The wide 80 MHz tuning range, intelligent switching diversity, auto-scan, equidistant tuning grid, and Link Density mode work to provide rock-solid wireless performance and massive channel counts, even in challenging RF environments. Bluetooth capabilities allow you to remotely sync components and change settings from your phone using the Smart Assist app, while Sennheiser's Control Cockpit and Wireless Systems Manager software provide computer-based control for more extensive networked setups. The EW-DX is backward-compatible with EW-D components.

Rock-Solid Wireless Audio with Professional Digital Sound & More Mic Channels

• The UHF transmission greatly enhances range (up to 330') and the wide 80 MHz bandwidth gives you the ability to find a clean channel from 3200 available frequencies.
• Intelligent Switching Diversity compares incoming signals on two independent antennas and receiver circuits to ensure optimal wireless quality. The receiver switches between antennas only during header data as to never affect the audio information.
• The equidistant tuning grid removes the need for frequency coordination and allows you to add additional transmitters and receivers for up to 134 mic channels simultaneously.
• For complex systems requiring even more mics, engage the Link Density mode for up to 269 channels on the same system.

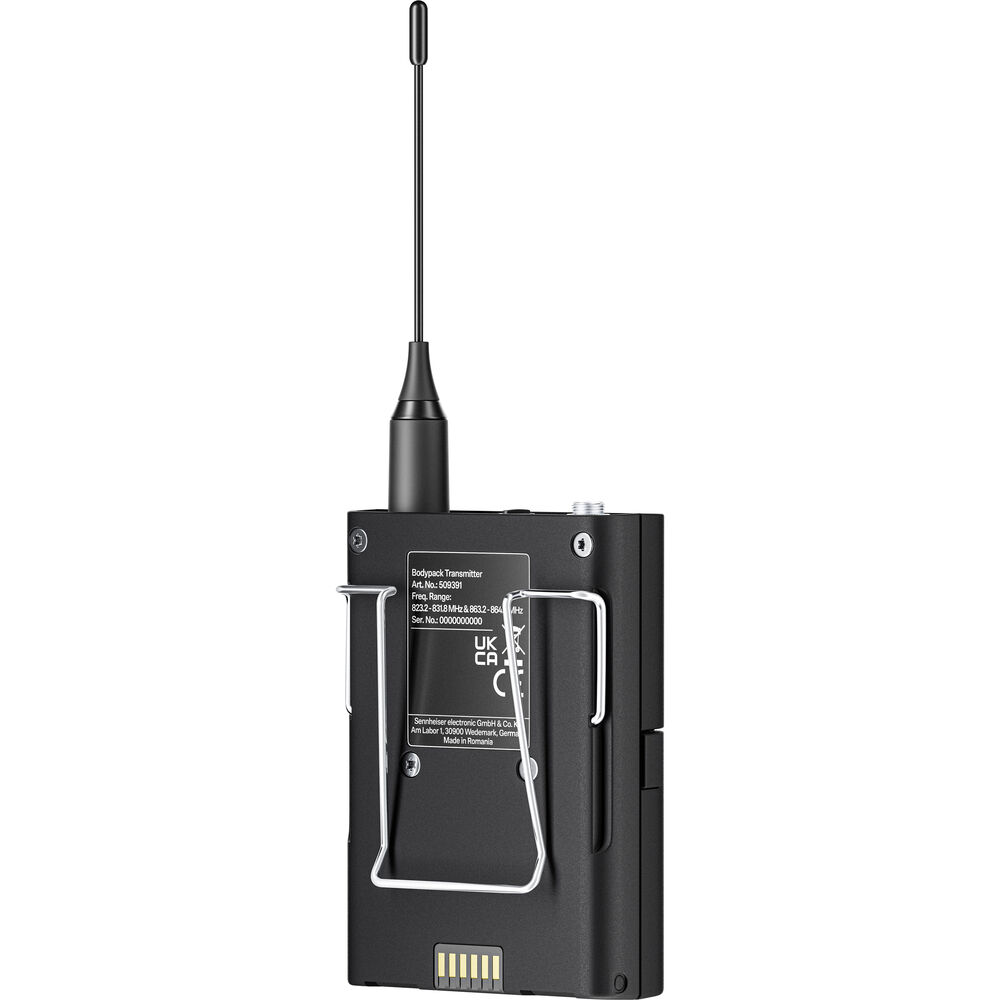

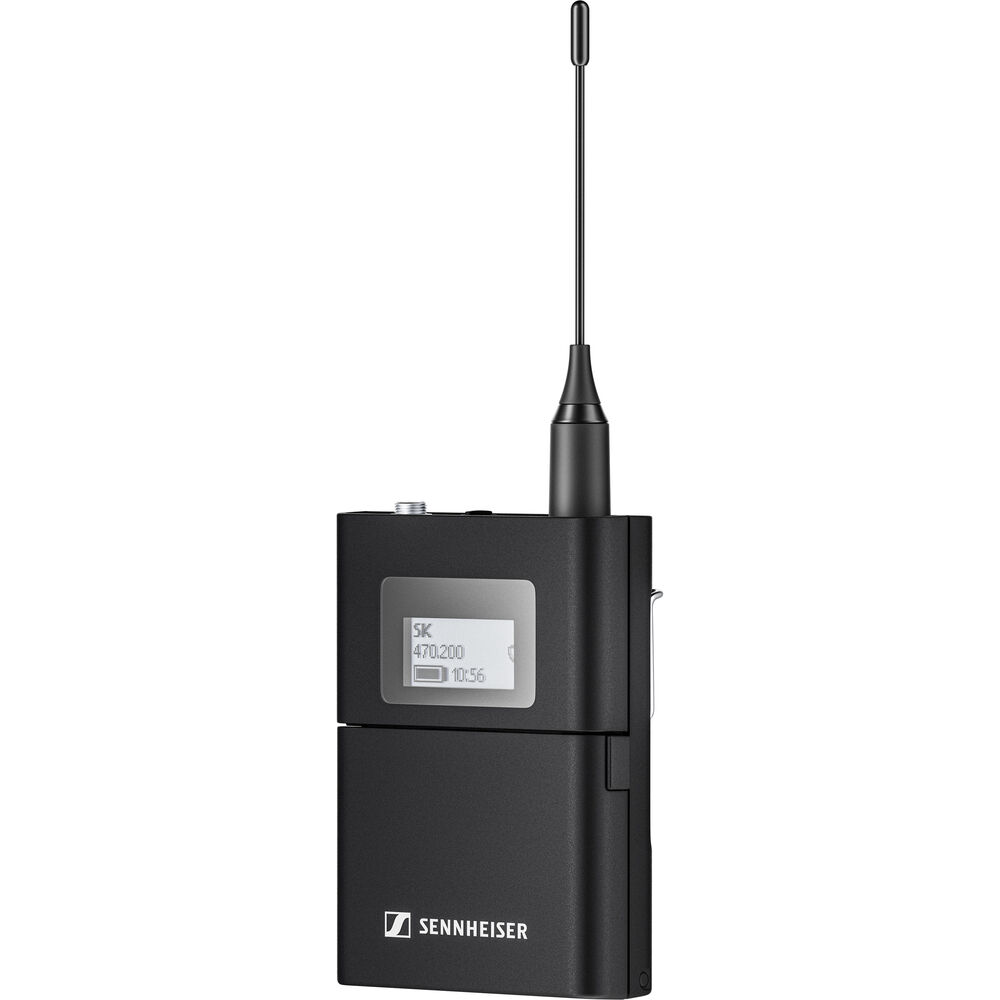

Bodypack Transmitter with Mute Switch, e-Ink Display, and MKE 2 Omni Lav Mic

• The rugged, all-metal compact bodypack transmitter is equipped with a lockable mute button along with function buttons that allow you to control all the transmitter's settings directly from the device.
• The sweat-resistant, subminiature MKE 2 lavalier microphone offers a pristine, broadcast-quality sound and is easy to conceal. It features a forgiving omnidirectional pickup pattern that captures sound equally well in every direction, for a consistent voice level, even when moving your head. The lav plugs into the locking 3.5mm connector on the bodypack transmitter, ensuring that it doesn't detach at a critical moment.

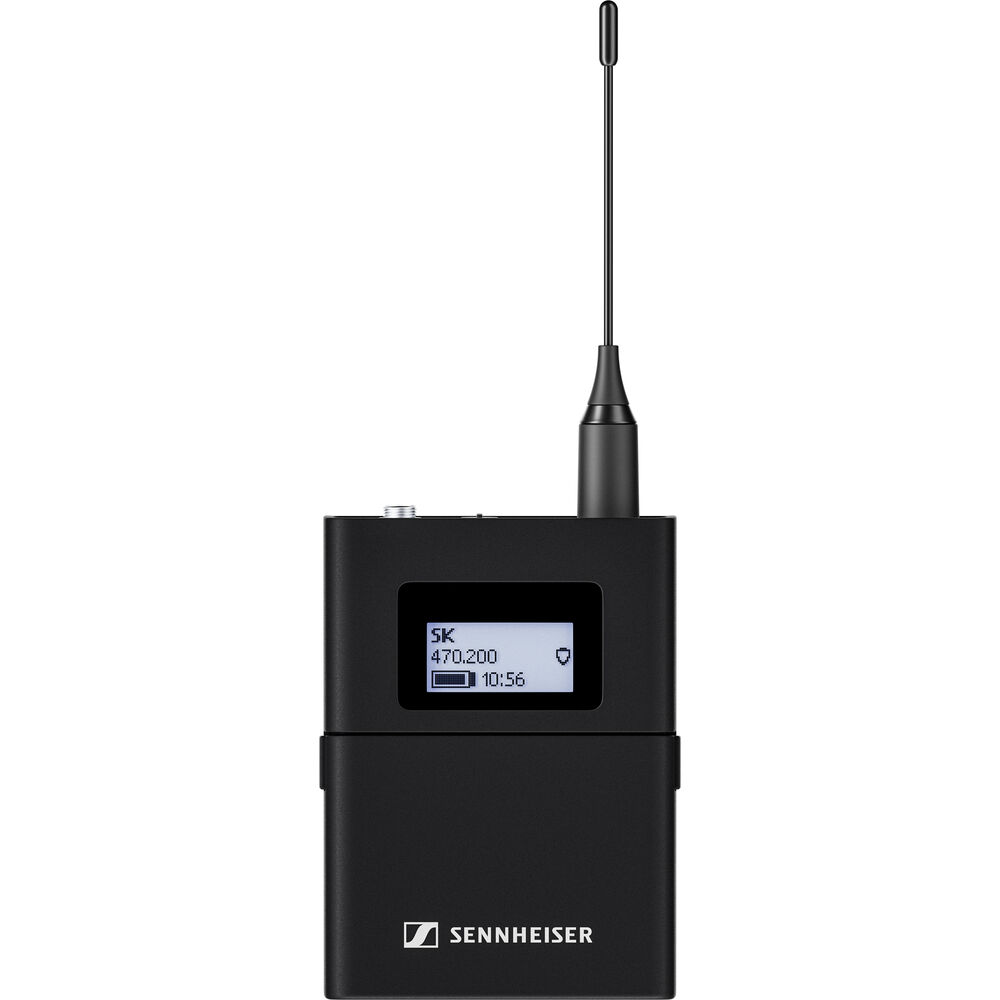

• The persistent e-Ink display helps you quickly name and identify the transmitters and allows you to see parameters, even when the unit is powered off.

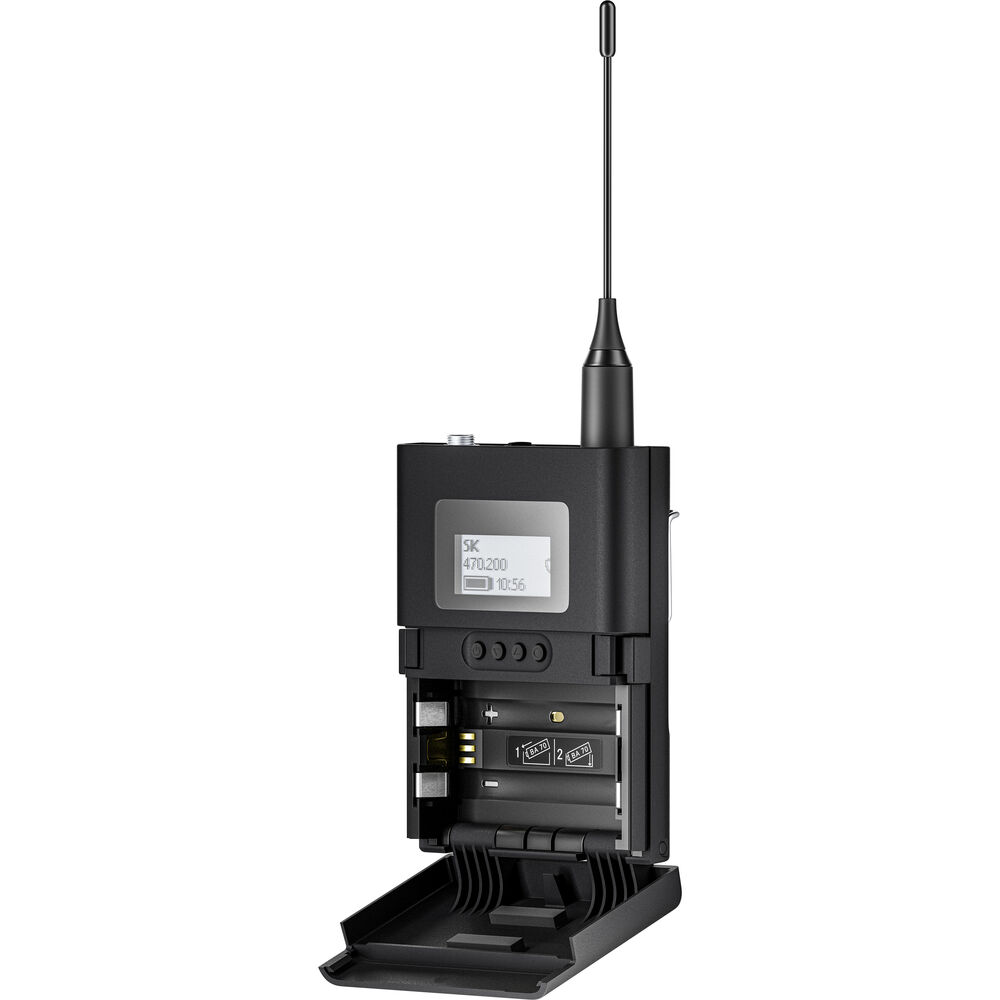

• The transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).

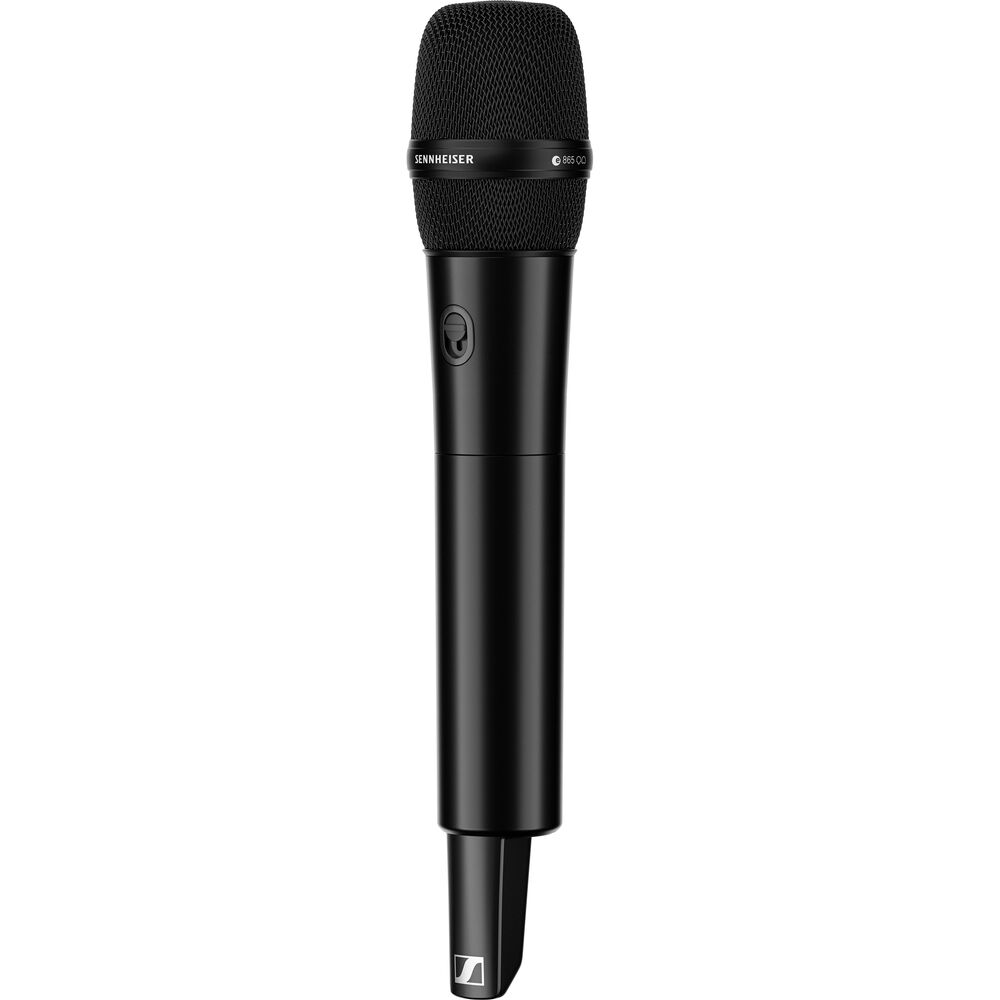

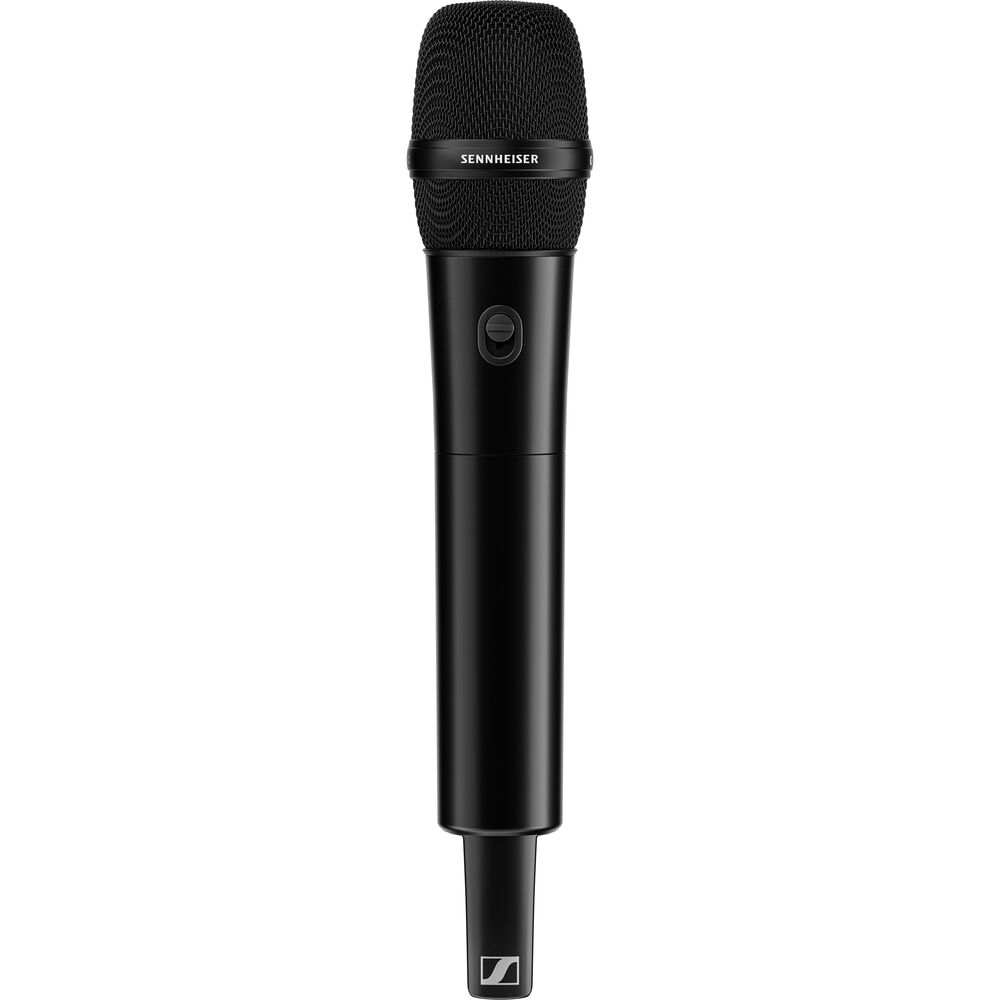

Handheld Transmitter with Mute Switch, MMD 835 Capsule, and e-Ink Display

• The rugged, all-metal handheld transmitter is also equipped with a lockable mute switch along with function buttons that allow you to control all the transmitter's settings directly from the mic.
• The MMD 835 dynamic capsule features a cardioid polar pattern that helps minimize background noise and feedback. The interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid.
• The persistent e-Ink display helps you quickly name and identify the transmitter and allows you to see parameters, even when the unit is powered off.
• The handheld transmitter will operate on its included BA70 rechargeable battery for up to 12 hours. Two AA batteries will power the transmitter for up to 8 hours. Charging contacts allow for in-device battery charging with the CHG 70N (available separately).

Dual-Channel Receiver with OLED Screen & Bluetooth

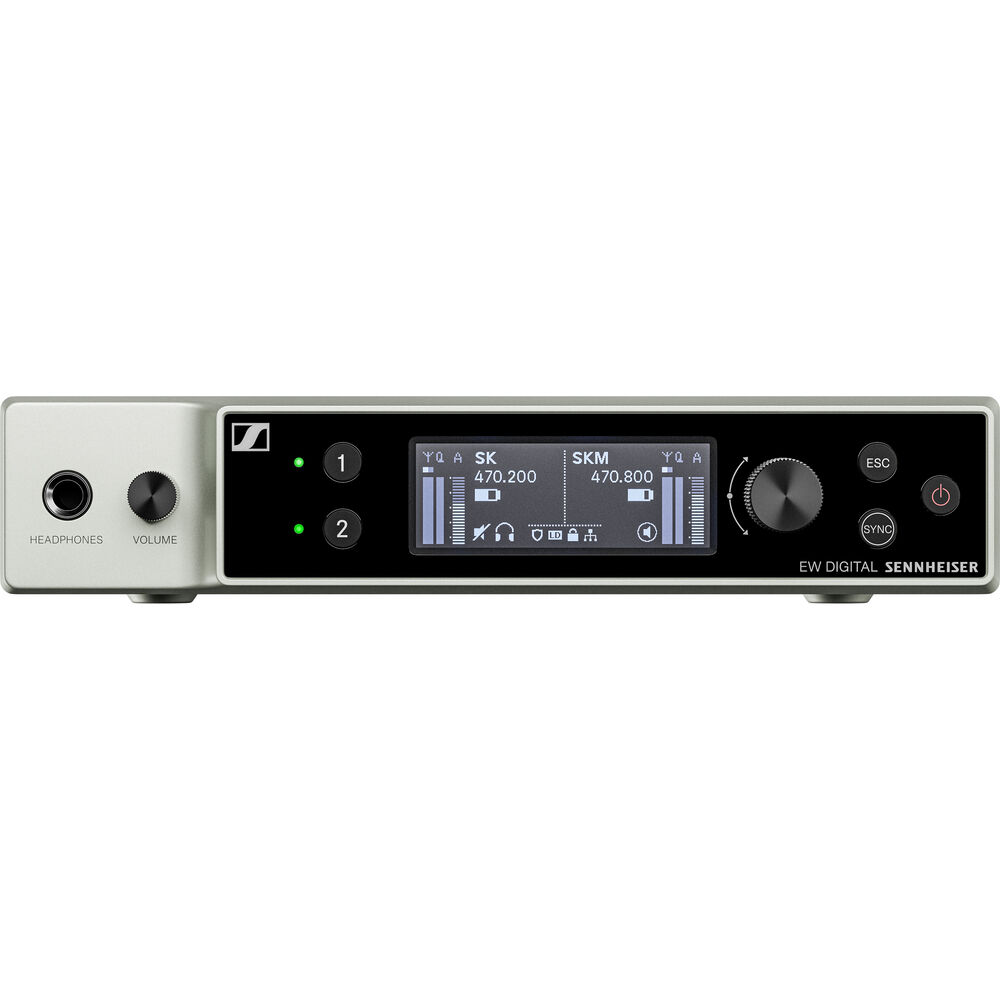

• The all-metal, 1/2-rack, dual-channel EW-DX EM 2 receiver offers intuitive front-panel controls and a high-contrast OLED with meters for RF, battery status of the associated transmitter, and audio output that make setup a breeze.
• Bluetooth capabilities allow you easily sync transmitters at a distance of up to 120' away and control the receiver remotely from your smartphone using the Smart Assist app.

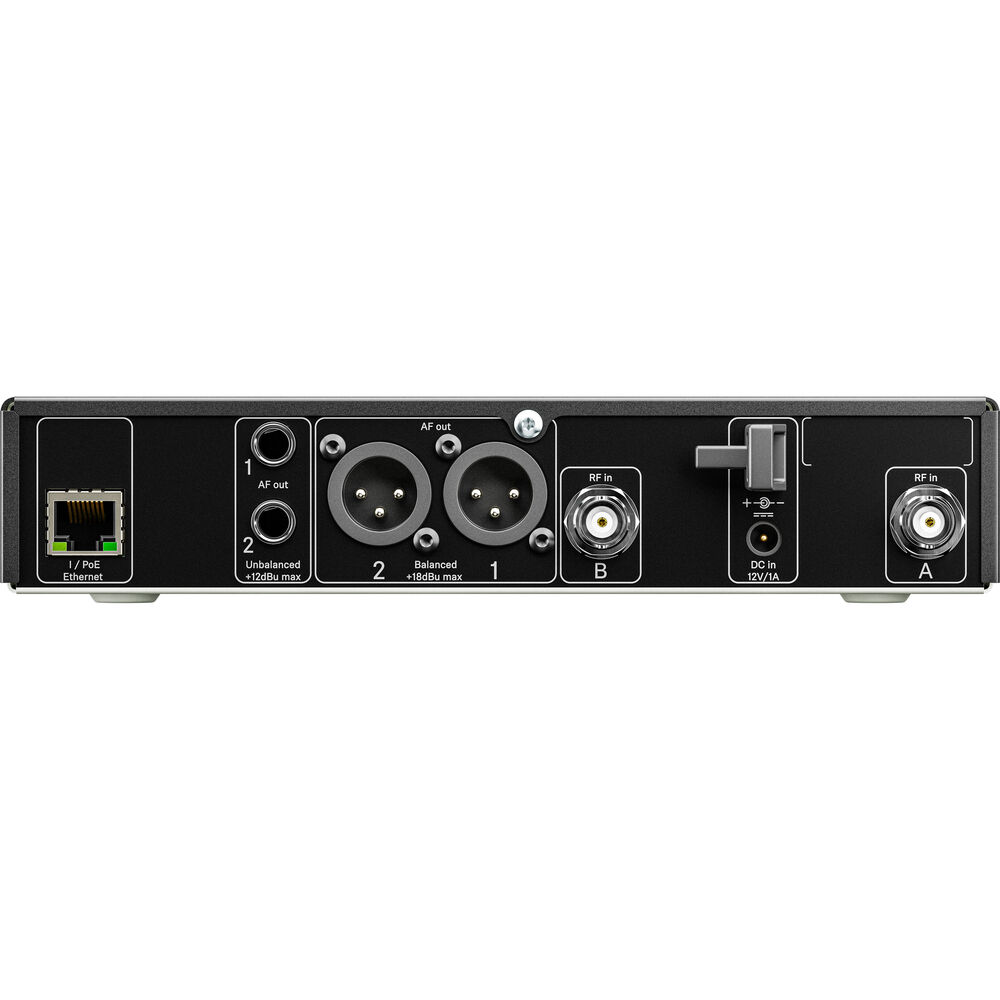

• The RJ45 port allows for PoE (Power over Ethernet) as well as networked control via Sennheiser's Wireless Systems Manager and Cockpit Control software.
• Balanced XLR outputs as well as unbalanced 1/4" outputs provide plenty of connection options for PA systems and recording equipment. A front headphone jack with volume control is also provided, along with an external PSU if you're not using PoE.
• A rackmounting kit is included.

Add Functionality with Additional Transmitters, Mics, and Accessories

In addition to the handheld transmitter with MMD 835 capsule and bodypack transmitter with MKE 2 lav included with this set, Sennheiser offers a number of separately additional transmitter and mic options for the EW-DX system as your needs evolve.

• The ME 4 cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.
• The ME 3 cardioid headset mic provides enhanced speech clarity for lectures and presentations.
• The CI 1 instrument cable lets you connect the bodypack transmitter to a guitar, bass, or keyboard.
• Capsules for the handheld transmitter include the MMD 845, MME 865, MMD 935, MMD 945, MMD 42, MM 435, ME 9004, MD 5235, ME 5004, and Neumann KK204 to name a few.
• For conferences and meetings, the EW-DX TS is a tabletop transmitter that provides a stable base for gooseneck microphones and is available with 3-pin or 5-pin XLR inputs.

To maximize the reliability of the system, consider upgrading the included antennas.

• The rear-mounted, 1/4-wave detachable antennas can be upgraded to longer, 1/2-wave dipole antennas (available separately) for added range and reliability; users can also choose an ADA UHF Active Antenna or the AWM Wallmount Antenna as well.
• For setups with multiple receivers, the EW-D ASA Splitter allows you to split and distribute a dual-antenna signal across 4 receivers for clearer reception without the intermodulation problems that can occur when multiple antennas are used.
