Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver
Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver
Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver
Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver

Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver

Brand: SENNHEISER

MFR: GA 6042 BP

SKU: SF-2443-J31V

Price Available Upon Request
  • For Standalone Operation of EK 6042
  • Digital & Analog Audio
  • Main & Aux Audio Outputs
  • Headphone Output

Items Included

  • Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Cables & Adapters , Accessories

The Sennheiser GA 6042 BP is a backpanel adapter for the EK 6042 dual-channel wireless receiver. It features a rugged holster that securely holds the receiver, while providing all the audio and powering connections necessary for using the receiver without a camera— as in a bag or with a mixing console.

Power Connections
  • To power the EK 6042 with rechargeable Accupacks, the GA 6042 BA Accupack adapter, two BA 61 Accupacks, and the L 60 charger are required (all available separately).
  • To power the EK 6042 through a battery distribution system, the CA 6042 DC Hirose external power supply cable is required (available separately).
Audio Connections
  • To connect the EK 6042 to a sound recording device or a mixing console, at least one CA 6042 XLR audio output Y-cable is required (available separately)—5-pin mini XLR to 2 x XLR.
  • The primary audio output Main 1/2 outputs the audio signals of both receiving channels, either in analog form or digitally.
  • The secondary audio output Aux 1/2 outputs analog audio signals only.
  • A 3.5mm headphone jack allows for direct monitoring of both channels.

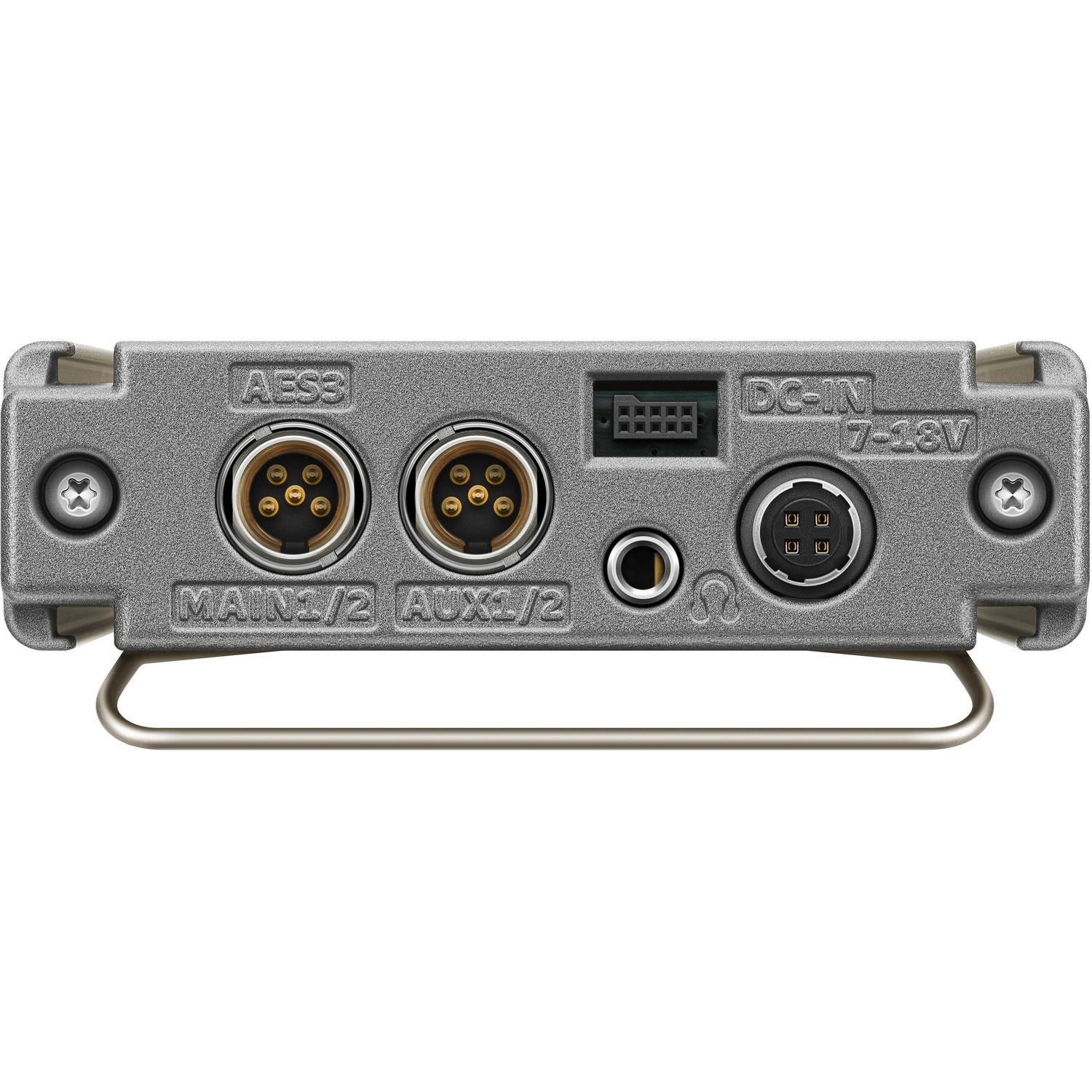

Audio Outputs
1 x 5-Pin Mini XLR, Main 1/2, Digital and Analog Audio

1 x 5-Pin Mini XLR, Aux 1/2, Analog Audio

1 x 1/8" / 3.5 mm, Headphone jack
Power Connectors
1 x 4-Pin Hirose, 7 to 18 VDC Input

1 x Proprietary Connector for Accupack Adapter
Packaging Info
Package Weight
0.645 lb
Box Dimensions (LxWxH)
8.7 x 4.8 x 2.3"
