Sony Black Burst Regenerator Board
Sony Black Burst Regenerator Board

Sony Black Burst Regenerator Board

Brand: Sony

MFR: BKPFL704

Price Available Upon Request
  • For PFV-L Series Interface Unit
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Video & Audio Processor Accessories

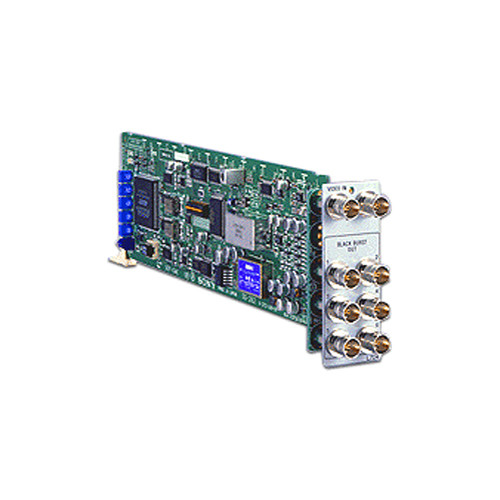

Sony's Black Burst Regenerator Board is an analog I/O black burst regenerator board that installs in PFV-L Series interface units and generates a black-burst signal for synchronization with an input signal. This cost-effective tool is ideal for use in systems making the transition from analog to digital, where both analog and digital equipment must co-exist. It can be used in combination with other BKPF-L Series function boards and has a range of NTSC system applications--such as in a mixed analog/digital system where delaying the sync signal to the analog equipment is necessary to compensate for the longer video delay of the digital equipment.

  • Regenerates black burst signals
  • NTSC composite analog input with passive loop-through
  • Six black burst outputs
  • Continuously variable delay of -4 H to +3 H
  • 0 IRE to 44 IRE variable setup
  • Video input presence lamp
  • SCH warning lamp
  • -5 V warning lamp

Inputs/OutputsVideo Input: VIDEO IN connectors (BNC type) (x2) 0.286 Vp-p (SYNC, Burst) at 75 ohms
Input Return Loss: 40dB or more (at above 5 MHz)
Analog Output: Passive loop-through output connectors (BNC type) (x2)
Black Burst Output: BLACK BURST OUT connectors (BNC type) (x3 for each channel) (conforming to RS-170A)
Output Level: SYNC: 0.286 Vp-p +/-2% at 75 ohms BURST: 0.286 Vp-p +/-5% at 75 ohms
SCH: Less than +/-5°
Output Return Loss: 40dB or more (above 5 MHz)
H Phasing: Approx. -4.5 to +59.0 s all "0" position
V Phasing: -4 H to +3 H
Power Requirements+5VDC, 1.0A
DimensionsBoard: (3.1 x 10.6" (7.7 x 26.7 cm)
Connector Panel: 1.3 x 3.4" (3.3 x 8.5 cm)
WeightBoard: 5 oz (140g)
Connector Panel: 4 oz (100g)
