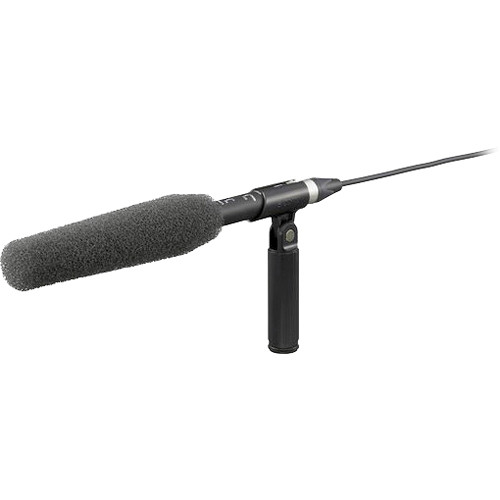

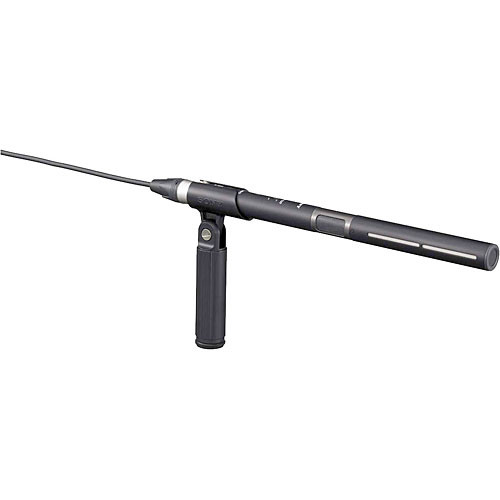

Sony ECM-680S M/S Stereo Shotgun Microphone
Sony ECM-680S M/S Stereo Shotgun Microphone
Sony ECM-680S M/S Stereo Shotgun Microphone
Sony ECM-680S M/S Stereo Shotgun Microphone

Sony ECM-680S M/S Stereo Shotgun Microphone

Brand: Sony

MFR: ECM-680S

Price Available Upon Request
  • Switchable M/S and Unidirectional Modes
  • Switchable Low-Cut Filter
  • Wide & Flat Frequency Response
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: Wired Microphones

The Sony ECM-680 Stereo Shotgun Microphone provides both M/S (Mid-Side) stereo, and mono audio capturing, at the touch of a switch. The electret-condenser, unidirectional (cardioid) ECM-680, features internal M/S decoding for true stereo placement.

In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range. The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction. Measuring only 9-inches long, the ECM-680 is an ideal solution for camera mount applications.

M/S Stereo and Mono Capturing

The electret-condenser, unidirectional (cardioid) ECM-680 features internal M/S decoding for true stereo placement. In mono mode, the ECM-680 captures audio like a true shotgun microphone, with superb audio rejection and increased range.

Pristine Audio Quality

The wide frequency response, excellent signal-to-noise ratio and wide dynamic range result in pristine audio reproduction.

Built-in Low Cut Filter

Built-in, two position low-cut filter switch eliminates unwanted low-frequency noise and ambiance.


Key Specs

Form FactorCamera-Mount / Shotgun Mic / Stand/Boom Mount
Capsule2 x Electret Condenser
Polar PatternSupercardioid, Unidirectional
Frequency Range

Unidirectional:
50 Hz to 20 kHz
Supercardioid:
40 Hz to 20 kHz

Show More

Maximum SPL124 dB SPL

Microphone

Form FactorCamera-Mount / Shotgun Mic / Stand/Boom Mount
Intended Sound SourcesSpeech/Voice Over
Sound FieldMono, Stereo
Capsule2 x Electret Condenser
Polar PatternSupercardioid, Unidirectional
Pattern SelectionSwitched
PadNone
High-Pass FilterNone
Tone AdjustmentNone
Gain AdjustmentNone
WindscreenFoam (Included)

Performance

Frequency RangeUnidirectional:
50 Hz to 20 kHz
Supercardioid:
40 Hz to 20 kHz
Maximum SPL124 dB SPL
Load Impedance100 Ohms +/- 20%
SensitivityUnidirectional: -28 dB
Supercardioid: -32 dB
Dynamic RangeUnidirectional: 104 dB
Supercardioid: 106 dB
Signal-to-Noise RatioUnidirectional: 74 dB
Supercardioid: 76 dB
Equivalent Noise LevelUnidirectional: 21 dB
Supercardioid: 20 dB

Connectivity

Headphone ConnectorNone
Cable Length15.0" / 380 mm

Power

Operating Voltage40 to 52 V

Physical

ColorBlack
MountingBoom, Camera/Shoe-Mount, Mic Clip/Stand Adapter (with Included Hardware)
Included CaseSoft Case
Included FiltersNone
Dimensionsø: 0.8 x L: 9.8" / ø: 20 x L: 250 mm
Weight3.7 oz / 105 g

Packaging Info

Package Weight2.2 lb
Box Dimensions (LxWxH)15.7 x 5.4 x 0.01"
