Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras
Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras
Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras
Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras
Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras
Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras

Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras

Brand: Sony

MFR: RM-IP500/1

Price Available Upon Request
  • Compact PTZ Controller
  • Pan, Tilt, Zoom Control via Joystick
  • Control up to 100 Cameras via IP
  • Camera Paint Functions
  • Auto IP and Camera Number Assignment
  • Store up to 100 Camera Presets
  • Tally Indicator
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Request Now

Categories: PTZ Camera Accessories

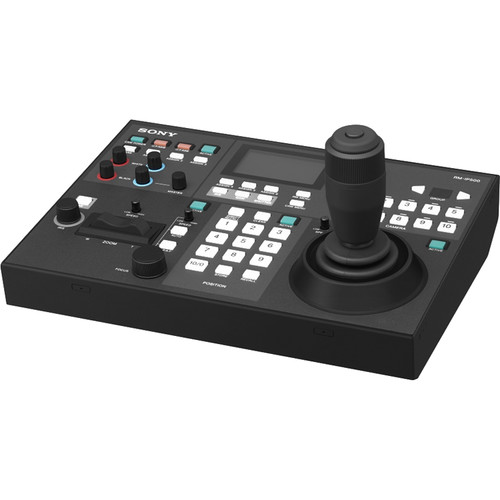

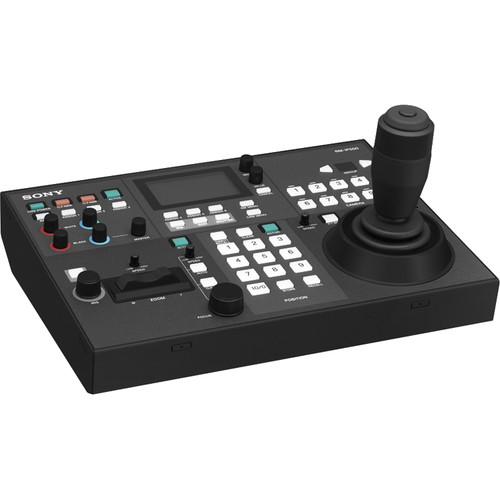

The Sony RM-IP500/1 Professional Remote Controller for Select Sony PTZ Cameras provides control of Sony BRC-X1000/1, BRC-H800/1, BRC-H900 and SRG-360SHE PTZ cameras. This compact unit incorporates a joystick for pan, tilt, and zoom control, and it has the capability of controlling up to 100 separate cameras over IP. In addition to the joystick, the controller features dedicated knobs and control buttons that allow you to bypass the camera's menu systems to access frequently used functions.

The controller also incorporates many "paint" functions that enable adjusting the look of your cameras from one central point. Auto IP addressing and camera numbering make connecting to your network as simple as plugging an Ethernet cable into your camera. The RM-IP500/1 stores up to 100 presets, has a tally indicator, and offers discrete zoom, focus, and iris controls in addition to the joystick.

IP Addressing and Camera Numbering

The RM-IP500/1 automatically manages addressing each camera you connect, as well as assigning a camera number. This speeds up configuring and controlling the cameras on your network.

100 Cameras

The controller supports up to 100 cameras of the BRC or SRG series, enabling control of pan, tilt, zoom, and other functions, over an IP network.

Store and Recall Camera Presets

Depending on the specification and firmware version, the IP500/1 can store up to 100 presets of camera angles and settings.

Numeric Keypad

the built-in numeric keypad speeds up switching control between cameras.

Tally

Includes Normal Tally/On-Air Tally/Contact modes.

Camera Paint Functions

Use the controller to individually adjust camera settings, including black levels, white balance, flicker cancel, detail level, knee point, auto exposure level, iris, gain, and shutter speed, all without needing to access each camera's menu system.


General

Number of Supported Cameras100 Channels
Supported Control ProtocolsRS-422
VISCA

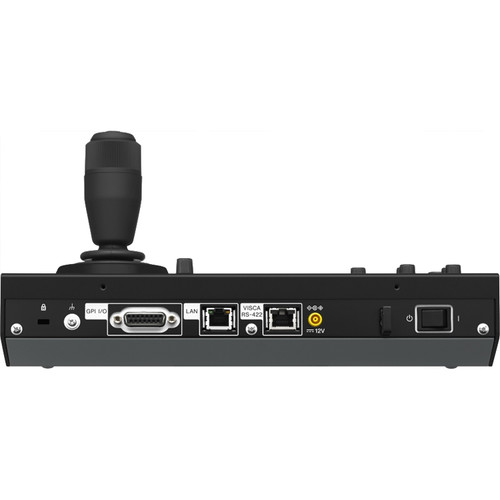

Control I/O1 x RJ45 (RS-422, VISCA)
1 x RJ45 (LAN)
Other I/O1 x D-Sub 15-Pin (Tally) Input/Output
ControlsButton
Joystick
Knob
Rocker
Presets100

Power

PoE SupportNone
Power Connectors1 x JEITA
Power Consumption2.4 W
DC Input Power10.8 to 13.2 VDC at 0.2 A

Environmental

Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 140°F / -20 to 60°C

Physical

Security Lock SupportNone
Dimensions12.05 x 8.82 x 6.27" / 30.6 x 22.4 x 15.93 cm
Weight5.3 lb / 2.4 kg

Packaging Info

Package Weight9.5 lb
Box Dimensions (LxWxH)15.9 x 12.6 x 10.2"
