Categories: Signal Processing & Distribution

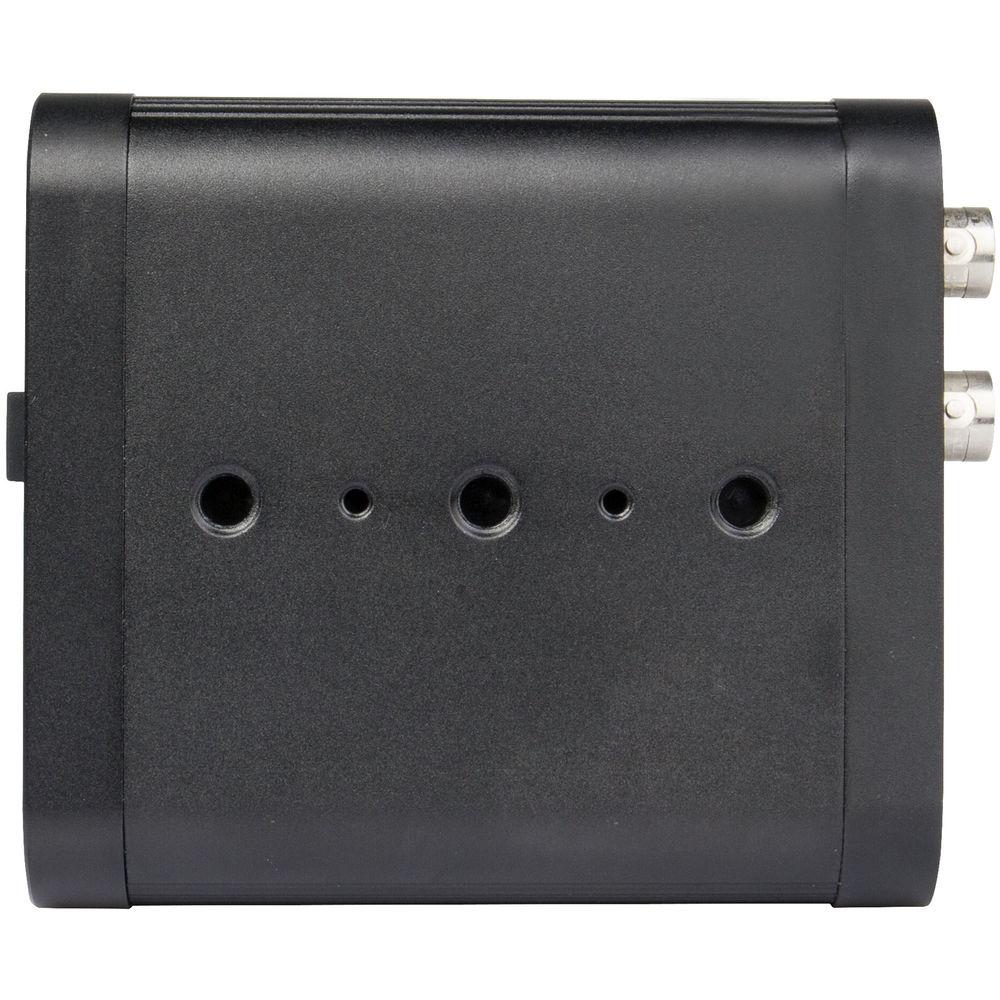

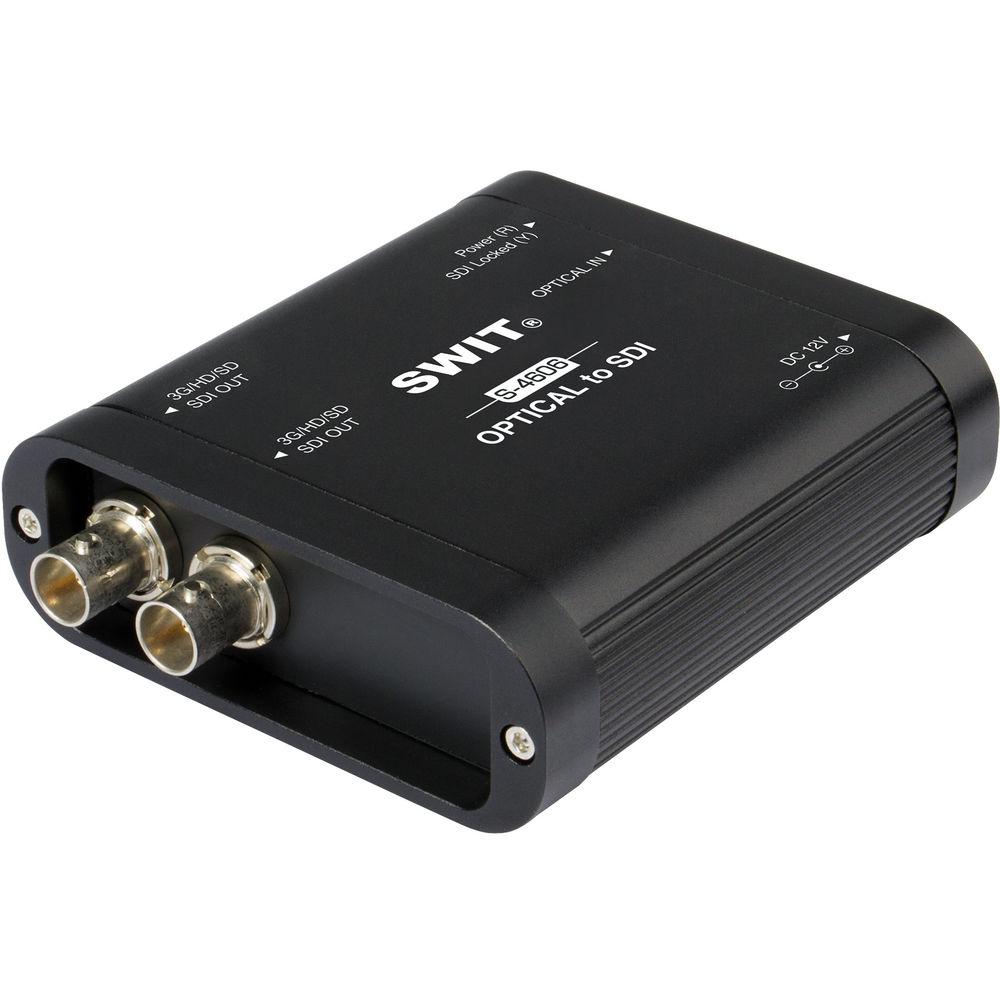

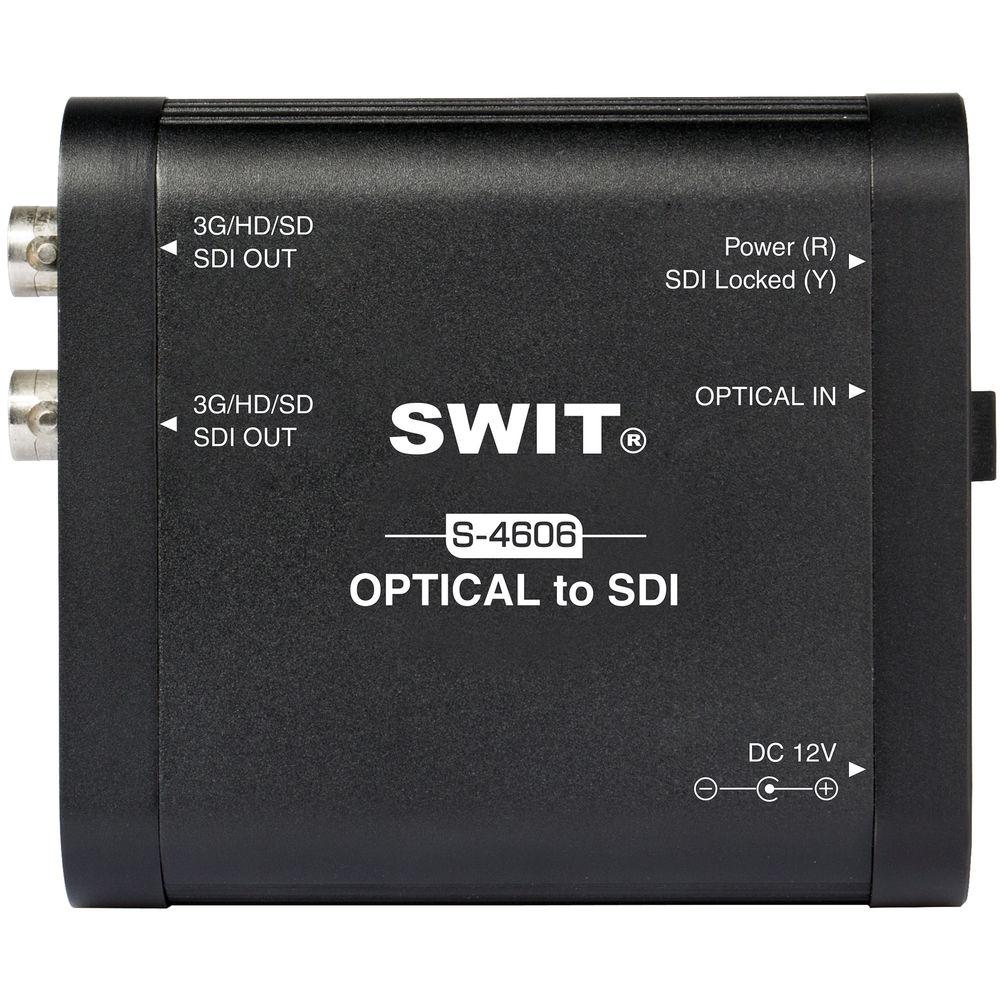

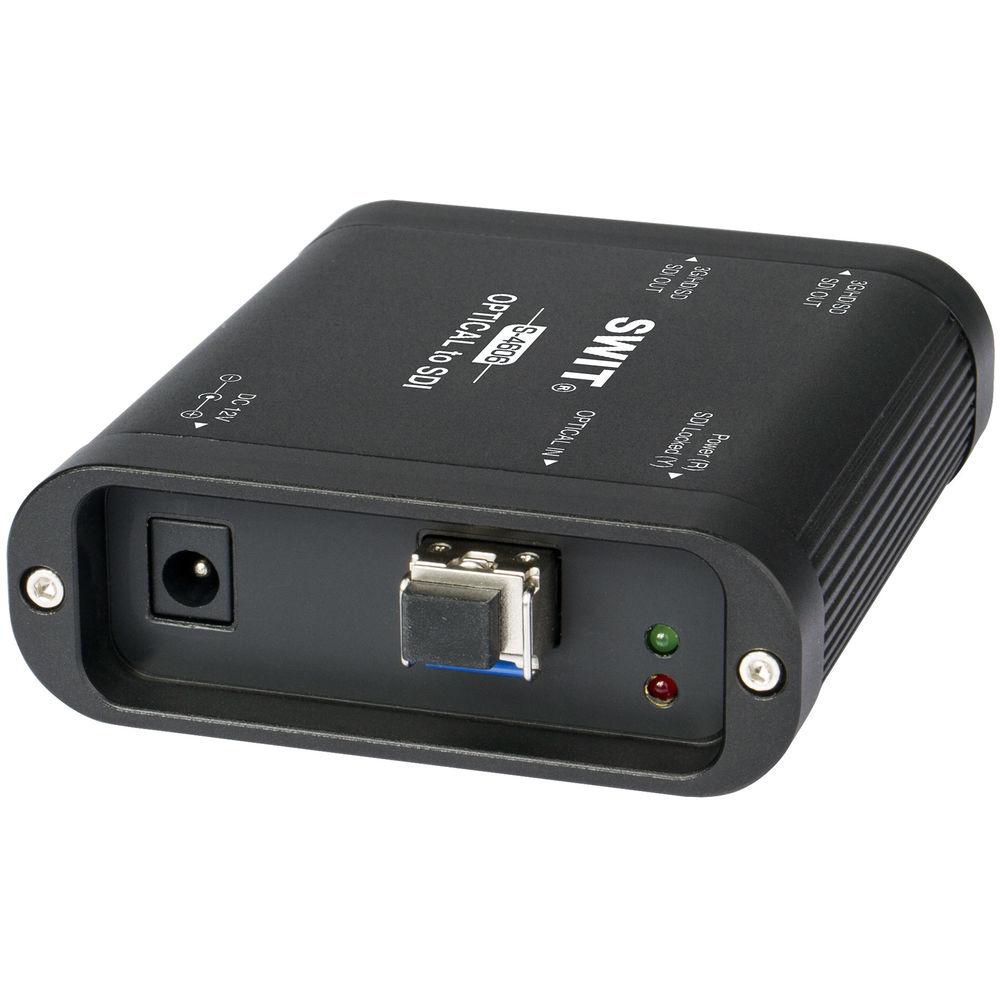

The S-4606 is a portable Optical fiber to 3G/HD/SD-SDI converter. The single-mode fiber ensures max 20 km reliable transmission, and support hot swap of optical module. The S-4606 is heavy duty housing design, protecting the BNC connectors well, and supplied various screw threads in the bottom, for convenient installing.
| Type | 3G-SDI/HD-SDI/SDI optical to electrical converter |
| Width | 3.9 in |
| Depth | 3.3 in |
| Height | 1.1 in |
| Weight | 7.76 oz |
| Low Voltage Power | DC 6 - 18 V |
| Kit Content | (1) x power adapter |
| Terminals | (1) x 3G HD-SDI input (optical) - LC (2) x 3G HD-SDI output - BNC (1) x DC power input |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 10 - 90% |
