Ace Micro TX is our smallest zero-delay wireless video transmitter yet. Share up to 4Kp30 uncompressed wireless video with up to six RXs at ranges up to 500’ (150m). It is cross-compatible with all Bolt 4K, Bolt 6, Bolt 7, and Ace 750 systems thanks to a shared BB3 chipset, which enables operation over 6GHz and 5GHz frequencies and delivers video with less than 1 millisecond of latency—over 70 times less latency than WiFi-based solutions.
Ace Micro TX is designed to support a wide range of zero-delay workflows with a single USB-C connection.
Connect directly to cameras that support DisplayPort Alt Mode (DP Alt Mode) over USB-C, including Blackmagic URSA Cine and PYXIS, for the most simplified cable management solution available.

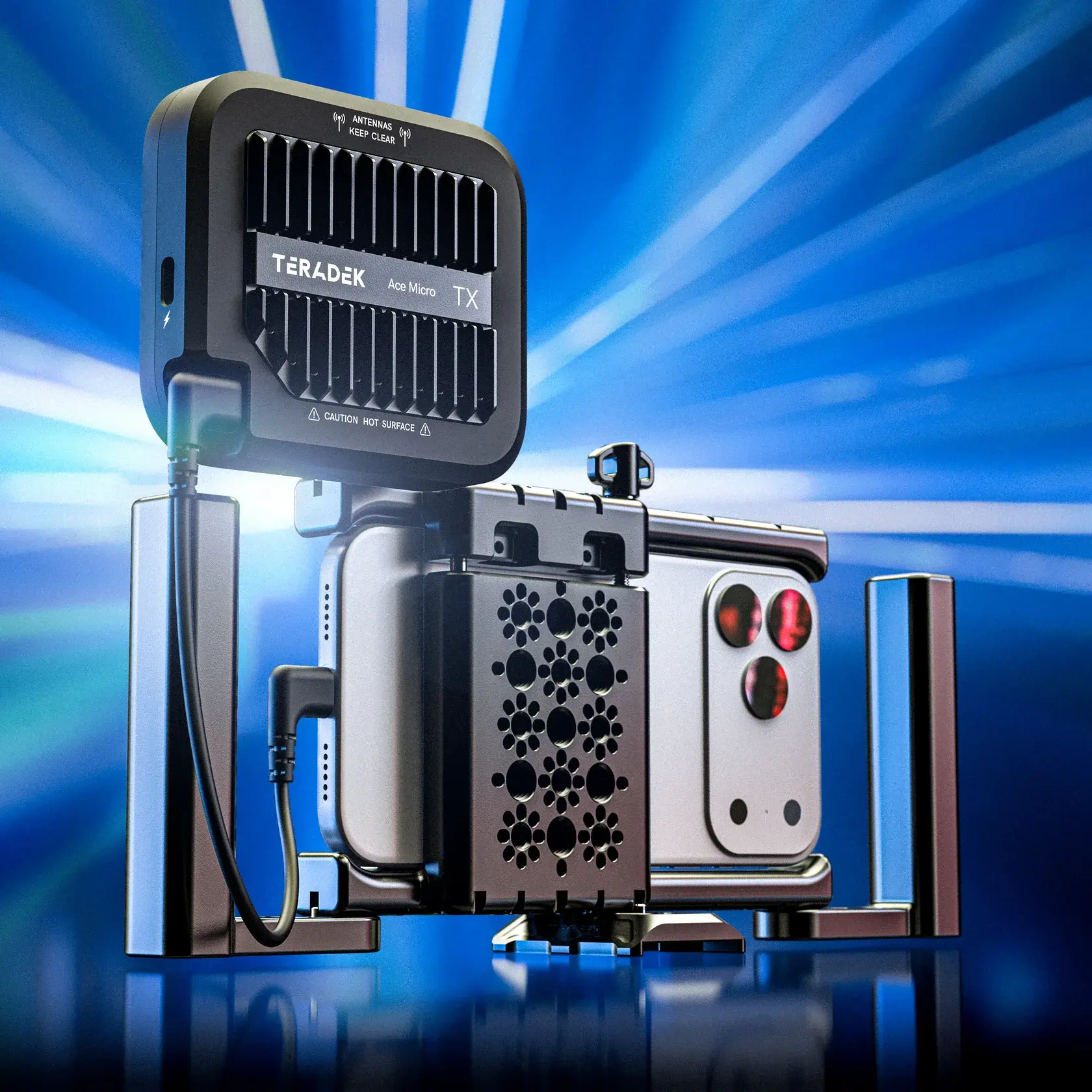

For the first time, Ace Micro TX transforms your iPhone into a professional wireless camera. Simply mount the TX, connect via USB-C, and transmit zero-delay video using your preferred camera app. Seamlessly integrate your iPhone into an existing Teradek wireless video ecosystem. External USB power required.

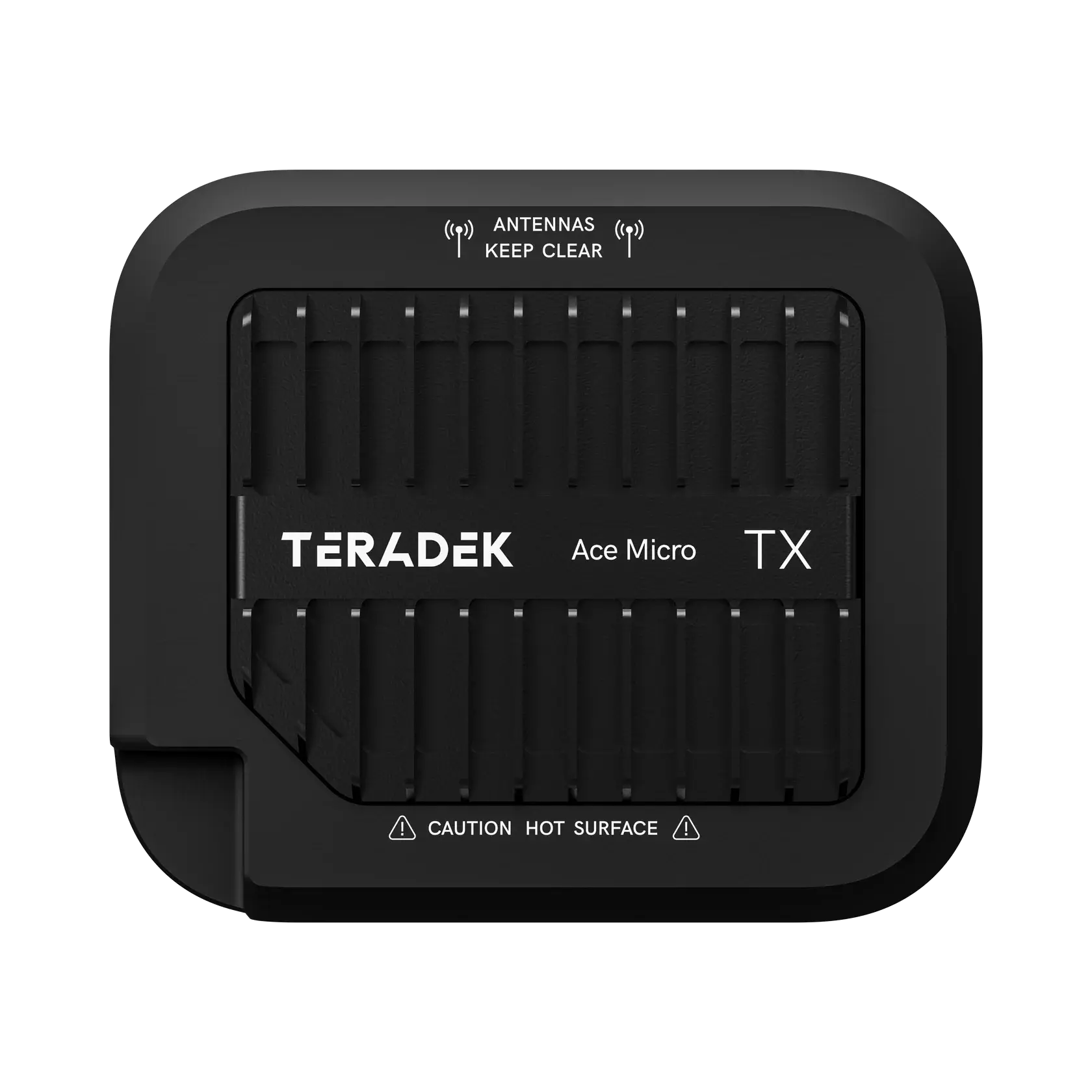

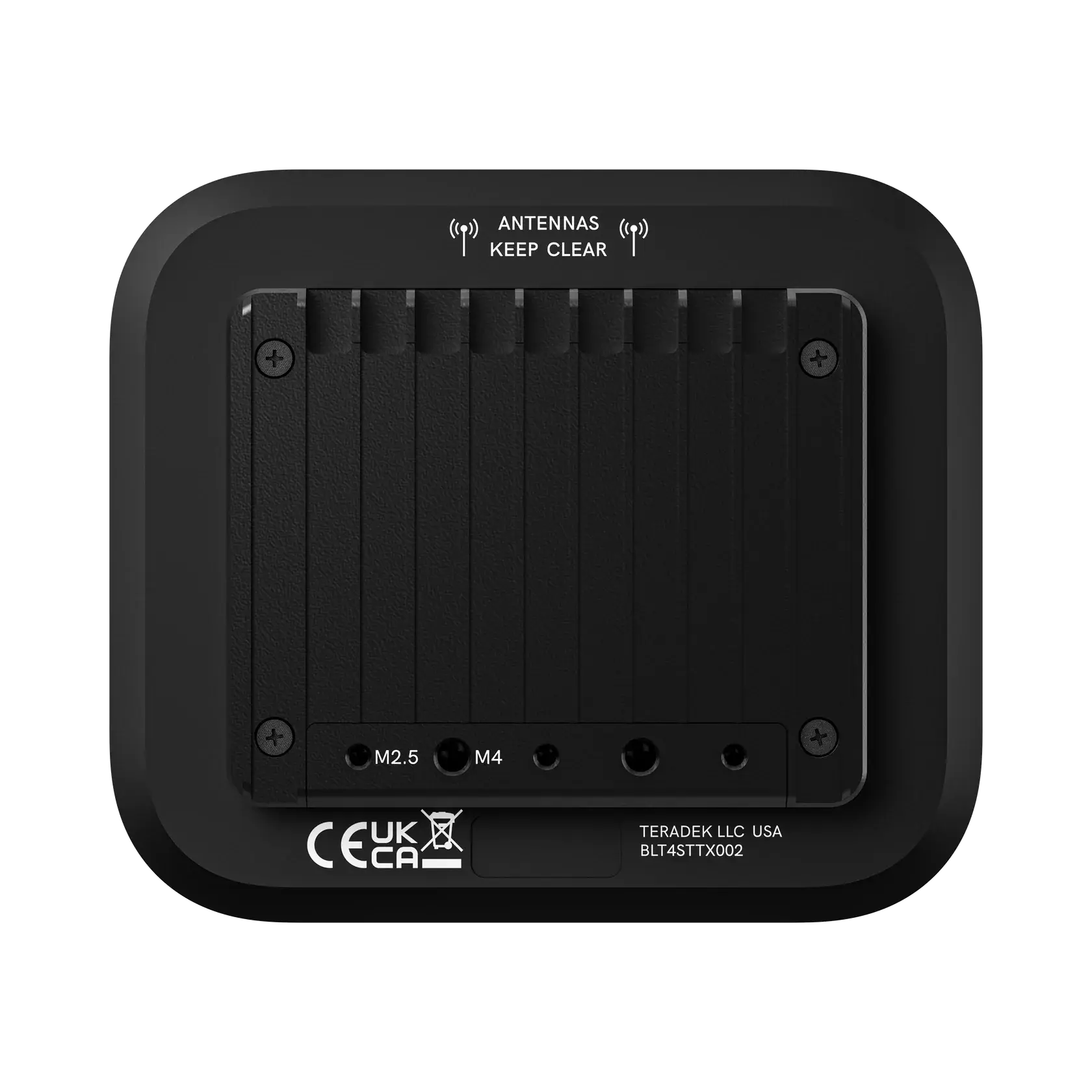

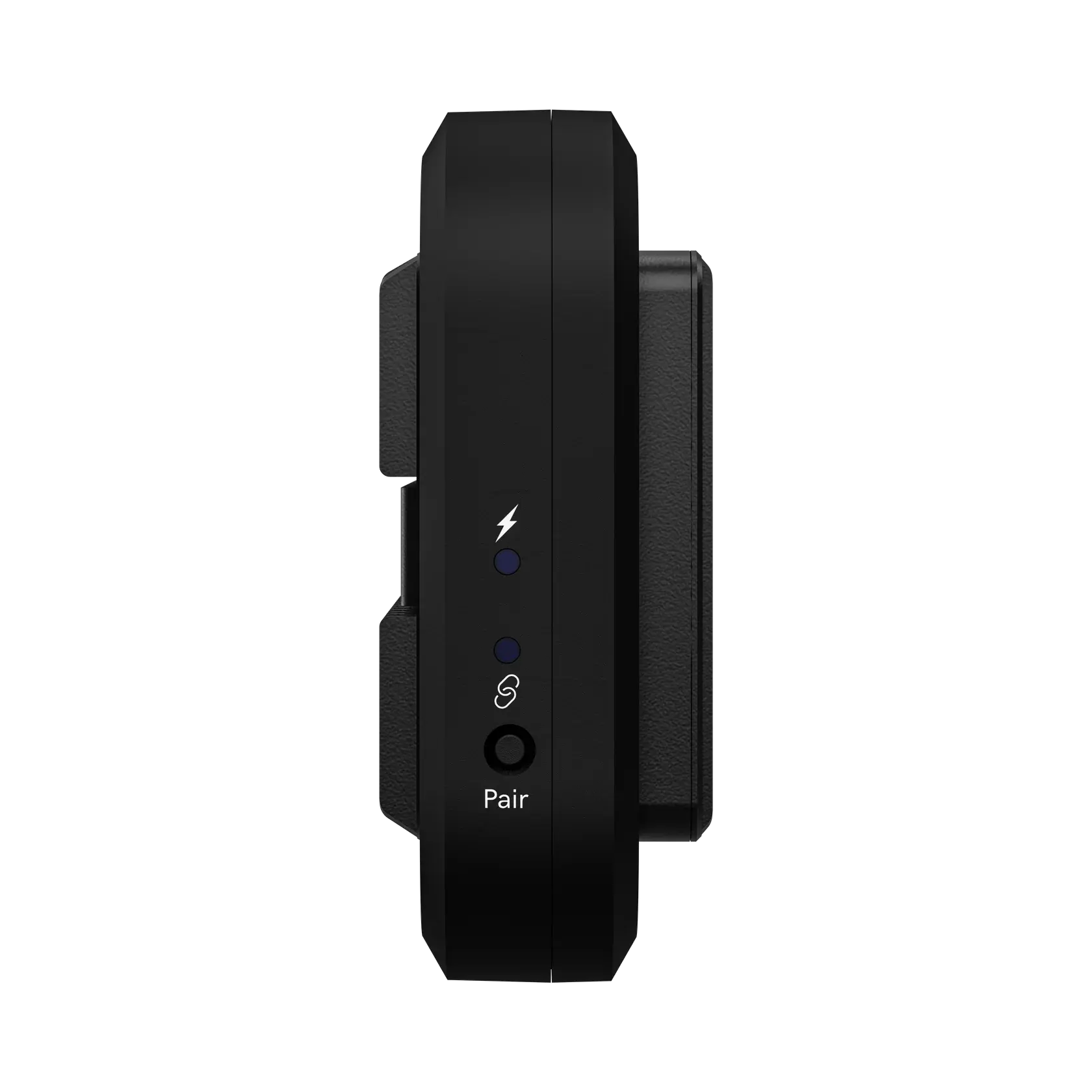

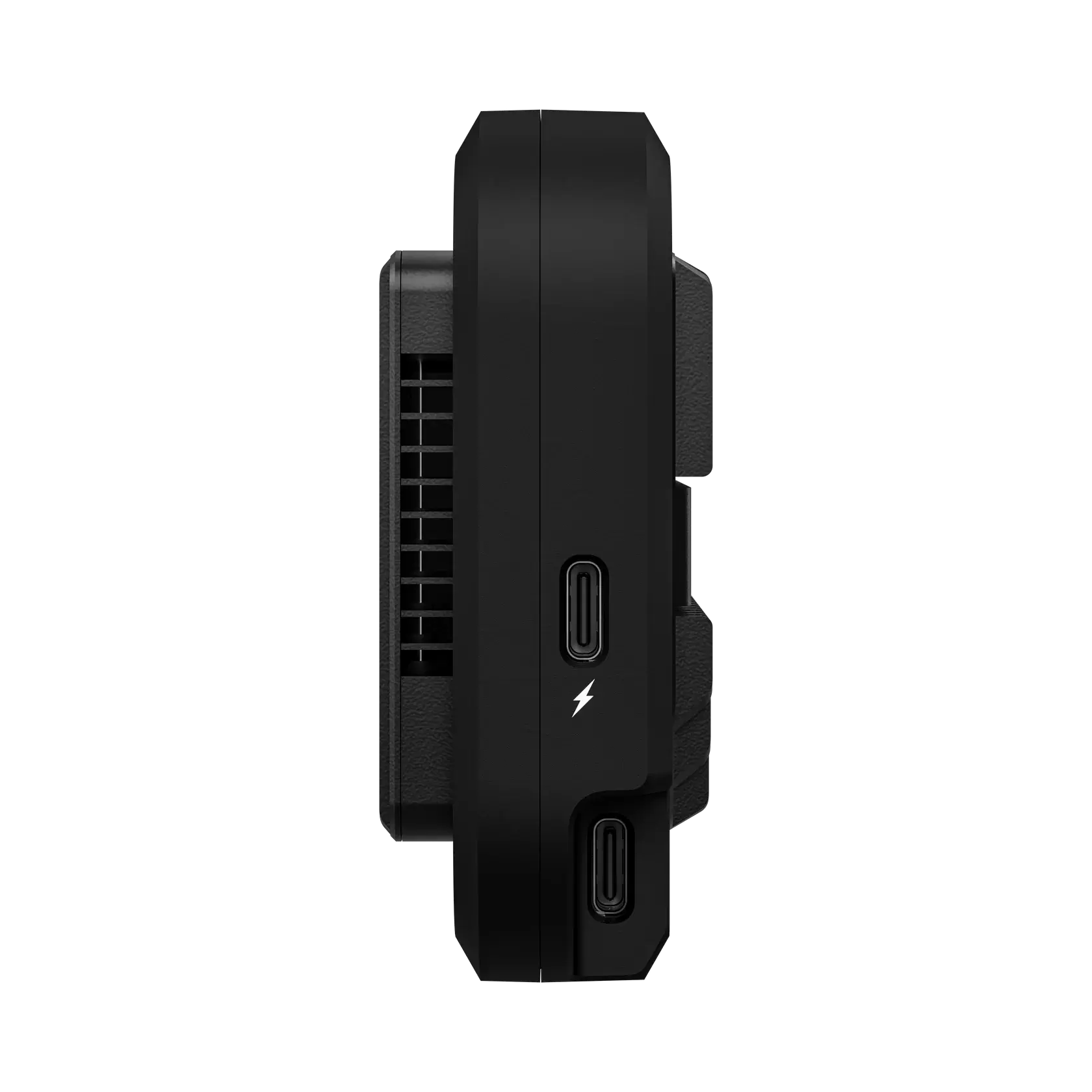

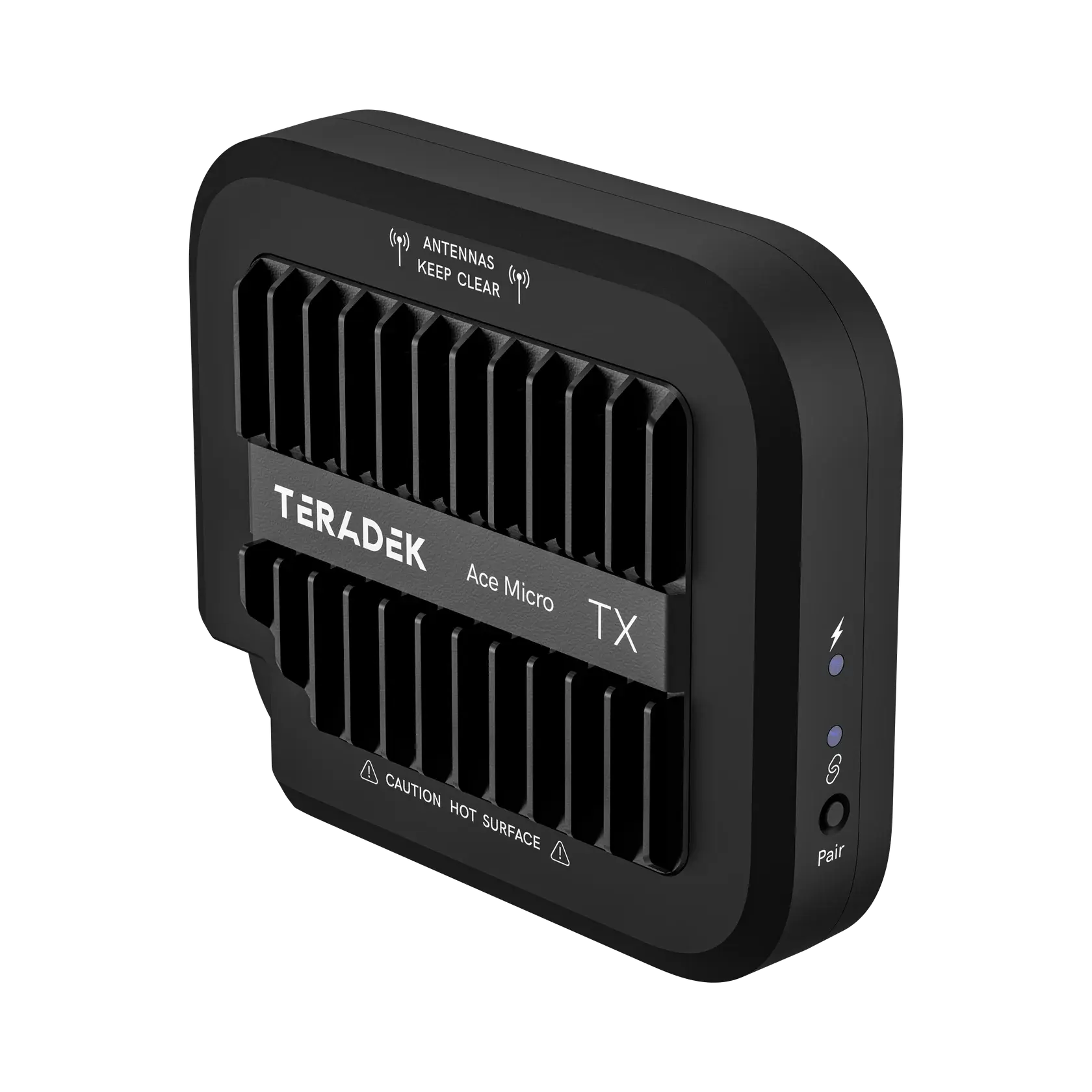

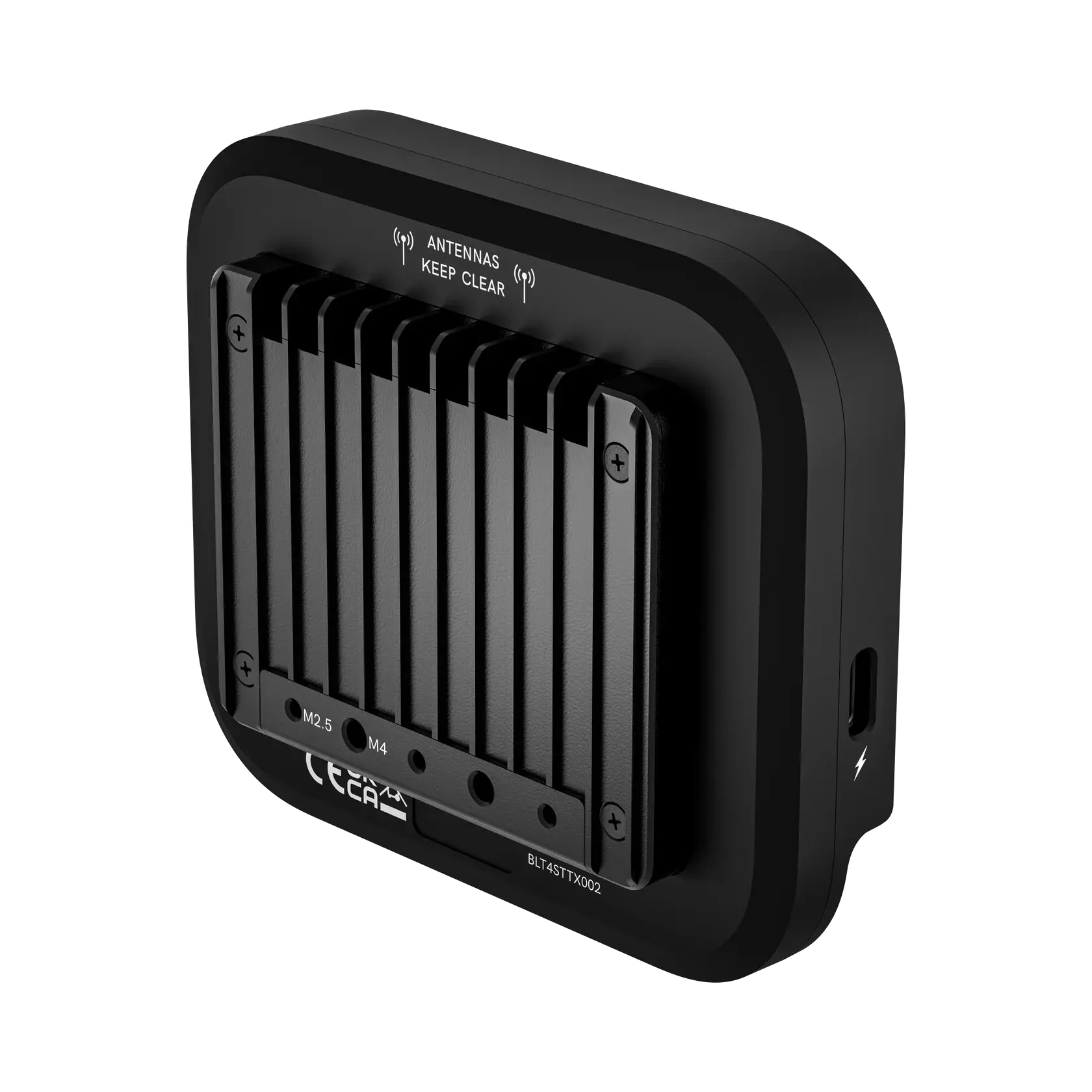

Compact hardware includes internal antennas, a quick-pairing button, and LED indicators for power and link status, M3 and M2.5 mounting points for horizontal or vertical workflows, and a USB-C port that consolidates power, video, and communication into a single cable for a streamlined setup. A secondary USB-C offers an additional, pass through power option. Ace Micro automatically detects and selects the 5GHz or 6GHz RF channel with the least interference and employs Auto-Frequency Switching to maintain optimal signal quality. Ace Micro meets all radio frequency regulations and comes with the industry’s best encryption and security features.
| Category | Specification |
|---|---|
| Product Type | Ultra‑Compact USB‑C Video Transmitter |
| Video Input | USB‑C (Zero‑Delay Digital Video) |
| Supported Devices | Cameras with USB‑C Video Output / iPhone (USB‑C Models) |
| Latency | Near Zero‑Delay (Sub‑Frame Transmission) |
| Resolution Support | Up to 1080p (Device‑Dependent) |
| Frame Rate | Up to 60 fps (Device‑Dependent) |
| Wireless Output | Transmits to Paired RX Unit / App (Model‑Dependent) |
| Power Source | USB‑C Bus‑Powered |
| Connectivity | USB‑C Male / USB‑C Female (Depending on Variant) |
| Construction | Aluminum Micro‑Body |
| Mounting | 1/4"-20 Micro Mount / Cold Shoe (If Included) |
| Mobile Compatibility | iPhone USB‑C Models / iPad USB‑C / Android USB‑C |
| Special Features | Zero‑Delay Monitoring, Plug‑and‑Play, No Drivers Required |
| Use Cases | Camera‑to‑Phone Monitoring, Live Preview, Gimbal Workflows |
