Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit

Brand: TERADEK

MFR: 10-2260

12,091.00 ﾹ

  • 3G-SDI/HDMI Transmitter & Receiver Set
  • Supports New 6 GHz Frequency Band
  • Transmits up to 750' Line of Sight
  • Supports up to 4K30 Resolution Input
  • 3G-SDI/HDMI Inputs & Outputs
  • 10-Bit 4:2:2 Support, No Delay
  • Compatible with Bolt 4K Series 5G TX/RX
  • AES-256 Encryption, 7 x Antennas
  • Bluetooth Mobile App, Spectrum Analyzer
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Wireless Video Transmission Systems

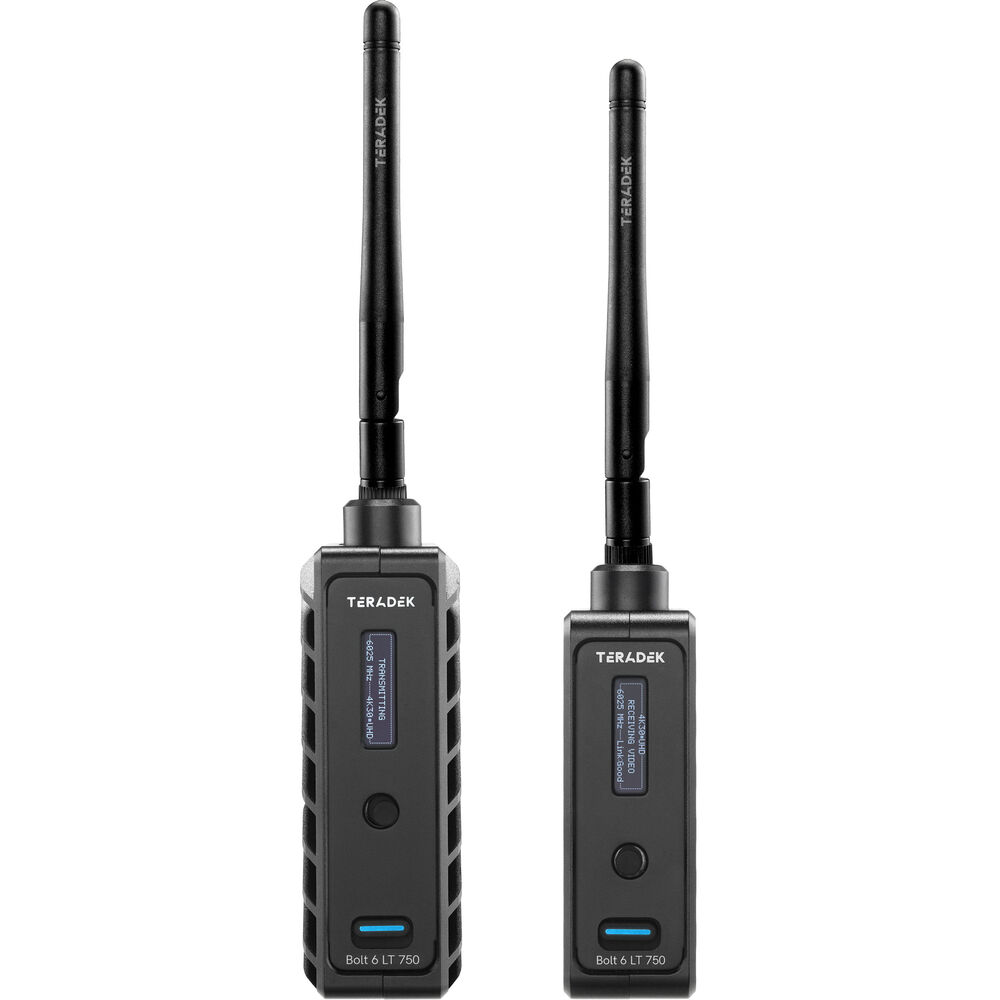

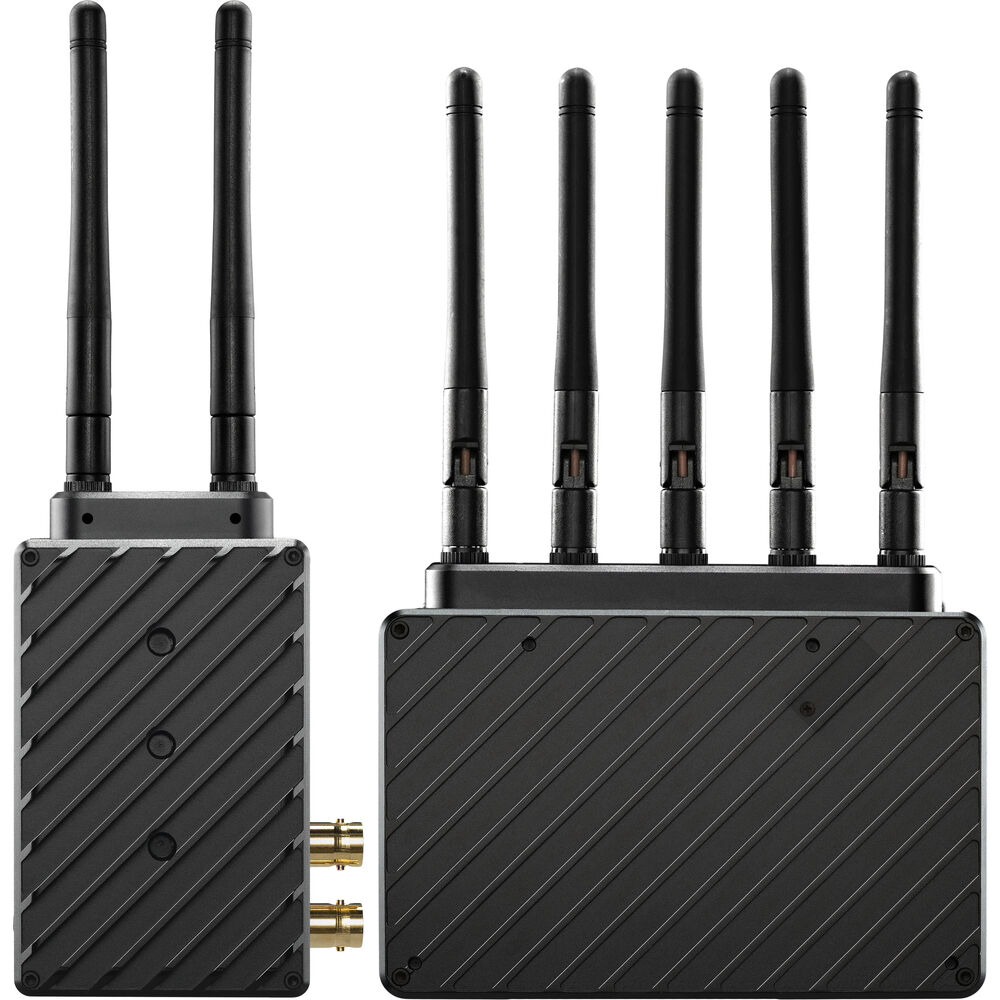

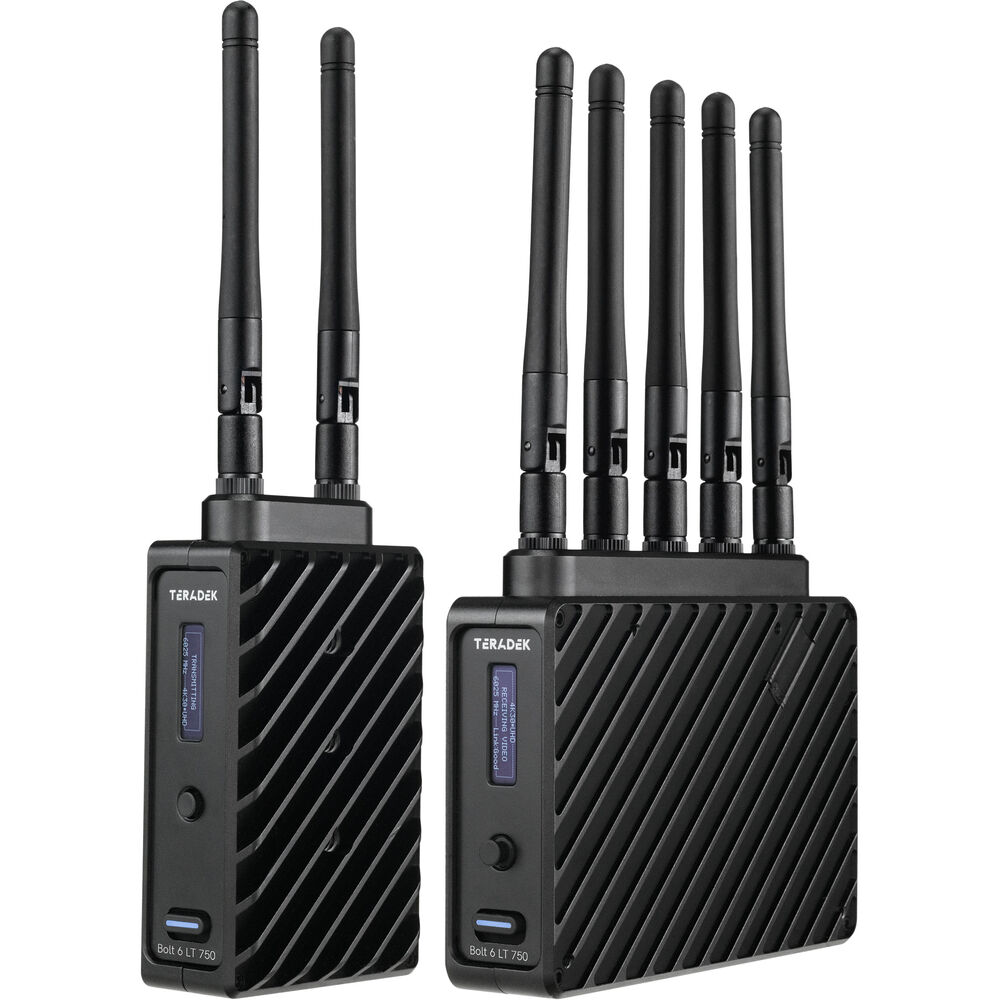

The Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

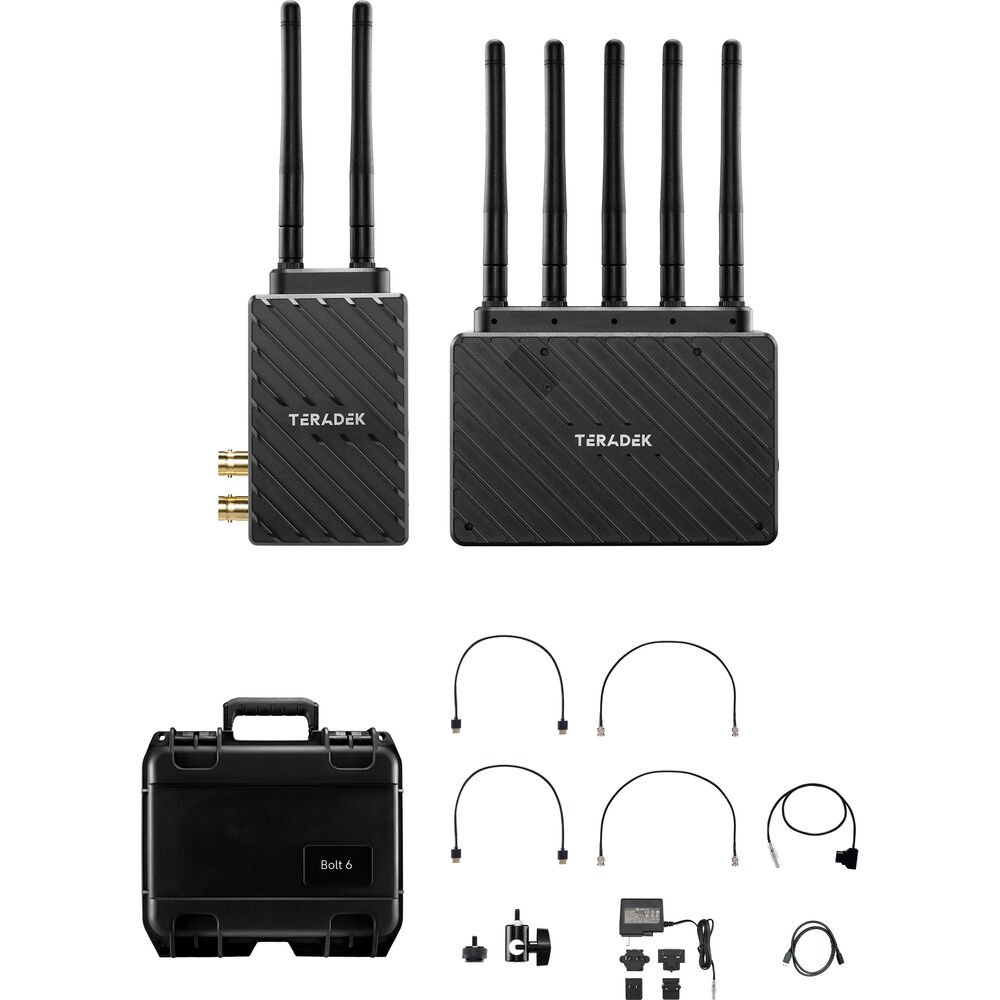

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band

Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum

Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output

SDI Eye Pattern Tool to check SDI cable integrity

Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut

Improved "long range" mode

Small and lightweight chassis design

Transmit to up to six Bolt 4K or Bolt 6 series receivers

AES-256 encryption support

Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration


Teradek LT 750 Specs

Inputs / Outputs

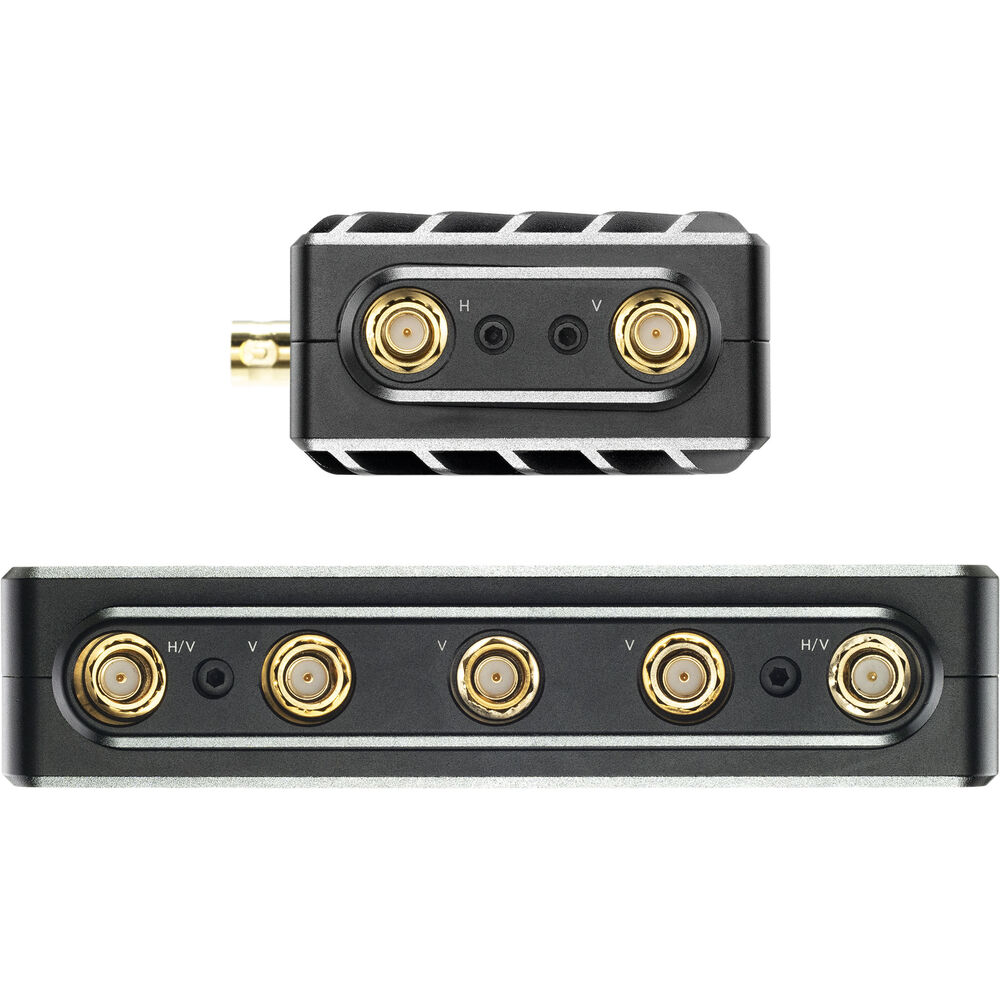

Antenna I/OTransmitter: 2 x RP-SMA Female
Receiver: 5 x RP-SMA Female

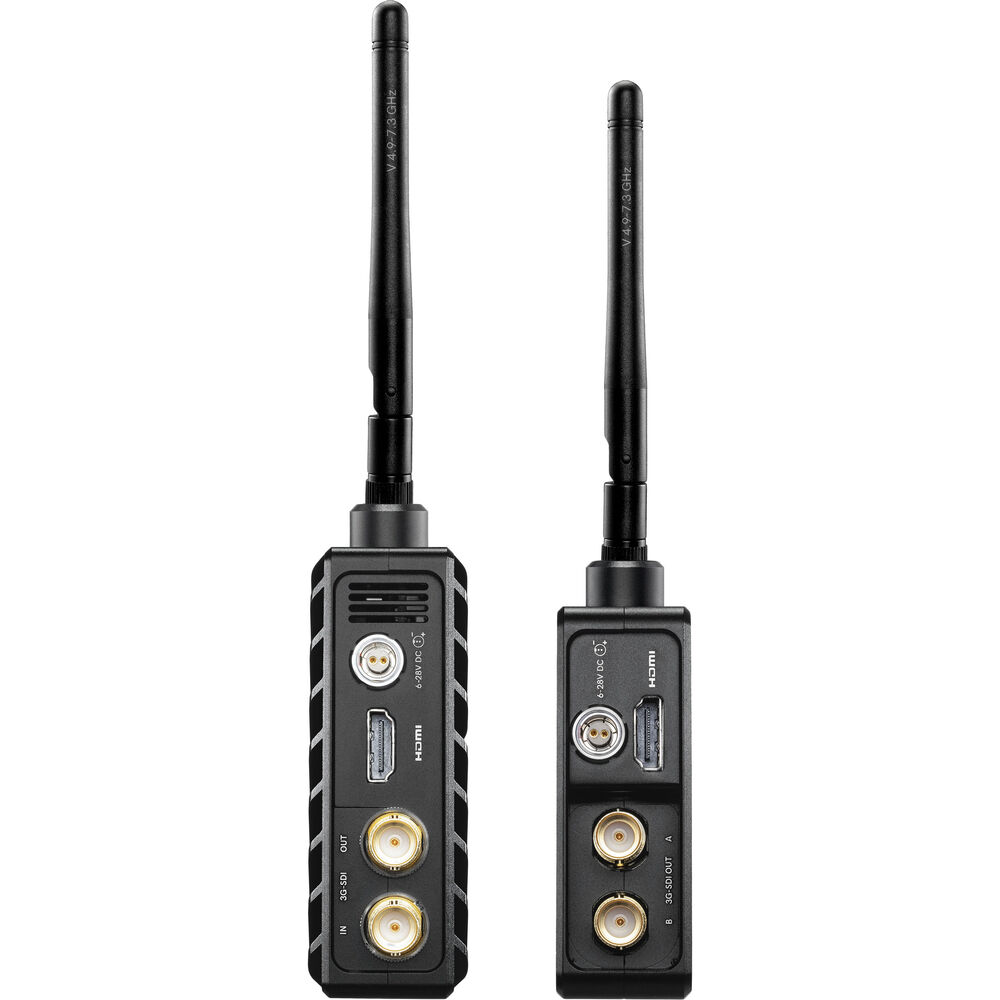

Video I/OTransmitter: 1 x HDMI 1.4b Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x HDMI 1.4b Output
Receiver: 1 x BNC (3G-SDI) Output
Embedded AudioHDMI: 2-Channel
SDI: 2-Channel
Audio I/ONone
PowerTransmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/OTransmitter/Receiver: 1 x Micro-USB Input
Encryption256-Bit AES

Wireless

Wireless Range750' / 228.6 m (Line-of-Sight)
Channel Bandwidth40 MHz, 20 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power23 dBm
Wi-FiNone
BluetoothYes

Format Support

Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes

Power

DC Input Power6 to 28 VDC
Power ConsumptionTransmitter: 9 W
Receiver: 11 W

Mounting

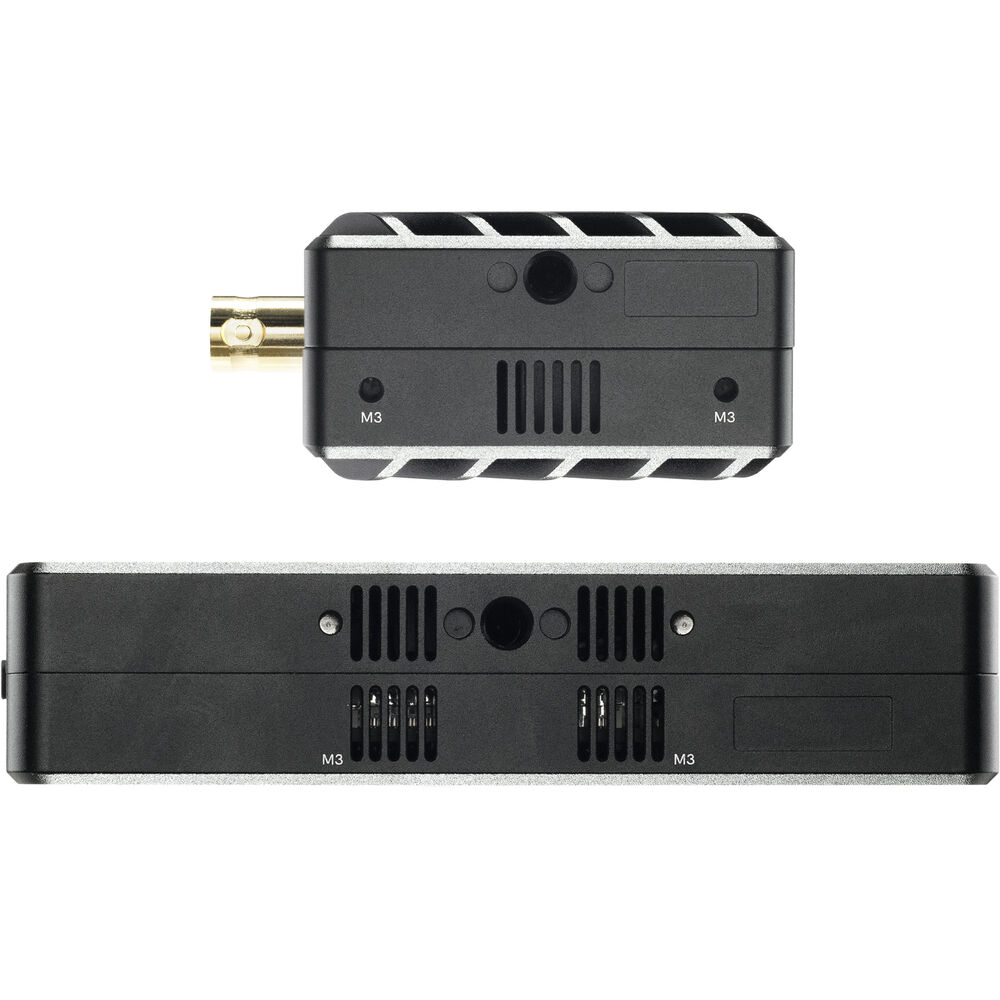

Mounting1 x 1/4"-20 Female
1 x 3/8"-16 Female

Environmental

IP RatingNone
Operating Temperature32 to 72°F / 0 to 40°C

General

Material of ConstructionAluminum, Polycarbonate
DimensionsTransmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
WeightTransmitter: 7.3 oz / 206 g
Receiver: 10.3 oz / 292 g
