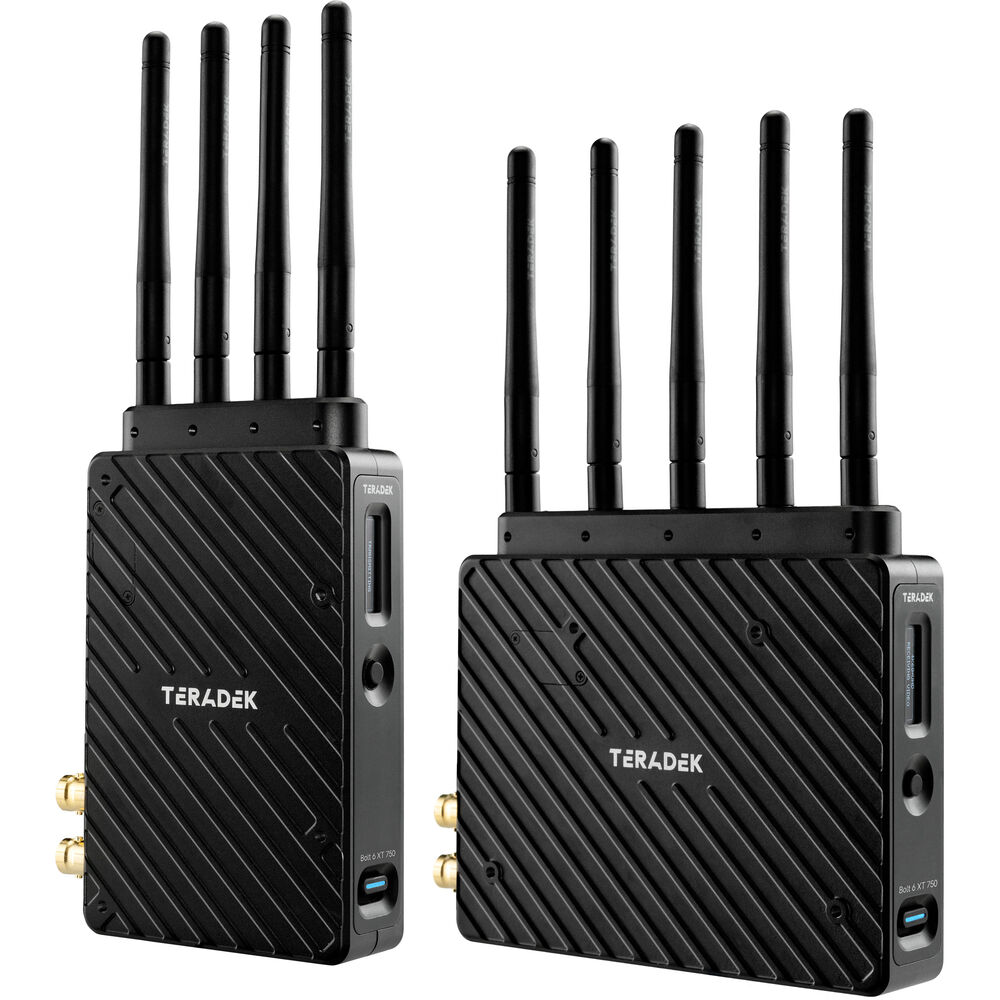

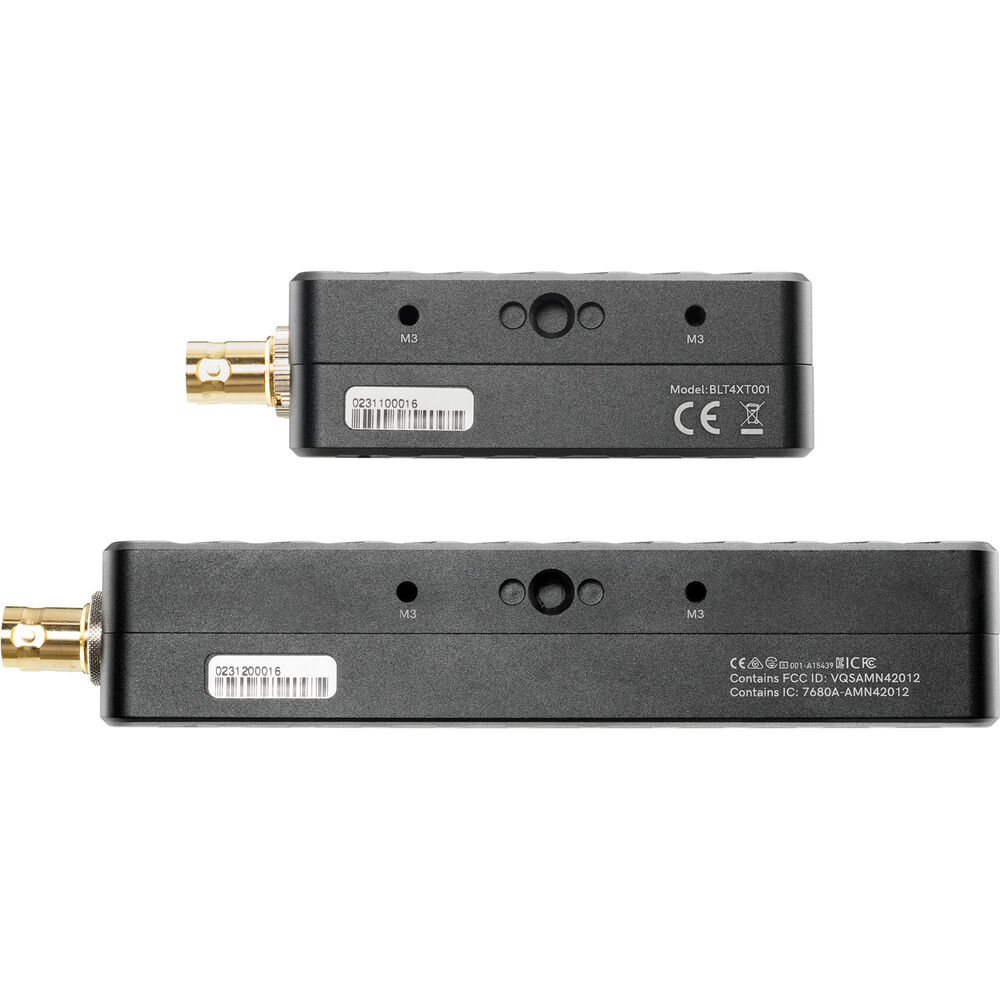

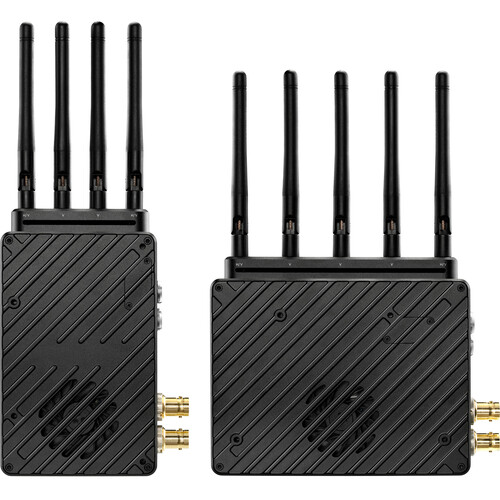

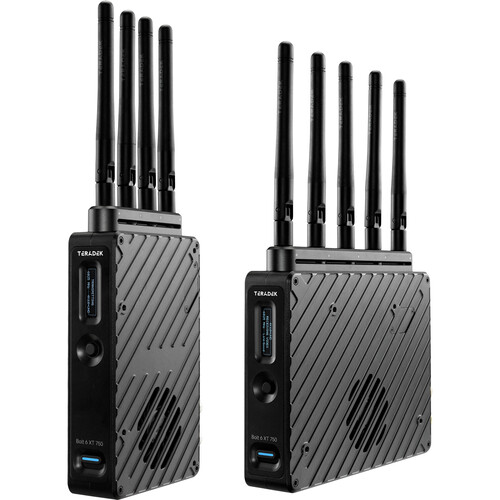

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit
Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit

Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit

Brand: TERADEK

MFR: 10-2300

25,690.00 ﾹ

  • 12G-SDI/HDMI Transmitter & Receiver Set
  • Supports New 6 GHz Frequency Band
  • Transmit Video up to 750' Line of Sight
  • Smaller, Lighter, 50% Quieter
  • 5-Pin USB Output for Camera Control
  • Supports up to 4K30 Resolution
  • 10-Bit 4:2:2 Support, No Delay
  • Compatible with Bolt 4K Series 5G TX/RX
  • AES-256 Encryption, 7 x Antennas
  • Bluetooth Mobile App, Spectrum Analyzer
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Wireless Video Transmission Systems

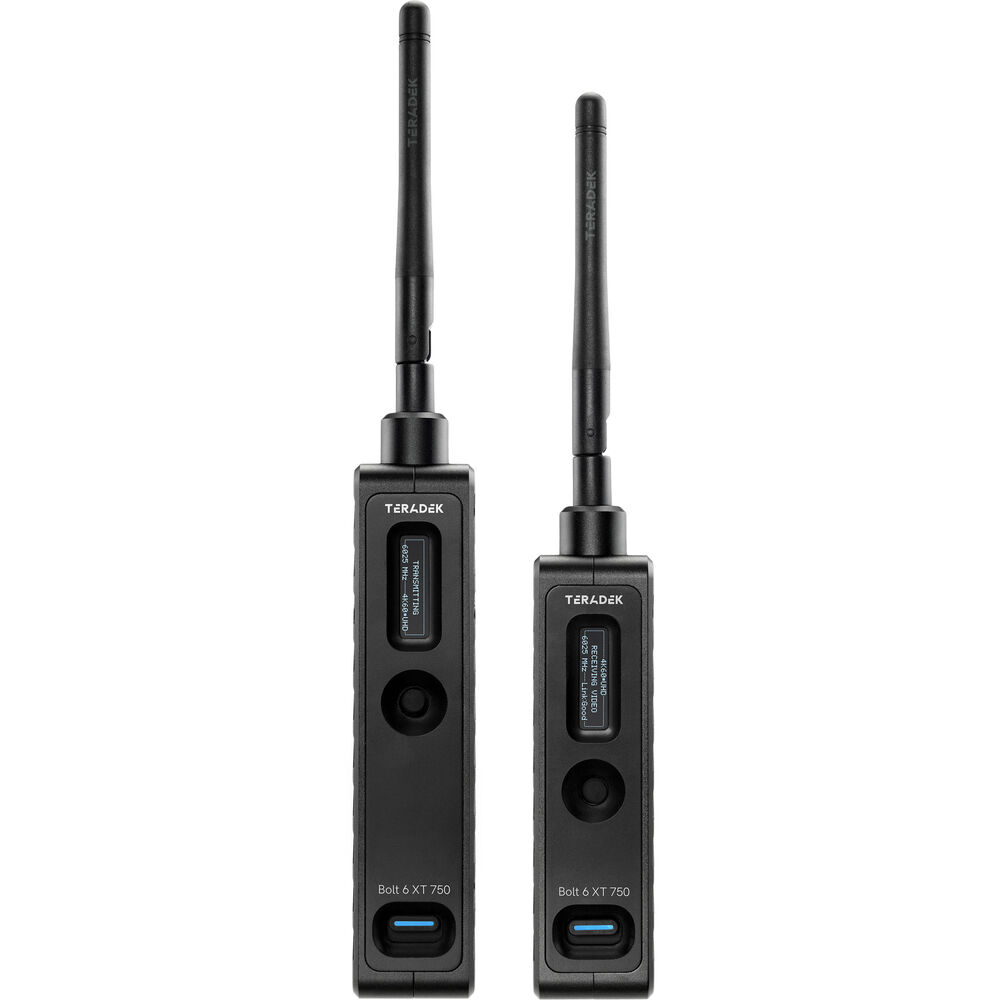

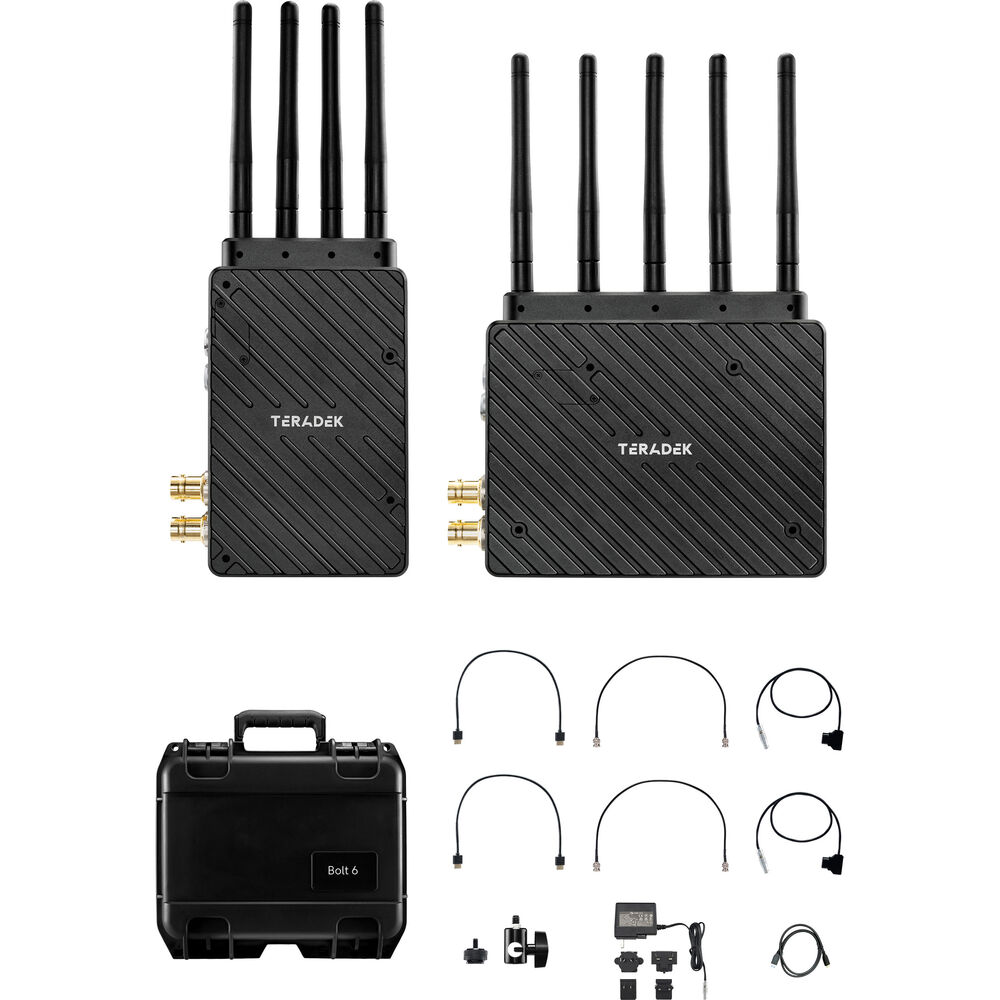

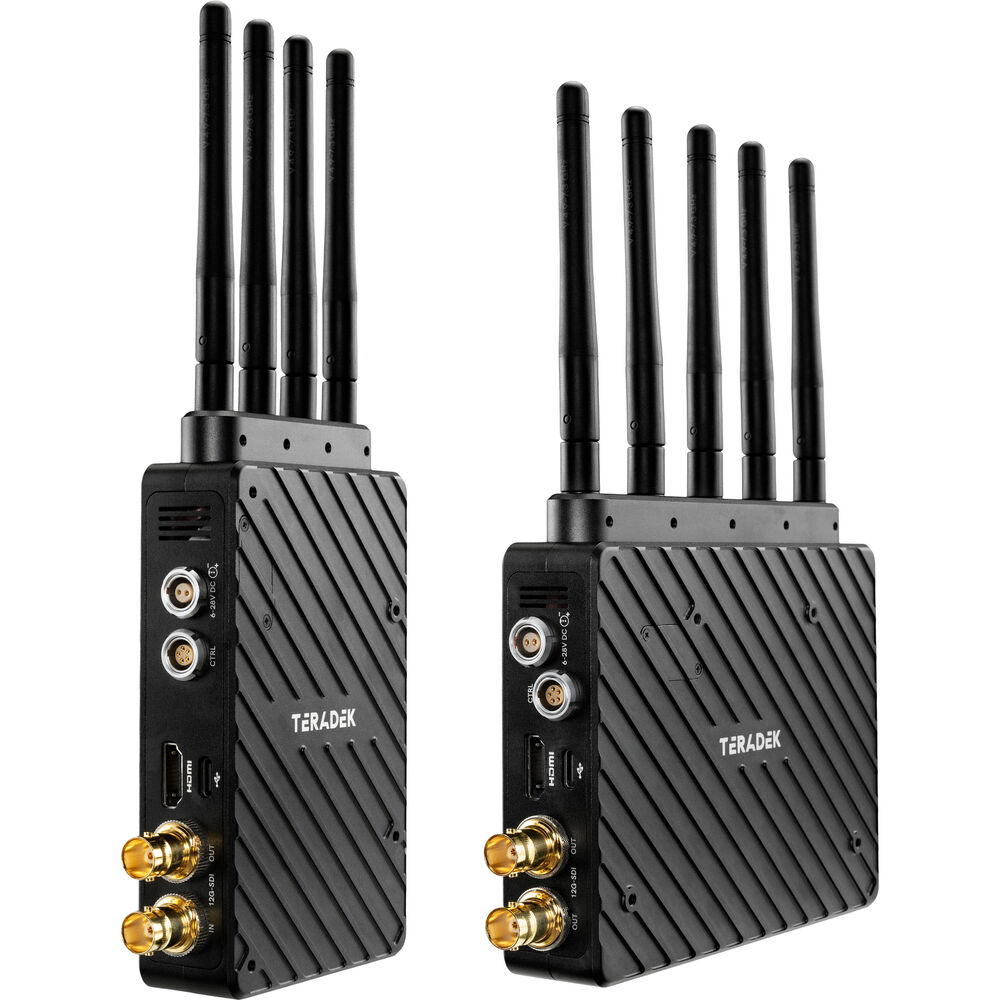

Transmit and receive lossless HD video from up to 750' line of sight with the Bolt 6 XT 750 12G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 XT 12G-SDI/HDMI transmitter and wireless Bolt 6 XT 12G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to 4K30 video with 10-bit 4:2:2 HDR support.

Other new features include a smaller, lighter design, improved long range mode, an SDI eye pattern tool, and it is 50% quieter than previous models. The transmitter inputs video over 12G-SDI or HDMI and features 12G-SDI and HDMI loop outputs, and the receiver outputs video via 12G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band.

Key Features

  • Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
  • Smaller, lighter, and 50% quieter than previous models
  • Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
  • Transmitter inputs via 12G-SDI and HDMI, transmits up to DCI 4K60 video, and has a 12G-SDI loop output; receiver outputs via 12G-SDI and HDMI
  • SDI Eye Pattern Tool to check SDI cable integrity
  • Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
  • Improved "long range" mode
  • Transmit to up to six Bolt 4K or Bolt 6 series receivers
  • AES-256 encryption support
  • Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Teradek XT 750 Specs

Inputs / Outputs

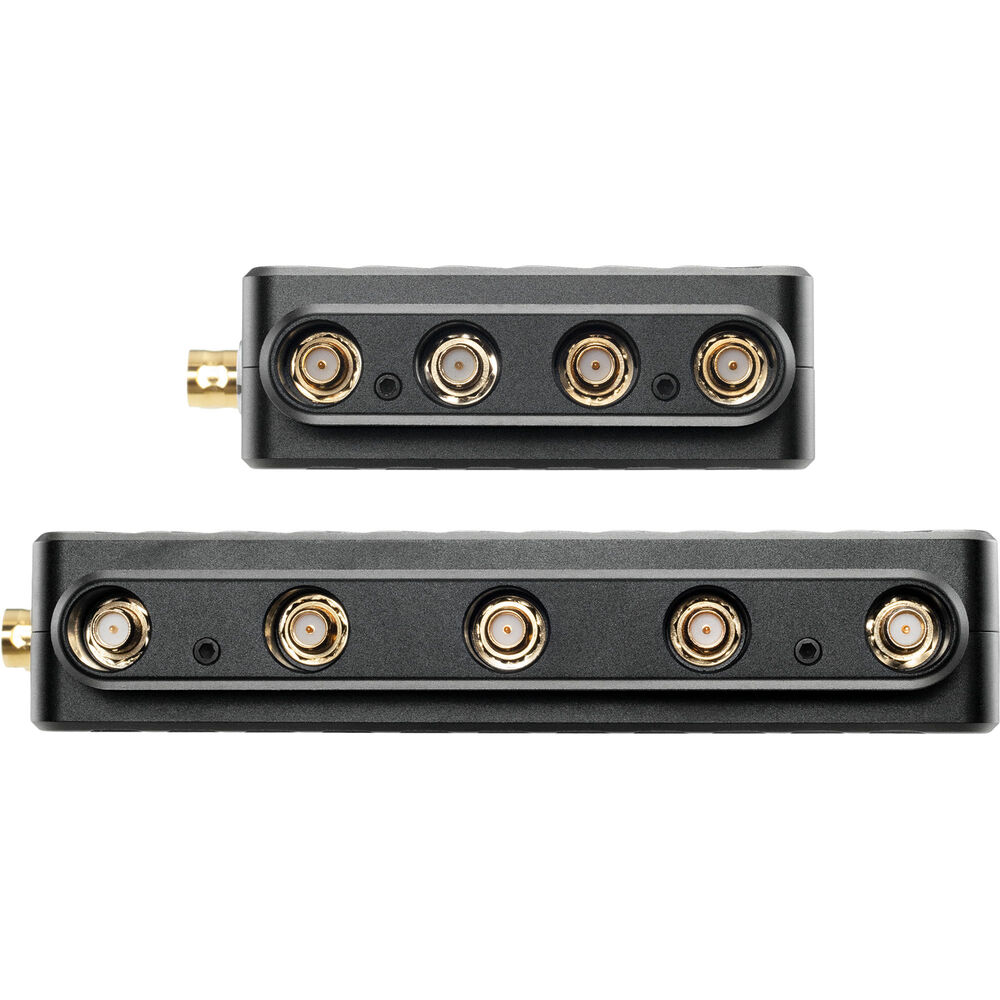

Antenna I/OTransmitter: 4 x RP-SMA Female
Receiver: 5 x RP-SMA Female

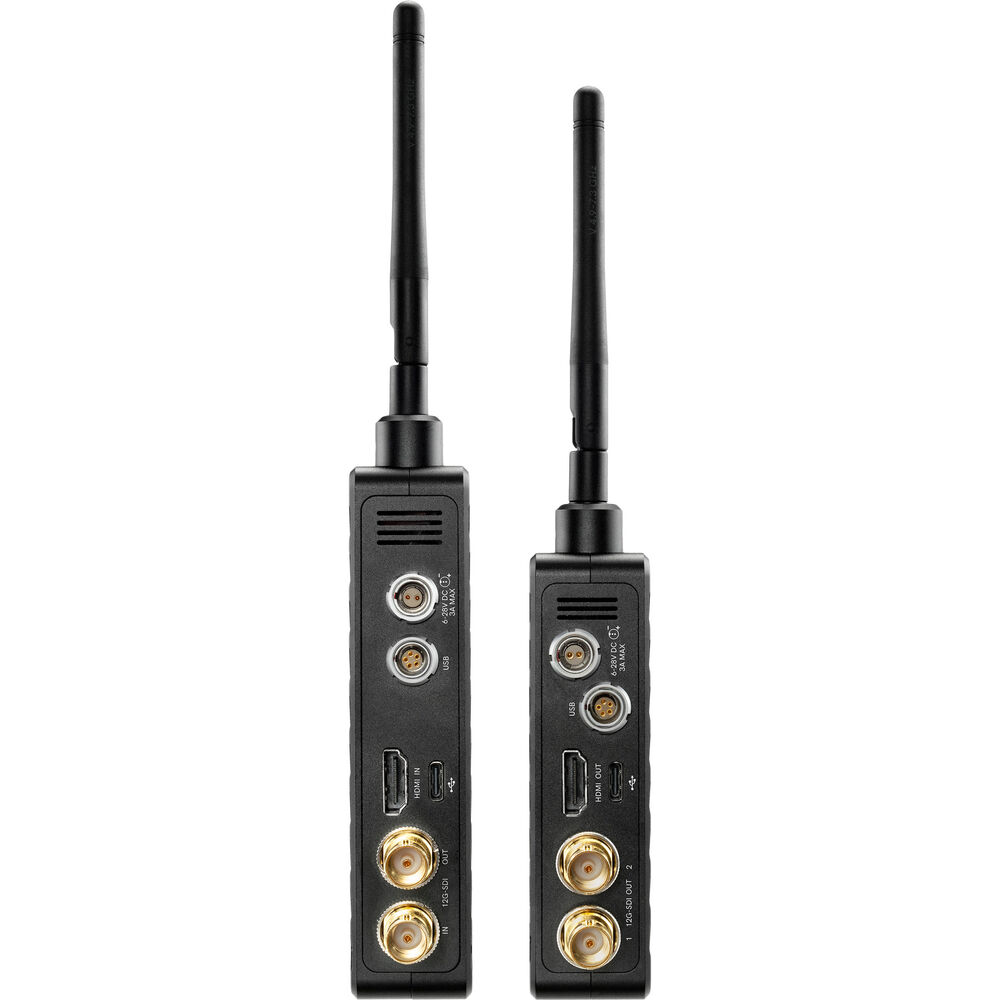

Video I/OTransmitter: 1 x HDMI 2.0 Input
Transmitter: 1 x BNC (12G-SDI) Input
Transmitter: 1 x BNC (12G-SDI) Loop Output
Receiver: 1 x HDMI 2.0 Output
Receiver: 1 x BNC (12G-SDI) Output
Embedded AudioHDMI: 2-Channel
SDI
Audio I/ONone
PowerTransmitter/Receiver: 1 x LEMO 2-Pin (28 VDC) Input
Other I/OTransmitter/Receiver: 1 x USB-C 2.0 Input
Transmitter/Receiver: 1 x LEMO 5-Pin 2.0 Output
Encryption256-Bit AES

Wireless

Wireless Range750' / 228.6 m (Line-of-Sight)
Channel Bandwidth40 MHz
Frequency RangeNon-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency< 0.01 ms
RF Power23 dBm
Wi-FiNone
BluetoothYes

Format Support

Video FormatHDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 59.94
Audio Format2-Channel 24-Bit 48 kHz
Timecode SupportYes

Power

DC Input Power6 to 28 VDC
Power ConsumptionTransmitter: 20 W
Receiver: 18 W

Environmental

IP RatingNone
Operating Temperature32 to 72°F / 0 to 40°C

General

Material of ConstructionAluminum, Polycarbonate
DimensionsTransmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm
Receiver: 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm
WeightTransmitter: 12.1 oz / 344 g
Receiver: 15.2 oz / 430 g
