Key Features
Categories: Studio & Broadcast

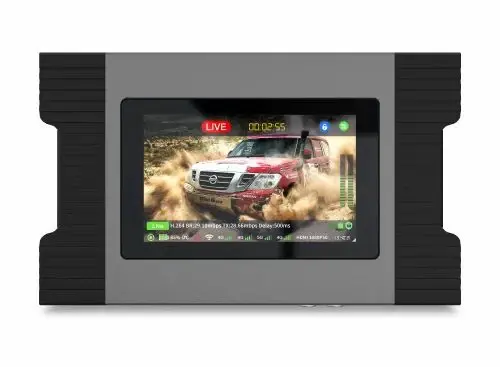

The UV100 Pro Series is a professional portable HD bonding encoder built for high-quality live video contribution and remote production workflows. Featuring UNIVISO's proprietary i-Mux™ intelligent bonding and i-VBR™ adaptive bitrate technologies, the UV100 Pro combines broadcast-grade H.265/H.264 encoding, extensive network redundancy, professional audio/video interfaces, and advanced collaboration tools in a rugged, field-ready platform.
Designed for broadcasters, sports production teams, live event operators, and remote production professionals, the UV100 Pro supports up to 10 simultaneous network links, full-duplex intercom communication, remote tally integration, and high-bitrate streaming up to 35 Mbps.
| Specification | UV100 Pro 5G | UV100 Pro 4G |
|---|---|---|
| Maximum Network Links | Up to 10 | Up to 10 |
| Internal Cellular Modems | 1×5G + 3×4G | 4×4G |
| External USB Modems | Up to 4×3G/4G/5G | Up to 4×3G/4G/5G |
| Wi‑Fi | Yes | Yes |
| LAN | Yes | Yes |
| Bonding Technology | i-Mux™ + i-VBR™ | i-Mux™ + i-VBR™ |
| Item | Specification |
|---|---|
| Video Inputs | 1× 3G-SDI, 1× HDMI 1.4 |
| Loop Output | 1× HDMI 1.4 |
| Video Codec | H.265 (HEVC), H.264 (AVC) |
| Bitrate Range | 100 Kbps – 35 Mbps |
| Color Depth | 8-Bit |
| Chroma Sampling | 4:2:0 |
| Color Standard | BT.709 |
| Item | Specification |
|---|---|
| Audio Inputs | SDI Embedded, HDMI Embedded, 3.5mm Line-In, Intercom |
| Audio Encoding | AAC-HE / AAC-LC |
| Audio Channels | Up to 4 Channels |
| Sampling Rate | 48kHz |
| Audio Resolution | 16-Bit |
| Feature | Specification |
|---|---|
| Intercom | Full-Duplex Two-Way Voice Communication |
| Tally | Remote Tally Indication |
| Remote Management | Windows Application & Web Interface |
| Function | Supported Protocols |
|---|---|
| Streaming Output | HLS, RTMP, RTMPS, UDP-TS, SRT |
| Item | Specification |
|---|---|
| Storage Media | 64GB SD Card |
| Recording Capacity | Up to 20 Hours HD Recording |
| Operating Modes | Live, Record & Live, File Transfer |
| Item | Specification |
|---|---|
| Display | 4-Inch Touchscreen |
| Local Control | Touchscreen Interface |
| Windows Software | Supported |
| Web Control | Supported |
| Item | Specification |
|---|---|
| Battery Model | U824474PG-2S1P |
| Battery Voltage | 7.4V |
| Battery Capacity | 3600mAh |
| Battery Energy | 26.64Wh |
| Power Consumption | Less than 16W |
| Item | Specification |
|---|---|
| Operating Temperature | -10°C to +50°C |
