Astral TX

Name: Astral TX
Brand: SOUND DEVICES
SKU: SF-2443-WBGL
Price: 9904.13 AED
Availability: InStock

Brand: SOUND DEVICES

MFR: A20-TX

SKU: SF-2443-WBGL

9,904.13 ﾹ

Astral Wireless Transmitter - Belt Worn Body Pack - Mic, Line, AES3, AES43, P12V, P48V. SpectraBand 169MHz - 1525 MHz, GainForward, NexLink, A20-Remote. Includes: 3 x whip antennas with caps, (2 x short, 1 x long, uncut) 1 x Astral TX Belt Clip.

(In Stock)

Quantity

Categories: Wireless Transmission

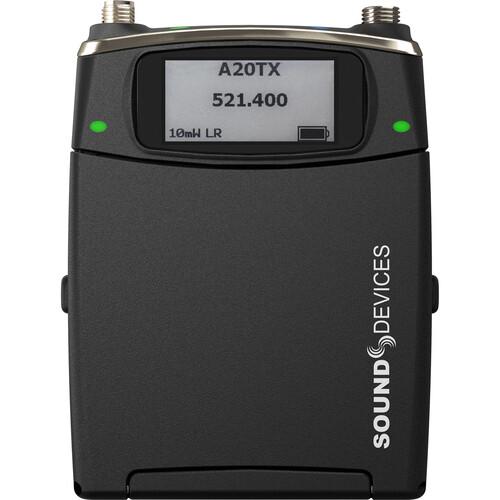

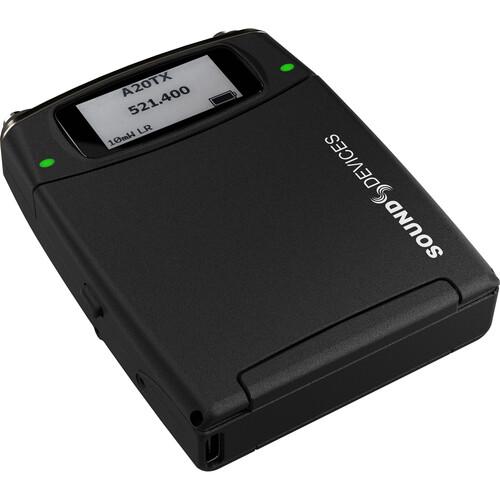

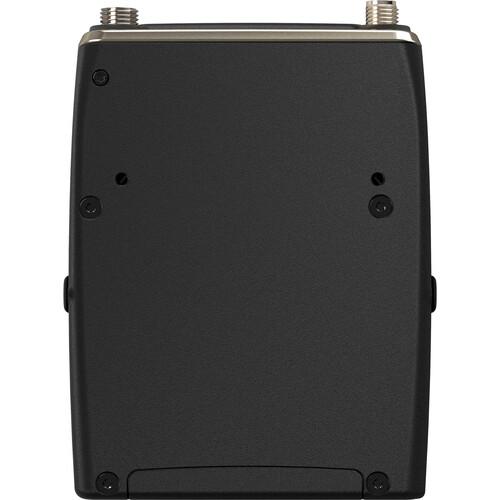

Sound Devices A20-TX — Astral Digital Wireless Bodypack

With an ultra-wide 169–1525 MHz SpectraBand tuning range, 100% digital RF transmission, and long-range NexLink remote control, the A20-TX delivers exceptional flexibility and reliability worldwide.

Key features:

169–1525 MHz worldwide VHF/UHF tuning
Up to 12 hours of battery life
2–40 mW RF output
32-bit float / 48 kHz onboard recording
Built-in microSD recorder
True balanced Sound Devices 8-Series microphone preamp
140 dB dynamic range
Support for lavalier, balanced mic, line-level, AES3, AES42 and guitar inputs
12V/48V phantom power
GainForward remote gain control
Built-in timecode with wireless NexLink jam sync
Sunlight-readable e-Paper display

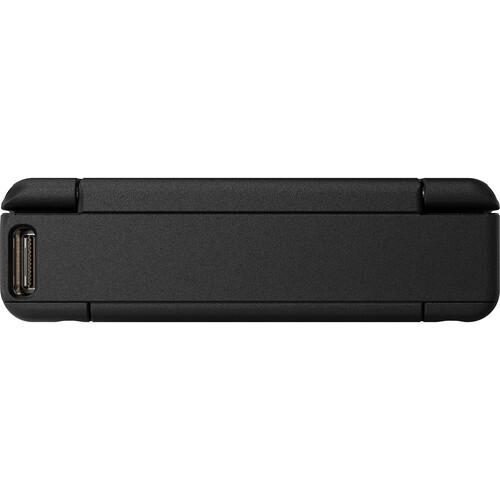

USB-C charging, pairing, file transfer and timecode
Digital RF encryption for privacy
Rugged aluminum construction
Optional Astral TX Switch

Key Specs

Wireless Technology: Digital UHF / Digital VHF / Bluetooth 5.2 LE
Operating Range: Not specified
Transmitter Type: 1× Bodypack
Microphone Included: No
Charging Case: Not included

System

RF Band: 169–1525 MHz
Max Transmitters per Band: 60
Encryption: No
Built‑In Recorder: Yes (on transmitter)
Timecode: Supported
Mobile App: A20‑Remote (Android & iOS)
- Adjust settings, remote control, setup

Transmitter

RF Output Power: 2 / 10 / 20 / 40 mW
Antennas:
- Removable SMA flexible whip (UHF)
- Internal 2.4 GHz
Input Level: Mic / Line / Instrument

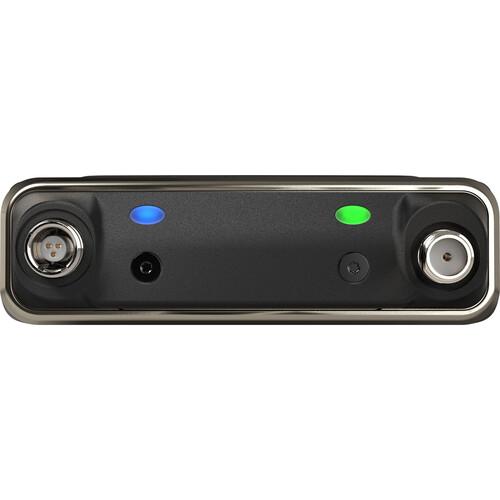

Audio Input: 1× LEMO 3‑pin female
Bias / Phantom Power:
- 5V bias
- 12V / 48V phantom
USB‑C: Charging
Muting: Via app
Auto‑Level: No
Frequency Response: 10 Hz–20 kHz
Sync Method: Proprietary
Display: E‑Paper with frontlight

Microphone

Included: None

Power

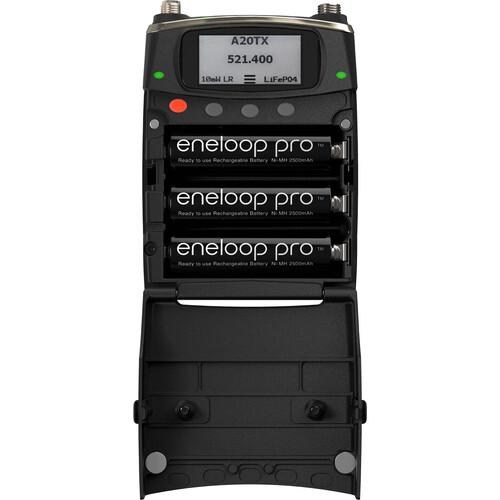

Battery Type: 3× AA or 3× rechargeable AA (not included)
Battery Life: ~12 hours
Charging Case: Not included

Physical

Environmental Resistance: No
Housing: Aluminum
Dimensions: 8.5 × 6.4 × 1.8 cm
Weight: 98 g (without batteries)
