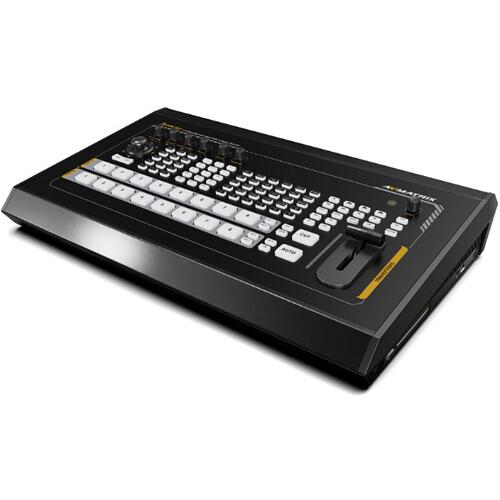

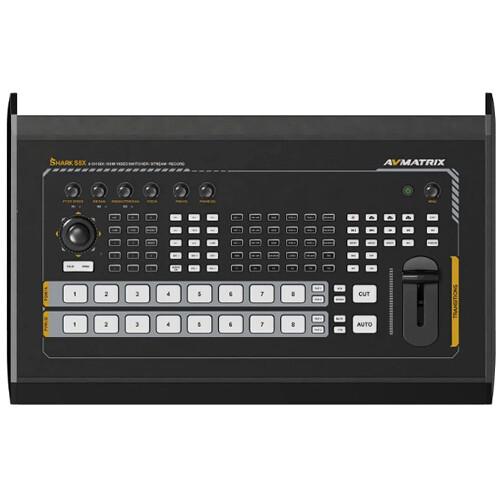

AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher

AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher

Brand: AVMATRIX

MFR: SHARK S8X-NDI

SKU: SF-2443-T4SB

8,500.00 ﾹ

  • Video Switcher for Streaming & Recording
  • Eight SDI & Two 4K HDMI AV Input Ports
  • Four SDI & Two HDMI AV Output Ports

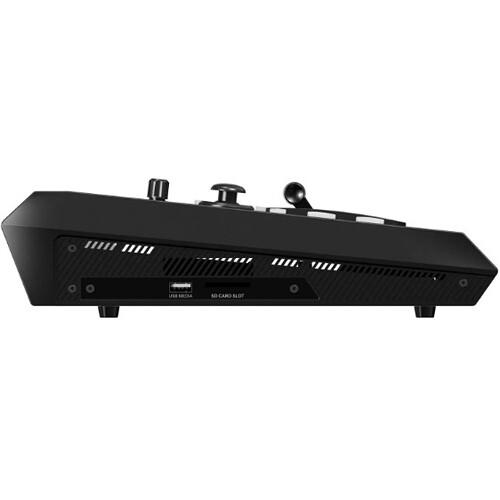

  • USB, SD & SATA Recording Support
  • USB-C & LAN Streaming
  • Chroma-Key, Luma Key, PiP & Logo Overlay
  • 10-Channel Audio Mixing Support
  • VISCA, ONVIF, Pelco P/D & NDI Control
  • PTZ Camera Control, SD/USB Recording

Items Included

  • AVMATRIX SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher
  • Power Adapter (15V, 4A)
  • USB-A to USB-C Cable
  • DB26 Tally Connector
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Production Switchers & Controllers

Pairing functionality with portability, the NDI-enabled SHARK S8X NDI 8-Channel SDI/HDMI Audio/Video Switcher from AVMATRIX is a powerful, 8-channel video switcher designed for professionals who need real-time control in live production environments. Featuring eight 3G-SDI and two 4K HDMI inputs, it accommodates a wide range of broadcast and camera sources, while four 3G-SDI, one HDMI multiview, and two HDMI PGM outputs provide flexible signal routing. It also supports USB/SD card recording and NDI|HX3 streaming.

Video Streaming and Recording
  • Eight 3G-SDI and two 4K HDMI input ports
  • Four SDI, one HDMI multiview, and two HDMI PGM output ports
  • High-quality, low-latency NDI|HX3 streaming support
  • RTMP, SRT, and RTSP streaming support
  • USB, SD, and SATA recording options
  • USB-C connectivity for UVC capture devices
  • Advanced Functionality
    • Up to six overlay layers with adjustable size and positioning
    • Chroma-key, luma key, DSK, and logo overlay
    • Three customizable PiP windows
    • T-bar, auto, and cut transition modes
    • Audio mix up to 10 channels
    • Compatibility
      • PTZ camera control via VISCA, ONVIF, Pelco P/D, and NDI
      • Tally and RS-422/RS-232 control output ports
      • Phantom power via XLR-1/4" combo inputs for condenser mics
      • 3.5mm TRS line input
      • Headphone and balanced line 3.5mm audio output

Mix Effects
Available M/E Layers
6 M/E
Effect Types
1x Graphic
1x Chroma Key, Luma Key
Downstream Keys
1x Chroma, Luma
Processing
Switching Type
Pushbutton
Processing Resolution
UHD 4K
Color Processing
10-Bit 4:2:2 YUV
10-Bit RGB
Input
Number of Video Input Sources
8
Video Inputs
8x BNC (3G-SDI) Female
2x HDMI
Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
HDMI
UHD 4K at 30/50/60 fps
DCI 2K at 30/50/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Inputs
2x Combo XLR-1/4" TRS Line Female
1x 1/8" / 3.5 mm TRS Line Female
Embedded Audio Input
HDMI
SDI
Output
Video Output Channels
3
Video Outputs
2x HDMI (Program)
4x BNC (3G-SDI) (Program)
1x USB-C (Program)
Output Video Format
HDMI / SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
Audio Outputs
2x XLR 3-Pin Line Female
1x 1/8" / 3.5 mm TRS Line Female
Embedded Audio Output
HDMI
SDI
Multiview Output
4-Way Multiview
Monitor Output
1x HDMI

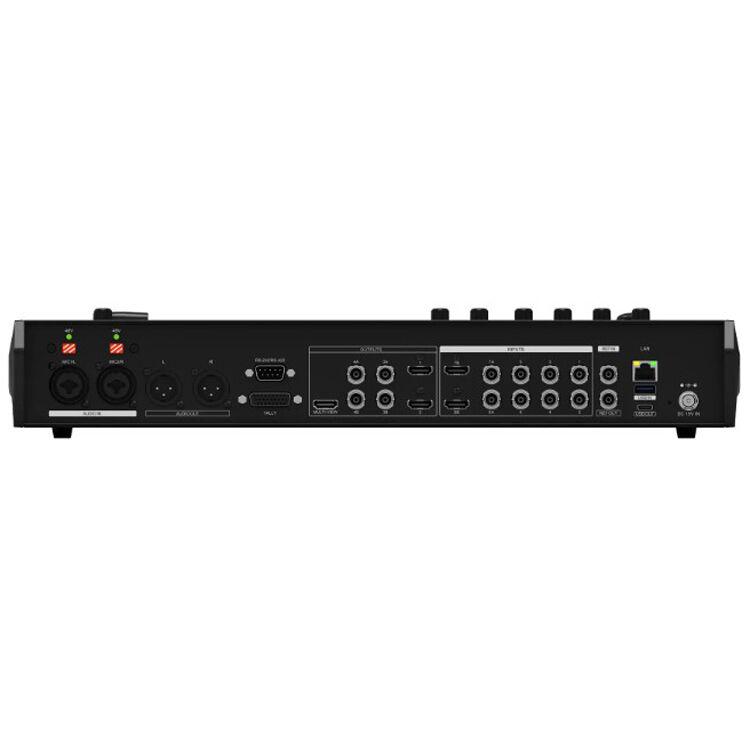

Connectivity
Other I/O
1x BNC Reference Input
1x BNC Reference Output
1x BNC Input
1x DE-9/DB-9 Control, RS-232, RS-422 Input/Output
1x DB-25 Tally Output
1x RJ45 Control, LAN, NDI Input/Output
IP Encoding/Decoding
IP Video
1920 x 1080 at 60p (32 Mb/s) Encoding
Transport Protocols
HTTP, NDI, NDI/HX3, RTMP, RTMPS, RTSP, SRT
Simultaneous Streams
2 Streams
Internal Recording
Recording Media
1x SD (Unspecified Type), USB-A 2.0, 2.5" SSD
Recording Modes
1920 x 1080p up to 60 fps (200 Mb/s MP4 via H.264/AVC)
Hardware
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x Barrel (9 to 24 VDC ) Input
Power Consumption
Device: 50 W
General
Operating Conditions
-4 to 122°F / -20 to 50°C
Storage Conditions
-22 to 158°F / -30 to 70°C
Dimensions
17.3 x 11.1 x 2.6" / 440 x 281.5 x 65.1 mm
Weight
8.11 lb / 3.68 kg
