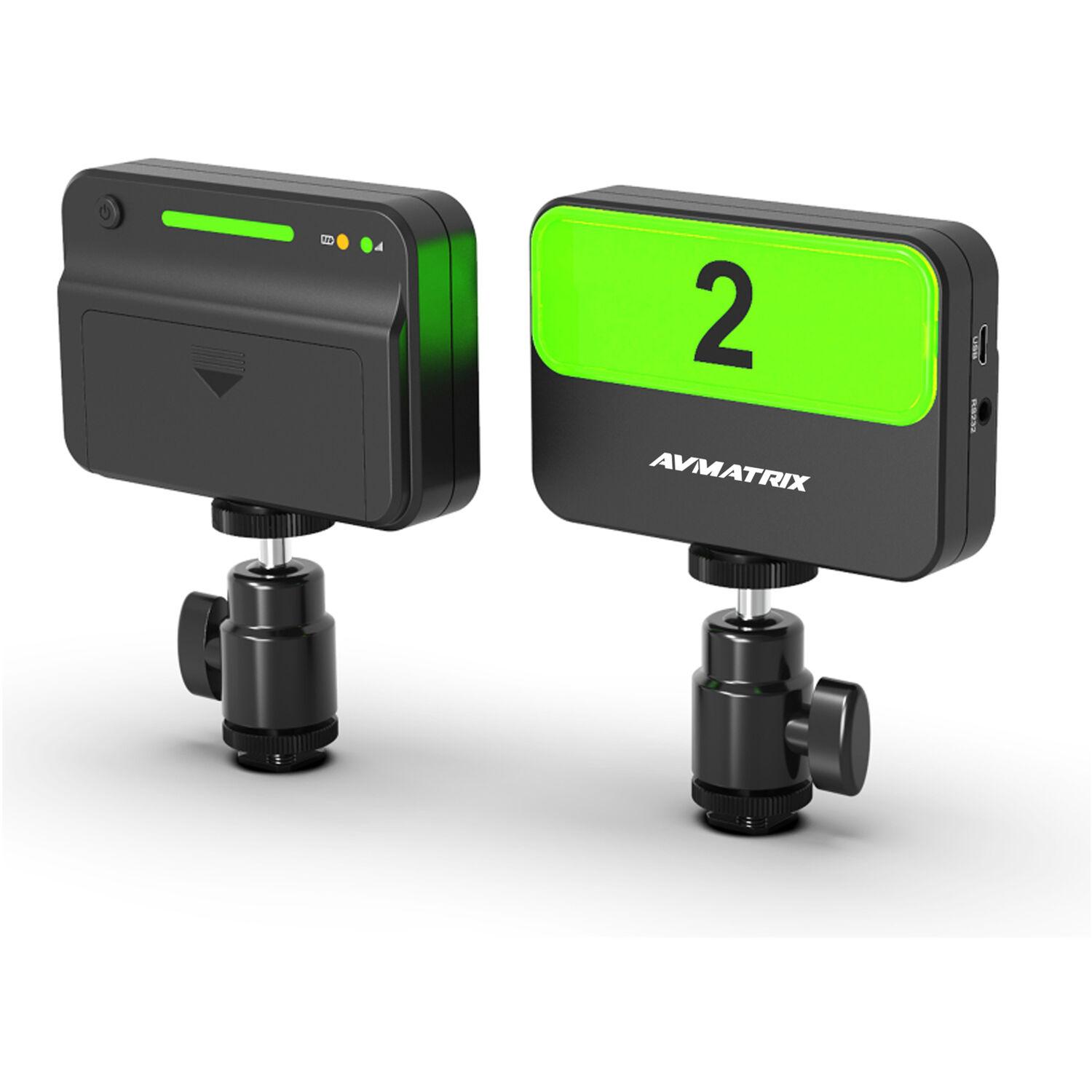

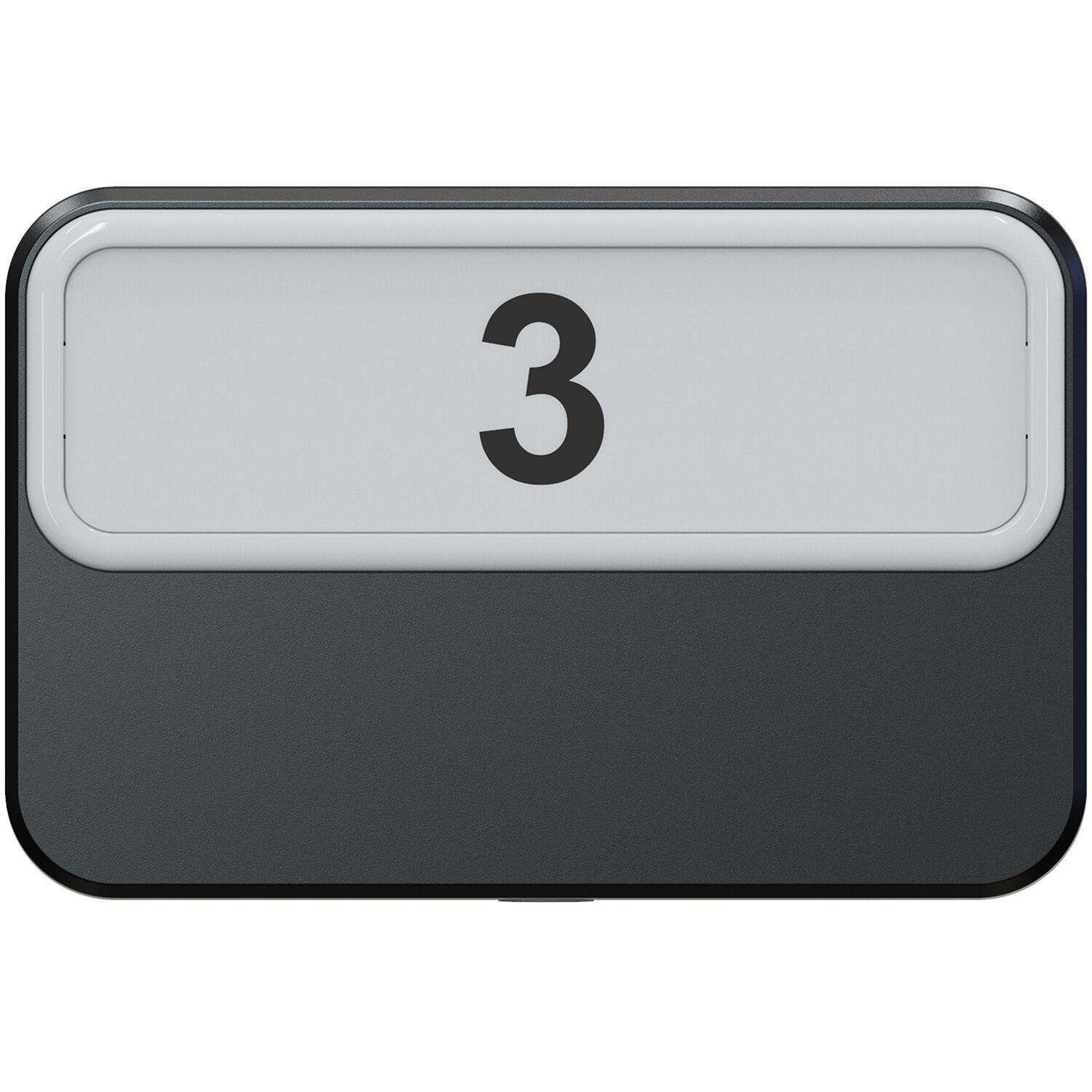

Add an additional light to your TS3019 wireless multi-camera tally system to display the on-air status of your camera with the AVMATRIX Tally Lamp. The lamp has four levels of brightness and both a front and rear light indicators for visibility for your talent and camera operator. Indicators for wireless signal strength and battery status are also on the rear of the device for further monitoring.

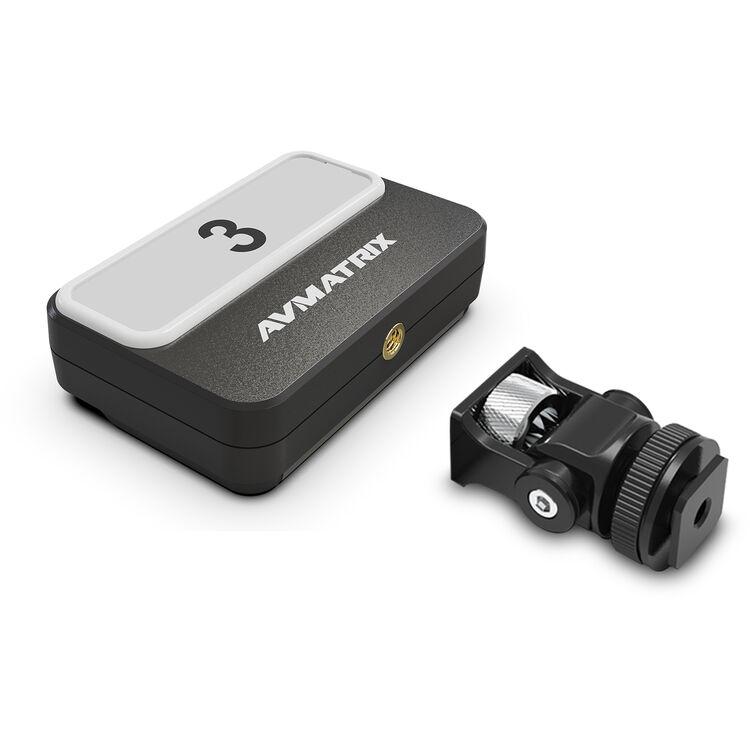

The side of the lamp has two barrel ports for RS-485 input and tally output. Power for the device can be achieved via the USB Type-C connection or with a separately available 18650 lithium-ion battery. A 1/4"-20 thread at the bottom of the lamp allows for the installation of a hot shoe to place it onto a camera.
| USB I/O | 1 x USB-C (Charging Only) Female Input |
| Power Source | USB, Battery |
| Battery Type | 1x 18650 Lithium-Ion |
| DC Input Power | 5 VDC at 1 A |
| Power Consumption | 2.5 W |
| Mounting | 1x 1/4"-20 Thread |
| Operating Conditions | -4 to 140°F / -20 to 60°C |
| Storage Conditions | -22 to 158°F / -30 to 70°C |
| Dimensions | 3.9 x 2.6 x 1" / 98.5 x 65 x 26.5 mm |
| Weight | 3.2 oz / 90 g |
| Package Weight | 0.55 lb |
| Box Dimensions (LxWxH) | 14.1 x 7.7 x 3.4" |
