Robotic Pan/Tilt head UHD
PTR-15 Main Unit x 1
DC 19V power adaptor x 1
AC cord x 1
IR remote control x 1
DC with lock to D-Tap cable x 1
HDMI cable x 1
SDI cable x 1
Remote cable (2.5mm phone-jack to mini-din 8pin) x 1
1/4” screw x 2
1/4” to 3/8” screw adaptor x 1

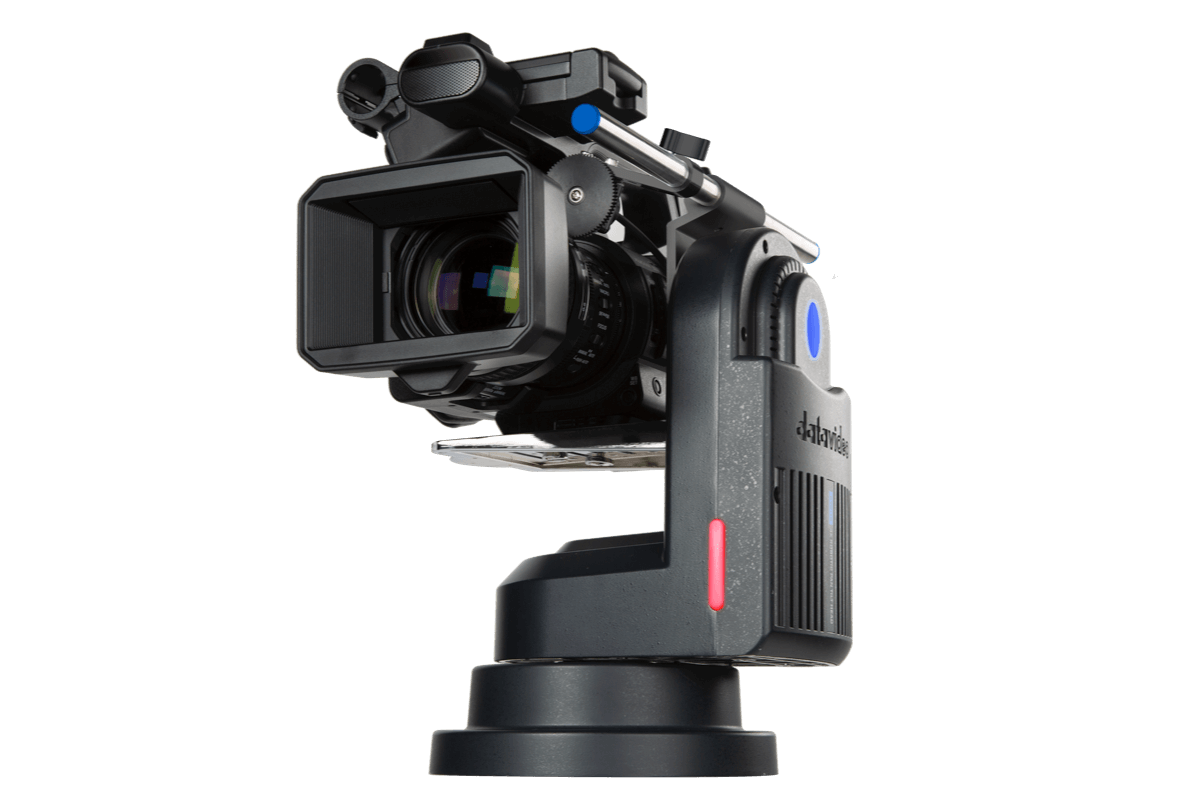

Datavideo's latest release, PTR-15, a 4K 12G-SDI robotic pan tilt head with FreeD functionality.

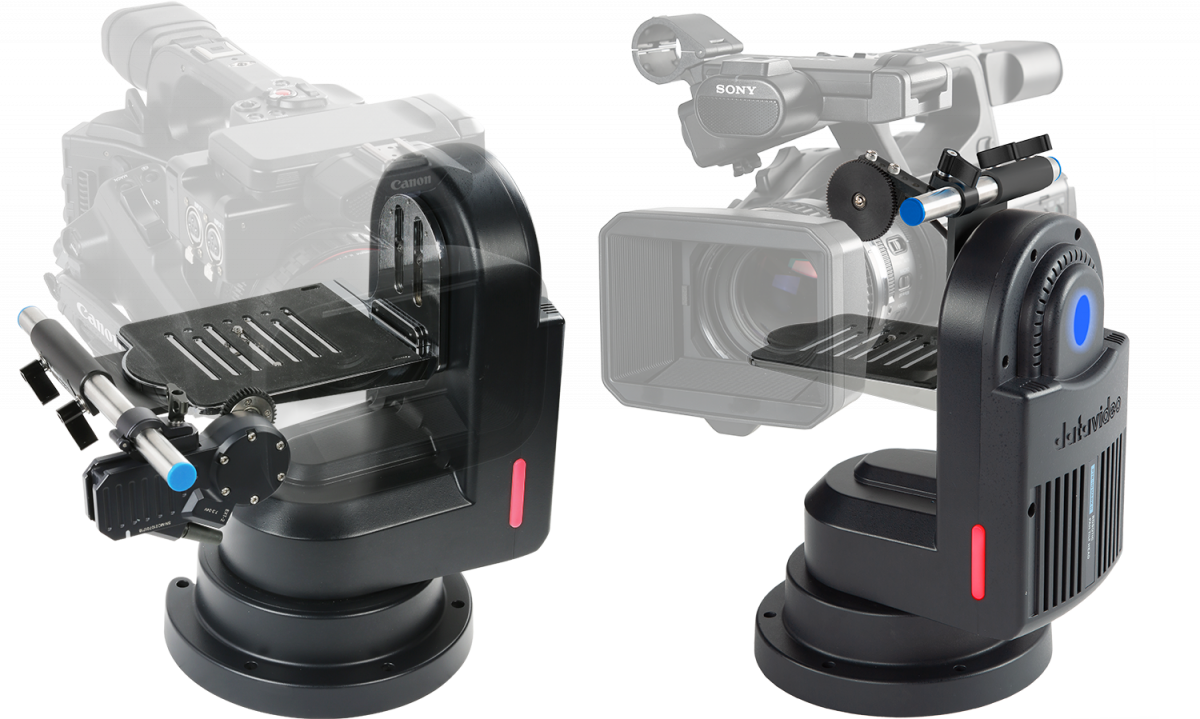

It employs an efficient driving system to achieve smooth and precise robotic pan and tilt movements. It can be paired with most models of broadcast-grade cameras available in the market, enabling remote control of camera parameters such as pan, tilt, zoom, and aperture.
The PTR-15 comes equipped with the built-in FreeD virtual tracking feature, which utilizes computer vision sensor technology to recognize and track the position and movements of the subject being filmed.
The PTR-15 can be controlled using an IR controller, VISCA protocol controller, Datavideo RMC-180 MARK II camera controller, RMC- 300A universal remote control panel, and is compatible with both serial and Ethernet (DVIP) connections.
Video Interface
HDMI 2.0 x 1
12G-SDI x 1
3G-SDI x 1
Video Output
2160p 60/59.94/50
2160p 30/29.97/25
1080p 60/59.94/50
1080p 30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50"\
Control Unit
RMC-180 MARK II
RMC-300A
RMC-300C
SHOWCAST 100
VISCA Protocol Controller IP Control
IR remote
Genlock YES
Timecode YES
Panning / Tilting Range Pan: 340°
Tilt: ±45°
Panning / Tilting Speed Pan: 0.12~15° /Sec
Tilt: 0.06~10° /Sec
Preset Pan/Tilt position 199
Control Distance 1,200M by RS422
100M by DVIP
Control Protocal Sony VISCA
DVIP
Control Input RS-422
DVIP
Maximum Load 4 KG Max
Control Output
RS-232
RS-422
IP Control
BX-Lens
LanC
Power Requirement DC 14V~ 20V, 90W
Power Supply DC 24/12V, 36W Max
Operating Temp. Range 0~40 C°
Operating Humidity Range 10~80%
Storage Temp. Range -10~60C°
Storage Humidity Range 5~80%
