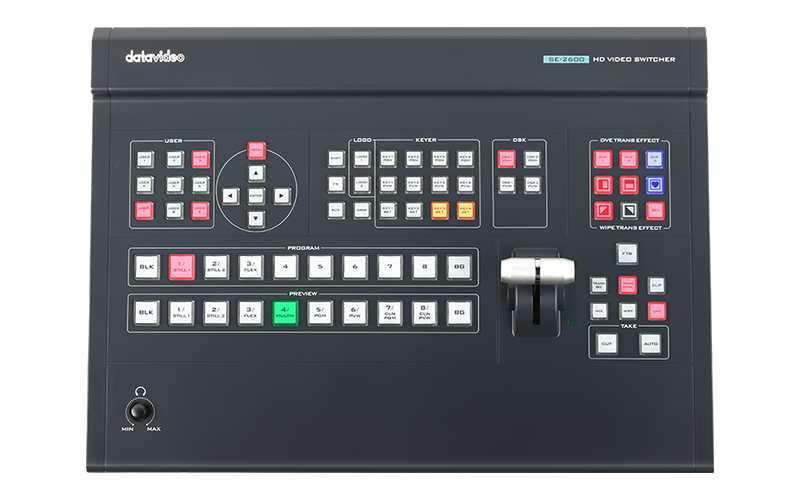

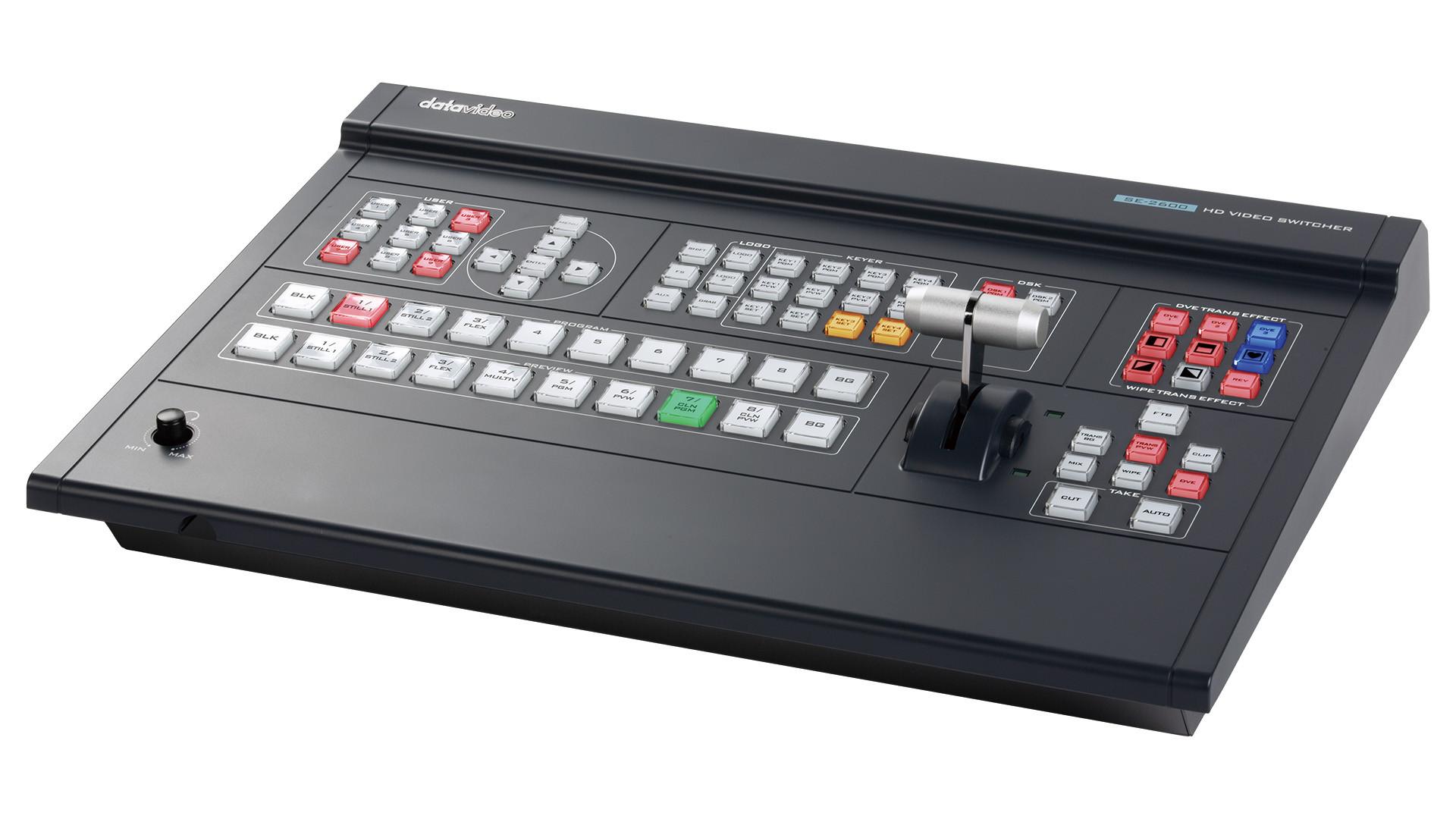

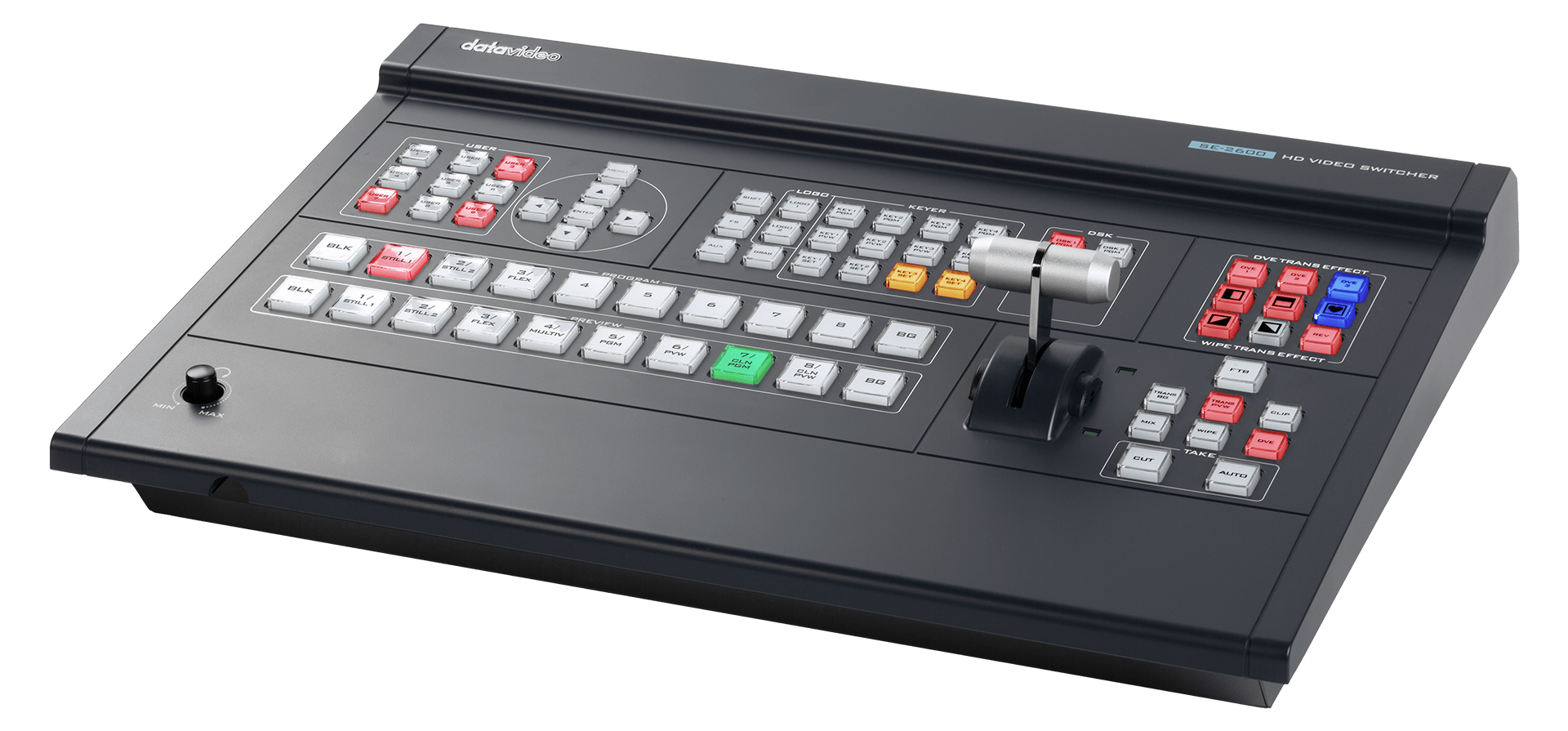

The SE-2600 series HD Video Switcher is a versatile and powerful 8-input live production switcher, ideal for professional broadcasting. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI.
1 x SE-2600 product
1 x AD Switch DC 12V
1 x AC Cord
Categories: Production Switchers & Controllers
Datavideo 2600 HD 8-Channel Digital Video Switcher designed for various applications from OB vans to standalone switchers, allows broadcasters to rapidly initiate live productions on-site with its quick setup and user-friendly interface.
The SE-2600 switcher also has powerful, easy-to-use effects, such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.
Additionally, it supports audio integration, logo insertion, title overlays, and offers a variety of transitions for a sophisticated production experience.
Video Standard | Full HD |
Video Format | Input: 1080p 50/ 59.94/ 60Hz 1080i 50/ 59.94/ 60Hz 720p 50/ 59.94/ 60Hz Output: 1080p 50/ 59.94/ 60Hz 1080i 50/ 59.94/ 60Hz 720p 50/ 59.94/ 60Hz |
Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4 |
Input Routable / Crosspoint | YES |
Video Input | Total 8 live inputs 4 x SDI 4 x HDMI |
Mix HD & SD Source | ----- |
Computer Graphic Interface | 4 via HDMI |
Video Output | 3 x SDI 3 x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source |
Down-converted Output | --- |
Built-in Multi-view Monitoring Out | HDMI & SDI assignable |
Analogue Audio Input | 2 x XLR/MIC (6.3mm) Combo Socket 1 x Stereo RCA set (L/R) |
Analogue Audio Output | 1 x Stereo RCA set (L/R) |
Digital Embedded Audio Support | SDI Input/Output 4 channels, HDMI Input/Output 2 channels |
Audio Delay Calibration | Up to 16 fields or 8 frames per channel |
A+V Switching | Yes |
Chromakey | 4 |
Title Creator | Yes |
USK | 4x Keyer support Chromakey/ Linear/ Luma Key |
DSK | 2x DSK support Lumakey & Linear key (Key / Fill) |
Picture in Picture | 4 |
Logo Insertion | 2 |
Still Store | 999+ (1080p)
|
Effects | Cut, Auto, WIPE, Mix, DVE, Stinger |
Transition Preview | Full transitions preview |
Sync / Reference In/Out | 1 x BNC Ref in 1 x BNC Ref out (loop-through) |
Tally Output | 1x D-sub 25pin, dual color |
PC Remote Control | RS-232 / DVIP (Ethernet) |
Camera Control | ---- |
Built-in Audio Mixer | ---- |
Storage | ---- |
Recording File System | ---- |
Recording File Format | ---- |
Video Encode | ---- |
Audio Encode | ---- |
Streaming Protocol | ---- |
Firmware Update | USB |
Special Features | User Memory Preset Free Virtual Set and Stinger transition included |
Chassis | Unibody |
Power | DC 12V, 82W |
Operating Temp. Range | 0~40 °C |
