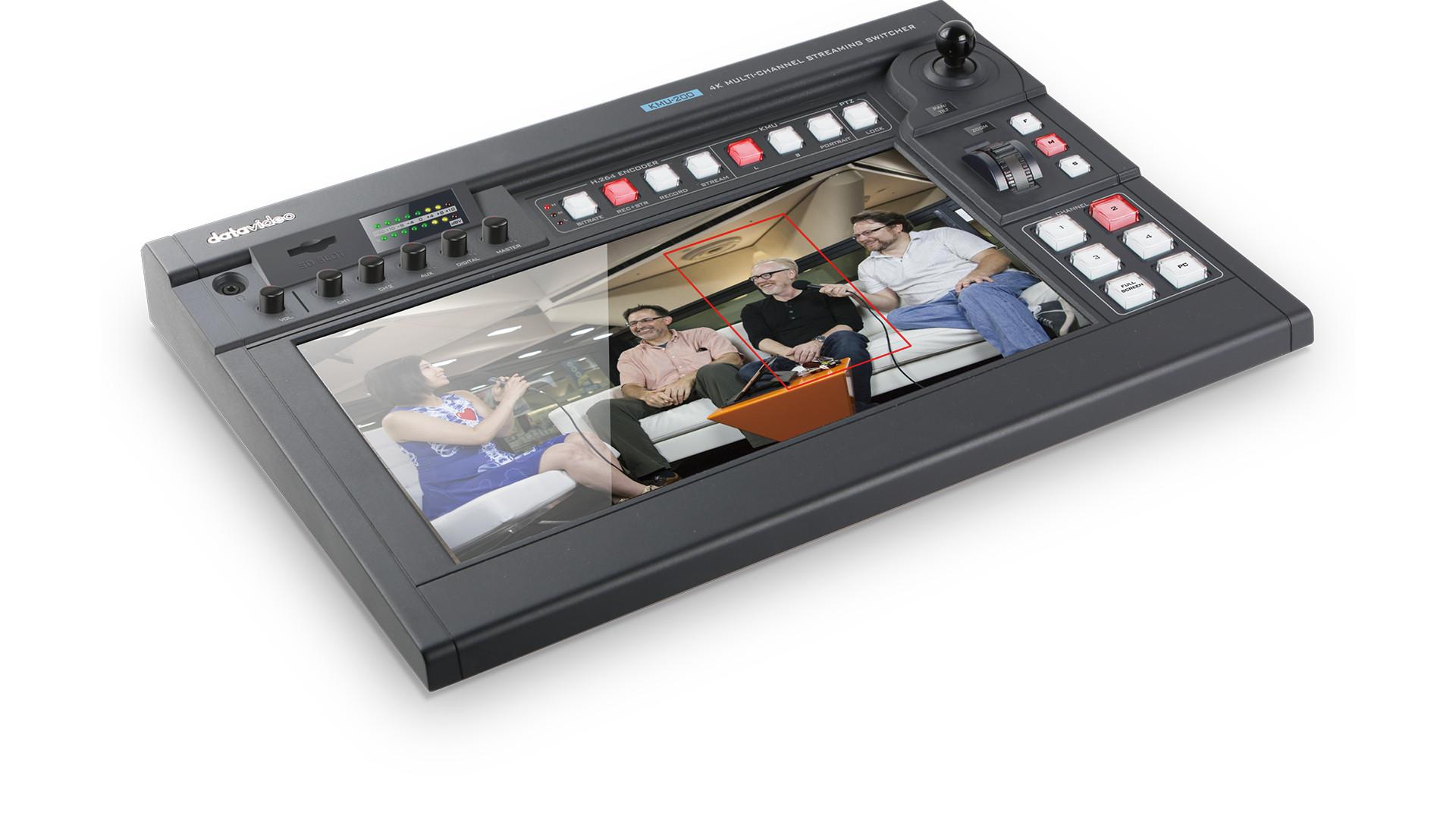

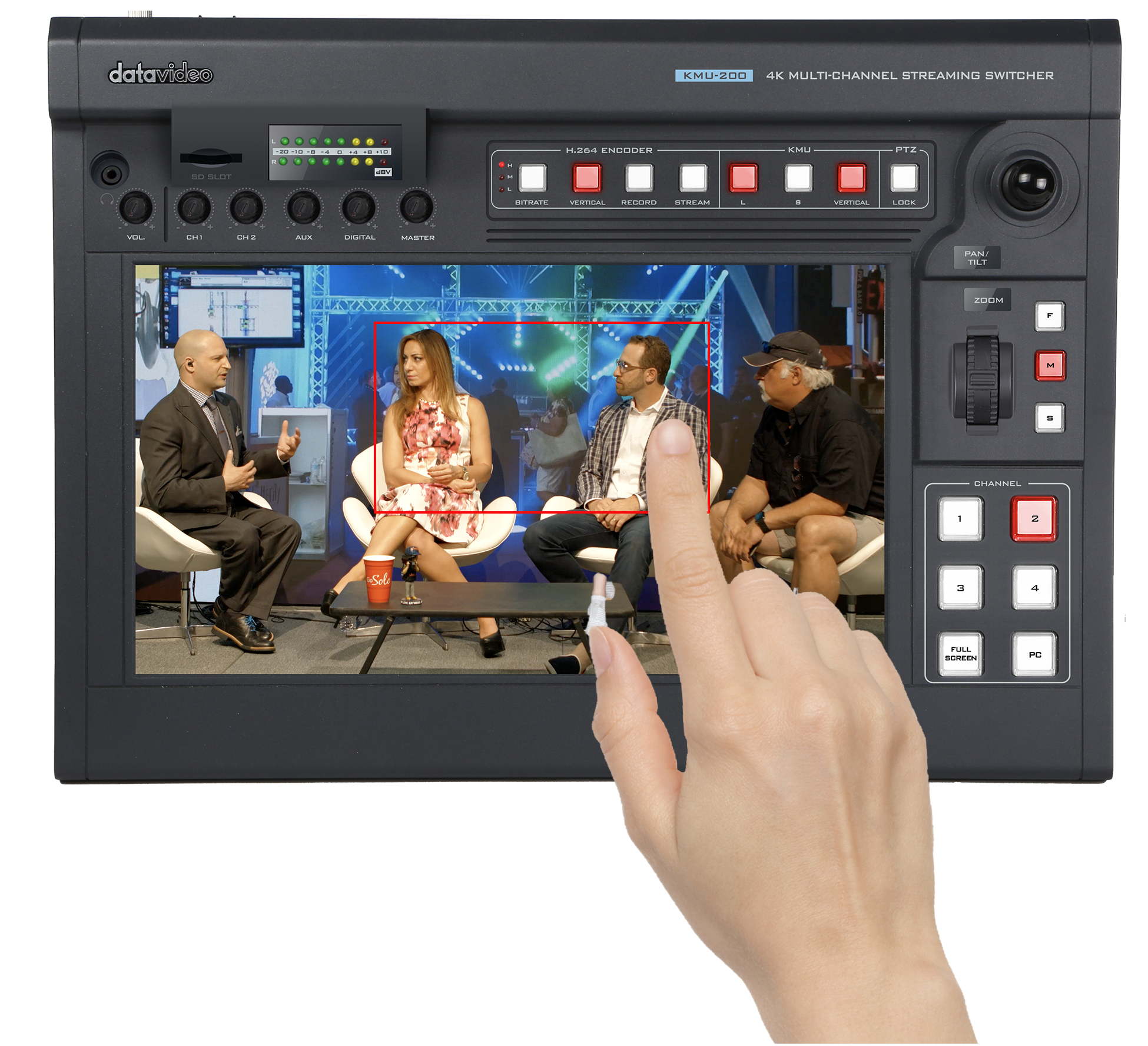

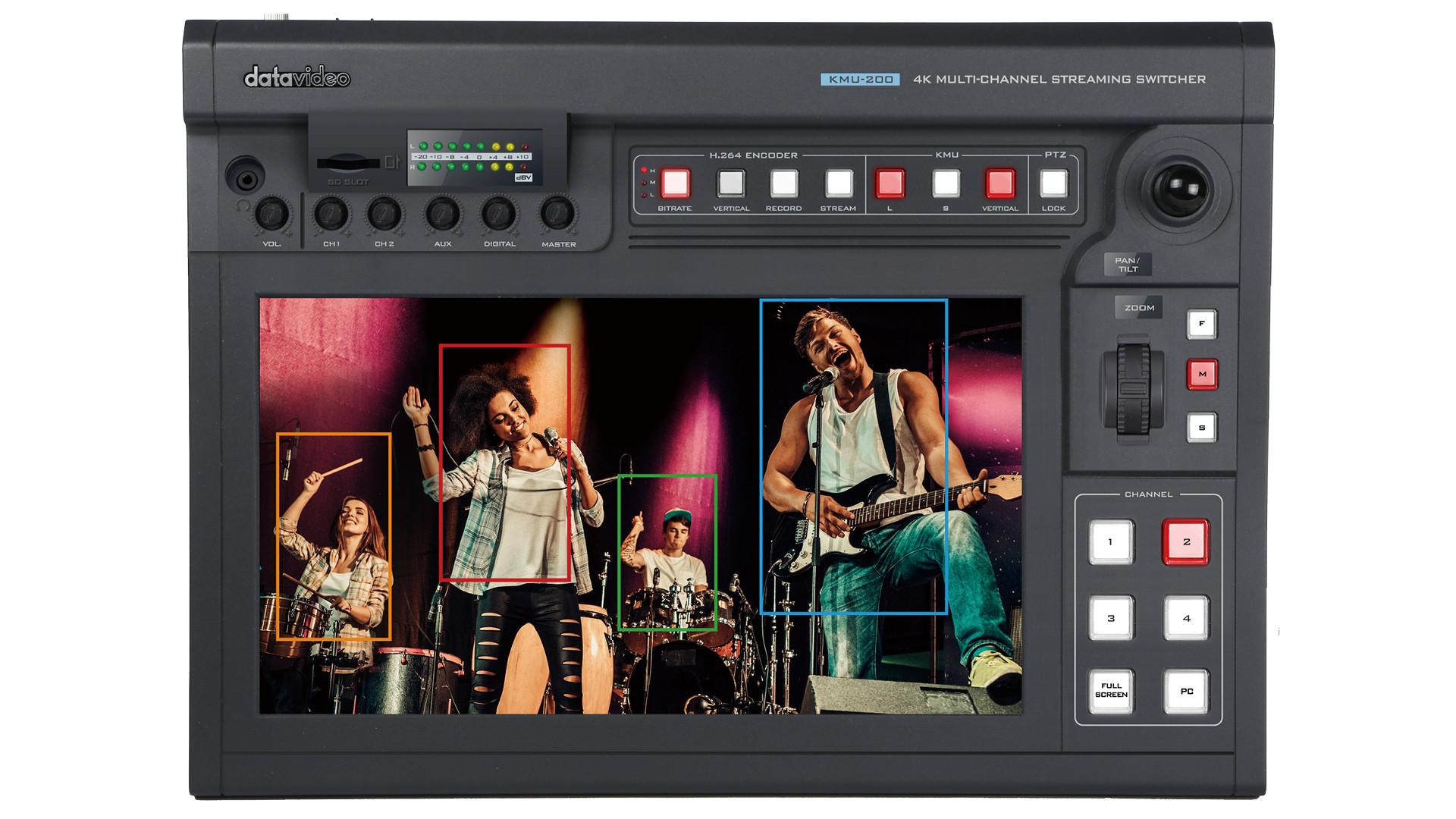

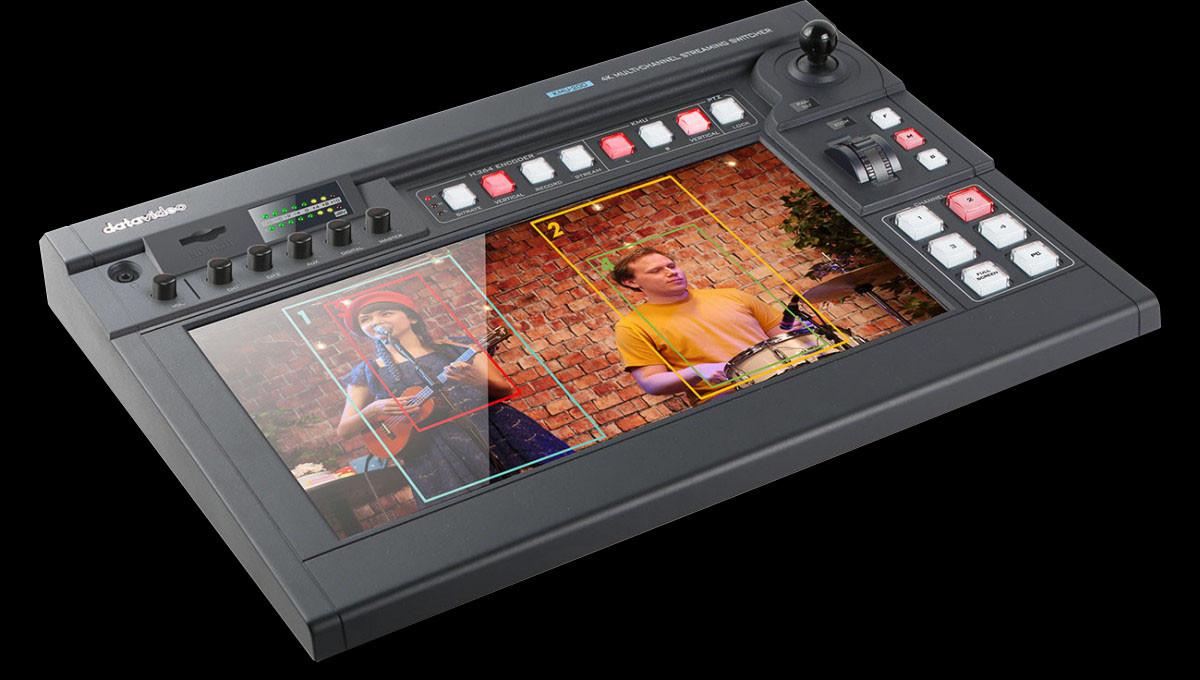

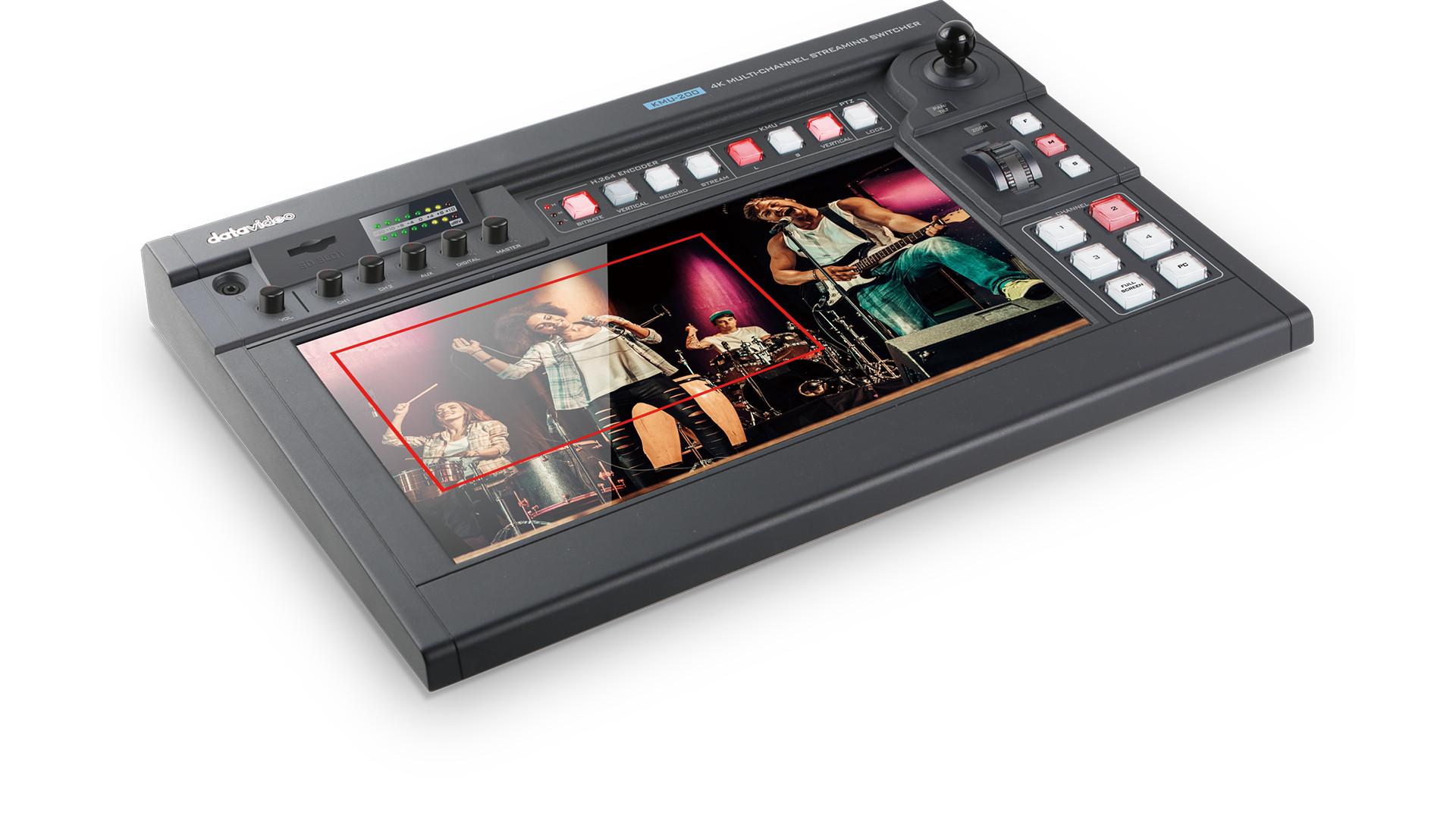

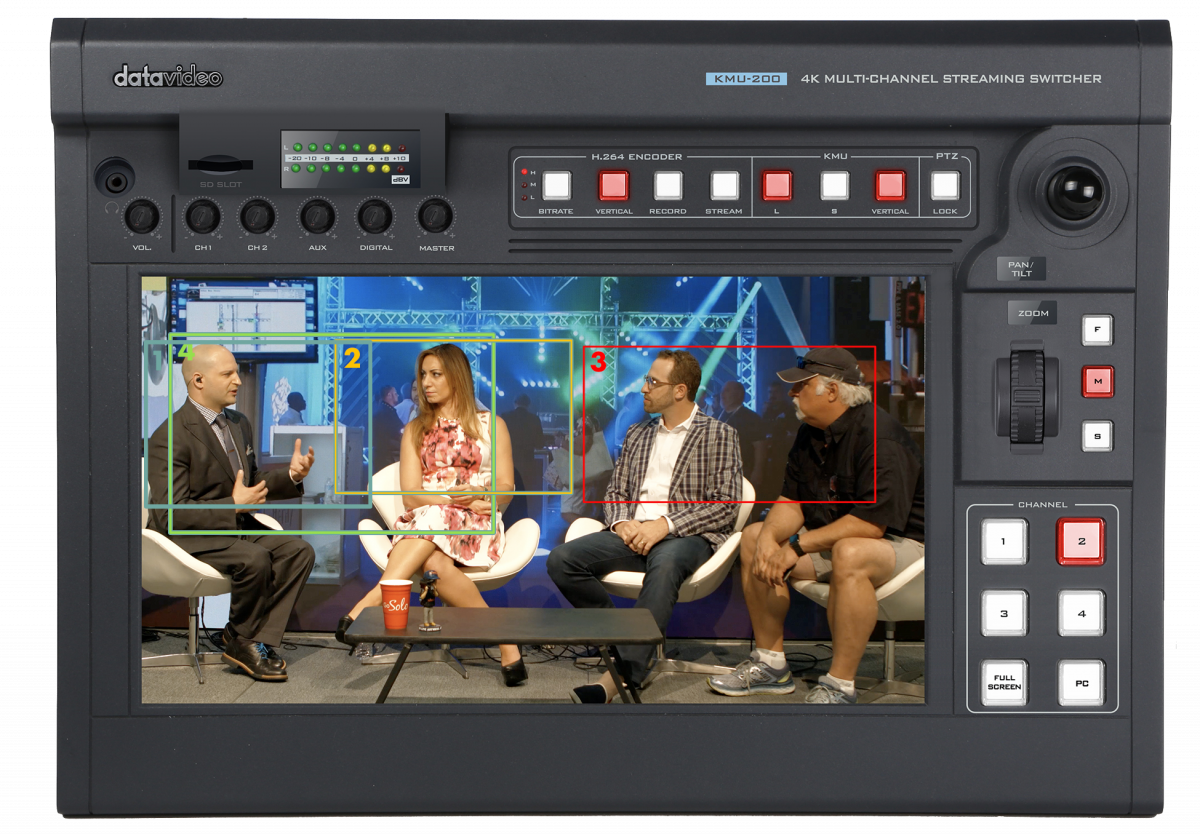

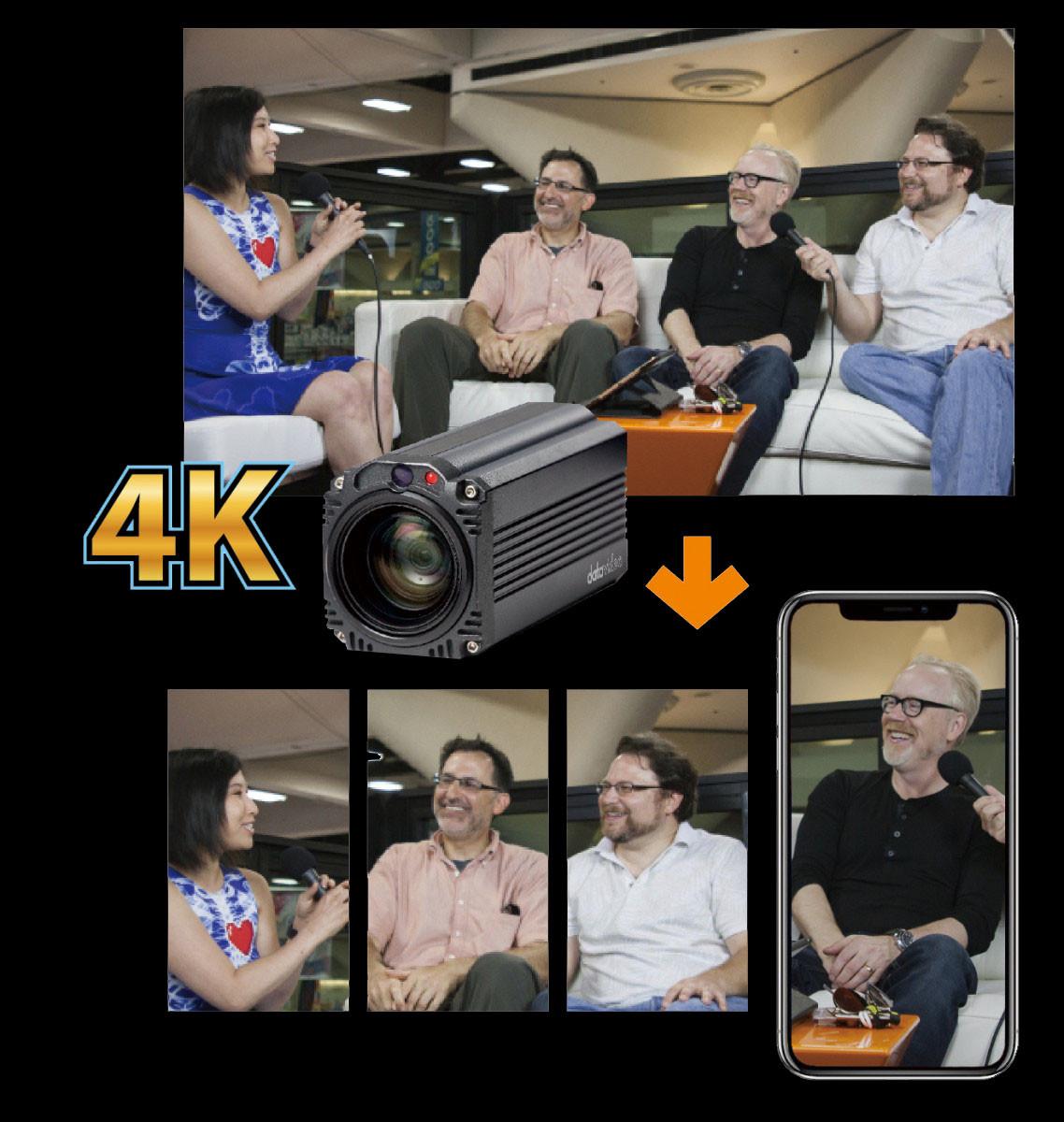

KMU-200 is an all-in-one solution for producing full HD virtual multi-camera video using a single 4K camera. KMU-200 uses a large touch screen for operation using similar gestures used on any tablet or phone. By pinching and swiping, you control up to 4 cutouts of a 4K image and as if the footages comes from 4 different cameras. Use hardware control to precisely position the cutouts like a regular PTZ camera. KMU-200 features a dual streaming encoder making it possible to go live on all the well known streaming platforms directly from the device. Easily record on SD cards and you can directly bring the recording to your favorite editing suite. KMU-200 allows you to produce virtual multi-camera videos easily without any help.
1 x KMU-200 Main Unit
1 x AD Switch DC 12V with AC Cord
Categories: Production Switchers & Controllers
Recording Storage Medium | SD Card (Class 10 above) |
Recording Storage File System | NTFS, FAT, exFAT |
Recorded File Format | MP4 |
Built-in Audio Mixer | Yes, 4 channels |
Video Standard | UHD & HD |
Video Format | Input: 3840x2160p 23.98/24/25/29.97/30/50/59.94/60 1080p 50/59.94/60 Output: 1080p 50/59.94/60 720p 50/59.94/60 |
Video Processing | 4:4:4 / 4:2:2 / 4:2:0 |

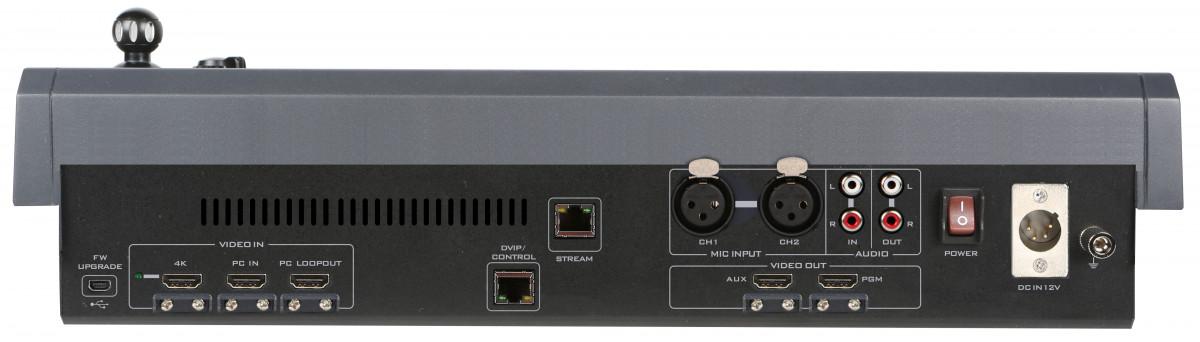

Video Input | 1x HDMI 2.0 1x HDMI 1.4 with Loop through |
Video Output | 2x HDMI 1.4 |
Support Video Output Resolution | 1920 x 1080p 50/59.94/60 1280 x 720p 50/59.94/60 |
Multiview Out | --- |
Multiview Mode | --- |
Streaming
Streaming Encode | H.264/AVC, Main/High Profile |
Streaming Video Bitrate | Record Only: Up to 16Mbps (1080p50/60) Stream Only: Up to 10Mbps (1080p50/60), dual stream Record+Stream: 36Mbps (1080p50/60) |
Streaming Video Rate Mode | CBR |
Streaming Audio Mode | Stereo/Mono |
Streaming Audio Bitrate | Stereo: 64~384Kbps Mono: 32~192Kbps |
Streaming Protocols | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS SRT |
Network Interface | 1x RJ45 (10/100Mbps Ethernet) |
Recording
Audio
Audio Input | 2x XLR(Mic) 2x RCA |
Audio Output | 2x Unbalanced RCA |
Audio Sampling | --- |
Reference Input | --- |
Others
Control Interface | --- |
Preview Display | 14” Capacitive Touch LCD |
Controller | --- |
Power Supply | DC 12V, 52W |
Operating Temp. Range | 0~40 °C |
