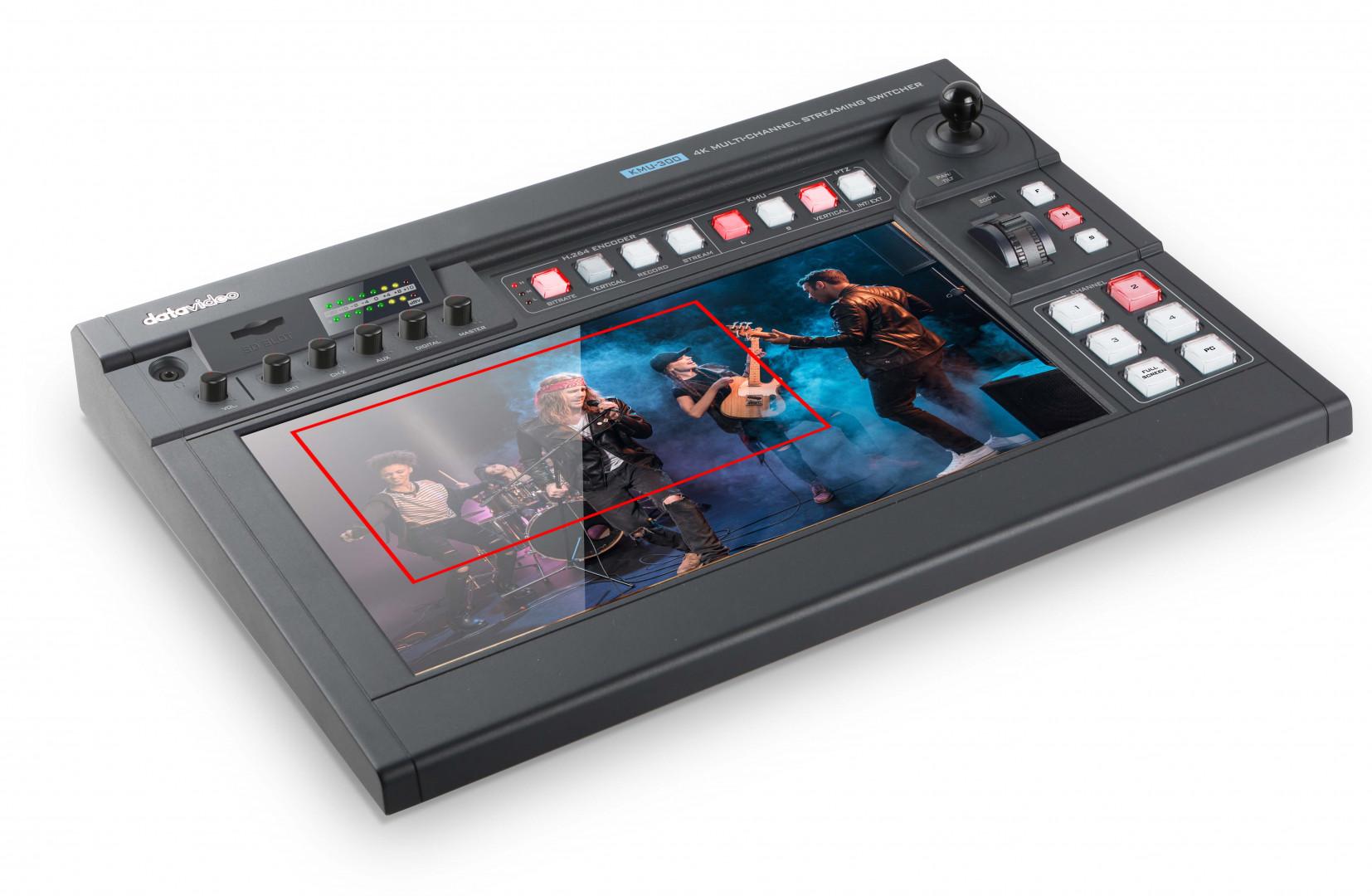

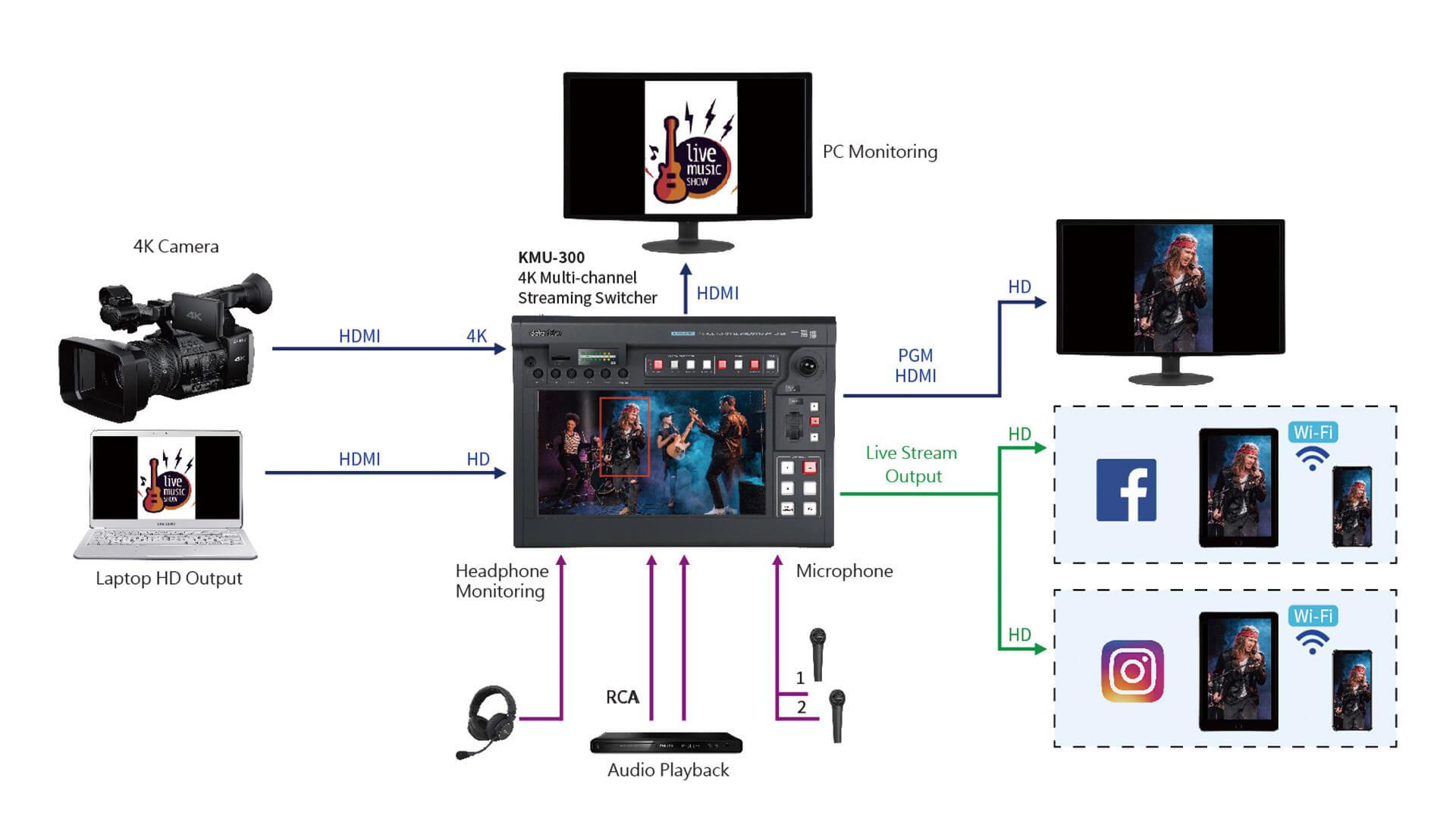

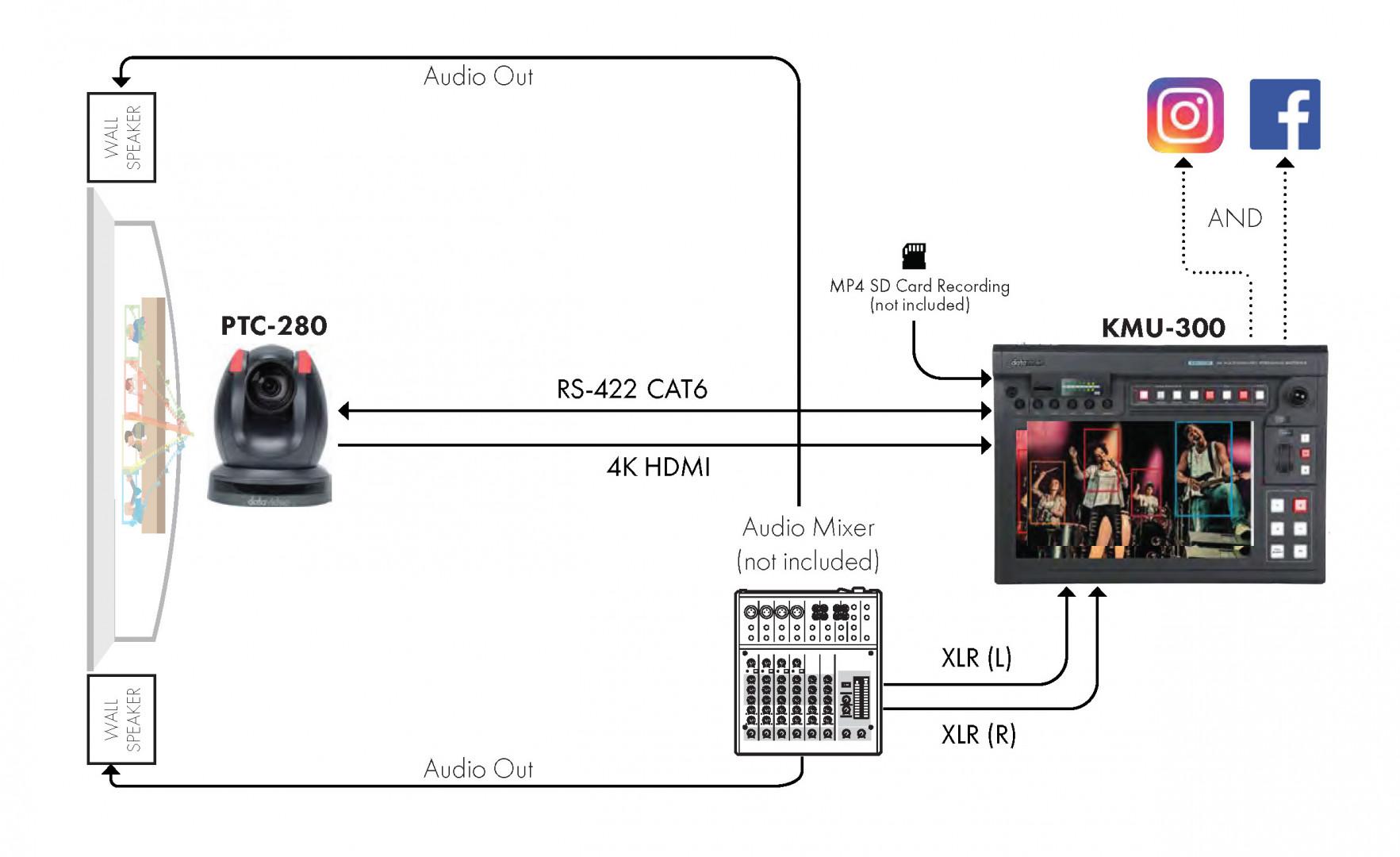

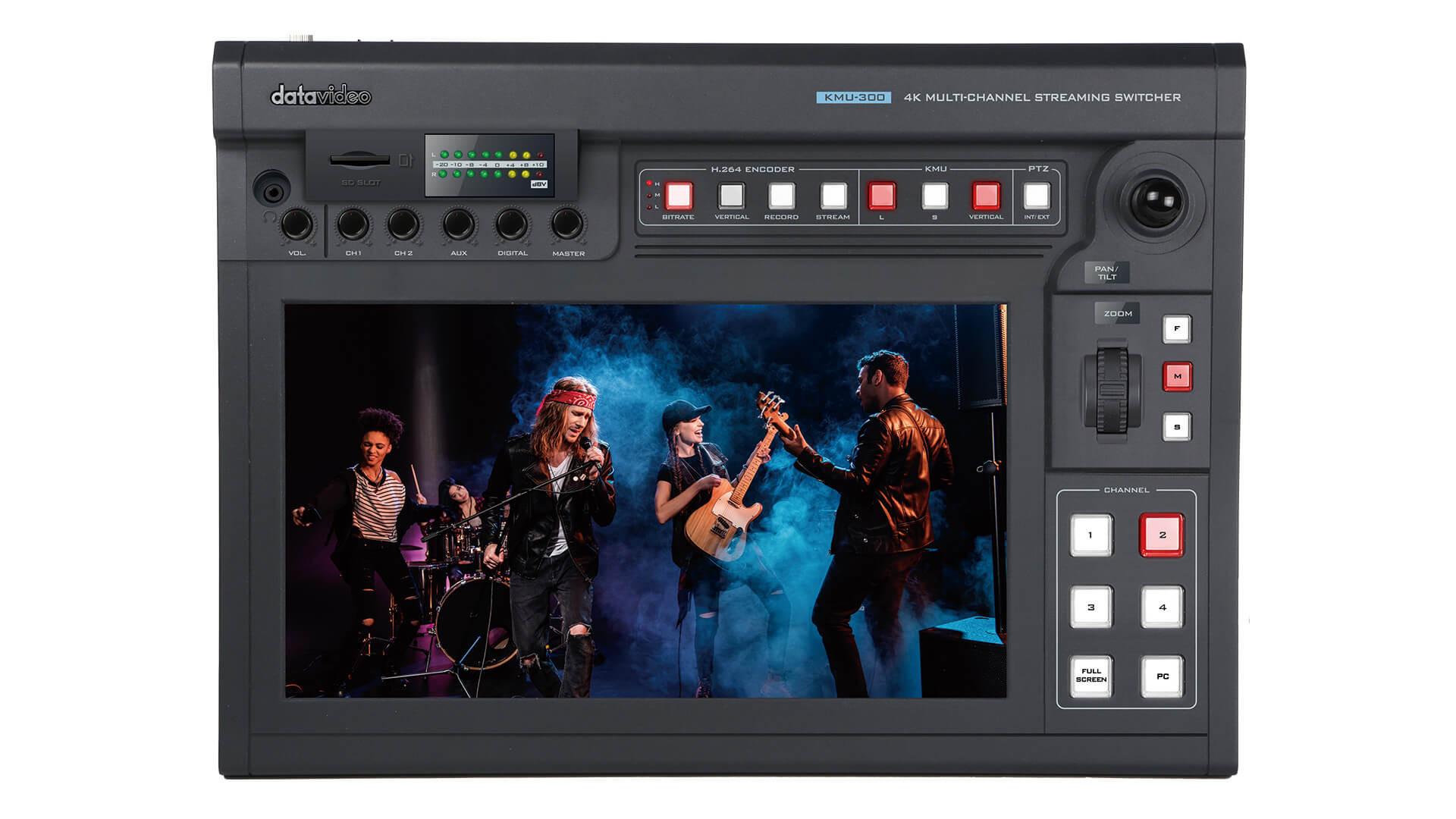

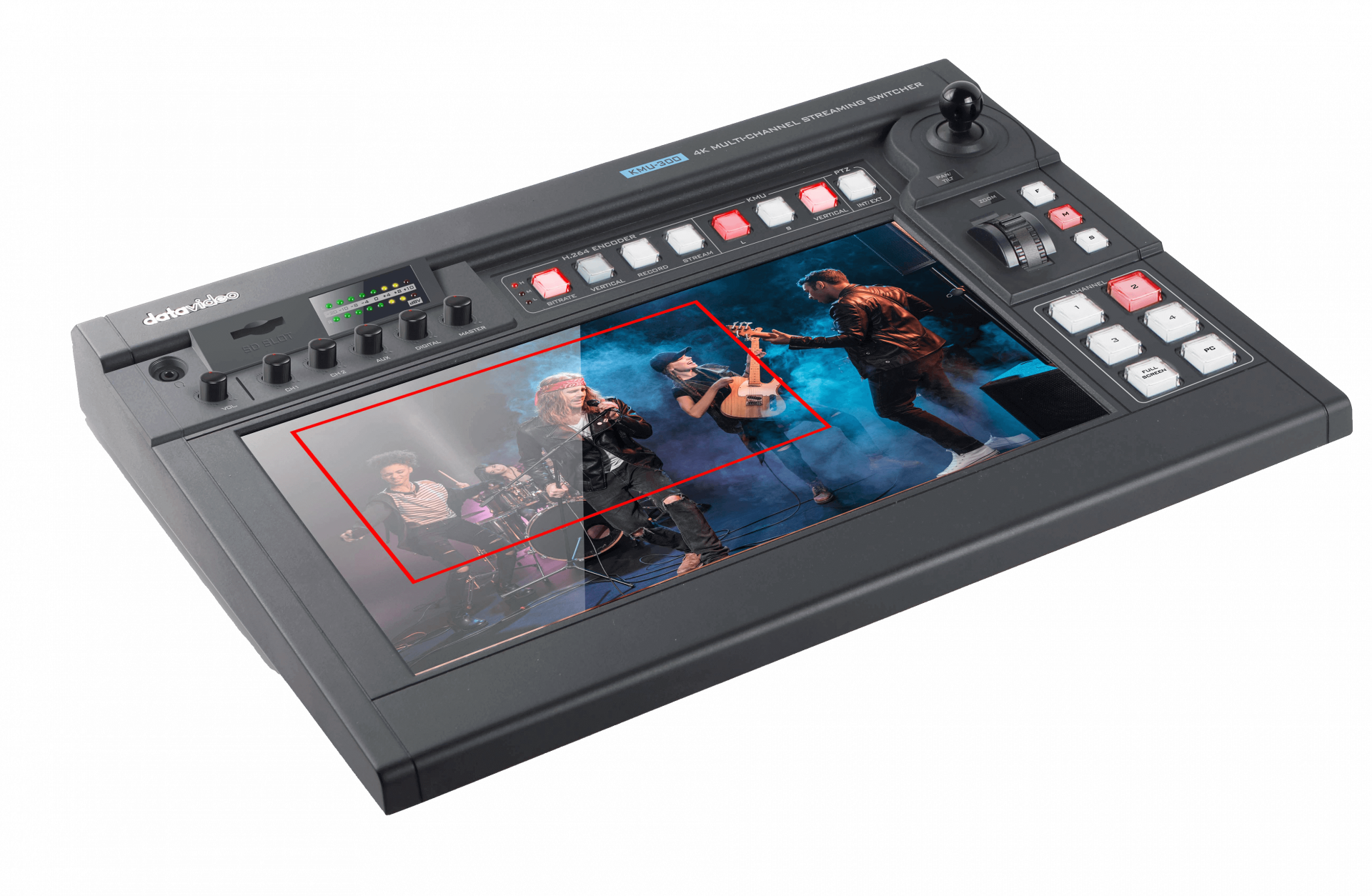

The KMU-300 is your all-in-one solution, converting 4K inputs into four 1080p high-definition output. With intuitive joystick and button controls, it manages PTZ camera movements and frame selection on its 14-inch capacitive touchscreen. This versatile device can output multiple landscape or portrait screens, facilitating real-time streaming to two platforms and SD card backup. Ideal for self-media studios, it streamlines camera control, audio mixing, dual-streaming, and recording, empowering a single operator for multitasking broadcasting.
1 x KMU-300 Main Unit
1 x AD Switch DC 12V with AC Cord
Categories: Production Switchers & Controllers
Recording Storage Medium | SD Card (Class 10 above) |
Recording Storage File System | NTFS, FAT, exFAT |
Recorded File Format | MP4 |
Built-in Audio Mixer | Yes, 4 channels |
Video Standard | UHD & HD |
Video Format | Input: 3840x2160p 23.98/24/25/29.97/30/50/59.94/60 1080p 50/59.94/60 Output: 1080p 50/59.94/60 720p 50/59.94/60 |
Video Processing | 4:4:4 / 4:2:2 / 4:2:0 |

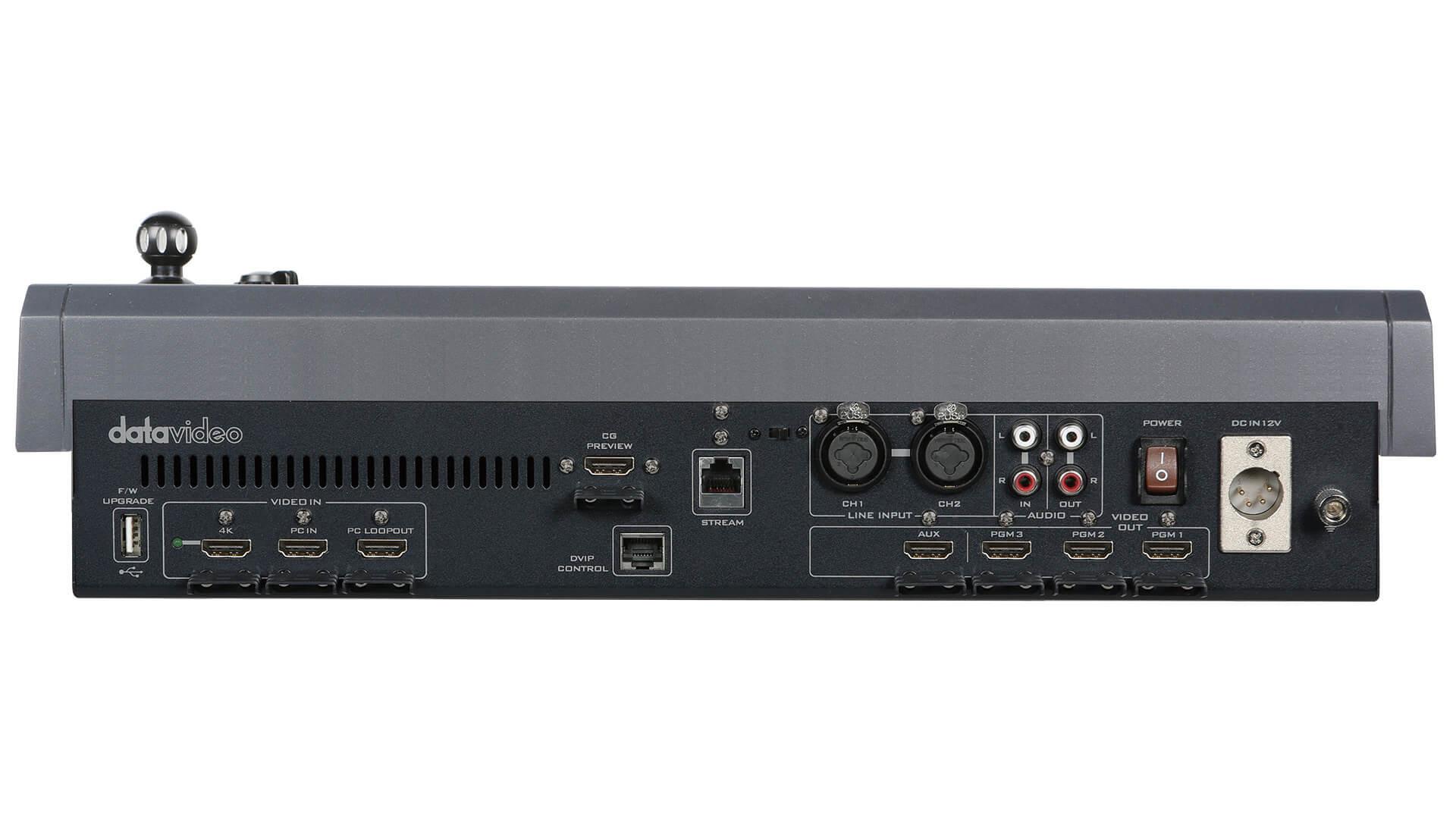

Video Input | 1x HDMI 2.0 1x HDMI 1.4 with Loop through |

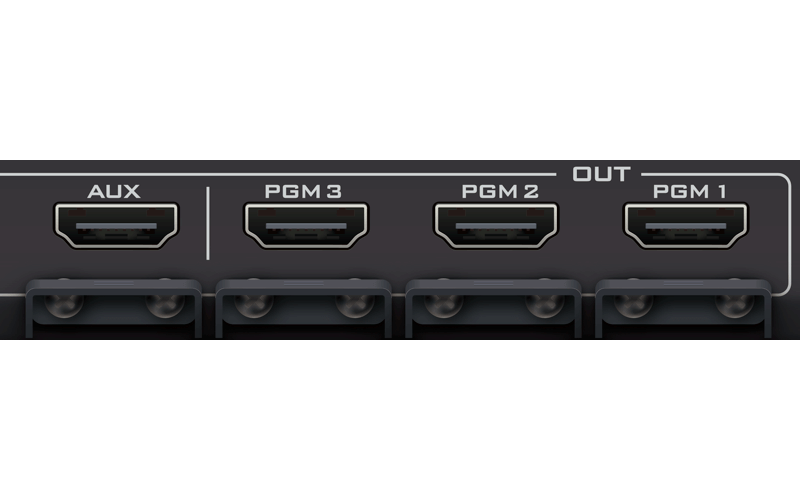

Video Output | 3x HDMI 1.4 (Program) 1x HDMI 1.4 (Aux: Ch1-Ch4) |
Support Video Output Resolution | 1920 x 1080p 50/59.94/60 1280 x 720p 50/59.94/60 |
Multiview Out | --- |
Multiview Mode | --- |
Streaming
Streaming Encode | H.264/AVC, Main/High Profile |
Streaming Video Bitrate | Record Only: Up to 16Mbps (1080p50/60) Stream Only: Up to 10Mbps (1080p50/60), dual stream Record+Stream: 36Mbps (1080p50/60) |
Streaming Video Rate Mode | CBR |
Streaming Audio Mode | Stereo/Mono |
Streaming Audio Bitrate | Stereo: 64~384Kbps Mono: 32~192Kbps |
Streaming Protocols | TS over TCP/UDP (unicast & multicast) RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish) HLS SRT |
Network Interface | 1x RJ45 (10/100Mbps Ethernet) |
Recording
Audio
Audio Input | 2x XLR(Mic) 2x RCA |
Audio Output | 2x Unbalanced RCA |
Audio Sampling | --- |
Reference Input | --- |
Others
Control Interface | --- |
Preview Display | 14” Capacitive Touch LCD |
Controller | --- |
Power Supply | DC 12V, 52W |
Operating Temp. Range | 0~40 °C |
