The Best partner for Datavideo 3200 series switchers, iCast 10NDI 5-Channel All-in-one Streaming Switcher, VGB-2000, VGB-4000 Pro Presentation System, DVK-400 4K Chromakey and TVS-2000A Tracking/Trackless Virtual Studio System.
1 x TPC-700 Main Unit
1 x DC 12V Power Adaptor
1 x D-Sub 9Pin to RJ-45 Cable
Categories: Production Switchers & Controllers

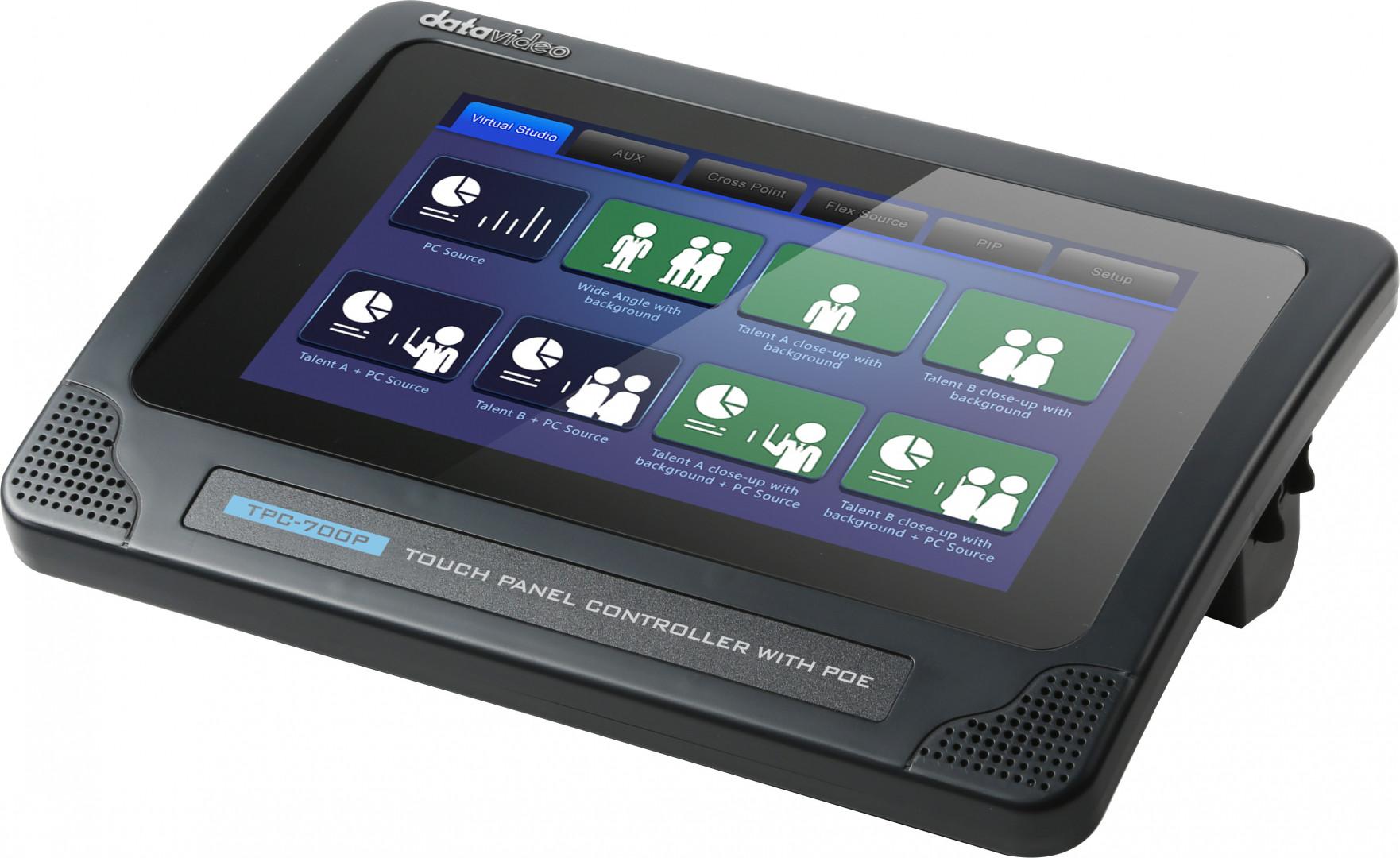

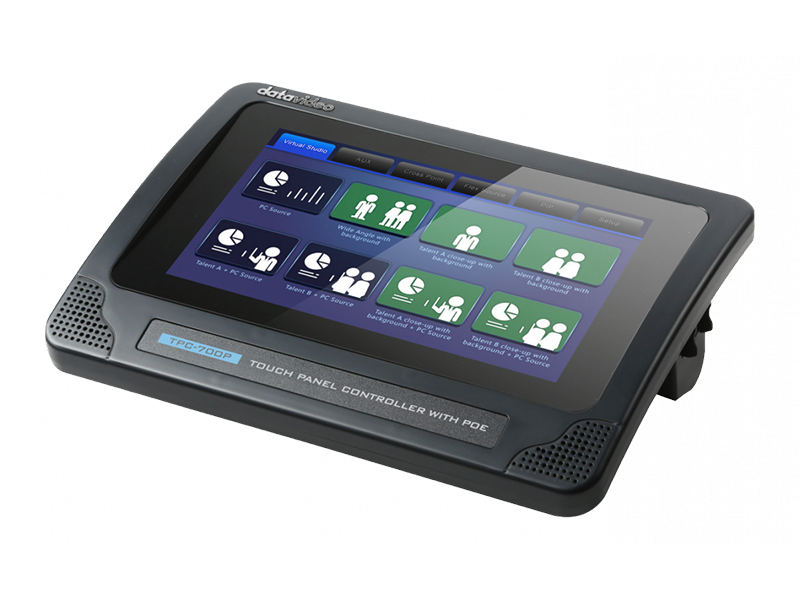

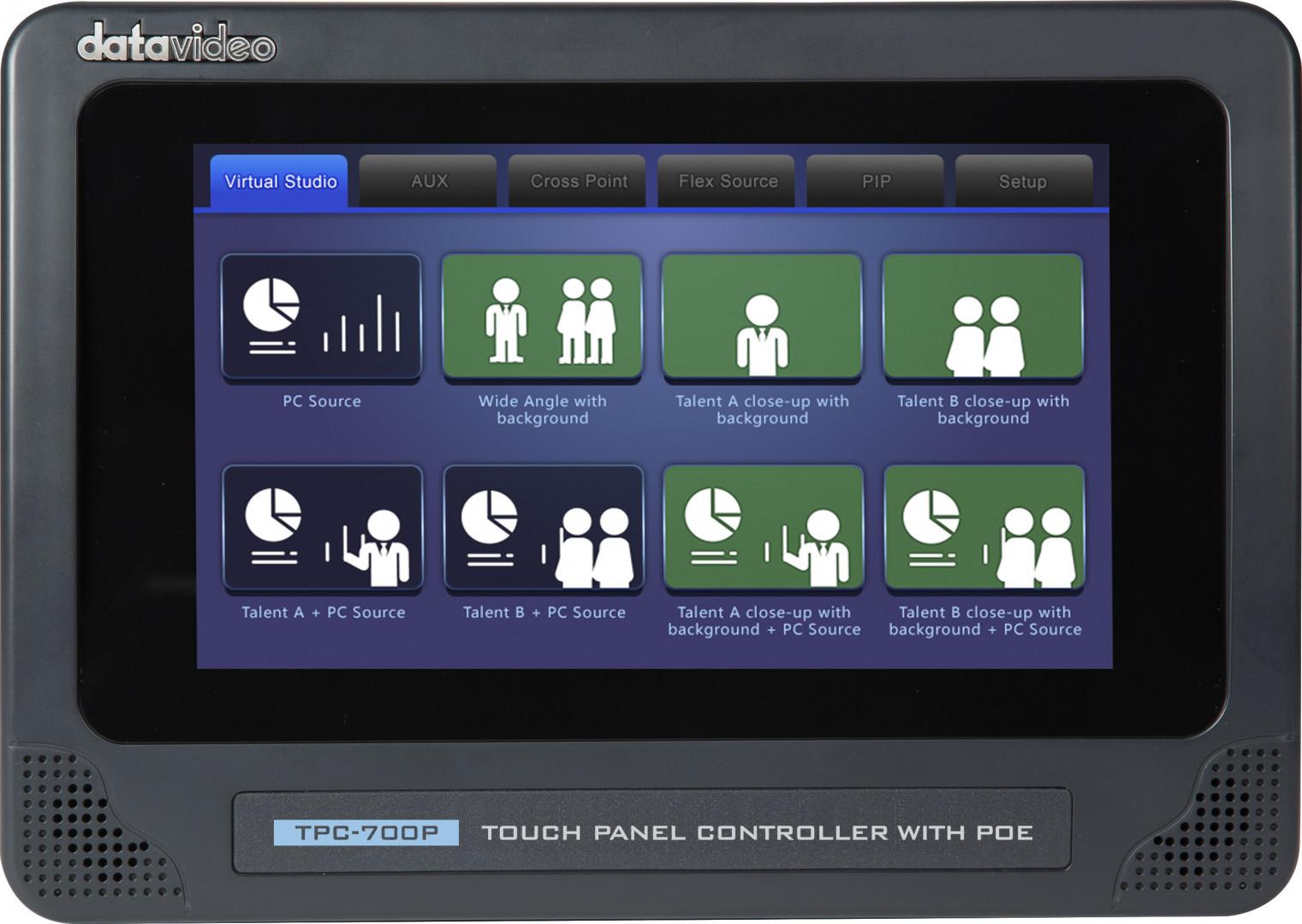

7-Inch Touch Panel Controller with PoE
The best assistant for all 3200 switchers, VGB-2000 presentation system and TVS-2000A Virtual Studio System. The SE-3200, VGB-2000 and TVS-2000A Apps that are installed on the TPC-700P contain presets of common operation functions.
Power over Ethernet Function
The 7-inch touch panel controller is with power over ethernet function. The PoE function allows a single cable to provide both data connection and electric power to TPC-700P.
Compatible with DVK-400 4K Chromakeyer
Easy work with Datavideo DVK-400 4K Chromakeyer. Supports Lumakey, Blur Background and Aux Layer Swap functions.
Easy Switch, Record and Live Stream
Datavideo TPC-700/TPC-700P is the best assistant for TVS-2000A Virtual Studio System. The TVS-2000A App that are installed on the TPC-700/TPC-700P contain presets of common operation functions. The interface is easy to use and can be controlled with a few finger taps on the 7-inch touchscreen to easily select different presets – multi- camera Virtual Studio switching, downstream key, and virtual studio presets. The Easy to live stream and record your virtual production show on the go
Easy Change Virtual Studio
Datavideo TPC-700/TPC-700P allow user to install 4 virtual studios in the App. Just tap your desired virtual scene mode directly from the TPC-700/TPC- 700P for recalling the corresponding virtual scene.
Touch Screen | 7” capacitive touch screen |
Touch Screen Resolution | 800 x 480 |
Firmware Upgrade | Via USB 2.0 |
Control | RS-232 (RJ-45) |
Power | DC 12V |
Power over Ethernet (PoE) | 802.3af |
Power Consumption | 10W |
Operating Temp. Range | 0~40 °C |
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
1 x TPC-700 Main Unit
1 x DC 12V Power Adaptor
1 x D-Sub 9Pin to RJ-45 Cable
