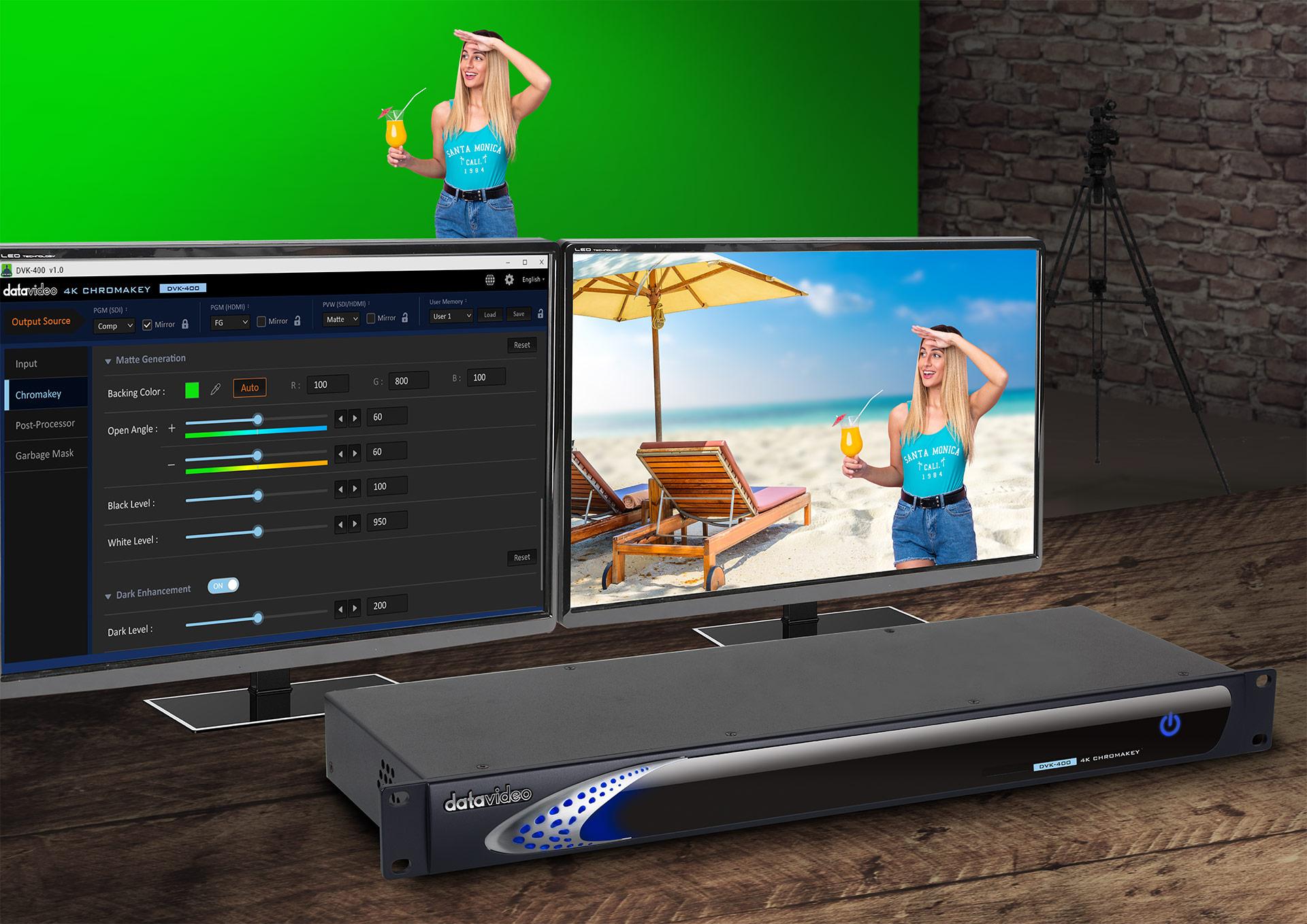

DVK-400 is a professional broadcast grade live chromakey processor that works with resolutions up to 2160p60. This real-time chromakey processor provides 4:4:4 10-bit internal processing for the best results.
1 x DVK-400 Product
1 x Adaptor + AC Cord
4 x M5 screws
Categories: Production Switchers & Controllers
Chromakeying with the DVK-400 can be done on standard green and blue backgrounds, however with the addition of special features such as Open Angle and an impressive Automatic chromakey mode you can even use colours that divert from the standard.
The DVK-400 is able to chromakey very hard subjects, such as water, smoke, blonde hairs and shadows.
The DVK-400 can handle the most difficult chromakey scenes including blonde hair, a glass of water / a bottle of water, smoke, and reflective shadow simply for showing delicate and real chromakey effect.
After setting all the chromakey parameters, you can still adjust each video parameter like brightness, contracts, color, and saturation to combine the foreground and the background perfectly.
Video Standard | 4K/3G/HD |
Video Process | 4:4:4 10bit |
Video Format | 3840x2160p 60/59.94/50/30/29.97/25 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 |
Foreground Inputs | 1 x 12G/6G/3G-SDI 1 x HDMI 2.0 |
Background Inputs | 1 x HDMI 2.0 |
Loop Through | 1 x 12G/6G/3G-SDI Camera loop out |
AUX Input | 1 x HDMI 1.4 (Lumakey Overlay or External Matte or Camera ) |
Video Output | 2 x 12G/6G/3G-SDI 1 x HDMI 2.0 |
Video PVW Output | 1 x 12G/6G/3G-SDI 1 x HDMI 2.0 |
Color Space | SDI : YUV 4:2:2, 10-bit, limited range HDMI: RGB 4:4:4/YUV 4:4:4/YUV 4:2:2, 10-bit, full/limited range |
Keying Options | Chromakey Green / Blue |
Key Mask / Spill Correction / Edge Correction | Yes |
Color Processor | Yes |
Noise Reduction | Yes |
User Preset | 8 |
GPI In / Out | ---- |
Sync Reference | Input & Loop Output (Tri-Sync or Black Burst) |
Controlled Via | Ethernet/RS-232 |
Chassis | 1RU 19" Rack-mount Design |
Operating Temp. Range | 0~40 °C |
Power | DC 12V, 5A |
