The HS-4000 has 12 video inputs, with 8 of the inputs being selectable for flexibility, as well as variety of video and audio inputs and outputs, 7 outputs with AUX assignment.
1 x HS-4000 Unit
1 x AD Switch DC 48~56V with AC Cord
Categories: Production Switchers & Controllers
he Datavideo HS-4000 is a compact, portable mobile studio ideal for broadcasting, conferences, live events, and hybrid activities. It supports up to 4K 60FPS video, accepting inputs from HDMI 2.0 devices and 12G-SDI cameras. It features a 5-inch touchscreen with customizable icons, transition animations, chroma key, and various functions.

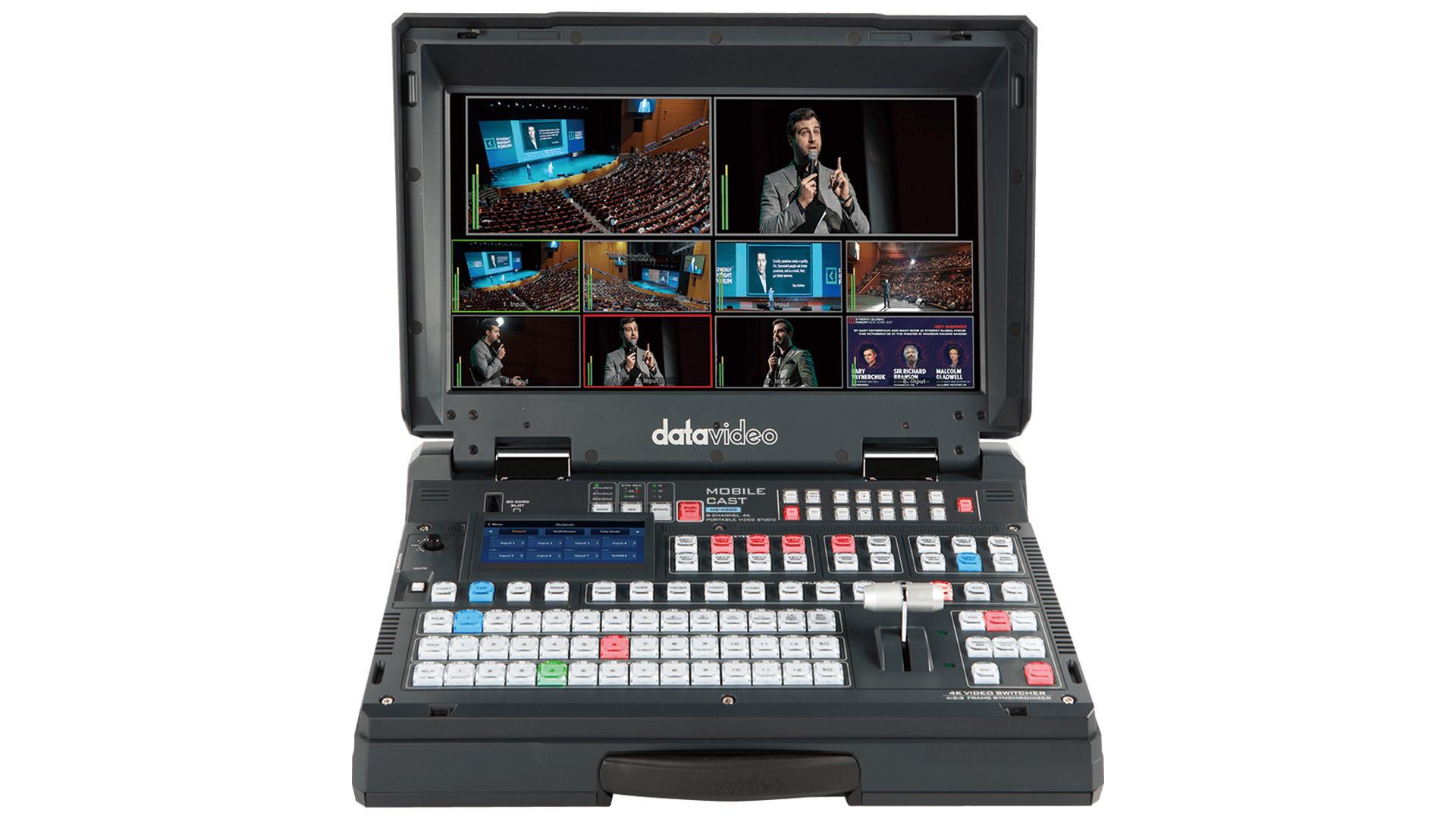

With a 17.3-inch UHD 2160p monitor, it offers a multiview display. The HS-4000 includes easy recording and live streaming encoders for simultaneous broadcasting and high-quality MP4 recording with synced audio-video.
This mobile studio blends advanced tech and convenience to fulfill modern multimedia production needs.
The Datavideo HS-4000 is a compact, portable mobile studio ideal for broadcasting, conferences, live events, and hybrid activities. It supports up to 4K 60FPS video, accepting inputs from HDMI 2.0 devices and 12G-SDI cameras. It features a 5-inch touchscreen with customizable icons, transition animations, chroma key, and various functions.
With a 17.3-inch UHD 2160p monitor, it offers a multiview display. The HS-4000 includes easy recording and live streaming encoders for simultaneous broadcasting and high-quality MP4 recording with synced audio-video.
This mobile studio blends advanced tech and convenience to fulfill modern multimedia production needs.
The HS-4000 combines features such as video switchers, audio mixers, monitor, recorder, and streaming encoder into a single integrated unit, making it easier for users to create high-quality content without needing to assemble a complex setup from various individual production devices.
Recording and Live Streaming
The HS-4000 features easy-to-use recording and live streaming encoders. This functionality enables simultaneous live broadcasting and recording of high-quality MP4 files with audio-video synchronization. This dual capability is ideal for archiving and post-event editing.
Versatile Video Inputs
The HS-4000 can accept video inputs from various sources, including PCs, multimedia players with HDMI 2.0 output, and 12G-SDI cameras. This versatility allows for seamless integration of different devices and sources into the production workflow.
Seamless HD to 4K Conversion for Maximum Flexibility
The Datavideo 4000 series switcher offers ultimate versatility in modern production environments, featuring built-in upscaling and downscaling conversion capabilities. Whether your sources are in Full HD or Ultra HD, the HS-4000 ensures seamless interoperability by automatically converting input and output signals between 1080p and 2160p (4K) formats.
This powerful conversion capability enables users to seamlessly mix and match HD and 4K cameras, media players, and other video sources, without worrying about signal compatibility or resolution mismatches. The Datavideo 4000 series switcher intelligently upscales HD inputs to 4K for pristine output quality, while also downscaling 4K sources to HD when needed—perfect for streaming or recording in different resolutions.
Streaming | H.264: MAX RES: HD@60 420 8bit codec H.265: MAX RES: 4K@60 420 8bit codec |
Streaming Audio Encode | AAC 2CH, 16bit 48KHz 192Kbps |
Streaming Protocol | RTMP SRT |
HS-4000
Video Standard | 4K & HD |
Video Format | 3840x2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50 |
Input Routable / Crosspoint | Yes |

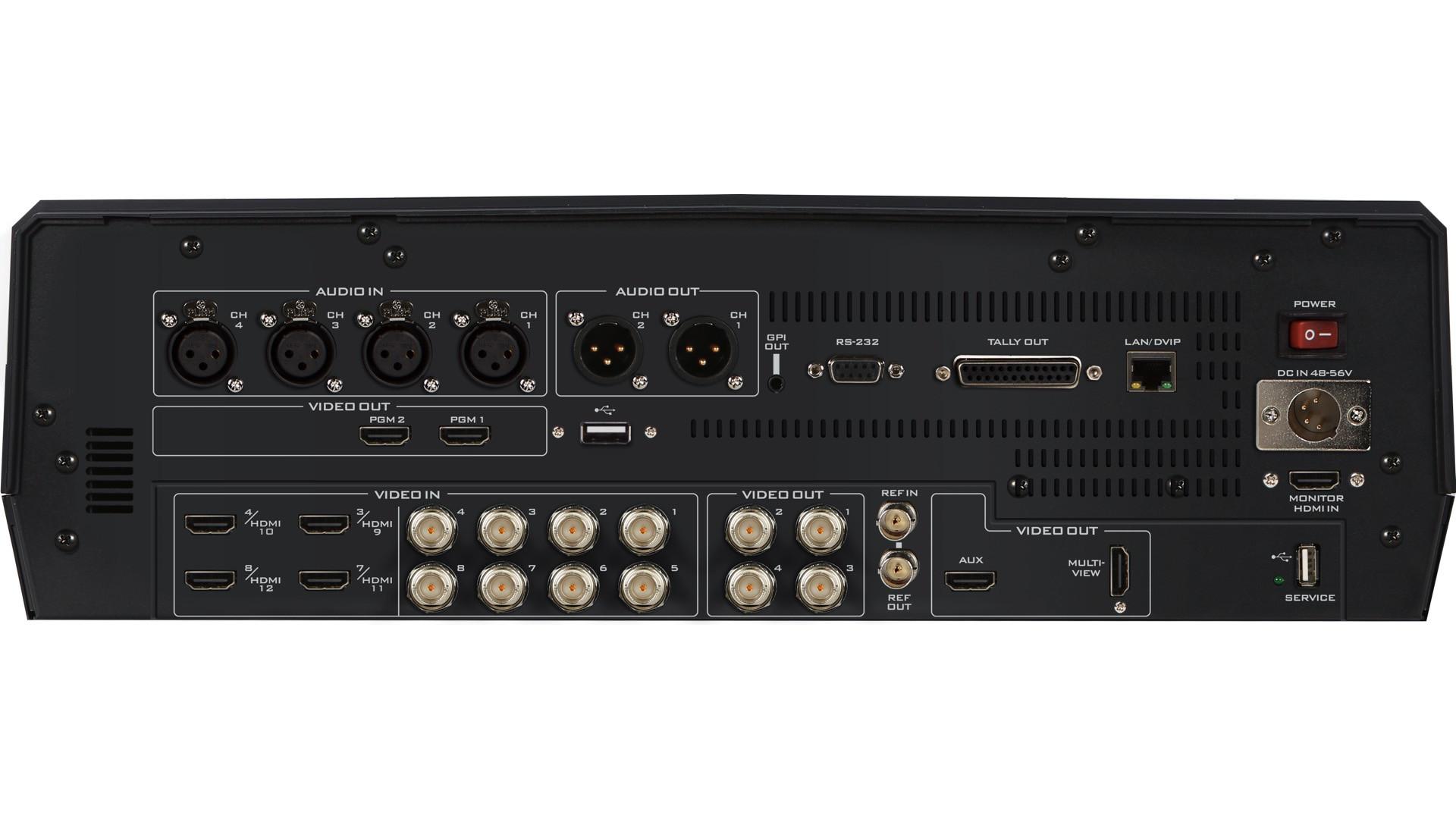

Video Input | Total 8 live inputs (select 8 from 12) 8 x 12G-SDI 4 x HDMI |
Computer Graphic Interface | 4 via HDMI |
Down-converted Output | Yes |
Video Output | 4 x 12G-SDI / 1 x HDMI all assignable : Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12 2 x HDMI PGM only 1 x HDMI Multiview |
Analogue Audio Input | 4x Balanced XLR |
Analogue Audio Output | 2x Balanced XLR |
Digital Embedded Audio Support | Input 4 channels, Output 4 channels |
Audio Delay Calibration | Up to 16 frames |
A+V Switching | Yes |
USK | 4 |
DSK | 2, support Lumakey & Linear key (Key / Fill) |
Picture in Picture | 2 |
Logo Insertion | 2 |
Title Creator | Yes (Coming soon by firmware update) |
Built-in Audio Mixer | Yes |
Built-in Monitor Display | 17.3” 4K TFT LED backlit, 3840x2160 pix |
Built-in Intercom & Tally | ---- |
Streaming
Streaming Control | Web browser UI for configuration and control Socket commands |
Recording File System | FAT32, exFAT |
Recording File Format | MP4 (H.265+ AAC) or (H.264+ AAC) |
Streaming & Recording Setting Control | Web UI for system configuration and control |
Others
Special Features | 5" Touch Panel 17.3" 4K Monitor 4 Chroma-Key Virtual Studio Streaming encoder and recorder |
Power | DC 56V, 4.46A |
Operating Temp. Range | 0~40 °C |
