he HS-2600 is a high-performance portable HD studio designed for live production and broadcasting.
8 inputs (4x SDI+4x HDMI) and 7 outputs (3x SDI+4x HDMI)
1 x HS-2600 Unit
1 x AD Switch DC 12V with AC Cord
Categories: Production Switchers & Controllers
The HS-2600 is your comprehensive solution for live production, allowing you to switch, stream, and record seamlessly from a single, portable unit. With built-in XLR audio connections, you can easily integrate master audio from an external mixer, ensuring professional sound quality alongside your high-definition video output. This all-in-one production studio simplifies complex workflows, making it an indispensable tool for live events, broadcasts, and productions.
Completely Customizable 8 Input Full HD Production Switcher
The HS-2600 is equipped with 8 inputs (4x SDI+4x HDMI) and 7 outputs (3x SDI+4x HDMI) to help you produce a sophisticated and professional live event.
Stream to Facebook Live, YouTube, Twitch and more
The built-in H.264 web streaming encoder allows you to stream your show to Facebook, YouTube or Twitch in no time.
Built-in H.264 recorder for SD cards
The HS-2600 comes with a built-in web-ready recorder. Simply insert your SD card, and you'll have video files that can be immediately uploaded to the video network of your choice or to your website.
Create stunning video effects with advanced features
Advanced features include 4x PIPs, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent logos or chromakeyers.

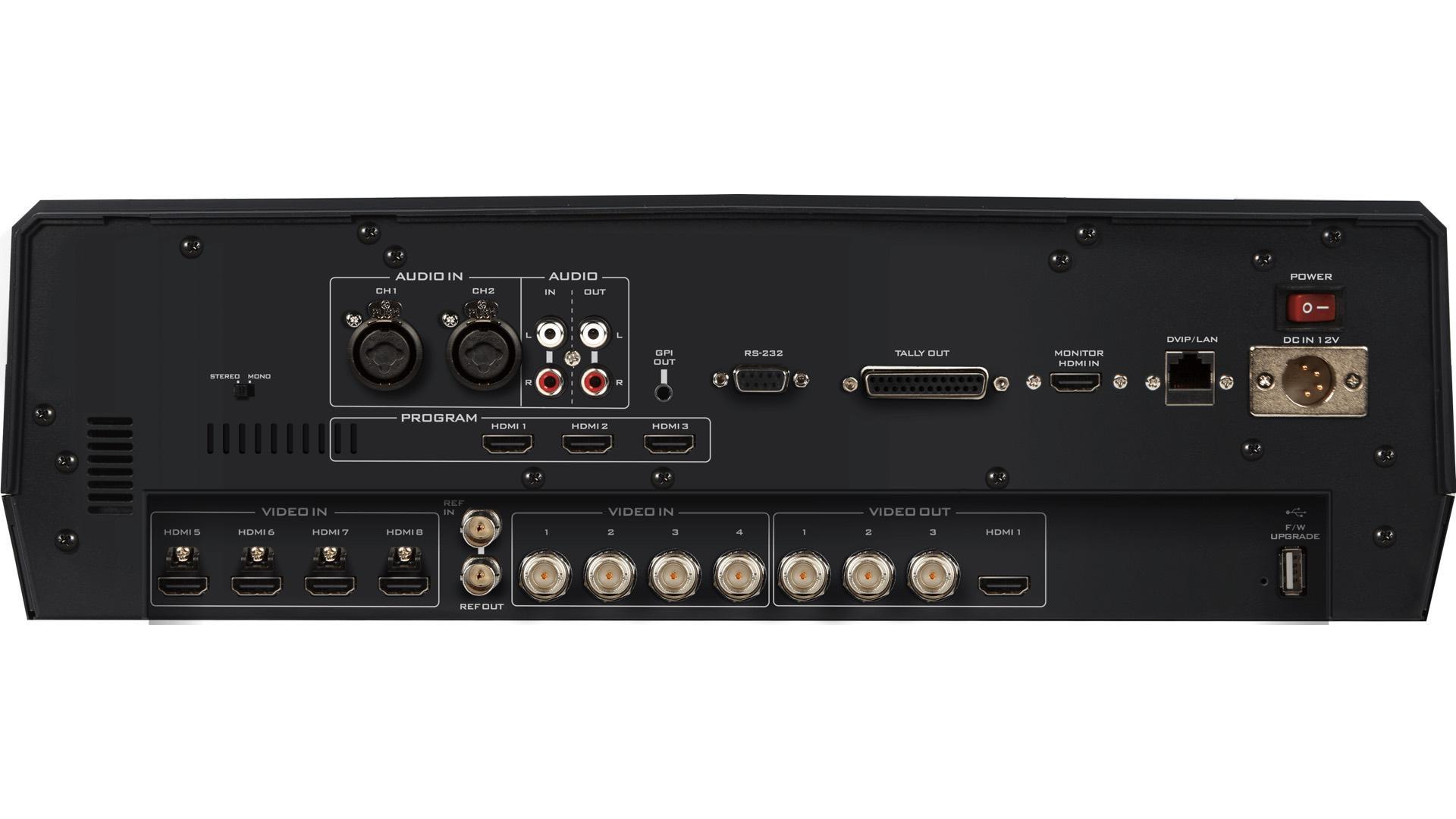

Variety of video and audio input/output
The HS-2600 is equipped with 8 inputs (4x 3G-SDI+4x HDMI) and 7 outputs (3x SDI+4x HDMI) to help you produce a sophisticated and professional live event.

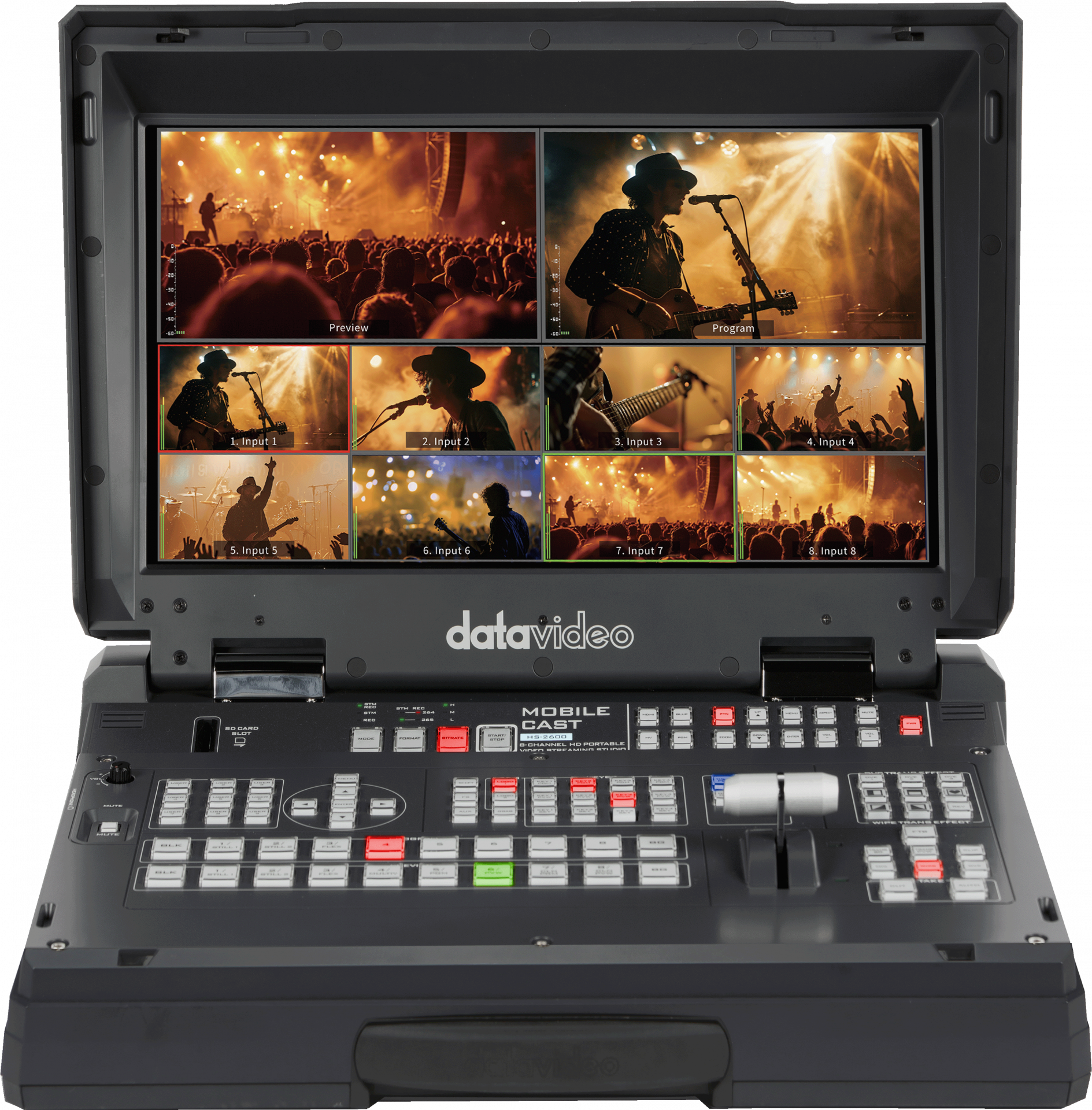

17.3'' LED Backlit Monitor
Built-in Monitor Display. 17.3" HD TFT LED backlit monior with resolution 1920x1080 pix.
Built-in animation and backgrounds
Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects.
Included CG Title Creator
All 2600 series switchers have built-in support for Datavideo CG software. This unique feature converts a regular HDMI output of a PC or laptop into a fully-fledged CG interface for use with Datavideo’s CG suites. Free CG-200 software included.

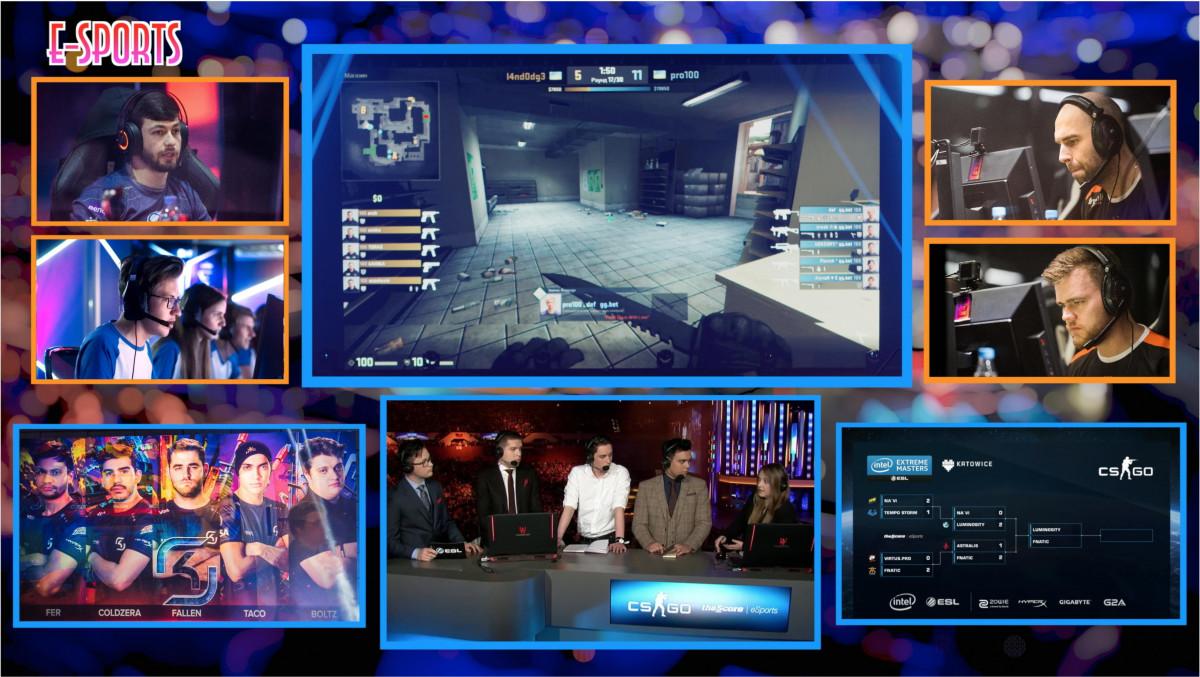

Custom Multiview Layout & Dual Multiview Output
Connect up to two displays to all 2600 series switchers for a dual Multiview output. Choose from many pre-defined multi-view layouts or define your own!
4 Chromakeyers for a Complete Virtual Studio Experience
Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.
Create Stunning Video Effects with Advanced Features in 2600 Series Switcher
HS-2600 switcher advanced features include 8x PIPs, FlexSource, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.
Create a complete extra layer of image composition. These complex setups can be saved and recalled with the touch of a button.
Streaming | H.264: MAX RES 1080p H.265: MAX RES 1080p |
Streaming Audio Encode | AAC 2CH, 16bit 48KHz 192Kbps |
Streaming Protocol | RTSP RTMP SRT |
Streaming Control | Web browser UI for configuration and control Socket commands |
Recording File System | FAT32, exFAT |
Video Standard | HD |
Video Format | 1080p 50/ 59.94/ 60Hz 1080i 50/ 59.94/ 60Hz 720p 50/ 59.94/ 60Hz |
Input Routable / Crosspoint | All 8, repeatable |
Video Input | 4 x 3G-SDI 4 x HDMI |
Computer Graphic Interface | 4 via HDMI |
Down-converted Output | ----- |
Video Output | 3 x 3G-SDI for PGM (AUX assignable) 1 x HDMI 1.4 for PGM (AUX assignable) 3 x HDMI 1.4 for PGM |
Analogue Audio Input | 2 x XLR/MIC (6.3mm) Combo Socket 1 x stereo RCA audio |
Analogue Audio Output | 1 x stereo RCA audio |
Digital Embedded Audio Support | SDI Input/Output 4 channels, HDMI Input/Output 2 channels |
Audio Delay Calibration | Up to 16 frames |
A+V Switching | Yes |
USK | 4 |
DSK | 2 |
Picture in Picture | 4 |
Logo Insertion | 2 |
Title Creator | Yes |
Built-in Audio Mixer | ---- |
Built-in Monitor Display | 17.3” HD TFT LED backlit, 1920x1080 pix |
Built-in Intercom & Tally | ---- |
Streaming
Recording File Format | MP4 (H.265+ AAC) or (H.264+ AAC) |
Streaming & Recording Setting Control | Web UI for system configuration and control |
Others
Special Features | 4 Chroma-Key Virtual Studio 9 stinger transition and 4 user preset Built-in CG title overlay system Streaming encoder and recorder |
Dimension (LxWxH) | 455 x 355 x 134 mm |
Weight | 8.5 kg, Reinforce Plastic Case |
Power | DC 12V, 11A |
Operating Temp. Range | 0~40 °C |
What's in the Box | 1 x HS-2600 Unit 1 x AD Switch DC 12V with AC Cord |
