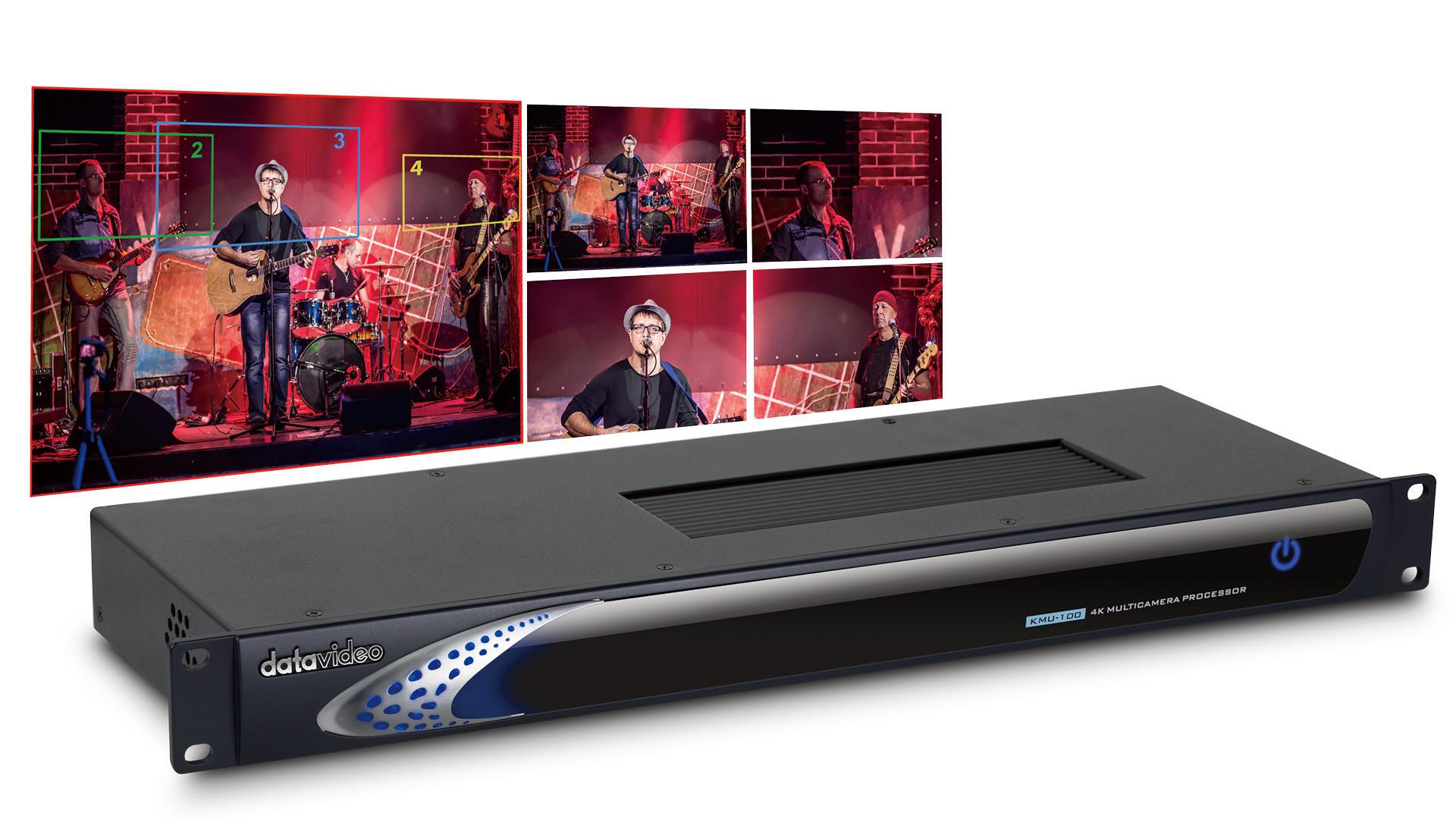

Generates Up to 8 Cutouts Out of One or Two 4K Inputs

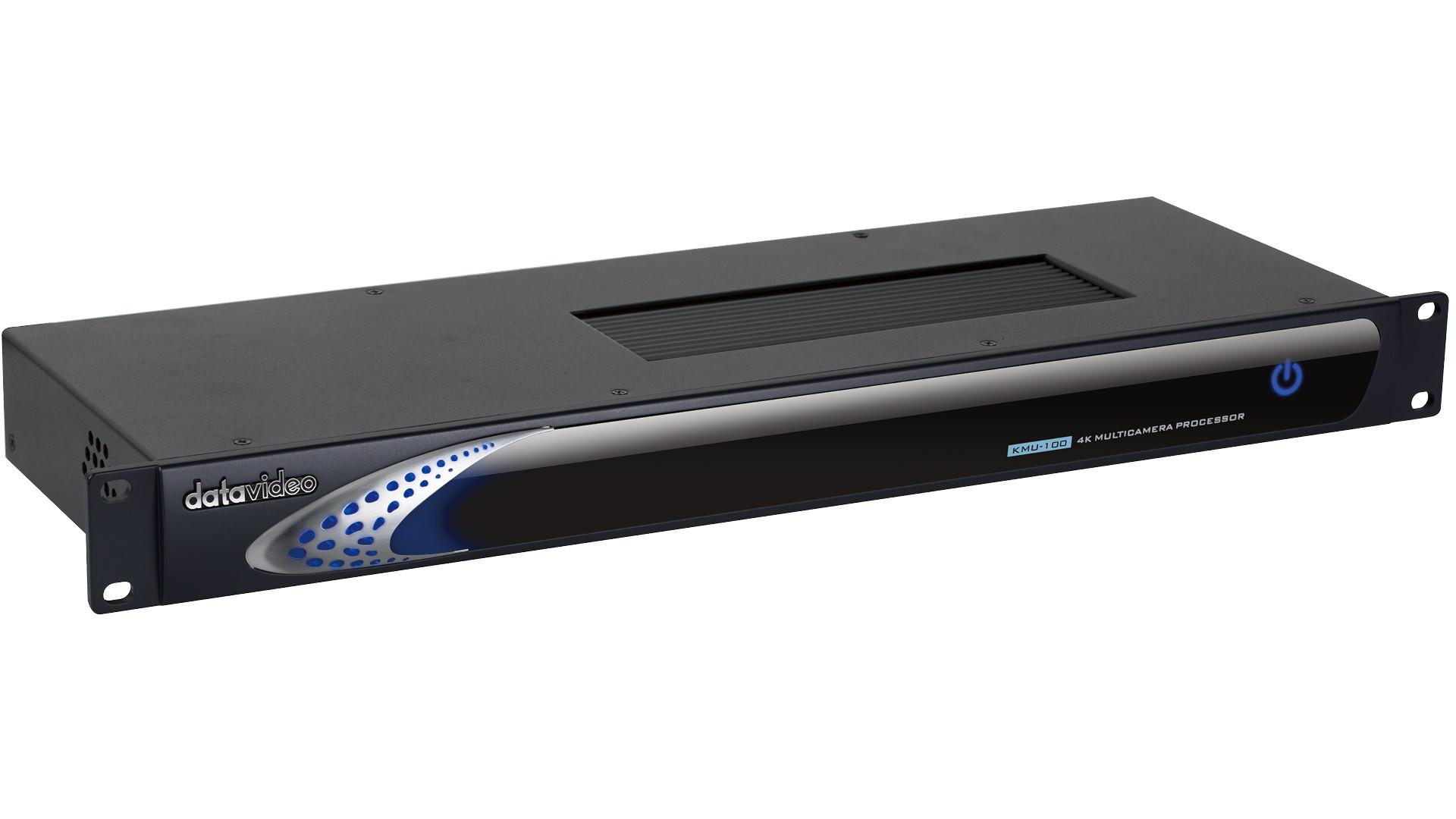

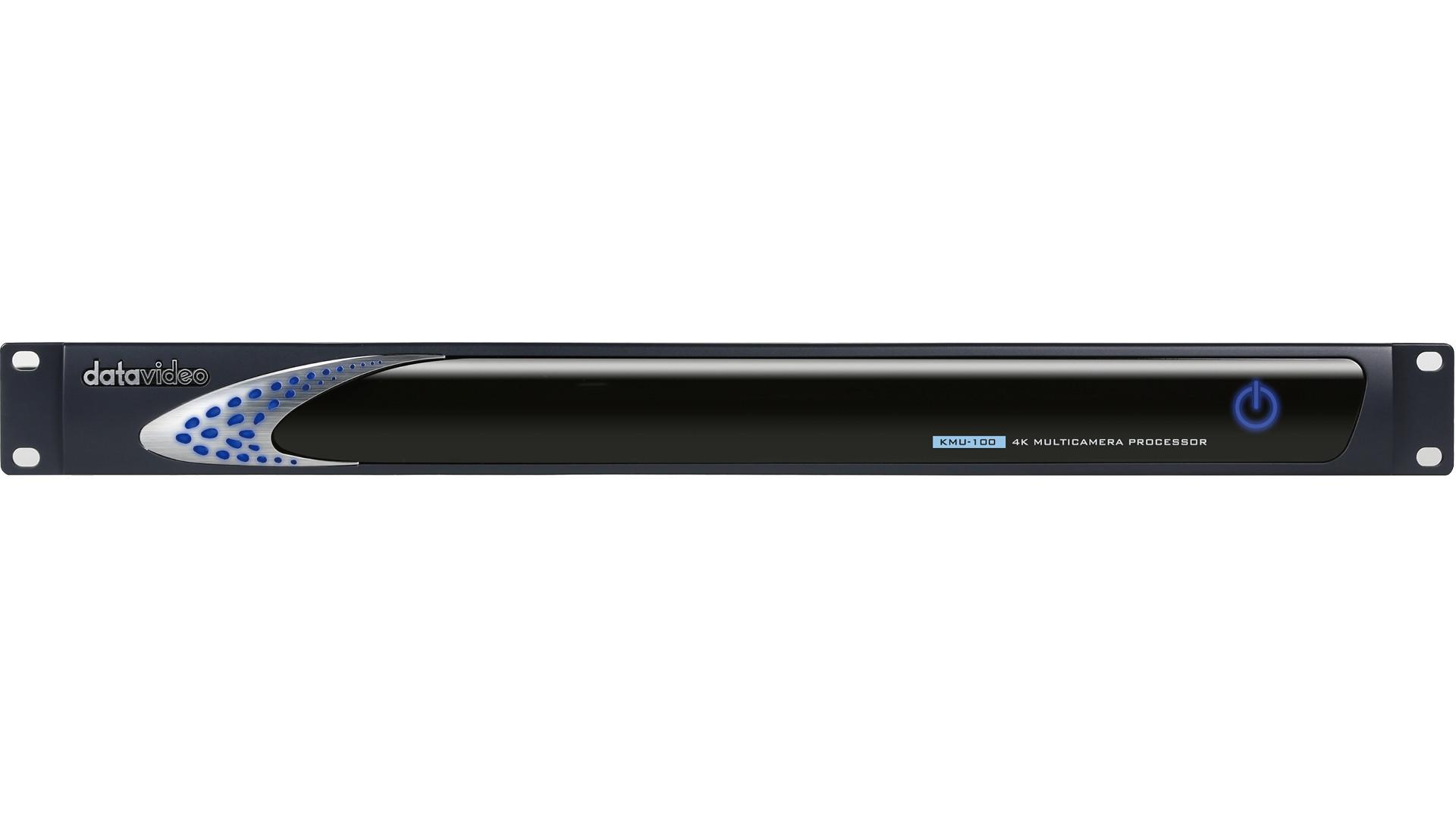

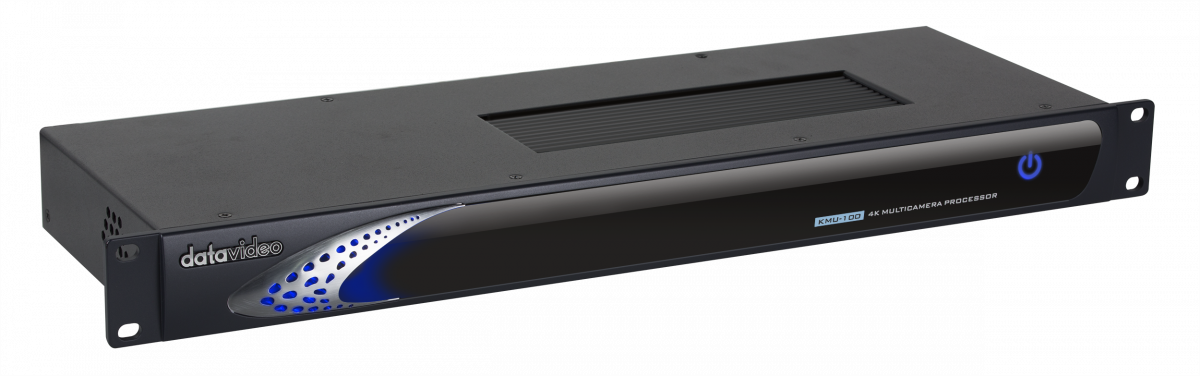

1 x KMU-100 Main Unit
1 x AD Switch DC 12V with AC Cord 4 x Screw
Categories: Production Switchers & Controllers
8 channel switcher to switch between cutouts

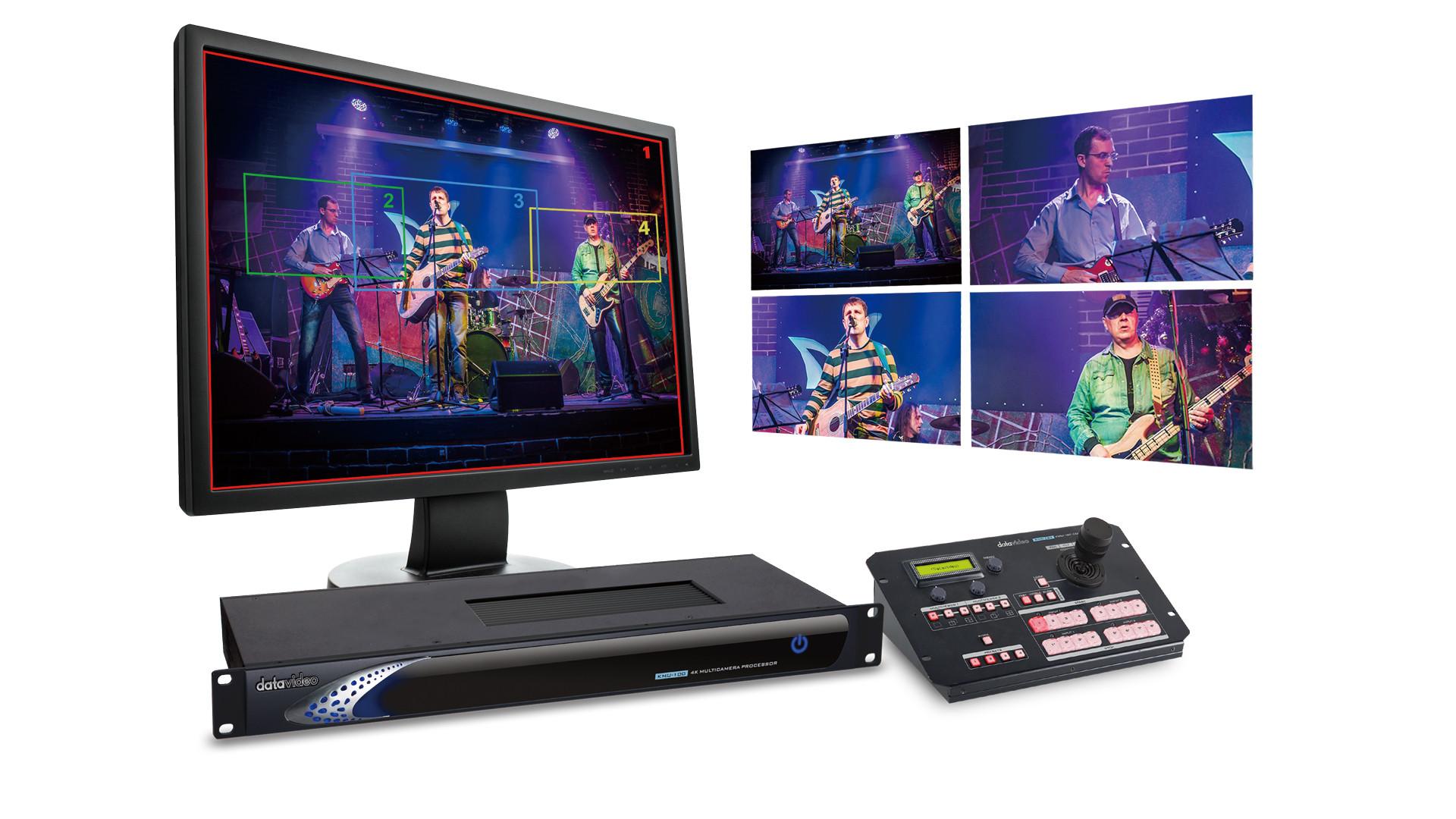

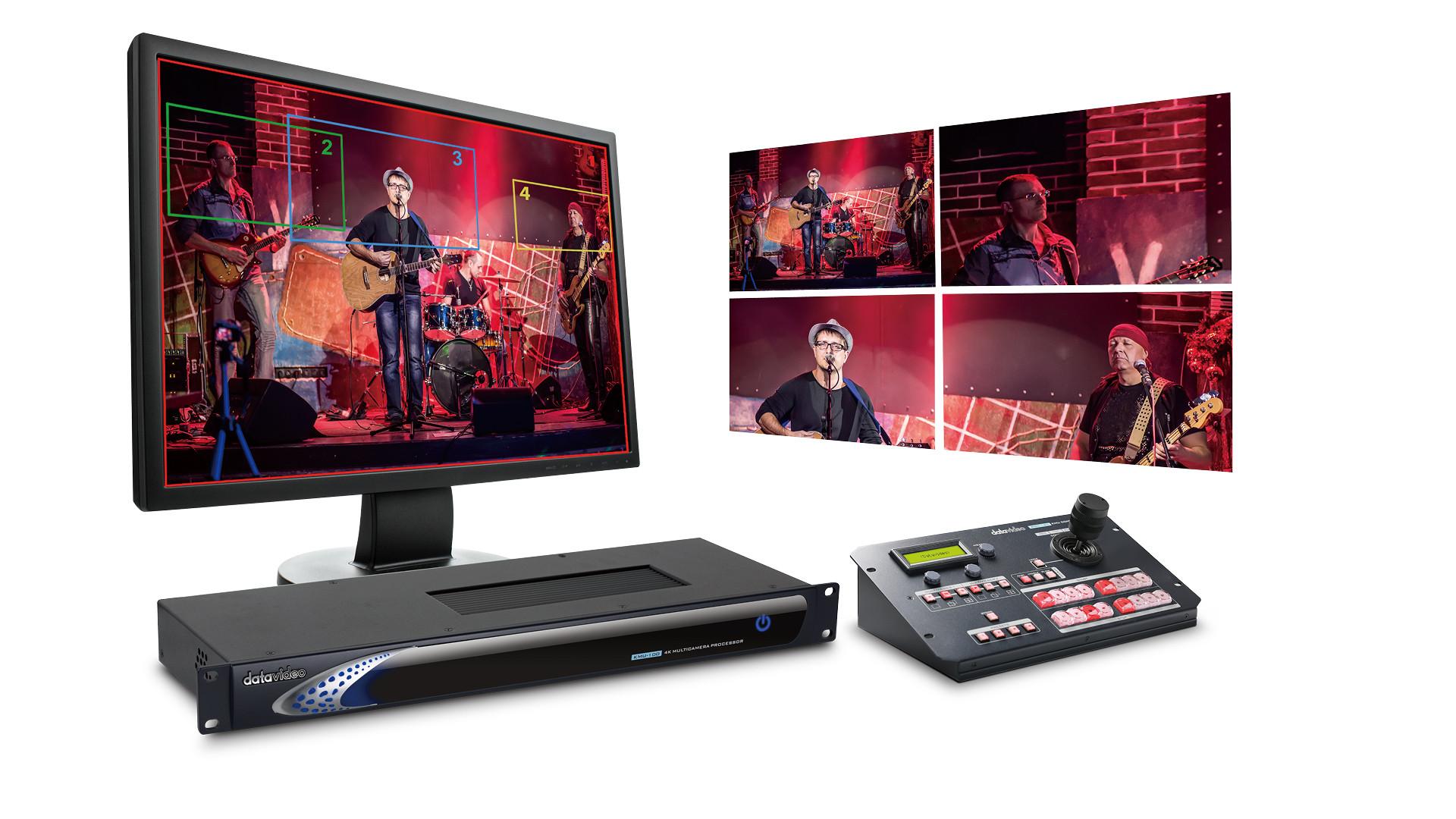

Can view two 4K video channels at the same time on the multiview monitor as well as other cropped 4K video images in smaller windows for easier video switching.
utorial videos created specifically for the KMU-100
Datavideo Academy is a comprehensive learning platform established by Datavideo Technology. As a professional Broadcast and AV equipment manufacturer, Datavideo Technology is not only committed to providing quality products to users, but also has the responsibility to help users learn to operate Datavideo products.
Through the Datavideo Academy platform, users can easily master the operation of Datavideo products and experience the unique design of Datavideo products, further creating a variety of applications and bringing a good user experience. Now, a tutorial video for the KMU-100 is available at Datavideo Academy to help you get the best performance out of the product. Please click on the following link.
Video Standard | UHD & HD |
Video Format | 3840x2160p 23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 720p 50/59.94/60 |
Video Processing | --- |

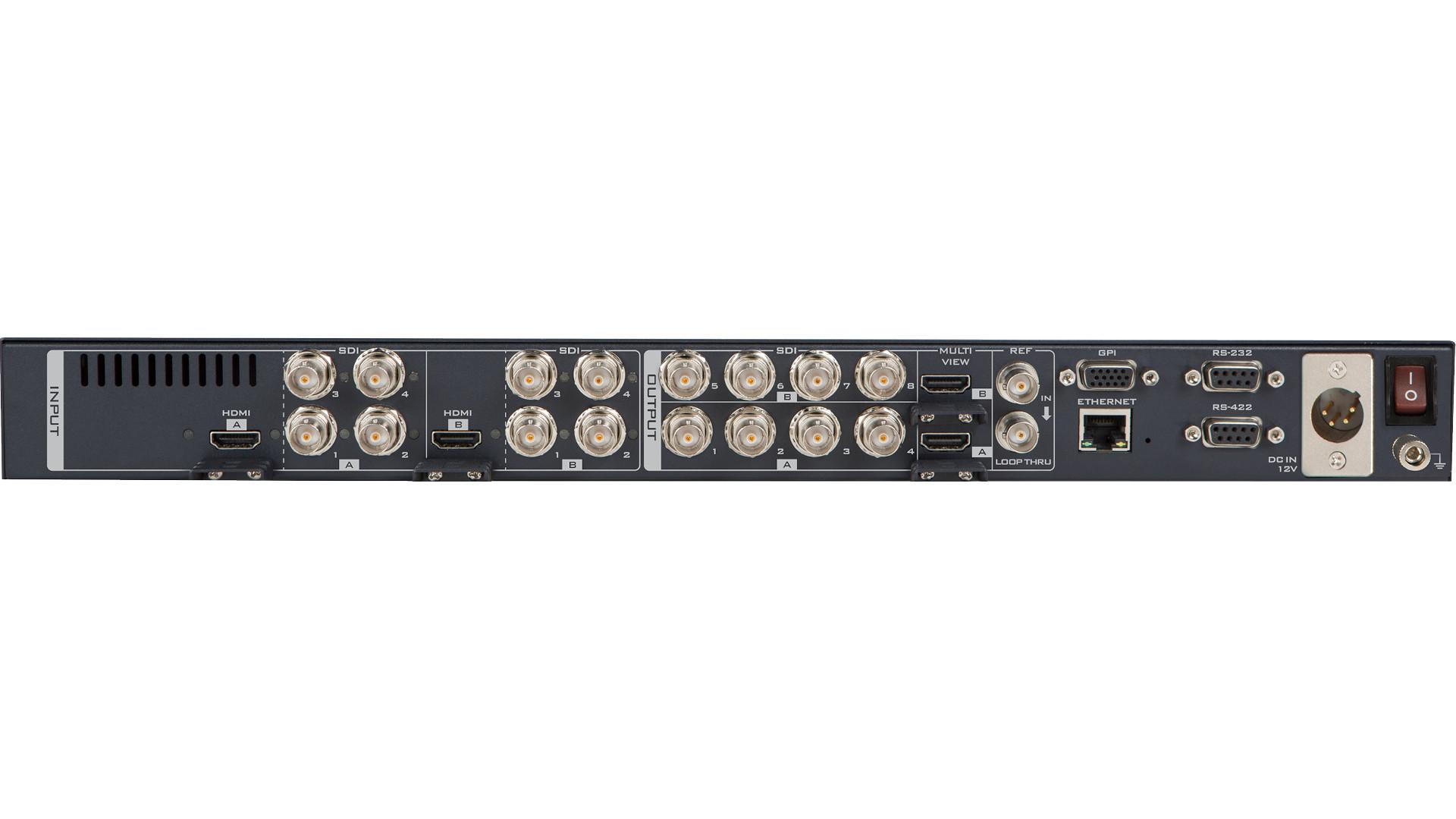

Video Input | 2 sets of SDI Input: each set of 4x SDI 1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2 3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2 2 x HDMI Input: each of HDMI support for Ultra HD 4K 60p in 4:2:0/4:2:2 |
Video Output | 2 sets of SDI output: each set of 4x SDI 1 x 3Gb/s or 12Gb/s SD/HD/4K. Supports single link 4:2:2 3 x 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2 |
Support Video Output Resolution | 1080p 25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 625/50i PAL, 525/59.94i NTSC |
Multiview Out | HDMI 1.4 x2 |
Multiview Mode | Preview, Motion, Quad |
Audio
Audio Input | SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K |
Audio Output | SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K |
Audio Sampling | Television standard sample rate of 48 kHz at 24-bit |
Reference Input | Blackburst, Tri-level |
Others
Control Interface | Ethernet RJ45 for control, configuration and updates RS-232 x 1 input for controlling configuration RS-422 x 1 input with external keyboard support GPIO x1 |
Preview Display | --- |
Controller | RMC-185/RMC-185+ |
Power Supply | DC 12V, 5A |
Operating Temp. Range | 0~40 °C |
