With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog
1 x SE-650 product
1 x AD Switch DC 12V with AC Cord
Categories: Production Switchers & Controllers

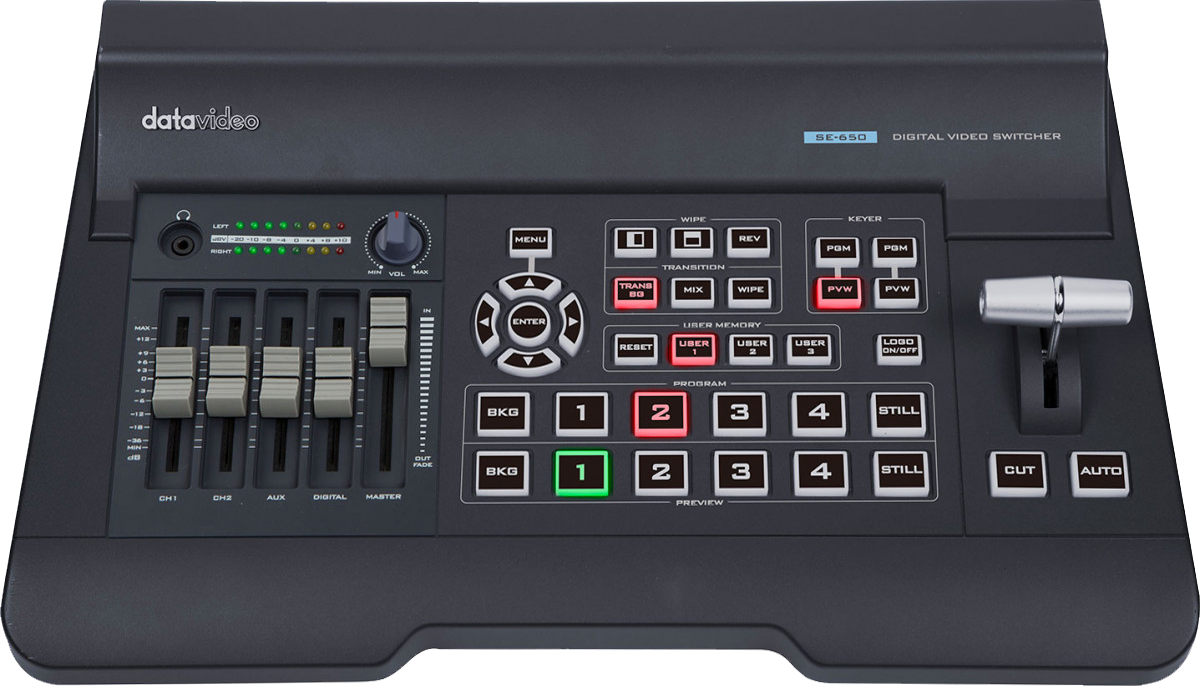

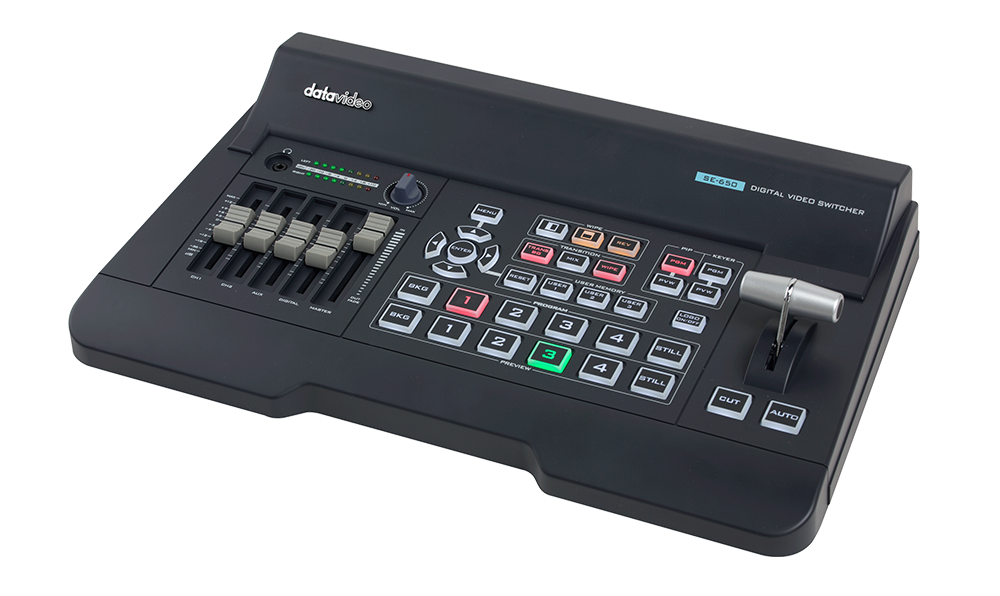

The SE-650 is Datavideo's most affordable SDI+HDMI switcher available.
With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog

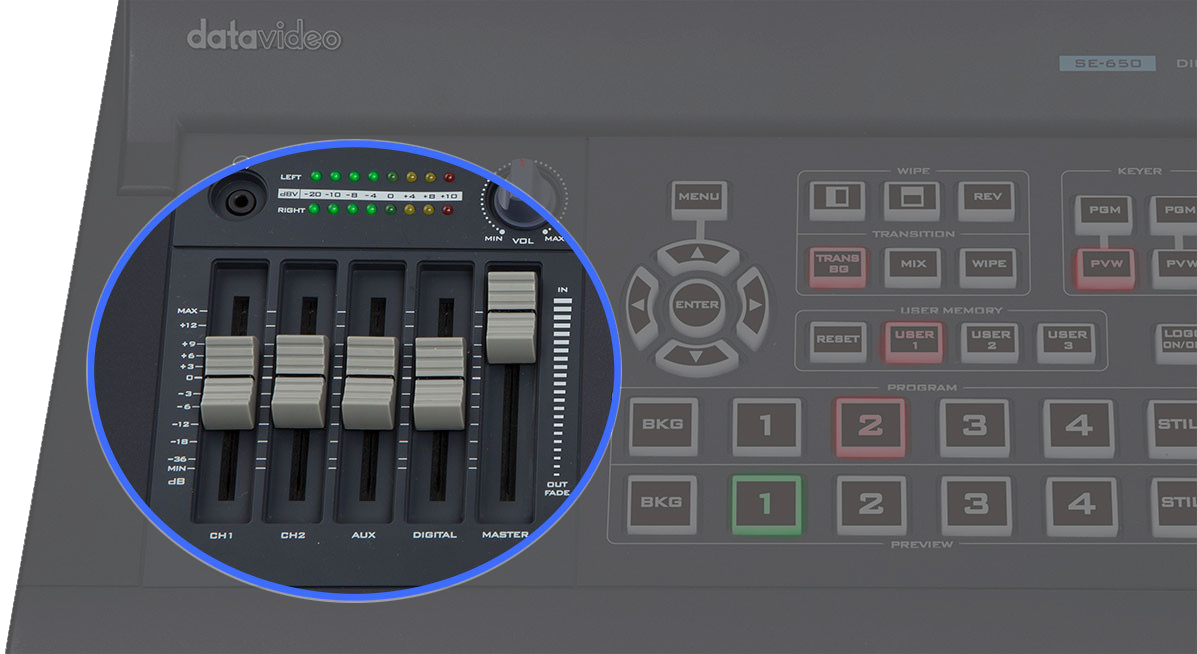

Built-in audio mixer
The SE-650's built-in audio mixer means that you've got everything you need to control your audio input levels.
For most productions, this means that there's no need to buy a separate external audio mixer
Stunning video effect enrich the scene and Built-in animations and backgrounds.
Down stream keyers(DSK) , up stream keyers(USK) and picture-in-picture(PIP) generators combined with a dual chromakeyer give you enough freedom to be creative.
Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.

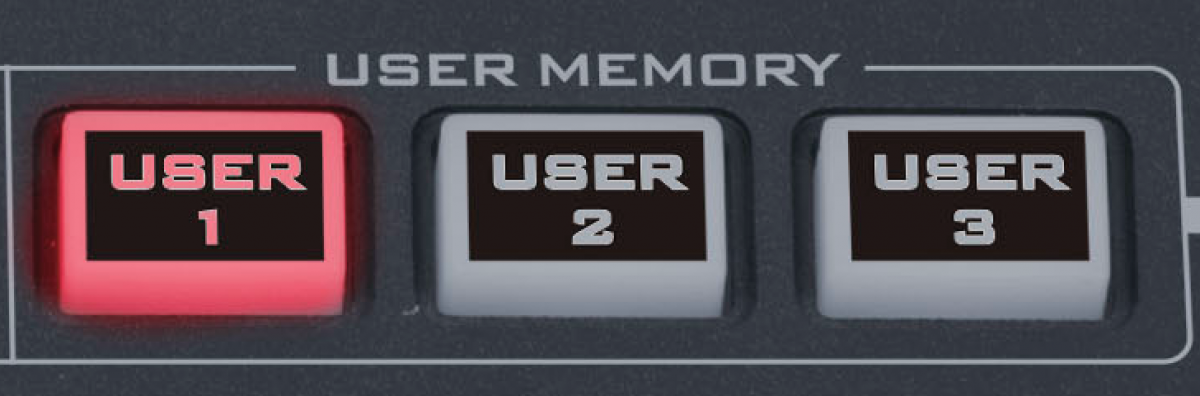

User memories
You can save a complex process into a user memory, turning multiple tasks into a one-finger job.
Plug-and-Play
There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.
Video Standard HDVideo Format 1080i 50/59.94/60Hz 720p 50/59.94/60Hz
Video Processing SDI: 4:2:2 HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4
Input Routable / Crosspoint All 4, repeatable Video Input 2x HD-SDI 2x HDMI
Mix HD & SD Source ---- Computer Graphic Interface 2 via HDMI
Video Output 2 x HDMI (1 is MV, 1 is Assignable) 1 x HD-SDI (Assignable)
Down-converted Output ---- Built-in Multi-viewMonitoring Out HDMI & SDI assignable
Analogue Audio Input 1 x Stereo RCA (L/R) 2 x Mono Microphone
Analogue Audio Output 1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio
Support Input 2 channels, Output 2 channels
Audio Delay Calibration ----
A+V Switching-- Yes
Chromakey 1
Title Creator ----
USK 2x Keyer support Chromakey/ Linear/ Luma Key
DSK 1x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture 1
Logo Insertion 1
Still Store 500
Effects FTB, Cut, 32 Wipe with border
Transition Preview Full transitions preview
Sync / Reference In/Out Built-in Genlock (internal)
Tally Output 1x D-sub 15pin, dual color
PC Remote Control DVIP (Ethernet)
Camera Control ----
Built-in Audio Mixer Yes, 4 channels
Firmware Update USB
Special Features Free Virtual Set and Stinger transition included
Chassis Unibody
DC 12V, 29W
