The Datavideo SE-4000MU is a versatile 12-input 4K video switcher, purpose-built for modern broadcast studios, OB vans, corporate events, and hybrid productions. Housed in a rack-mountable chassis, it integrates seamlessly into professional AV and live production environments.
1 x SE-4000MU
1 x AD Switch DC 12V
1 x AC Cord
1 x Ethernet Cable
12 x Screw
2 x 2U Ear Rack
Categories: Production Switchers & Controllers

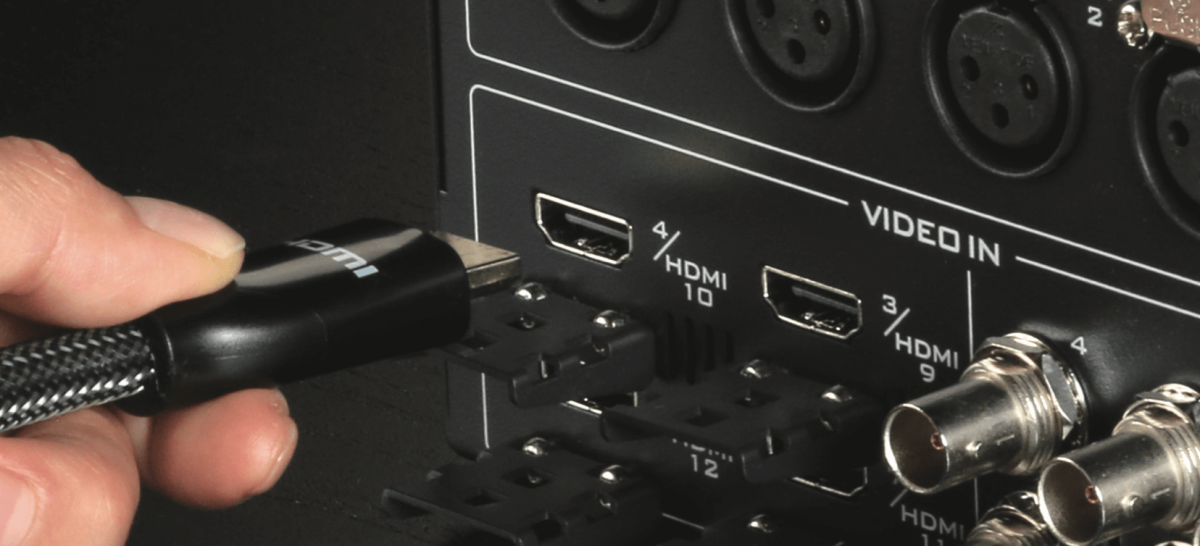

The SE-4000MU supports UHD 4K50/60P across 8 channels, and can also operate in 12-channel UHD 4K25/30P mode, offering unmatched flexibility for different production needs and frame rate requirements. Its support for 12G-SDI and HDMI 2.0 ensures compatibility with a wide range of cameras and video sources.
Supports AUX routing, Cross Point (XPT), four chroma keyers, Picture-in-Picture (PIP), and Downstream Keyer (DSK) effects, the SE-4000MU delivers professional-grade live switching with ease and precision.
Video Standard | 4K & HD |
Video Format | Input: 3840x2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50 Output: 3840x2160p: 60/59.94/50/30/29.97/25 1080p: 60/59.94/50/30/29.97/25 1080i: 60/59.94/50 |
Video Processing | SDI: 4:2:2 10-bit HDMI: YUV 4:2:2 10-bit, RGB: 4:4:4 8/10-bit |
Input Routable / Crosspoint | YES |

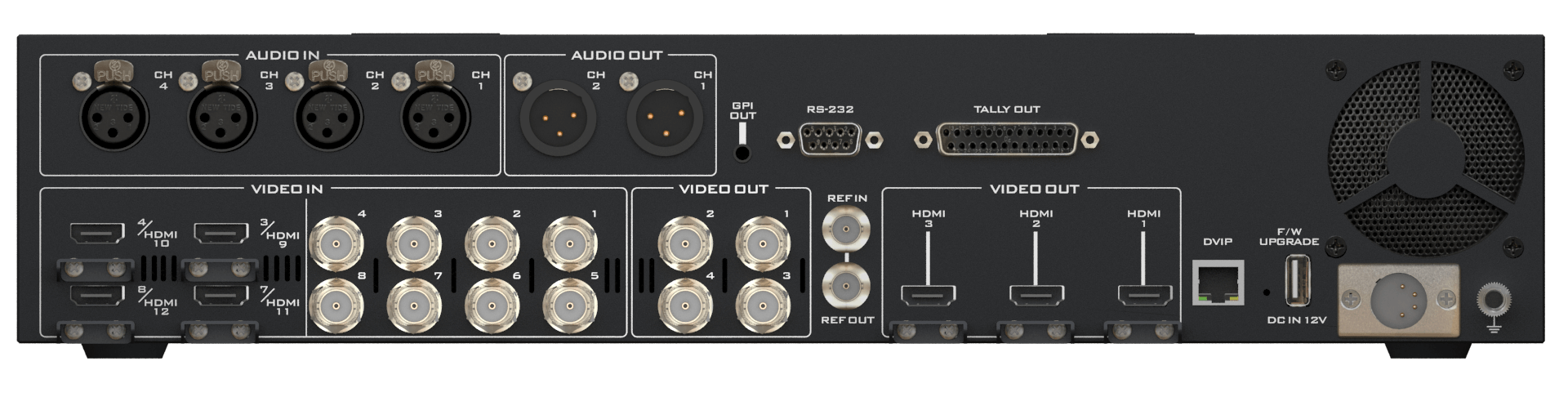

Video Input | Total 8 live inputs (select 8 from 12) 8 x 12G-SDI 4 x HDMI |
Mix HD & SD Source | ---- |
Computer Graphic Interface | 4 via HDMI |

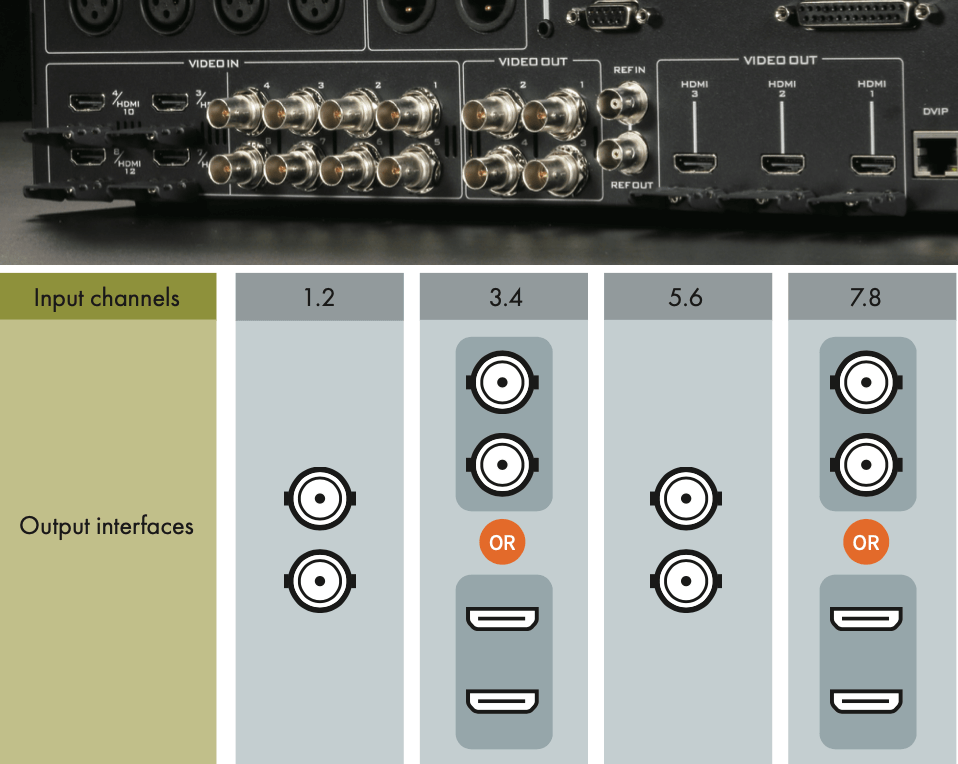

Video Output | 4 x 12G-SDI 3 x HDMI All assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12 |
Down-converted Output | Yes |

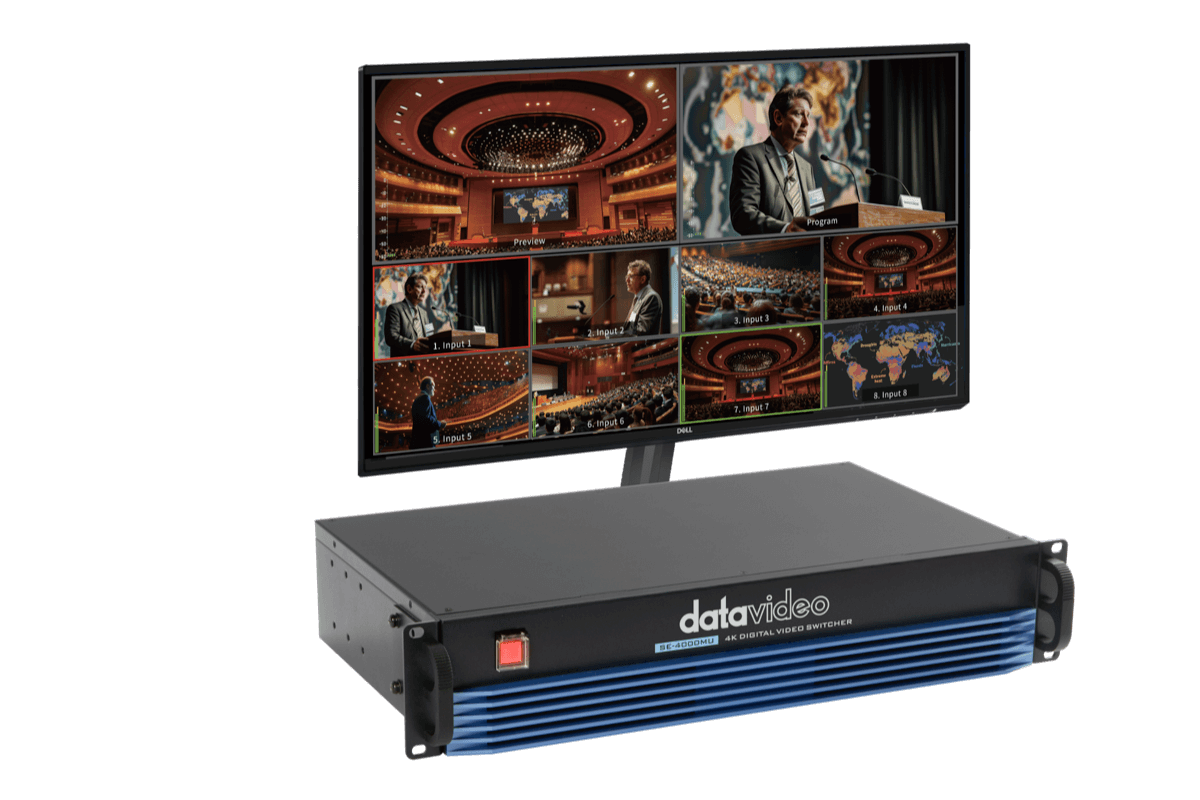

Built-in Multi-view Monitoring Out | HDMI & SDI assignable |
Analogue Audio Input | 4 x Analogue XLR |
Analogue Audio Output | 2 x Analogue XLR |
Digital Embedded Audio Support | Input 4 channels, Output 4 channels |
Audio Delay Calibration | Up to 16 fields or 8 frames per channel |
A+V Switching | Yes |
Chromakey | 4 |
Title Creator | Yes (Coming soon by firmware update) |
USK | 4x Keyer support Chromakey/ Linear/ Luma Key |
DSK | 2x DSK support Lumakey & Linear key (Key / Fill) |
Picture in Picture | 2 |
Logo Insertion | 2 |
Still Store | 250 |
Effects | FTB, Cut, 32 Wipe with border |
Transition Preview | Full transitions preview |
Sync / Reference In/Out | 1 x BNC Ref in 1 x BNC Ref out (loop-through) (available after firmware upgrade) |
Tally Output | 1x D-sub 25pin, dual color |

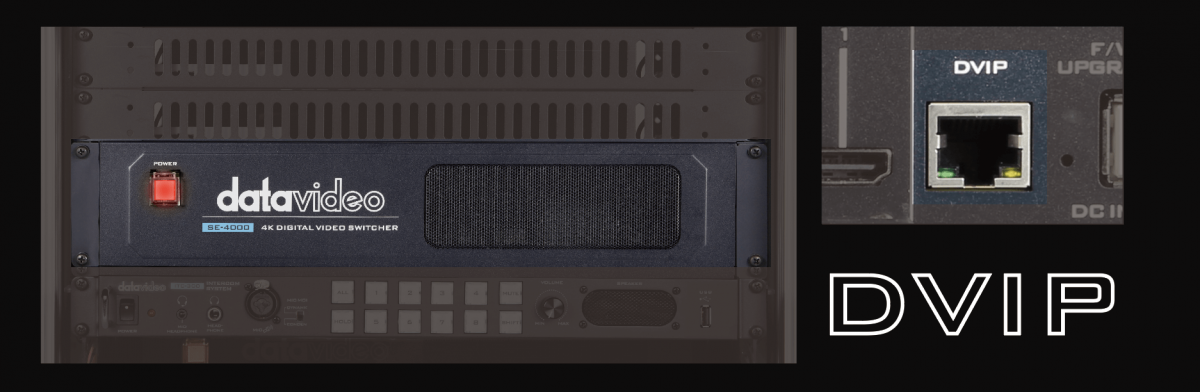

PC Remote Control | DVIP (Ethernet) |
Camera Control | ---- |
Built-in Audio Mixer | Yes |
Storage | ---- |
Recording File System | ---- |
Recording File Format | ---- |
Video Encode | ---- |
Audio Encode | ---- |
Streaming Protocol | ---- |
Firmware Update | USB / Ethernet |
Special Features | ---- |
Chassis | 2RU rack-mount mainframe |
Power | DC 12V, 126W |
Operating Temp. Range | 0~40 °C |
