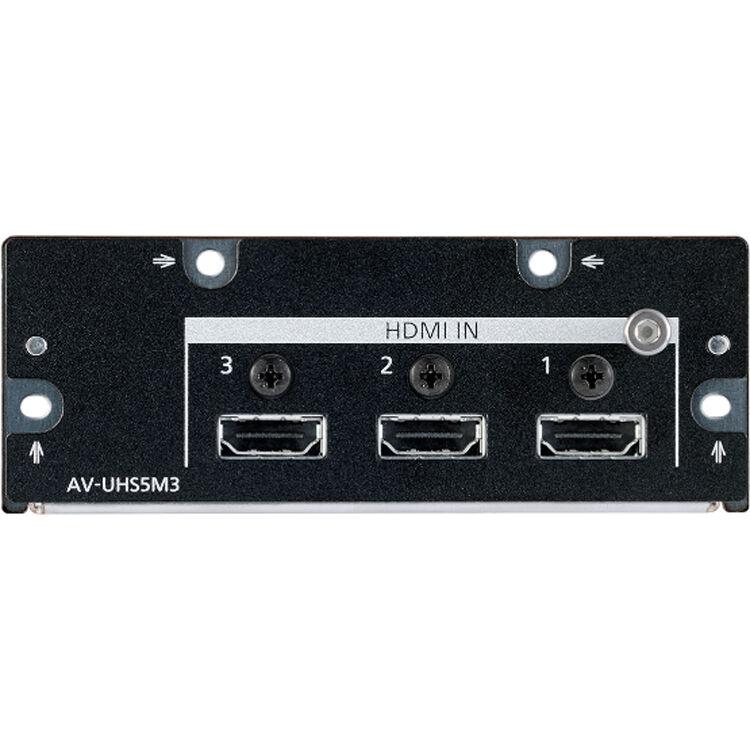

Add three HDMI 2.0 inputs to your AV-UHS500 Video Switcher with the AV-UHSM3G HDMI Input Expansion Card from Panasonic. This upgrade card supports up to UHD 4K60 video and features individual scaling for each channel, an integrated frame synchronizer, color correction, and color space conversion. Up to two cards can be used with each switcher.
| Video Inputs | 3 x HDMI 2.0 |
| Signal Support | UHD 4K |
| Video Input Formats | UHD 4K: 59.94/50/29.97/25/24/23.98 1080p: 59.94/50/29.97/25/24/23.98 1080i: 59.94/50 720p: 59.94/50 |
| PC Inputs | UHD 4K: 3840 x 2160, 60 Hz WQHD: 2560 x 1440, 60 Hz WUXGA: 1920 x 1200, 60 Hz UXGA: 1680 x 1200, 60 Hz WSXGA+: 1680 x 1050, 60 Hz SXGA: 1280 x 1024, 60 Hz WXGA: 1280 x 768, 60 Hz XGA: 1024 x 768, 60 Hz |
| Power Consumption | 16 W, 1.3 A |
| Operating Temperature | 0 to 40°C / 32 to 104°F |
| Storage Temperature | 0 to 40°C / 32 to 104°F |
| Storage Humidity Range | 10 to 90% (Non-Condensing) |
| Ambient Operating Humidity | 10 to 90% (Non-Condensing) |
| Power Input | 12 VDC |
| Dimensions | 6.5 x 4.4 x 1.7" / 166 x 112 x 42 mm |
| Weight | 12.5 oz / 353 g |
| Package Weight | 1.24 lb |
| Box Dimensions (LxWxH) | 11.8 x 6.1 x 2.9" |
