AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher

AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher

Brand: AVMATRIX

MFR: Shark S6

SKU: SF-2443-UCRI

4,160.00 ﾹ

  • 6-Channel Video Switcher
  • 3G-SDI and HDMI Input/Output
  • Input up to 1080p Video
  • Built-In 5" Display, RTSP Streaming
  • Support for External USB Drive Recording
  • Luma/Chroma Key, Mix/Fade/Wipe Effects
  • T-Bar, Auto, and Cut Transitions
  • Audio Mixing, Multiview, PiP Layout

Items Included

  • AVMATRIX Shark S6 6-Channel HDMI/SDI Video Switcher
  • 12 VDC Power Supply
  • USB-A to USB-C Cable
  • DB-15 Tally Adapter
  • Carry Case
Not in stock - Order now and we'll deliver when available - Normally ships in 4-6 weeks
Quantity

Categories: Production Switchers & Controllers

The Shark S6 6-Channel HDMI/SDI Video Switcher from AVMATRIX features 6-channel HDMI/SDI input / output and can stream via Ethernet, capture and connect to computer conferencing apps via USB, PTZ camera control, SD card and USB recording, transitions, effects, audio mixing, keying, and features a 5" HD color display.
Live Stream via Ethernet
The LAN port supports IP streaming transmission through RTMP/S, RTSP, and SRT protocols, allowing users to easily live stream video to platforms such as YouTube, Facebook, and Twitch for high-quality productions.
External USB and SD Card Record
The SD card slot and USB-A interface allow direct recording of the program (PGM) output, making it easy to capture your live program. It supports up to 32 Mb/s encoding in MJPEG file format.
Streaming via USB
The USB-C port allows the switcher to go into webcam mode, sending video and audio output to a computer for live broadcasts to a variety of platforms such as OBS, vMix, Teams, Twitch, YouTube, Skype, VLC, and more. It supports Windows, Linux, and macOS computer systems.
PTZ Camera Control
Featuring PTZ control, operators can remotely control the pan, tilt, and zoom of PTZ cameras via LAN and/or RS-232/422/485 serial connections. It supports VISCA, VISCA-over-IP, Pelco P/D, and ONVIF protocols.
Versatile Input and Output

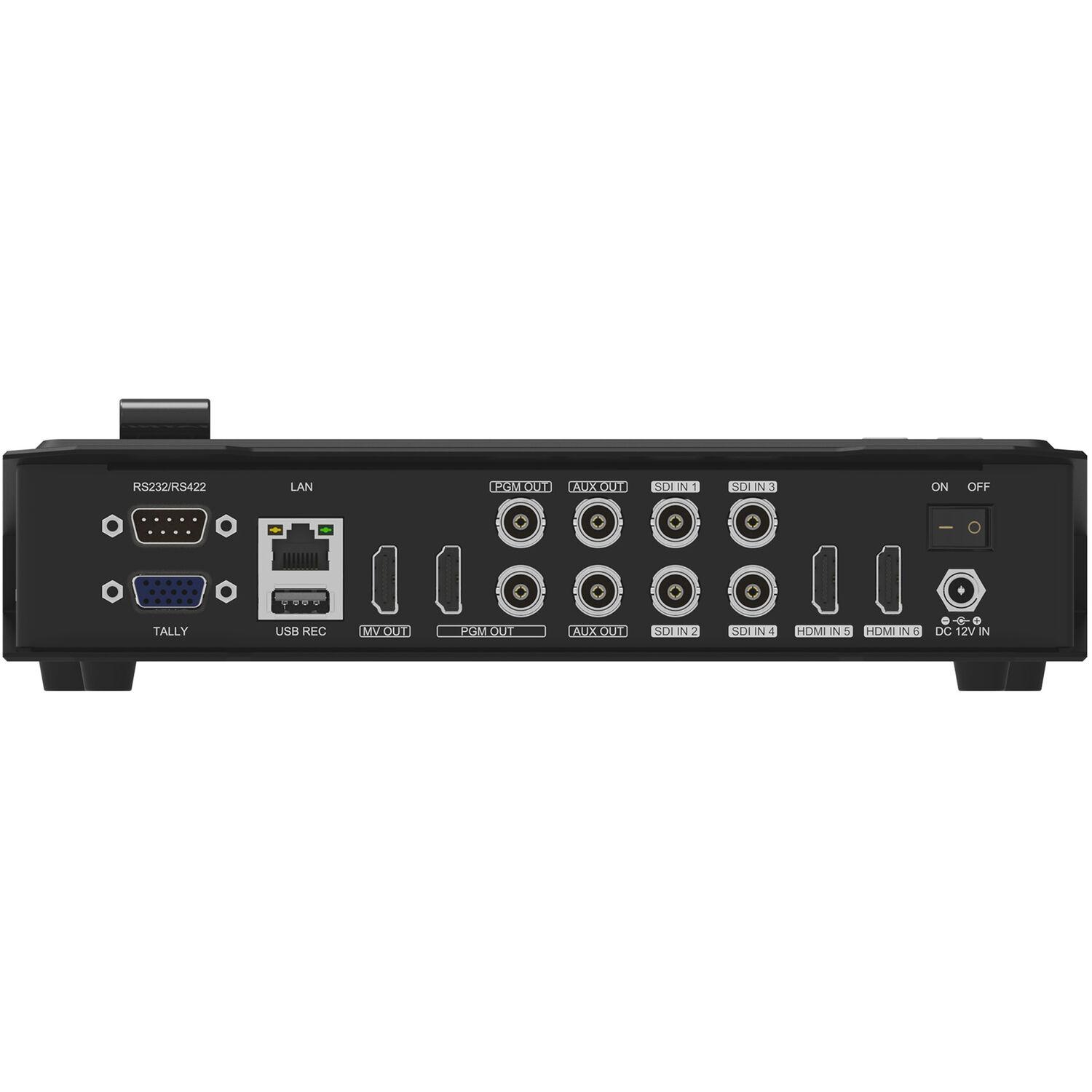

There are four SDI and two HDMI inputs, two SDI and one HDMI PGM outputs, one HDMI multiview output, and two SDI aux outputs that allow operators to configure and combine output from any of the six inputs, PGM, PVW, multiview, and more.

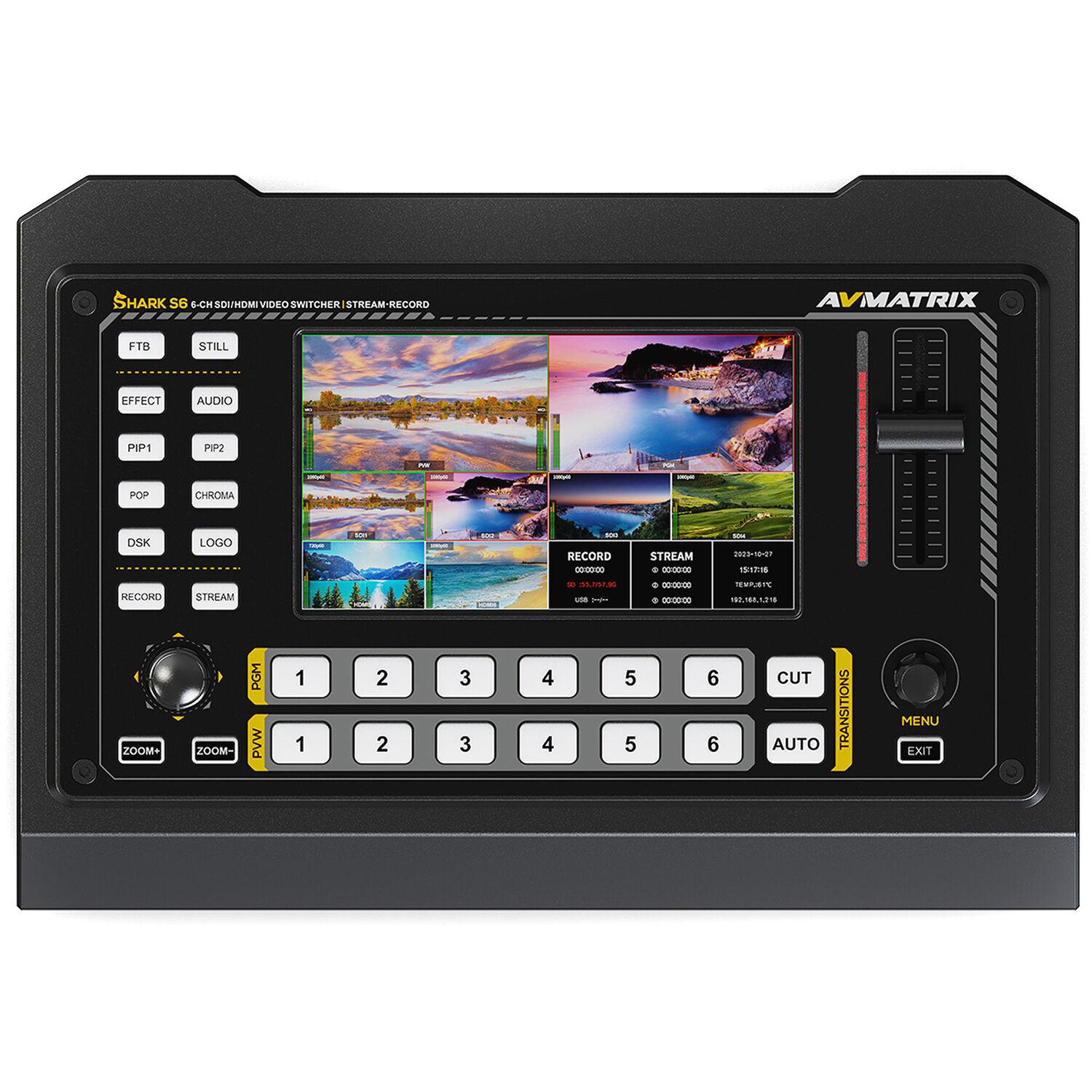

Built-In 5" Display
The built-in 5" LCD provides a multiview display with real-time monitoring of six inputs as well as streaming and recording status.
Landscape and Portrait Mode
The switcher supports both portrait and landscape modes for multiview output. The user can choose the layout they need, depending upon different streaming and production needs.
Audio Mixer
The integrated audio mixer enhances your productions by combining two external mic inputs and six-input embedded audio. Operators can also set the AFV and utilize the audio delay feature to ensure video/audio sync.
Enhanced Chroma Key
The Shark S6 features enhanced chroma key technology over previous switcher models delivering precise background removal for virtual studios and live events.

Mix Effects
Effect Types
1x Graphic, Chroma Key
Downstream Keys
1x DVE
Processing
Switching Type
Software, Touchscreen
Input
Number of Video Input Sources
6
Video Inputs
4x BNC (3G-SDI) Female
2x HDMI Female
Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI
WUXGA (1920 x 1200) at 30/50/60 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 15/23.98/24/25/29.97/50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Analog Female
Input Audio Format
Analog
Embedded Audio Input
HDMI
SDI
Output
Video Output Channels
4
Video Outputs
3x BNC (3G-SDI) Female
1x HDMI Female
1x USB-C (USB Video) Female (Program)
Output Video Format
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
Audio Outputs
4x 1/8" / 3.5 mm TRS Analog Female
Output Audio Format
Analog
Embedded Audio Output
HDMI
SDI
RJ45
Multiview Output
6-Way Multiview via HDMI
Monitor Output
1x HDMI
Connectivity
Other I/O
1x DE-9/DB-9 RS-232, RS-422, RS-485 Input/Output
1x DE-15/DB-15 Tally Input/Output
1x RJ45 LAN Input/Output
1x USB-A 2.0 Input/Output
Video Standard Compliance
SMPTE 259M/292M/424M
IP Encoding/Decoding
IP Video
MJPEG:
1920 x 1080 at 60p Encoding
Transport Protocols
RTMP, RTMPS, RTSP, SRT
Compatible Services
Facebook Live, Instagram, Livestream, Skype, Twitch, YouTube Live
Internal Recording
Recording Media
1x USB-A 2.0 (External Drives)
Recording Modes
1920 x 1080p up to 60 fps
Display
Display Size
5"
Hardware
OS Compatibility
Windows 7 or Later / Linux 2.6 or Later / macOS 10.8 or Later
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x Barrel (12 VDC at 1.5 A) Input
Power Consumption
Device: 18 W
General
Operating Conditions
-4 to 140°F / -20 to 60°C
Storage Conditions
-22 to 158°F / -30 to 70°C
Dimensions
9.4 x 6.6 x 1.9" / 238.5 x 168.2 x 47.5 mm
Weight
3.2 lb / 1.5 kg
Packaging Info
Package Weight
5.245 lb
Box Dimensions (LxWxH)
12.8 x 9 x 3.3"
