The Comprehensive of Outdoor Broadcasting Van
1 x OBV-3200 product
4 x AD-3 Unit
4 x RMC-240 Unit
5 x Headset
4 x φ3.5 Plug to φ3.5 Plug Cable
4 x φ2.5 Plug to φ3.5 Plug Cable
2 x AC Power Cord
5 x 120mm cable tie
10 x 200mm cable tie
1 x Y type 2 pin MOLEX cable
2 x 2.5" HDD enclosure
2 x ISO screw 2*6mm
4 x Cable & Cable Reel
1 x SATA to USB Cable
2 x HD sticker
Categories: Production Switchers & Controllers

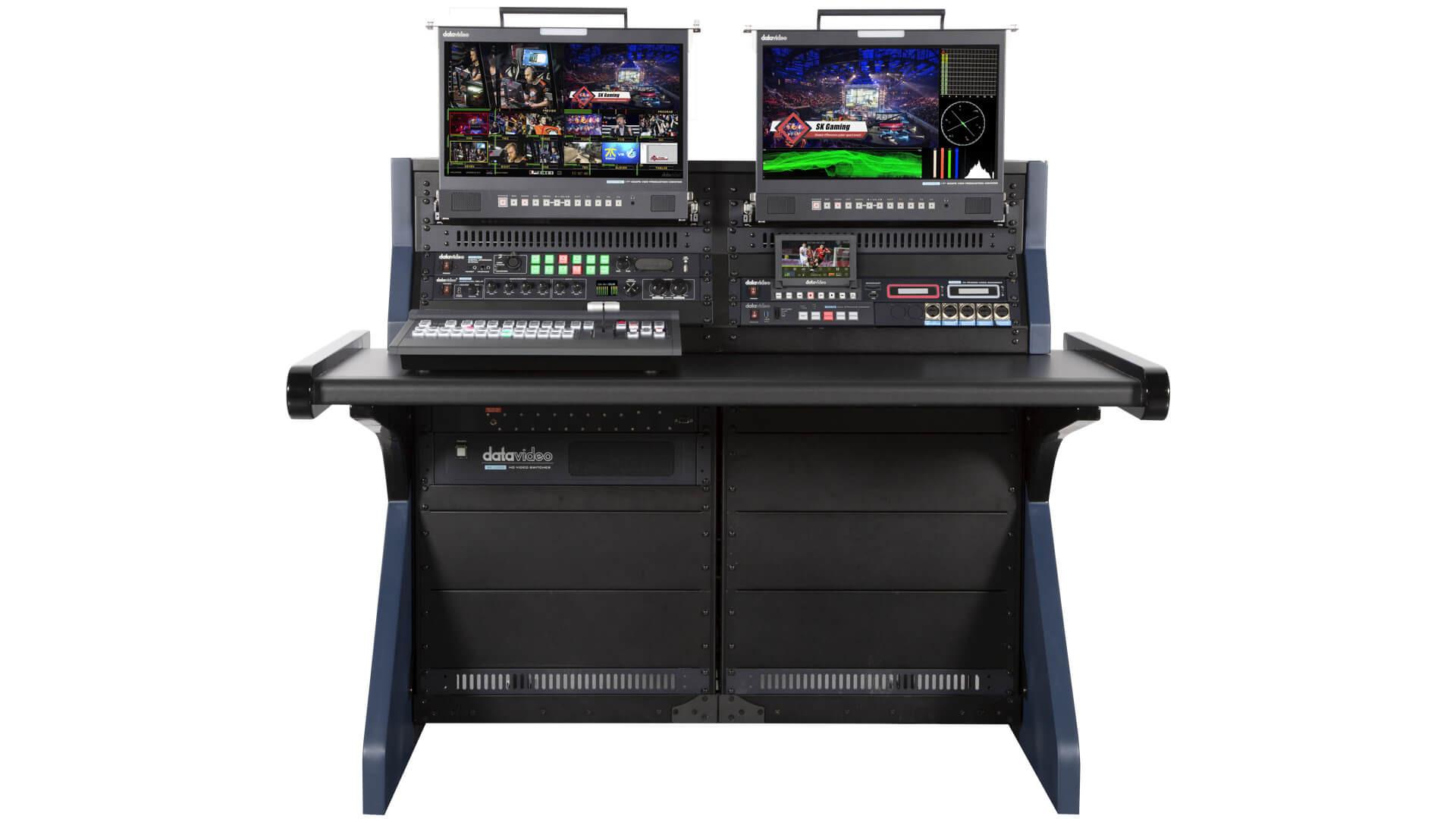

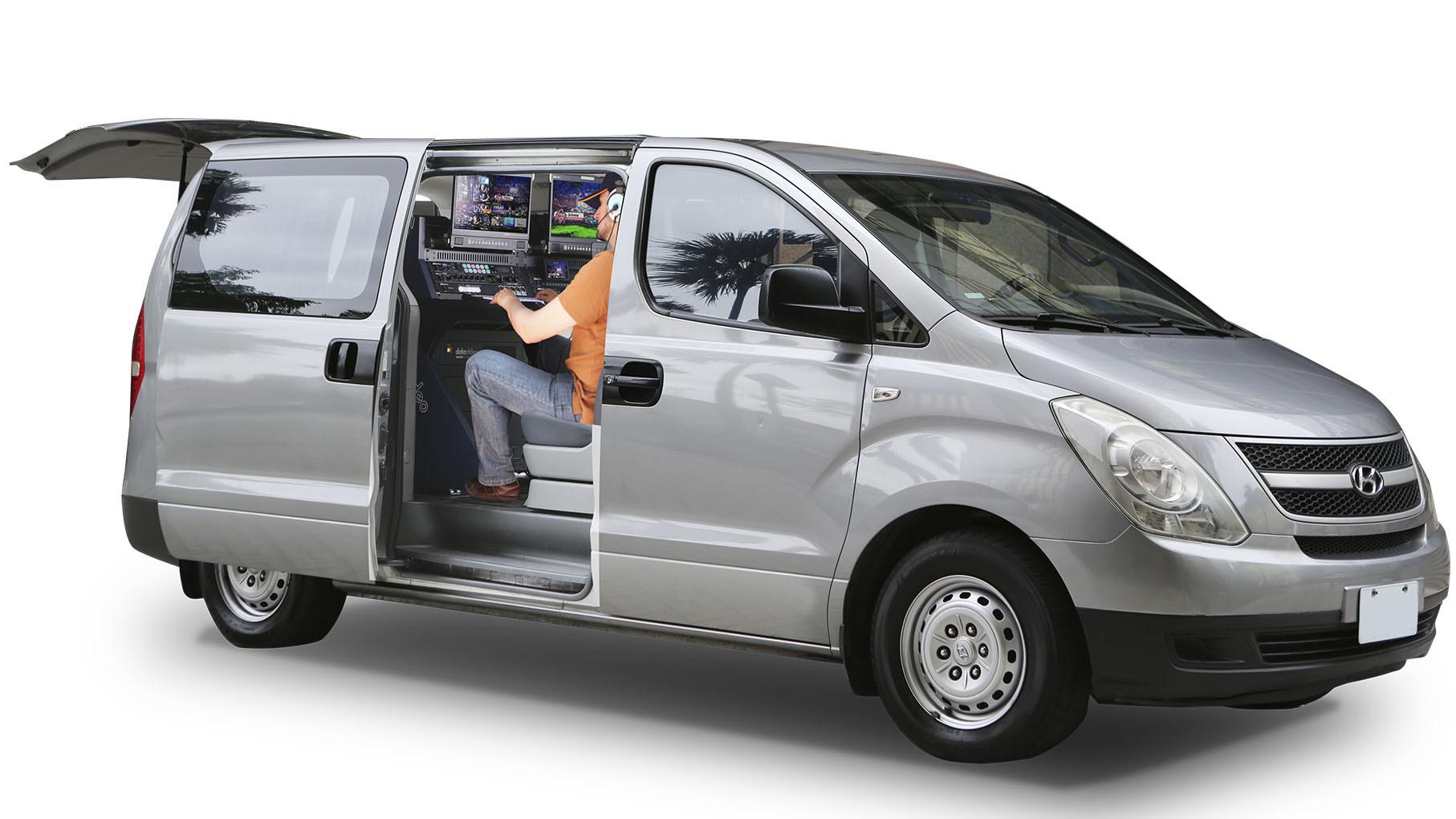

Datavideo OBV-3200 is designed to fit into the back of a small van to provide complete mobile production facilities. It’s a transportable solution for broadcasters and video professionals for both in-studio and on-location productions.

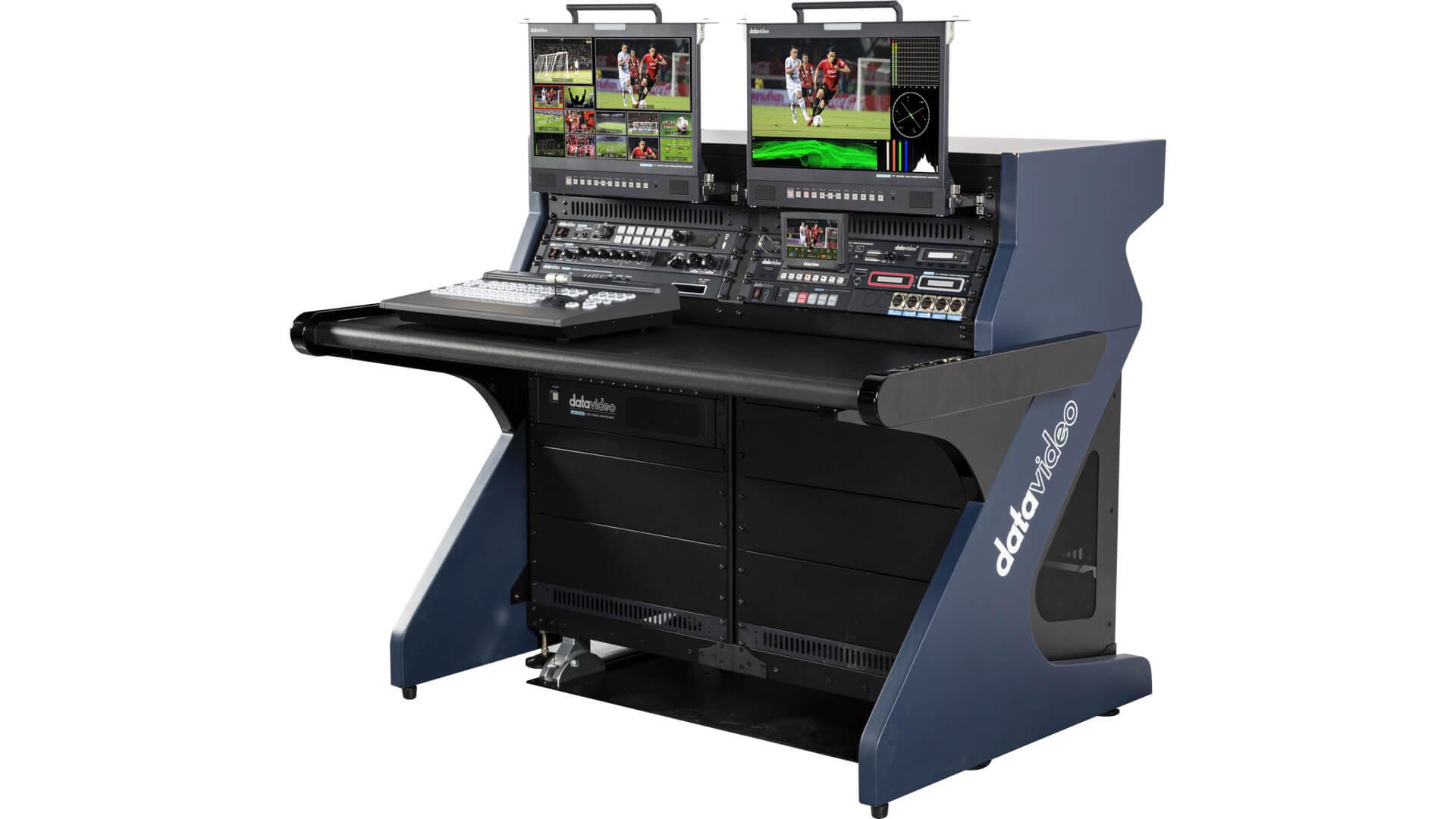

Built around the latest Full HD switcher, it supports up to 12 channels of 1080p Full HD-SDI and HDMI video signals. The system is integrated in a sturdy rack with a new design Console Desk for great stability and protection.
The system is fully equipped with functions such as intercom, video transmission, audio delay and scope monitor.
Camera Power Distributor | PD-5 |
Camera Power Regulator | ---- |
Redundant Power (360W) | ---- |
SDI/CV/ITC/DC Cable | CB-66 |
CB-22H/23H Repeater | ---- |
SDI/ITC Cable | ---- |
ITC/Tally Cable | ---- |
HDMI Cable | CB-60/61/62 (30m/50m/100m) |
100m SDI Repeater | ---- |
Digital Video Switcher | SE-3200 |
17.3" Rack Mount LCD | TLM-170VM x2 |
Recorder | HDR-90 x1 (OBV-3200A) HDR-70 x1, HDR-90 x1 (OBV-3200B) |
Intercom/Tally System | ITC-300 w/4 Belt Pack |
SDI Vector Scope | Built-in TLM-170VM |
Audio Mixer | AD-200 |
Power Distributor (8-way) | PD-2A |
Return Video (8-CH CV) | ---- |
Camera Control System | CCU-200 x1 |
Camera Power Distributor | ---- |
Multi-camera Control Unit | MCU-400 / MCU-200 (optional) |
H.264 Video Streaming Server | NVS-35 x1 (OBV-3200A) NVS-40 x1 (OBV-3200B) |
4K Multicamera Processor | ---- |
Network Media Player | ---- |
HD/SD SDI Amplifier | ---- |

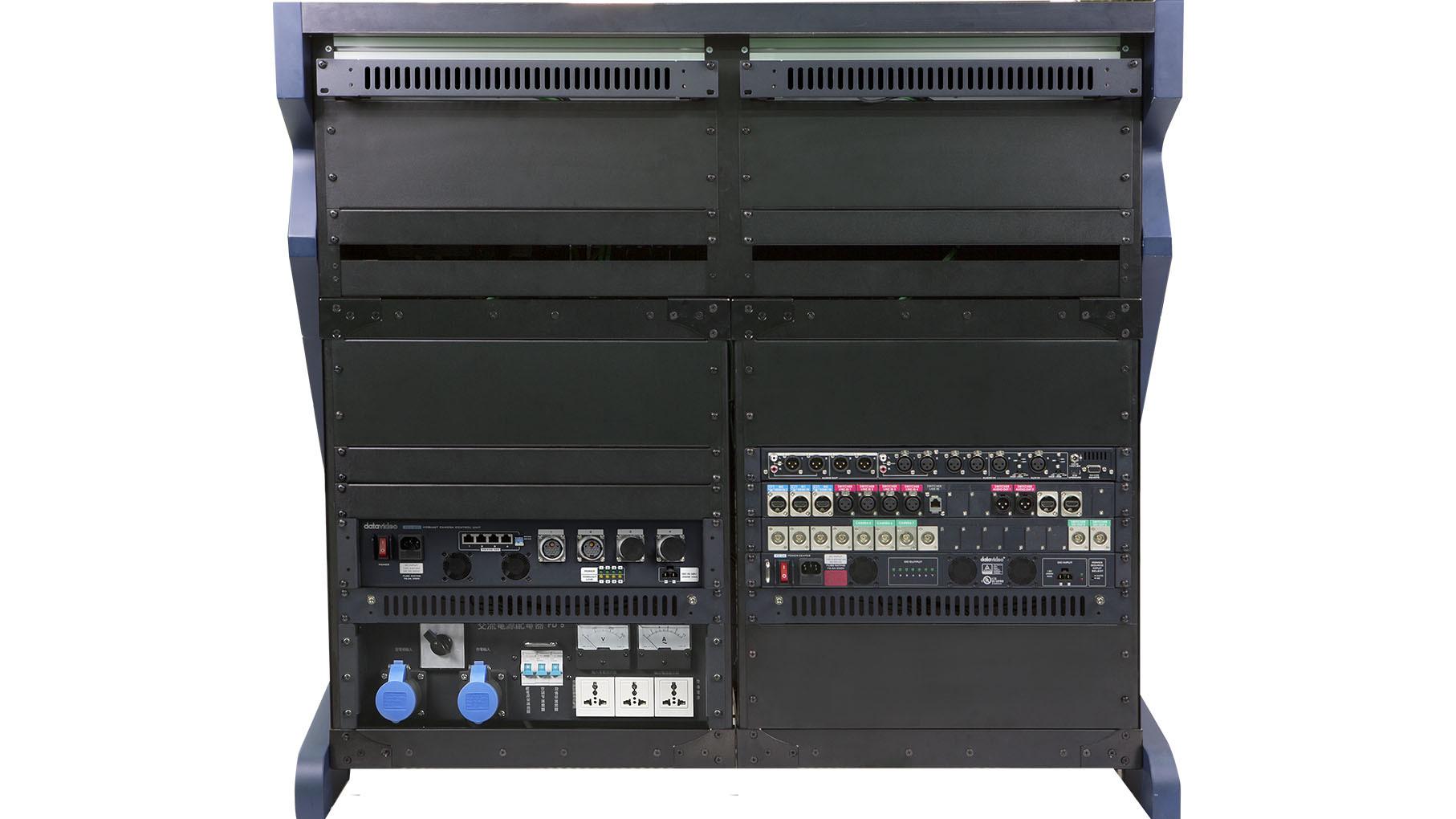

Rack System Integration | 17RU Mobile Rack Table 110 x 100 x 111 cm |
Weight | 118 kg |
Operating Temp. Range | 0~40 °C |
