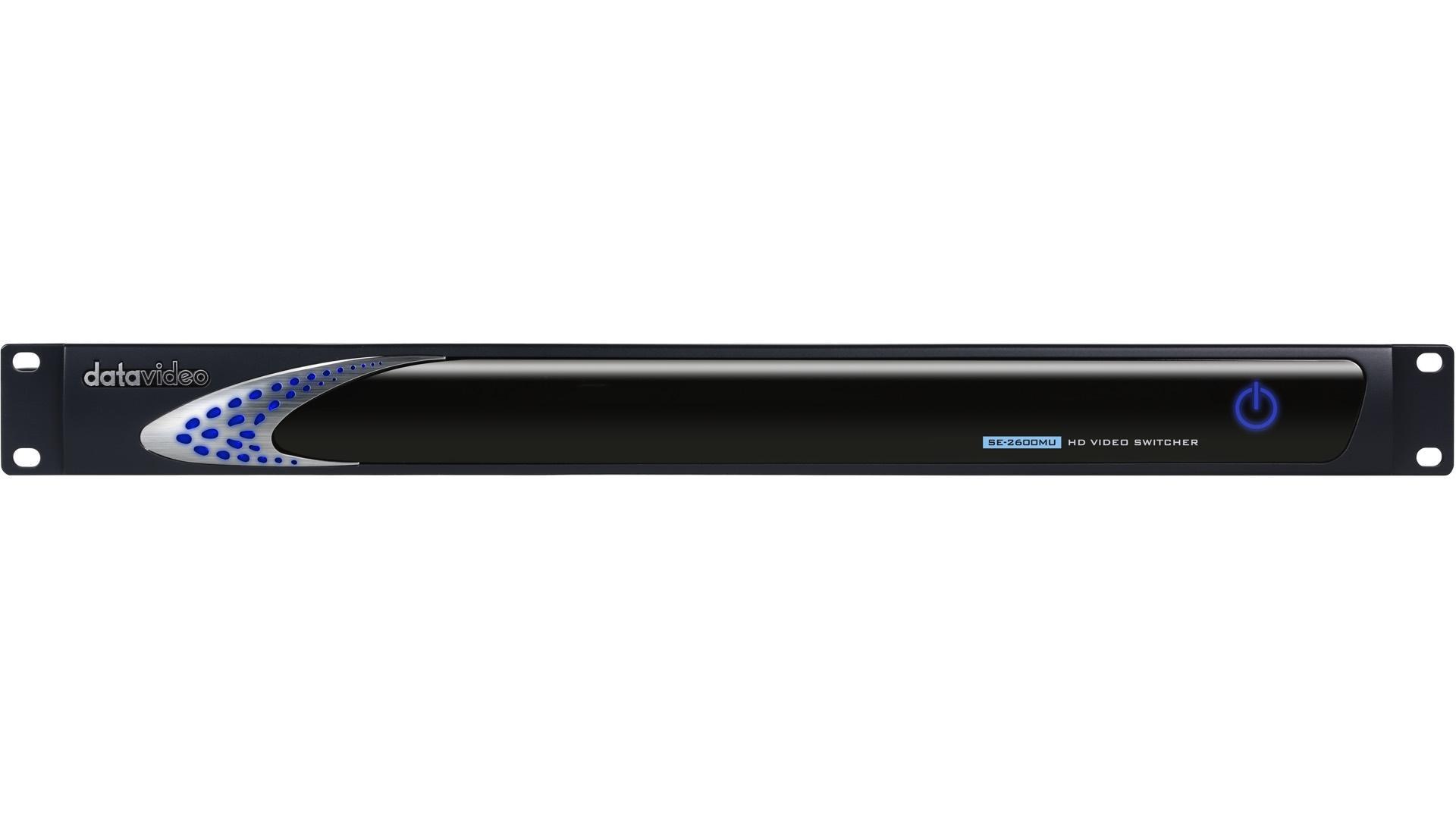

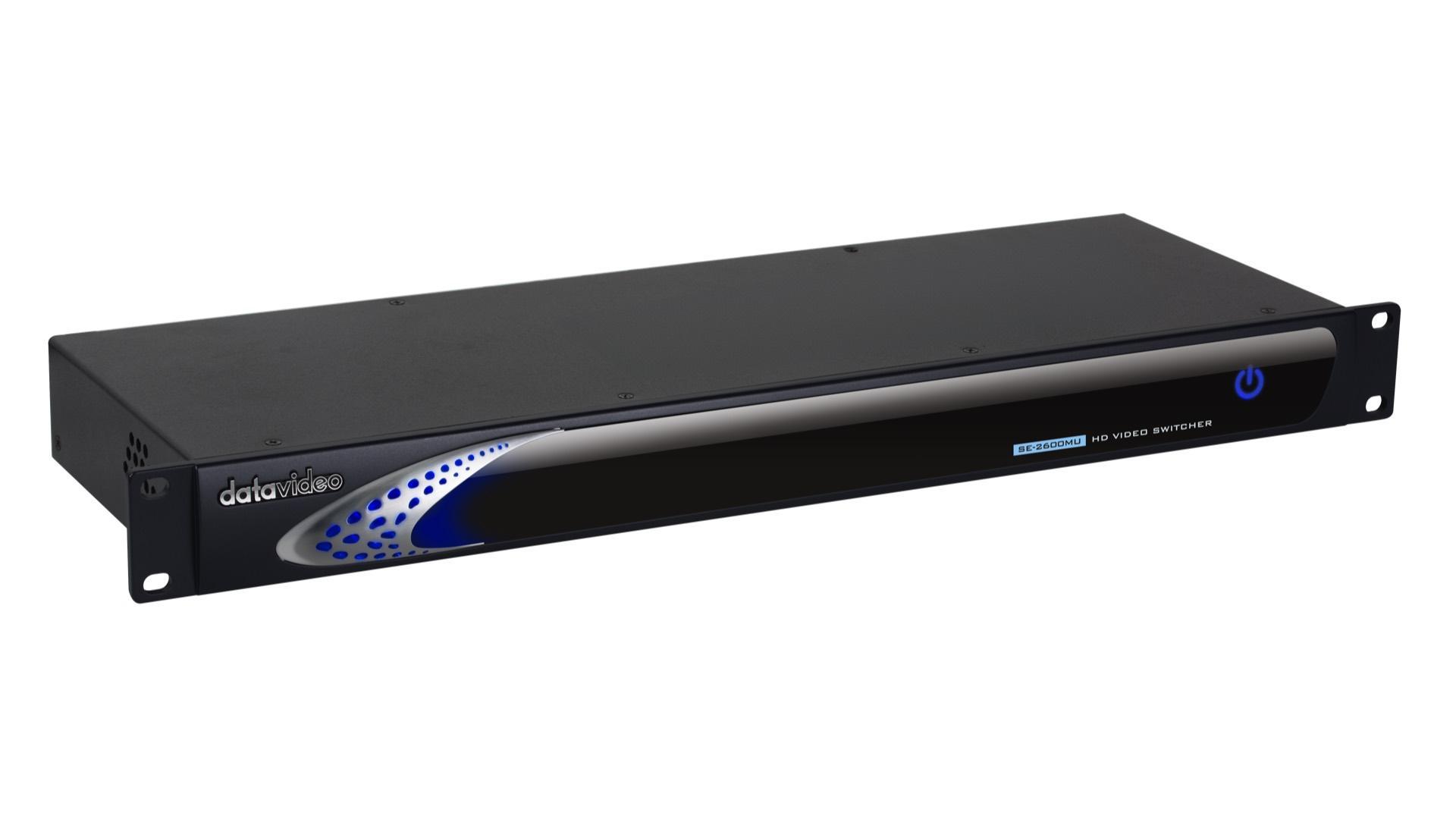

The SE-2600MU HD Video Switcher is a versatile and powerful 8-input live production switcher, ideal for professional AV environments such as corporate conference rooms and school classrooms. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI. Designed for versatile AV applications, it features advanced effects like Chroma Keyers, Luma Key, DSK, PIP, and DVE.
Additionally, it supports audio integration, logo insertion, title overlays, and offers a variety of transitions for a sophisticated production experience.
1 x SE-2600MU product
1 x AD Switch DC 12V
1 x AC Cord
4 x M5 Screws for Rack Mount Ear
2 x Mini XLR 3P-F to XLR 3P-F Cable
Categories: Production Switchers & Controllers
The Datavideo SE-2600MU HD 8-Channel Digital Video Switcher is designed for various AV applications in corporate conference rooms and school classrooms, allowing users to rapidly initiate live productions with its quick setup and user-friendly interface.
The SE-2600MU switcher also has powerful, easy-to-use effects such as Chroma / Luma Key, DSK, PIP, DVE / Wipe Generator, still stores, and logo insertion.
Video Standard | Full HD |
Video Format | Input: 1080p 50/ 59.94/ 60Hz 1080i 50/ 59.94/ 60Hz 720p 50/ 59.94/ 60Hz Output: 1080p 50/ 59.94/ 60Hz 1080i 50/ 59.94/ 60Hz 720p 50/ 59.94/ 60Hz |
Video Processing | SDI: 4:2:2 HDMI: YUV 4:2:2, RGB: 4:4:4 |
Input Routable / Crosspoint | YES |

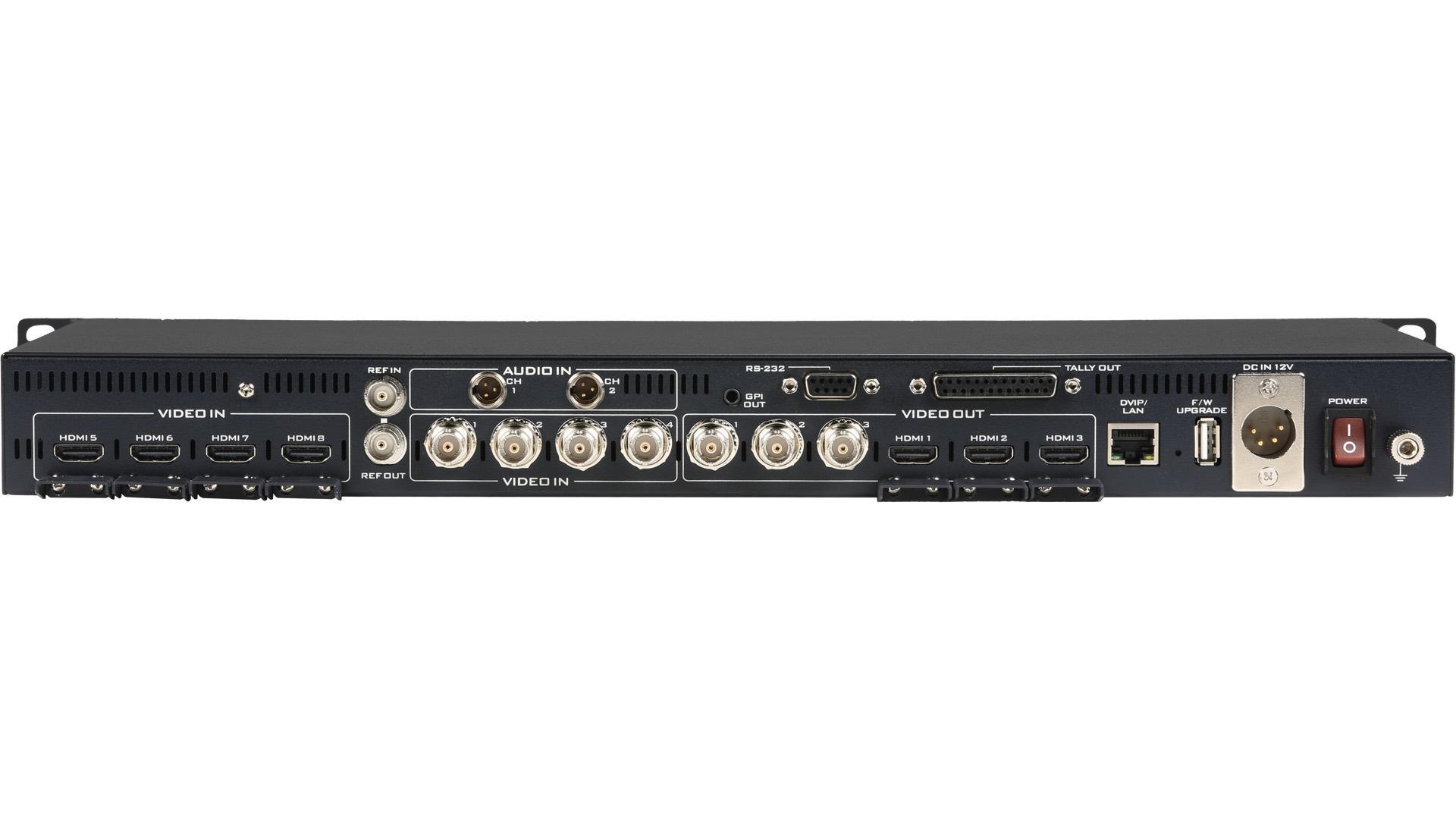

Video Input | Total 8 live inputs 4 x SDI 4 x HDMI |
Mix HD & SD Source | ---- |
Computer Graphic Interface | 4 via HDMI |
Video Output | 3 x SDI 3 x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-8, STILL 1, STILL 2, Flex source |
Down-converted Output | ----- |
Built-in Multi-view Monitoring Out | HDMI & SDI assignable |
Analogue Audio Input | 2x Balanced Mini XLR |
Analogue Audio Output | ---- |
Digital Embedded Audio Support | SDI Input/Output 4 channels, HDMI Input/Output 2 channels |
Audio Delay Calibration | Up to 16 fields or 8 frames per channel |
A+V Switching | Yes |
Chromakey | 4 |
Title Creator | Yes |
USK | 4x Keyer support Chromakey/ Linear/ Luma Key |
DSK | 2x DSK support Lumakey & Linear key (Key / Fill) |
Picture in Picture | 4 |
Logo Insertion | 2 |
Still Store | 999+ (1080p) |
Effects | Cut, Auto, WIPE, Mix |
Transition Preview | Full transitions preview |
Sync / Reference In/Out | 1 x BNC Ref in 1 x BNC Ref out (loop-through) |
Tally Output | 1x D-sub 25pin, dual color |
PC Remote Control | RS-232 / DVIP (Ethernet) |
Camera Control | ---- |
Built-in Audio Mixer | ---- |
Storage | ---- |
Recording File System | ---- |
Recording File Format | ---- |
Video Encode | ---- |
Audio Encode | ---- |
Streaming Protocol | ---- |
Firmware Update | USB |
Special Features | User Memory Preset Free Virtual Set and Stinger transition included |
Chassis | Unibody |
Operating Temp. Range | 0~40 °C |
