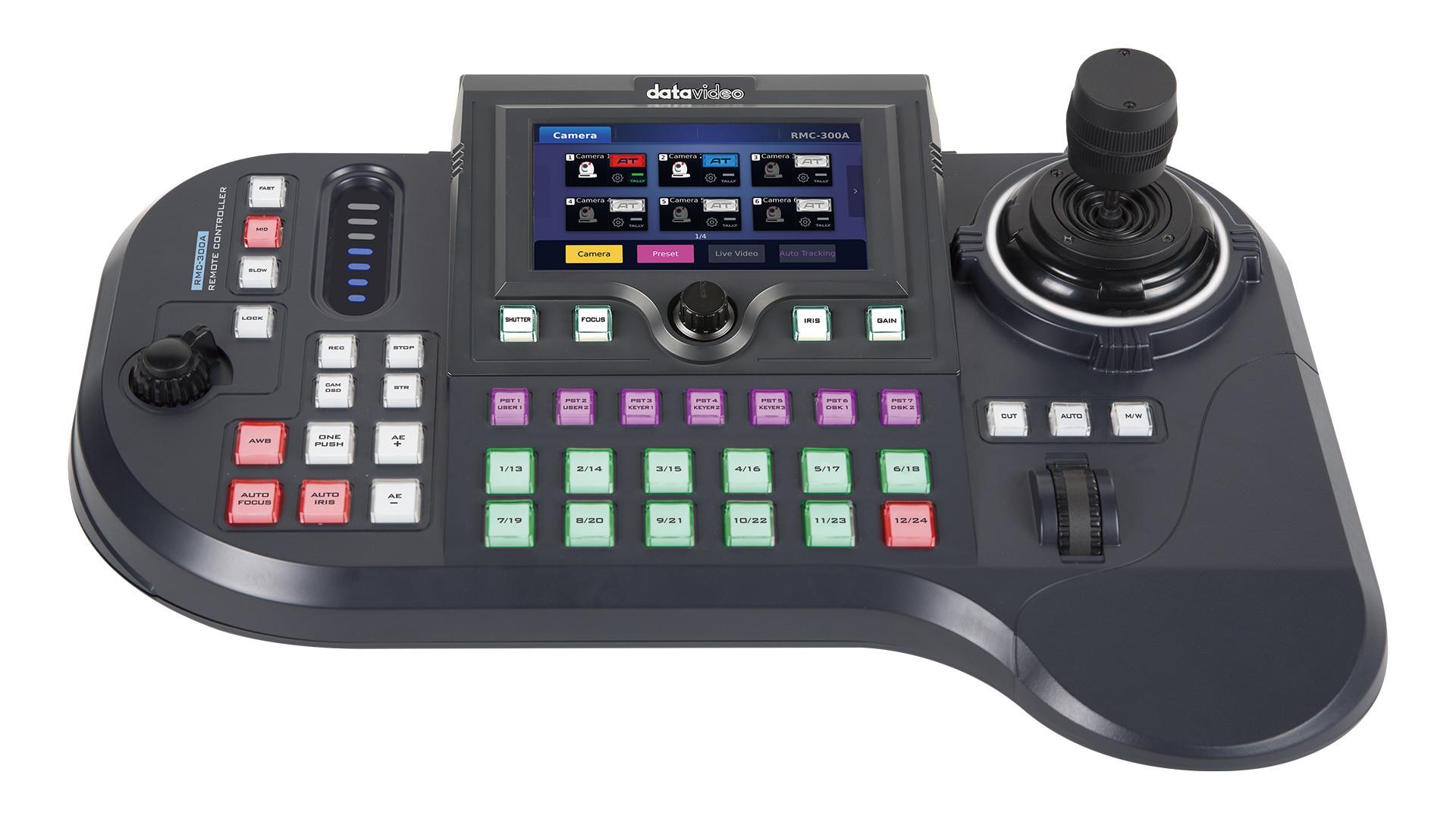

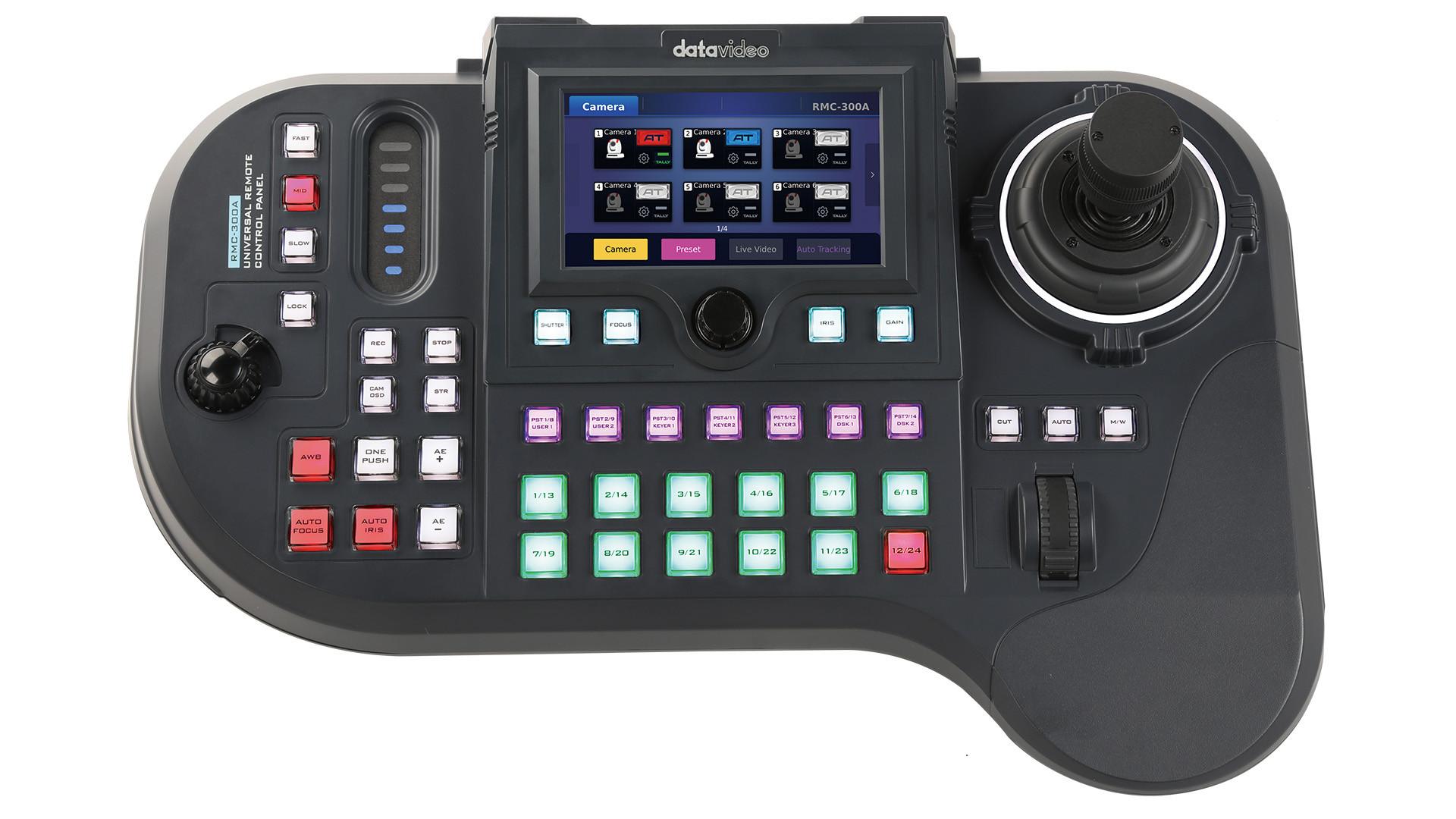

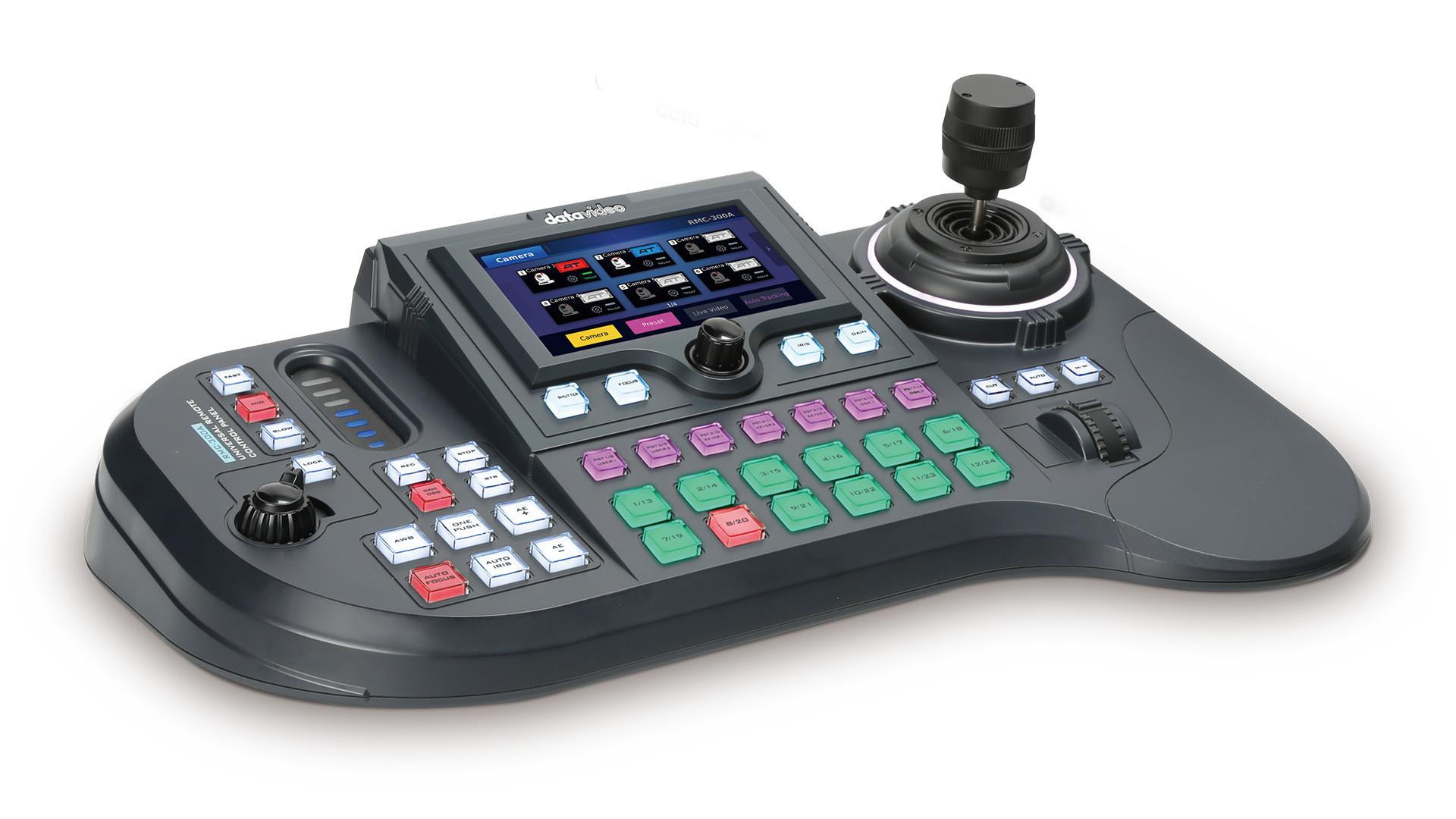

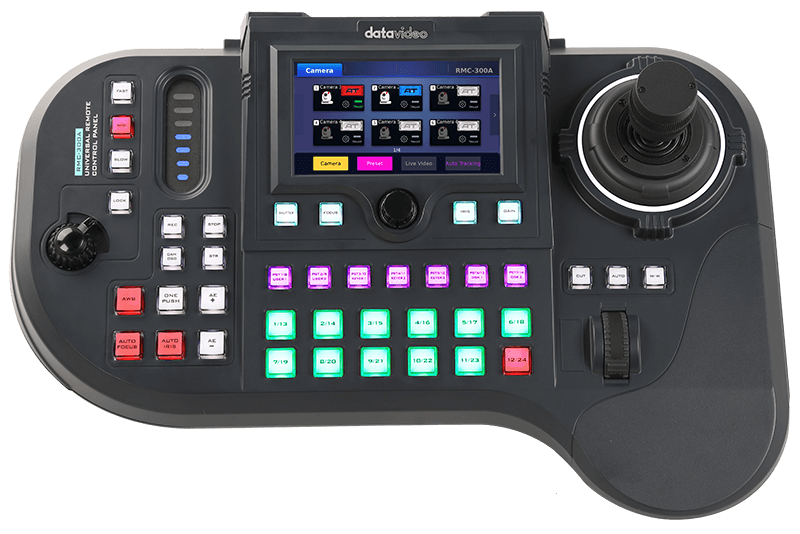

DATAVIDEO Universal Remote Control Panel for Datavideo PTZ & Block Cameras RMC-300A

Brand: DATAVIDEO

MFR: RMC-300A

SKU: SF-2443-A1JV

4,298.00

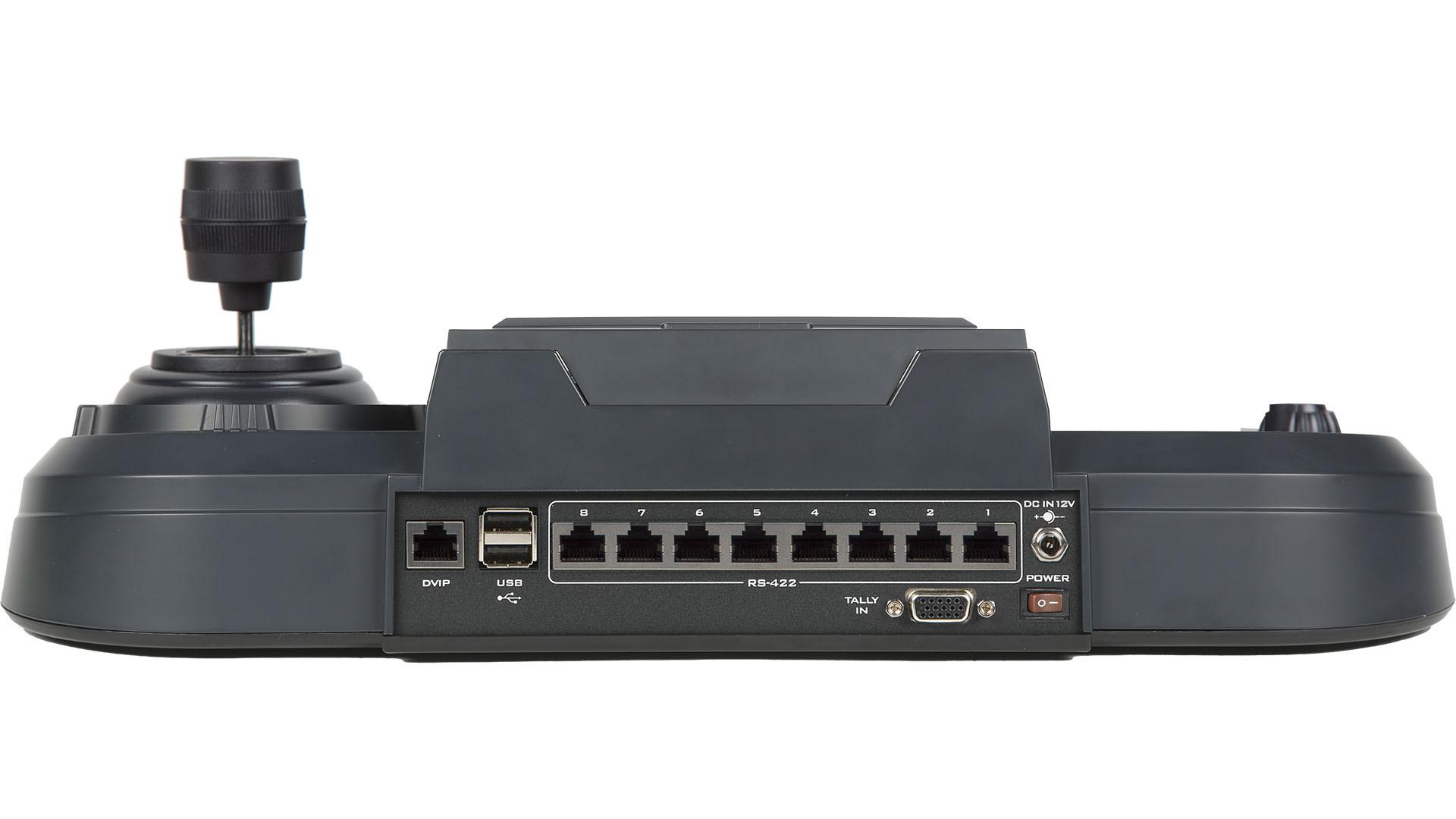

Well suited for EFP as well as house of worship, education, and corporate productions, the Datavideo Universal Remote Control Panel for PTZ and block cameras is a lightweight, portable control panel that is big on features. The back panel features 8 x RJ45 connectors that support RS-422

Items Included


1 x RMC-300A Main Unit
1 x DC 12V power adaptor

Not in stock - Order now and we'll deliver when available - Normally ships in 3-4 weeks or less
Quantity
General
  • Remote control via RS-422 or DVIP port
  • Control up to 24 Datavideo PTZ/block cameras with 7 presets for each camera
  • RGB keyboard for easy identification of keyboard functions
  • User-friendly UI on 5" touchscreen for easy camera setup
  • Zoom knob and pan/tilt joystick for adjusting the zoom ratio and lens position
  • Easy-to-use and high precision
  • Control camera, switcher, and recorder from a remote location
  • Firmware upgradable via USB 2.0 port

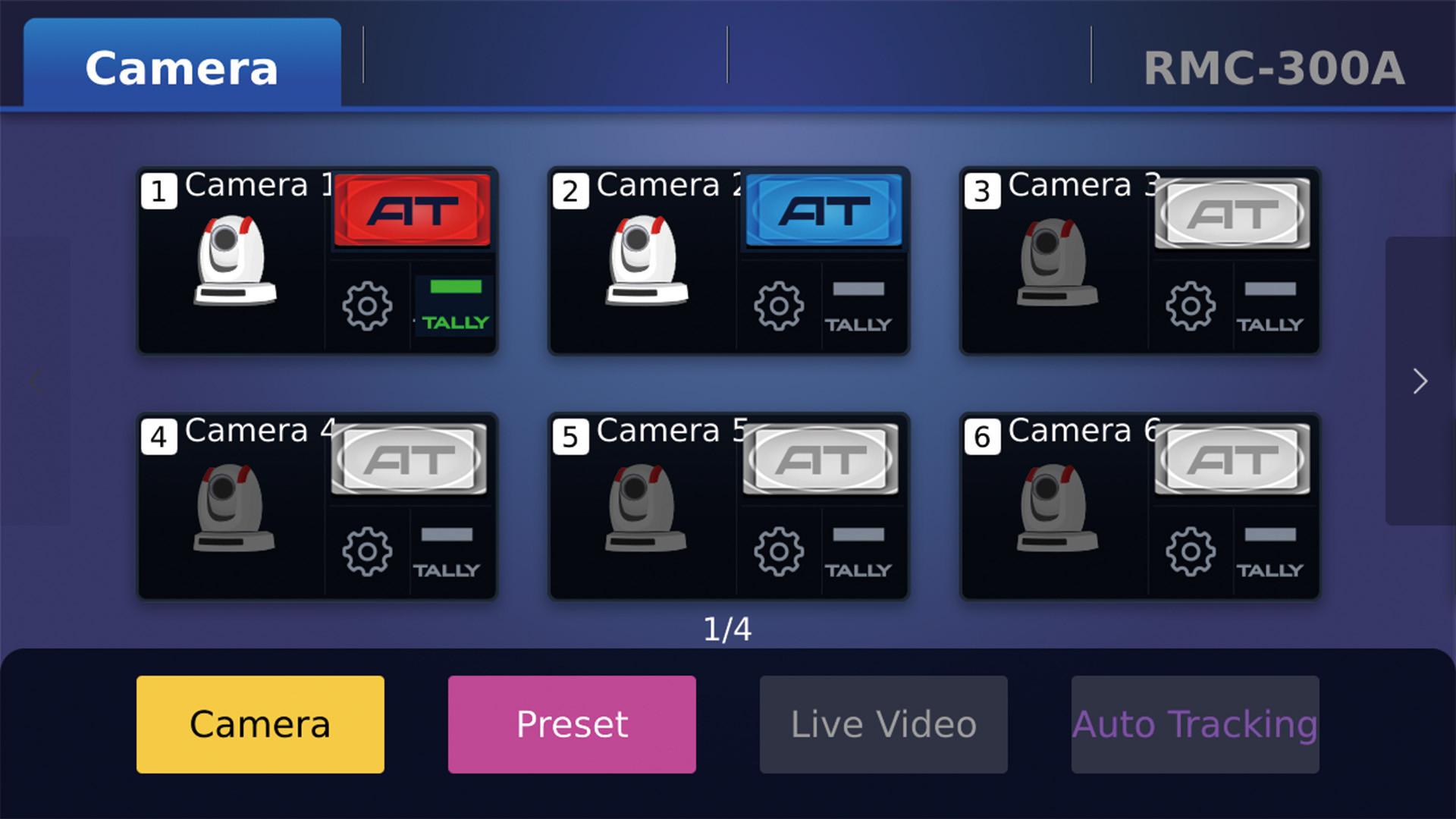

Touchscreen Control
The 5" touchscreen allows you to select from camera, switcher, recorder, and control panel tabs for fine control of settings and functions
PTZ Control
Control PTZ speed for zoom, pan, and tilt as well as camera position, and set up to 7 x preset positions for each camera

Key Specs
Number of Supported Cameras
24 Channels via IP
8 Channels via RS-422
Control I/O
8x RJ45 (RS-422)
1x RJ45 (DVIP)
Touchscreen
Yes
PoE Support
No
Power Consumption
<19 W
Security Lock Support
No
General
Number of Supported Cameras
24 Channels via IP
8 Channels via RS-422
Supported Control Protocols
DVIP
RS-422
Control I/O
8x RJ45 (RS-422)
1x RJ45 (DVIP)
Other I/O
1x DE-15/DB-15 (Tally)
2x USB-A
Presets
7
Display
Display Size
5"
Native Resolution
1280 x 720
Touchscreen
Yes
Power
PoE Support
No
Power Connectors
1x Barrel / Coaxial
Power Consumption
<19 W
Input Power
12 VDC
Physical
Operating Conditions
32 to 72°F / 0 to 40°C at 10 to 80% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Security Lock Support
No
Dimensions
16.5 x 11.6 x 5.3" / 420 x 294 x 134 mm
Weight
3.31 lb / 1.5 kg
Packaging Info
Package Weight
6 lb
Box Dimensions (LxWxH)
18.9 x 14.8 x 9.2"
