Key Features

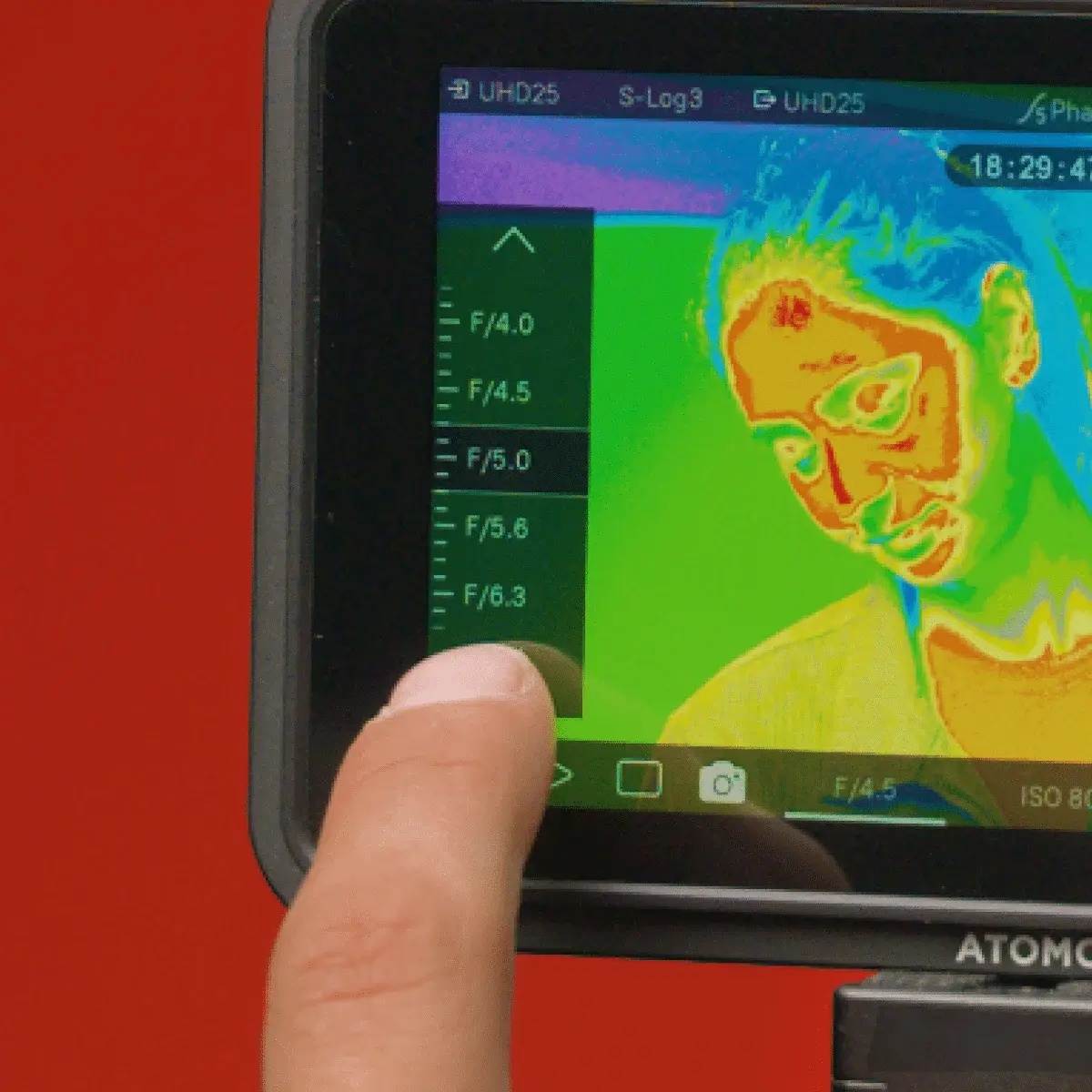

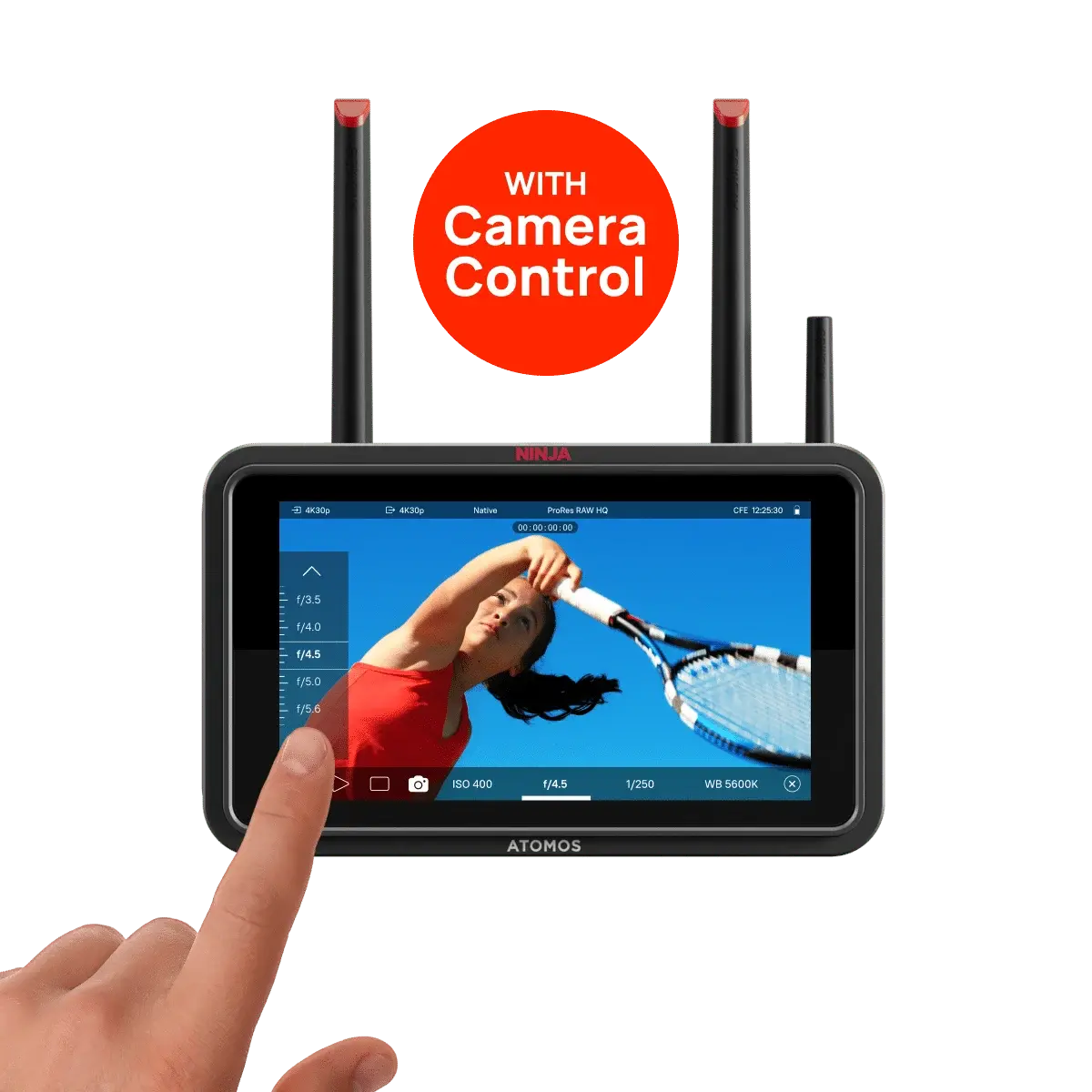

Camera control & touch to focus on supported cameras
Record in Apple ProRes, Avid DNx or H.265
Quieter, cooler temperature while using

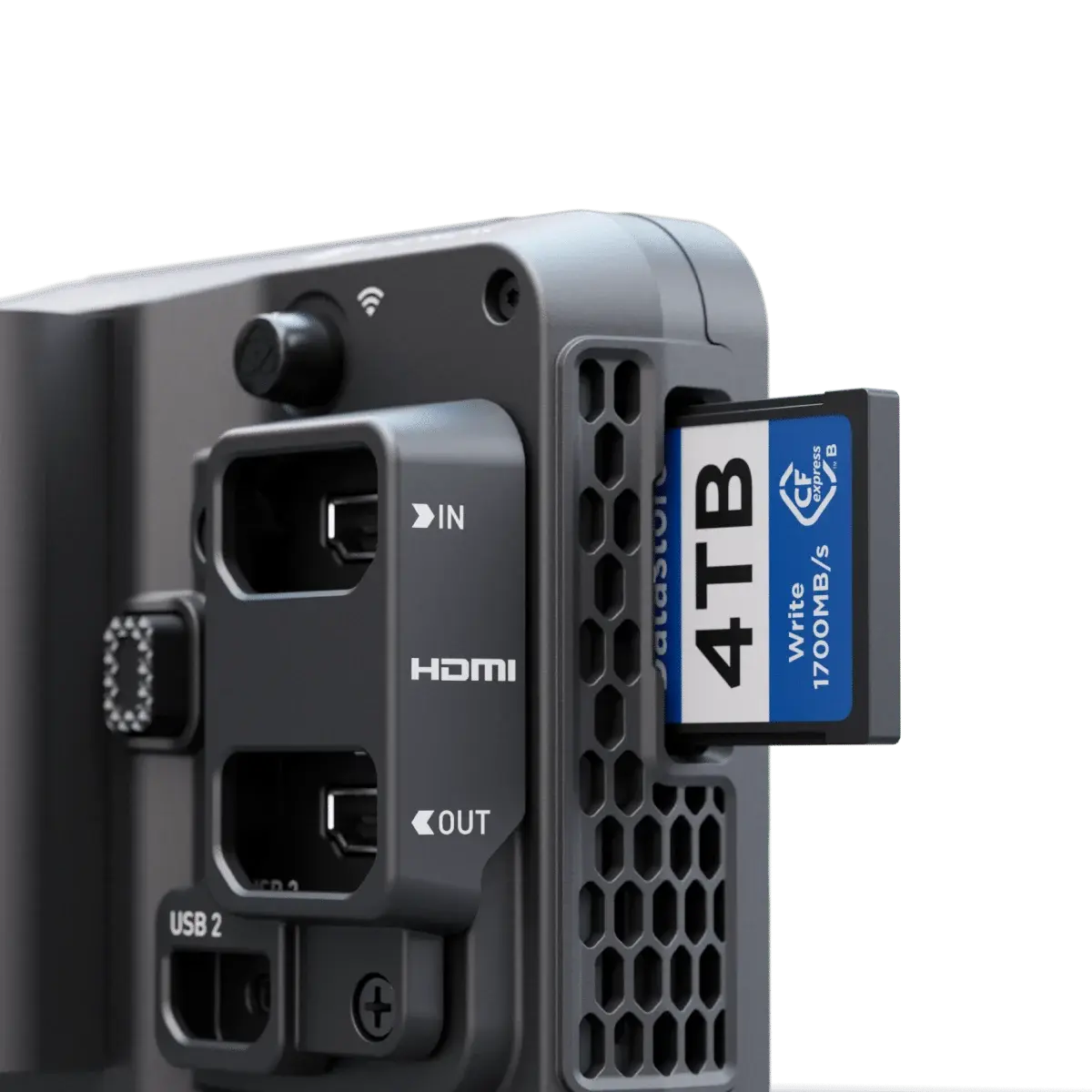

Capture to CFexpress Type B or USB-C storage
Super-bright, 1500nit 5-inch touchscreen display
HDMI 2.0, 12G-SDI & Wi-Fi 6E input and output
Direct upload to ATOMOSphere, Frame.io, Dropbox
Streaming via NDI 6
Timecode sync over RF or Bluetooth
Powered by USB-C, NP-F battery or AC adaptor
Get 20GB cloud storage FREE with ATOMOSphere
Over the air (OTA) firmware updates

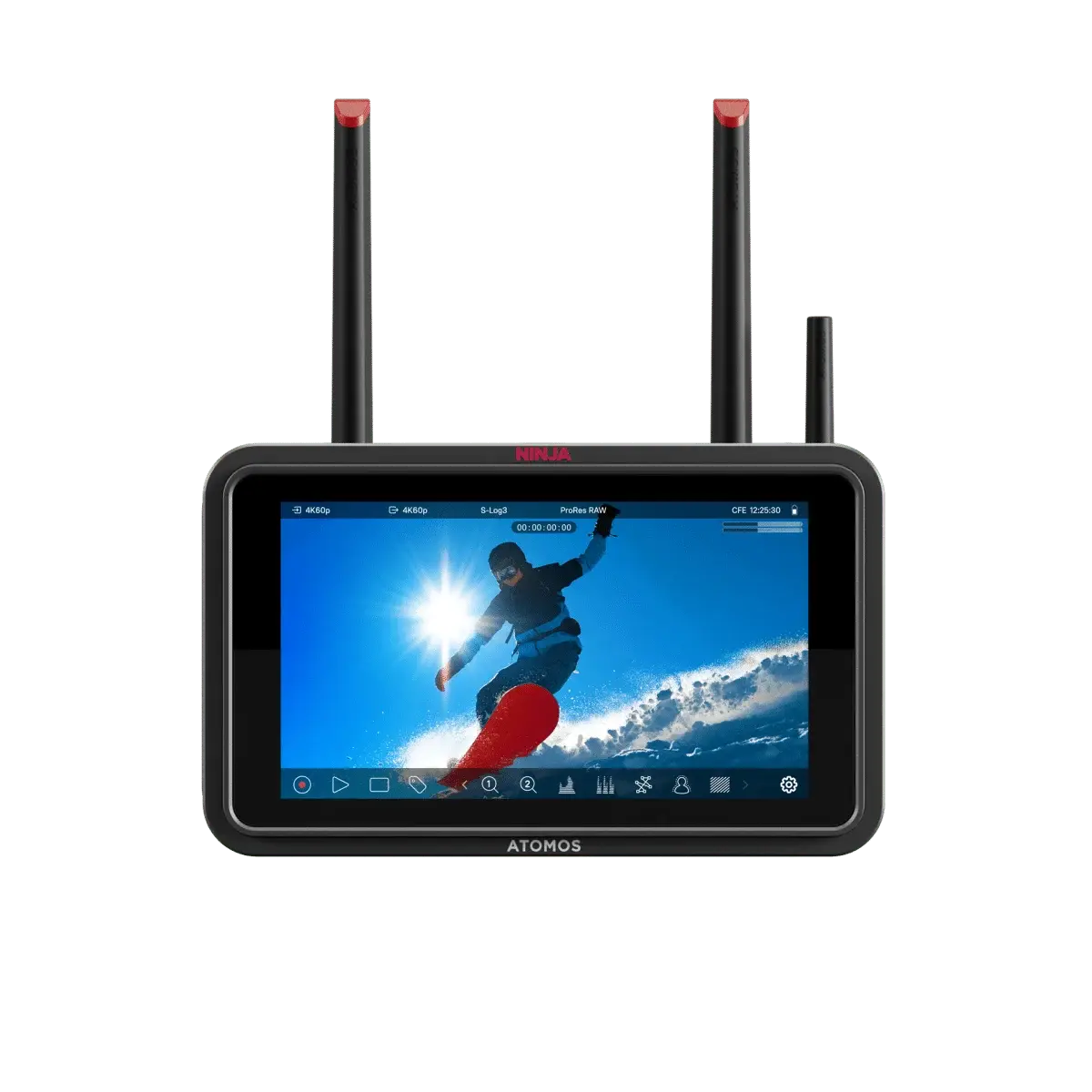

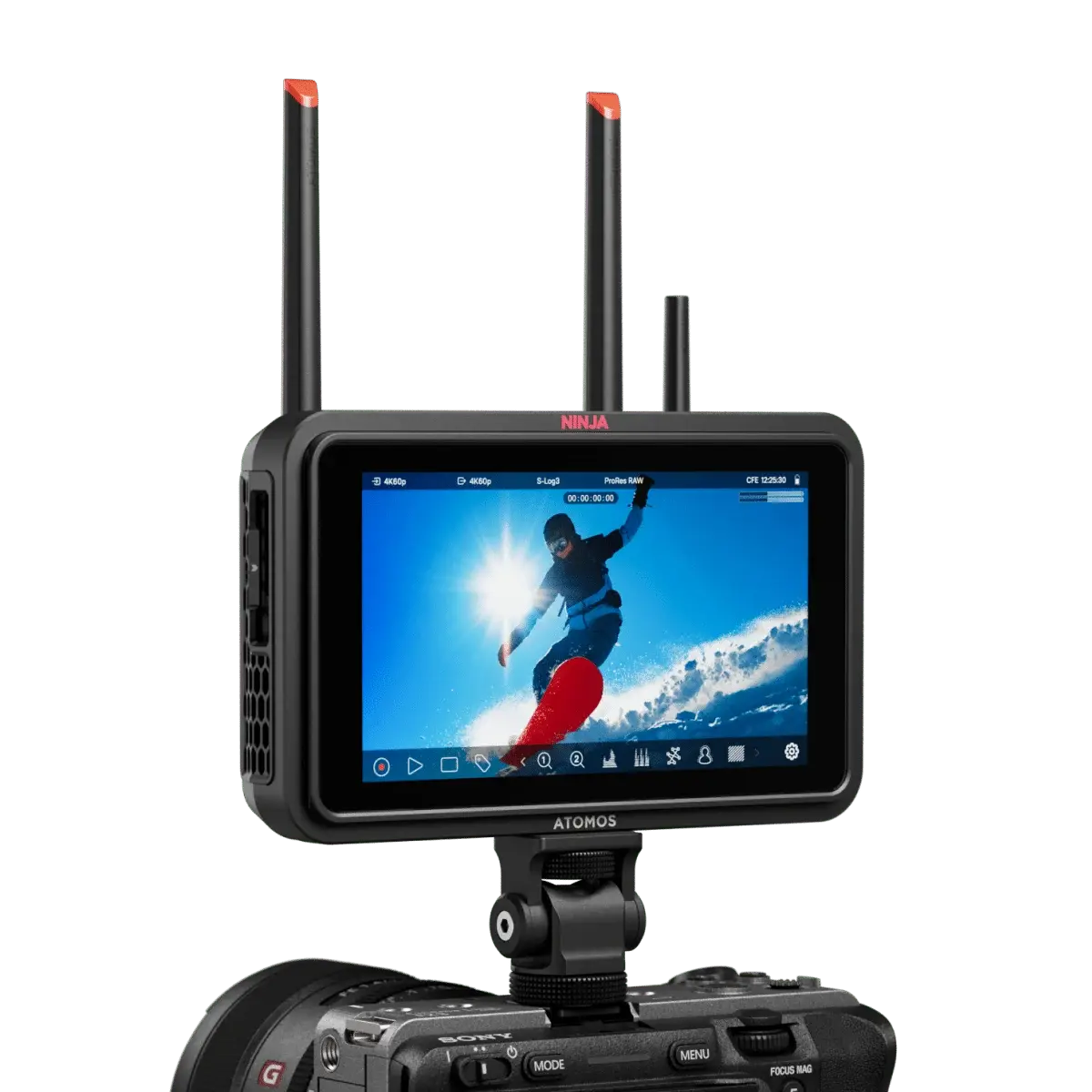

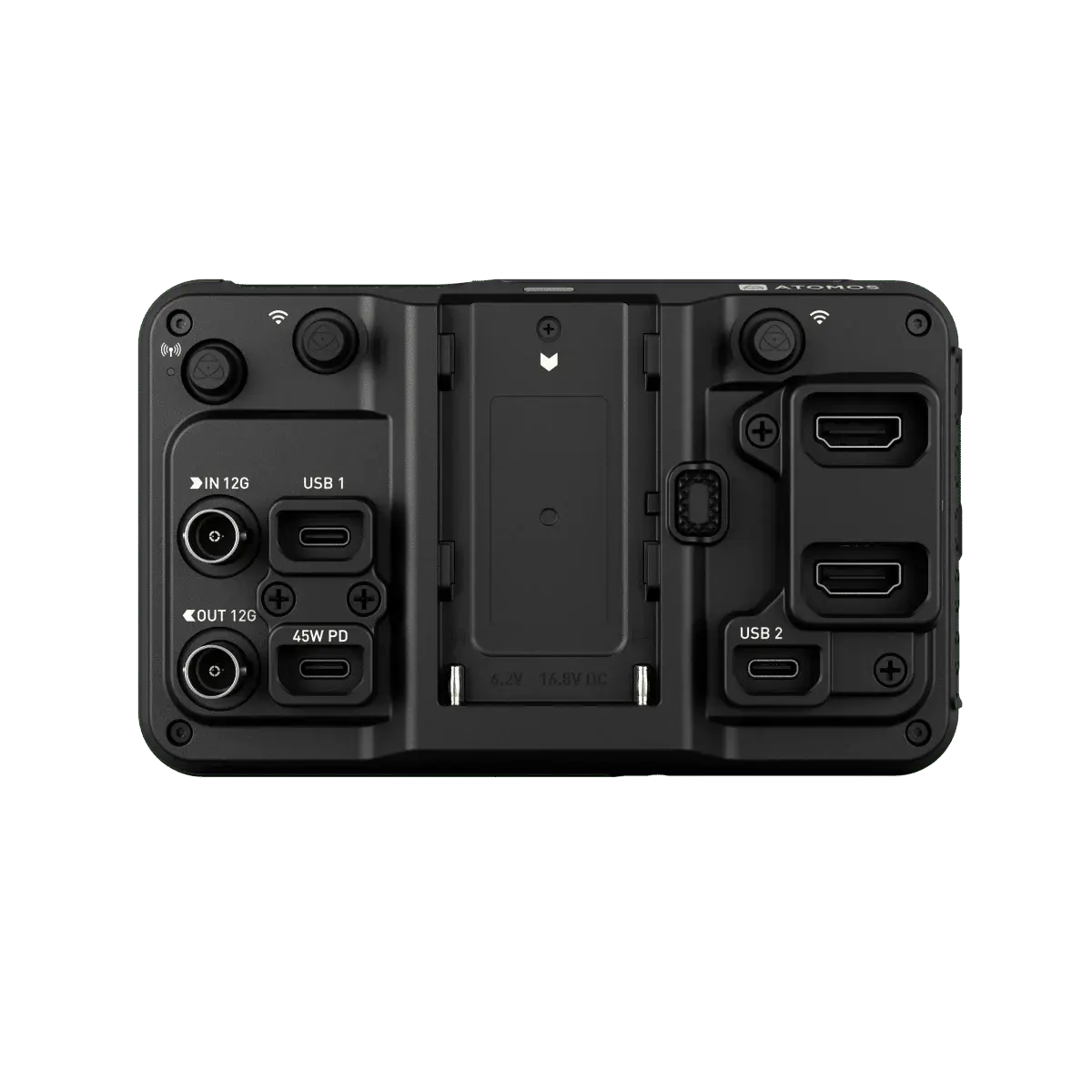

Ninja TX monitor-recorder
USB-C locking cable adaptor
USB-C locking cable (45cm)
HDMI locking cable adaptor
2 x Wi-Fi antennas
5 x antenna tip sets (black, white, yellow, green, red)
AirGlu antenna + antenna caps
Quick Start Guide
Category | Specification |
Dimensions | 151 mm × 92 mm × 36 mm |
Weight | 400 g |
Mount Points | 1× anti‑rotation 1/4‑inch / 3/8‑inch (top & bottom) |
Ambient Operating Temperature | Up to 40°C |
Body Material | Aluminium with ABS plastic |
Cooling System | Actively controlled fan + heat sink |
Input Voltage | 6.2V – 16.8V DC |
Operating Power | Up to 30W |
Multi‑Function Button | Power / Lock screen |
Continuous Power Options | NP‑F battery or USB‑C PD |
DC‑In Connector | Via Battery Eliminator (optional) |
D‑TAP Power | Up to 30W |
USB‑C PD Input | Requires 65W power supply |
USB‑C PD Output | Up to 13W |
Display Size | 5.2‑inch IPS touchscreen |
Display Resolution | 1920 × 1080 |
Backlight Type | Edge‑lit |
Brightness | 1500 nits |
Aspect Ratio | 16:9 |
Color Gamut | Rec.709 |
Calibration Support | Computer‑driven calibration |
Gamma Profiles | Sony SLog/SLog2/SLog3/HLG, Canon C‑Log/C‑Log2/C‑Log3, ARRI Log CEI160–1600, Panasonic V‑Log/HLG, JVC J‑Log, RED RedLogFilm/Log3G10/Log3G12, Fujifilm F‑Log, PQ (HDR10), HLG, Nikon N‑Log |
Gamut Profiles | BT.2020, DCI‑P3, DCI‑P3 D65, Rec.709, Sony S‑Gamut/S‑Gamut3/S‑Gamut3.cine, Canon Cinema DCI‑P3/DCI‑P3plus/Rec.709, Panasonic V‑Gamut, ARRI Alexa Wide Gamut, JVC LS300, RED DragonColor/DragonColor2/RedColor2/RedColor3/RedColor4/RedWideGamut |
3D LUT Display | .cube format |
3D LUT Downstream | Loop out |
3D LUT 50/50 Split | Yes |
Monitoring Modes | Native / HLG / PQ / 3D LUT |
HDR Output Conversion | Log/HDR → HLG/PQ |

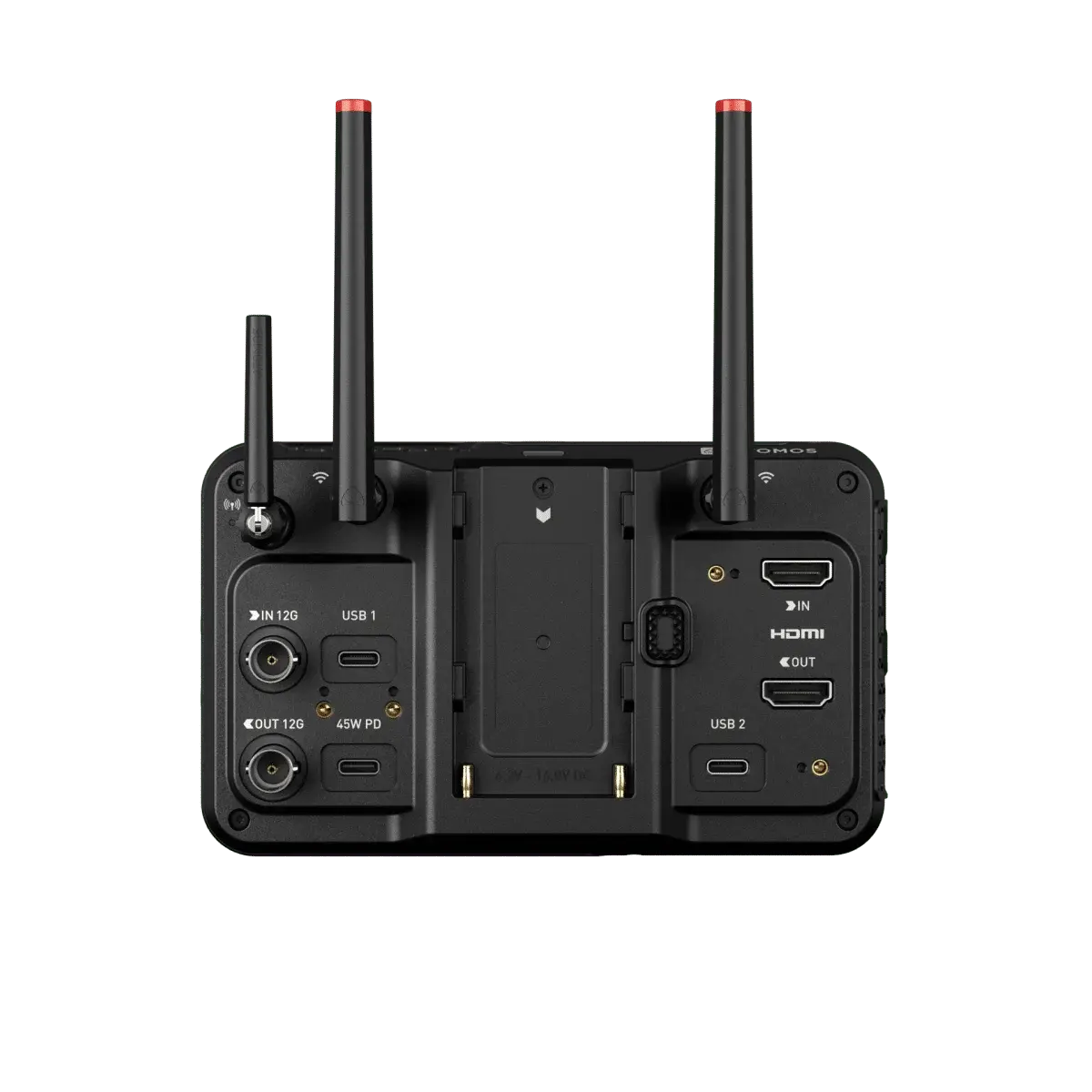

HDMI Input | 1× HDMI 2.0 |
HDMI Locking Port | Bracket provided; locking cable sold separately |
SDI Input | 12G‑SDI |
Wi‑Fi (Input Section) | Wi‑Fi 6E |
USB Ports (Input Section) | 2× USB‑C 2.0/3.0 |
Bit Depth (Input) | 8/10‑bit |
Chroma Subsampling (Input) | 4:2:2 |
HDMI Output | 1× HDMI 2.0 (up to 4K60P) |
HDMI Output Locking Port | Optional |
SDI Output | 12G‑SDI |
Wi‑Fi (Output Section) | Wi‑Fi 6E (W52/W53 indoor bands) |
USB Ports (Output Section) | 2× USB‑C 2.0/3.0 |
Bit Depth (Output) | 8/10‑bit |
Chroma Subsampling (Output) | 4:2:2 |
Metadata via HDMI | RAW: WB, EI, shutter angle, iris F‑stop, ISO, gamma, gamut |
Network Connectivity | Wi‑Fi 6E |
USB Connectivity | 2× USB‑C 3.0 |
Bluetooth | Yes |
LANC | Yes |
Signal Conversion | HDMI → SDI, SDI → HDMI |
HDMI Audio | 8‑channel, 24‑bit |
SDI Audio | 12‑channel, 24‑bit |

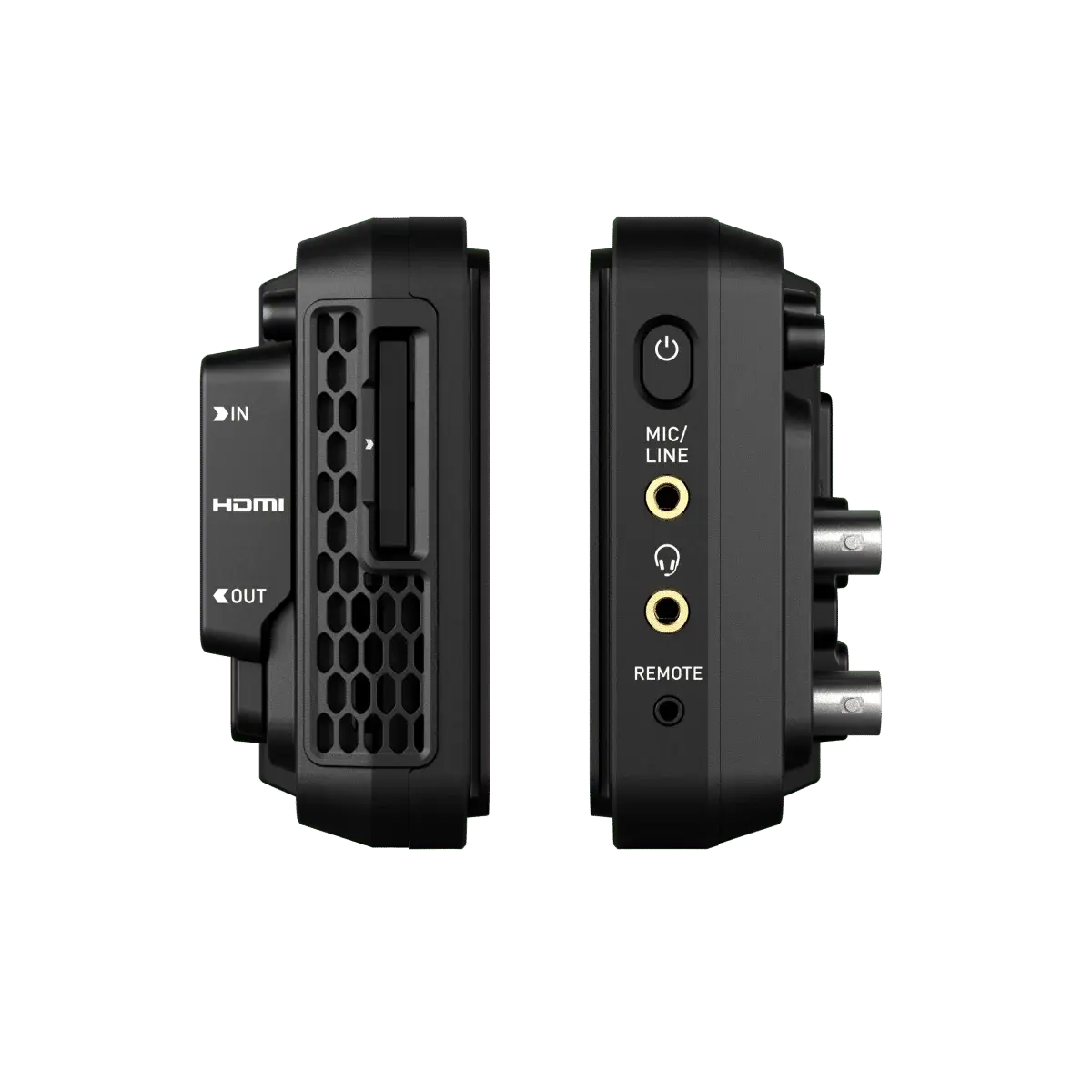

Analog Audio In | 3.5mm jack, 2‑channel |
Headphone Out | 3.5mm jack, 2‑channel |
Timecode | Embedded |
Time‑of‑Day (HDMI & SDI) | Yes |
Genlock Input | No |
LTC | No |
AirGlu RF | Yes |
AirGlu BT | Yes |
RAW Resolution Support | Up to 6Kp60 / 8Kp30 |
4K DCI Support | 23.98–60p |
4K UHD Support | 23.98–60p |
2K DCI Support | 2048 × 1080 |
1080p Support | 23.98–120p |
1080 PsF | Converted to P, looped out |
1080i Support | 50/59.94/60i |
720p Support | 50/59.94/60p |
CFexpress Media | Atomos‑certified Type B |
USB Media | Atomos‑certified USB 3.0 |
File System | ExFAT |
ProRes RAW Codecs | RAW, RAW HQ |
ProRes Codecs | LT, 422, 422 HQ |
Avid DNxHD | 220x, 220, 145, 36 |
Avid DNxHR | LB, SQ, HQ, HQX |
H.265 Codecs | LQ/MQ/HQ/XQ (8/10‑bit, 4:2:2 & 4:2:0) |
Playback Playlist | Yes |
Playback Loop | Yes |
Playback ProRes RAW | Yes |
Playback ProRes | Yes |
Playback DNx | Yes |
Playback H.265 | Yes |
Pre‑Roll Recording | ProRes, DNxHD only |
Timelapse Recording | Yes |
Simultaneous Proxy Record | Yes |
Waveform | 3 sizes, adjustable |
RGB Parade | 3 sizes, adjustable |
Vectorscope | 2 sizes, adjustable |
Zoom | 1:1 pixel mapping (4K), 2× zoom |
Focus Peaking | Color/threshold/mono/edges |
False Color | Atomos + ARRI |
EL Zone | Yes |
Zebra | Adjustable |
Isolate Color | Blue only |
Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
Social Frame Guides | 9:16, 1:1, 1.91:1, 4:5 |
Onion Skin | Yes |
Safe Areas | Action & graphic |
Grid Markers | 9‑grid |
Anamorphic De‑squeeze | 1.25×, 1.33×, 1.5×, 1.6×, 1.65×, 1.79×, 1.8×, 2× |
Display Flip | Vertical only |
Pulldown Removal | 24/25/30 PsF → P (2:2), 60i → 24p (3:2) |
4K → FHD Downscale | Loop out |
DCI Crop | 17:9 → 16:9 loop out |
HDMI Remote Control | Auto trigger (Canon, Sony, Atomos) |
SDI Remote Control | SDI trigger (camera selectable) |
Serial 2.5mm | Calibration (optional cable) |

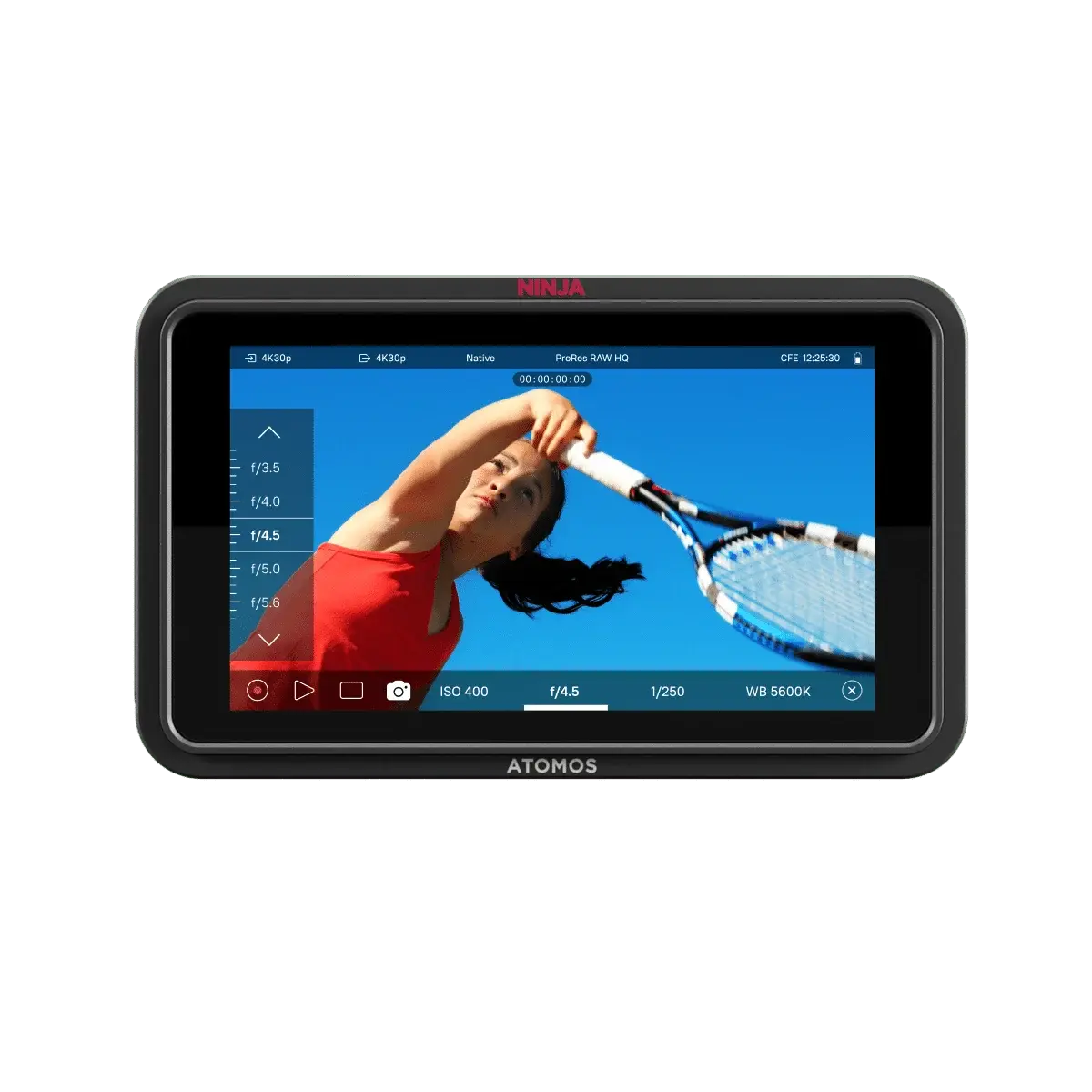

Camera Control (USB‑C) | Start/stop, ISO, shutter, aperture, WB, touch‑to‑focus |
Camera‑to‑Cloud (ATOMOSphere) | Direct progressive upload (20GB free) |
Frame.io Support | Direct upload (separate purchase) |
Dropbox Support | Direct upload (separate purchase) |
Included Accessories | Ninja TX, USB‑C locking adaptor, HDMI locking adaptor, Wi‑Fi antenna, 5× antenna tips (black/white/yellow/green/red), AirGlu antenna, antenna caps, USB‑C locking cable (45cm), Quick Start Guide |
Box Dimensions | 190 mm × 130 mm × 75 mm |
Box Weight | 665 g |
Warranty | Included |
