Key Features
Atomos Ninja TX GO 5.2" HDMI Wi-Fi-Enabled Camera Monitor/Recorder
USB-C Locking Cable Adapter
HDMI Locking Cable Adapter
Antenna Tip Set (Black, White, Yellow, Green, Red)
2 x Wi-Fi Antenna
2 x Antenna Cap
USB-C PD Locking Cable (17.7")

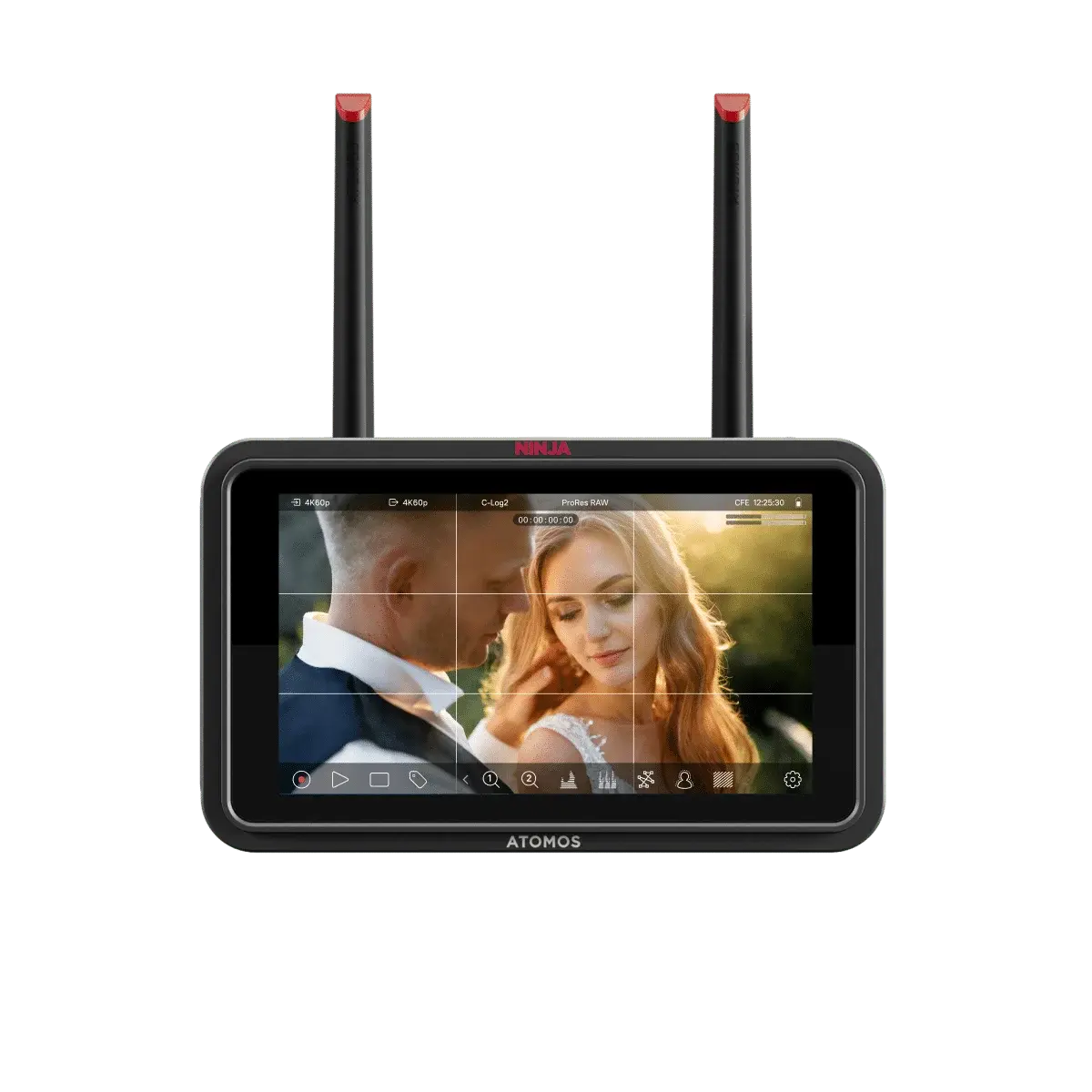

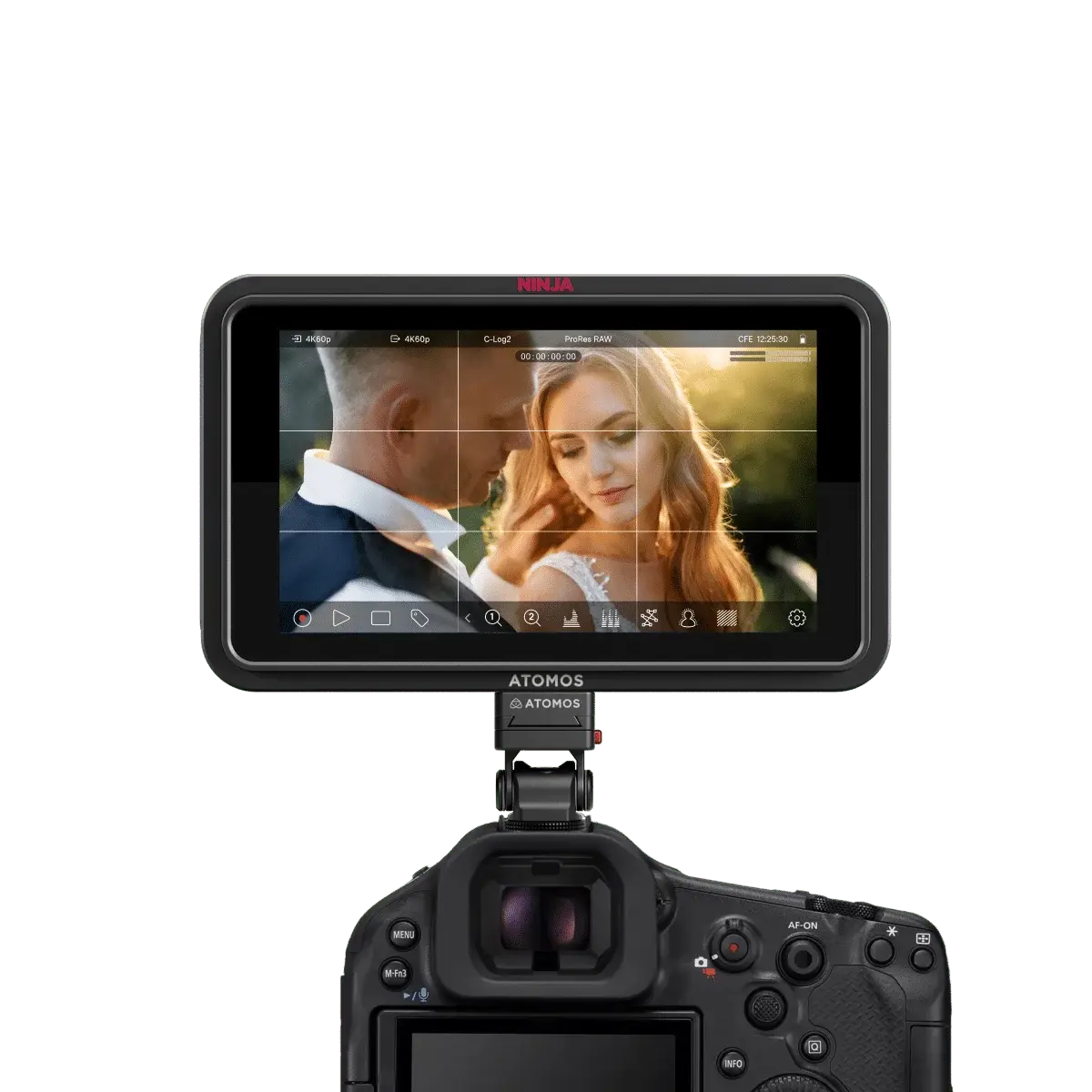

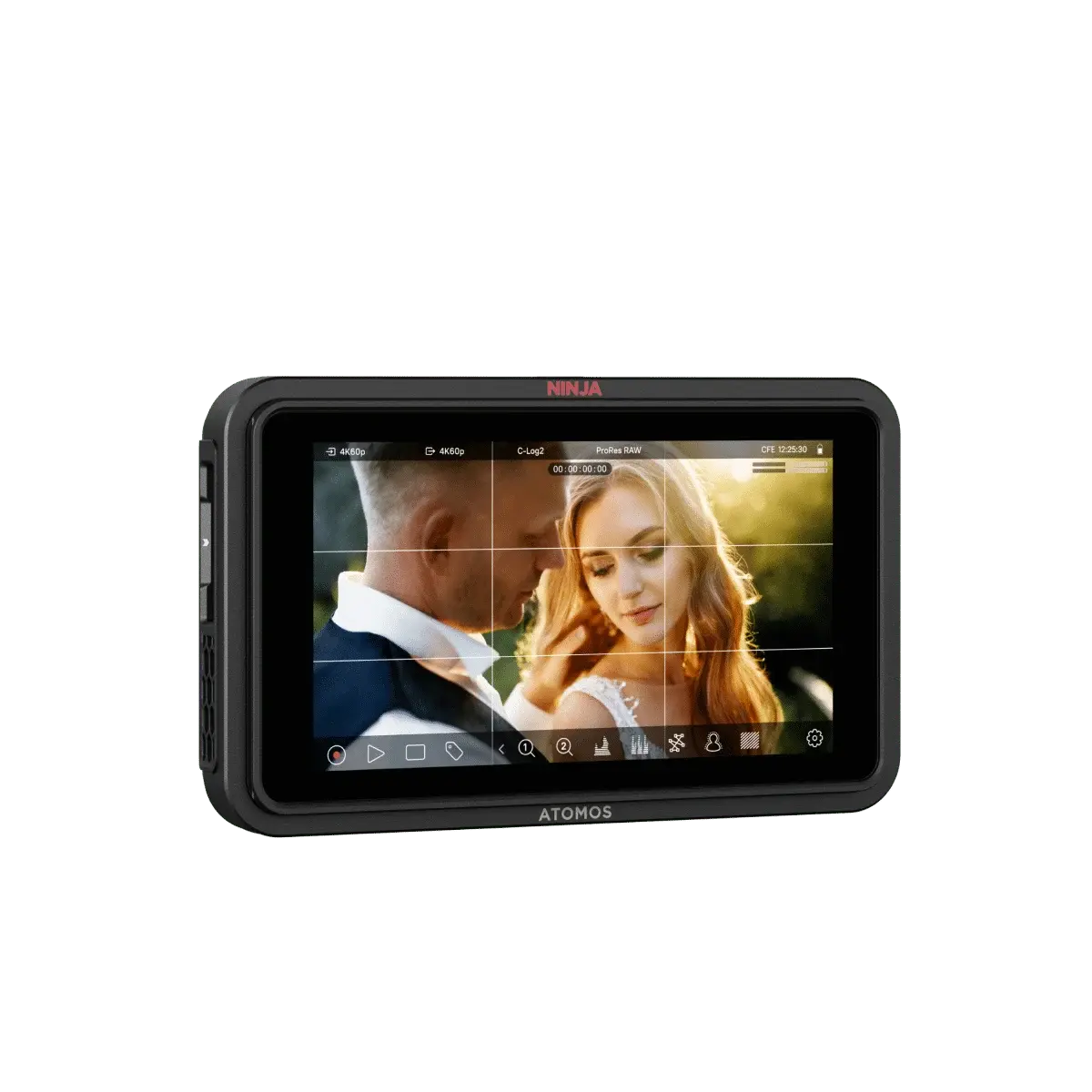

The Ninja TX GO is a compact, connected camera monitor‑recorder featuring HDMI input/output, up to 6Kp30 Apple ProRes/RAW recording, ultra‑fast CFexpress Type B and USB‑C media support, and full camera control for compatible Canon, Fujifilm, Nikon, Panasonic, Sony mirrorless cameras, and Z CAM E2 models. It includes touch‑to‑focus, preloaded ProRes/RAW, DNx, H.265, and NDI 6 HX3 TX/RX codecs, and a bright 5.2‑inch 1500‑nit IPS touchscreen with HDR, Rec.709 color, and calibration support.
Powered by the new AtomOS Linux platform, Ninja TX GO delivers faster performance, quieter cooling, and a complete suite of professional monitoring tools including focus peaking, waveform, RGB parade, vectorscope, false color (ARRI & EL Zone), zebras, frame guides, anamorphic de‑squeeze, and flexible 3D/1D LUT support.
Connectivity is built‑in, with Camera‑to‑Cloud (C2C) via free ATOMOSphere membership, NDI 6 streaming, OTA firmware updates, and support for Frame.io and Dropbox uploads. HDMI input supports 6K30, 4K60, and 1080p120, with loop‑through and RAW metadata capture (white balance, EI, shutter angle, iris, ISO, gamma, gamut).

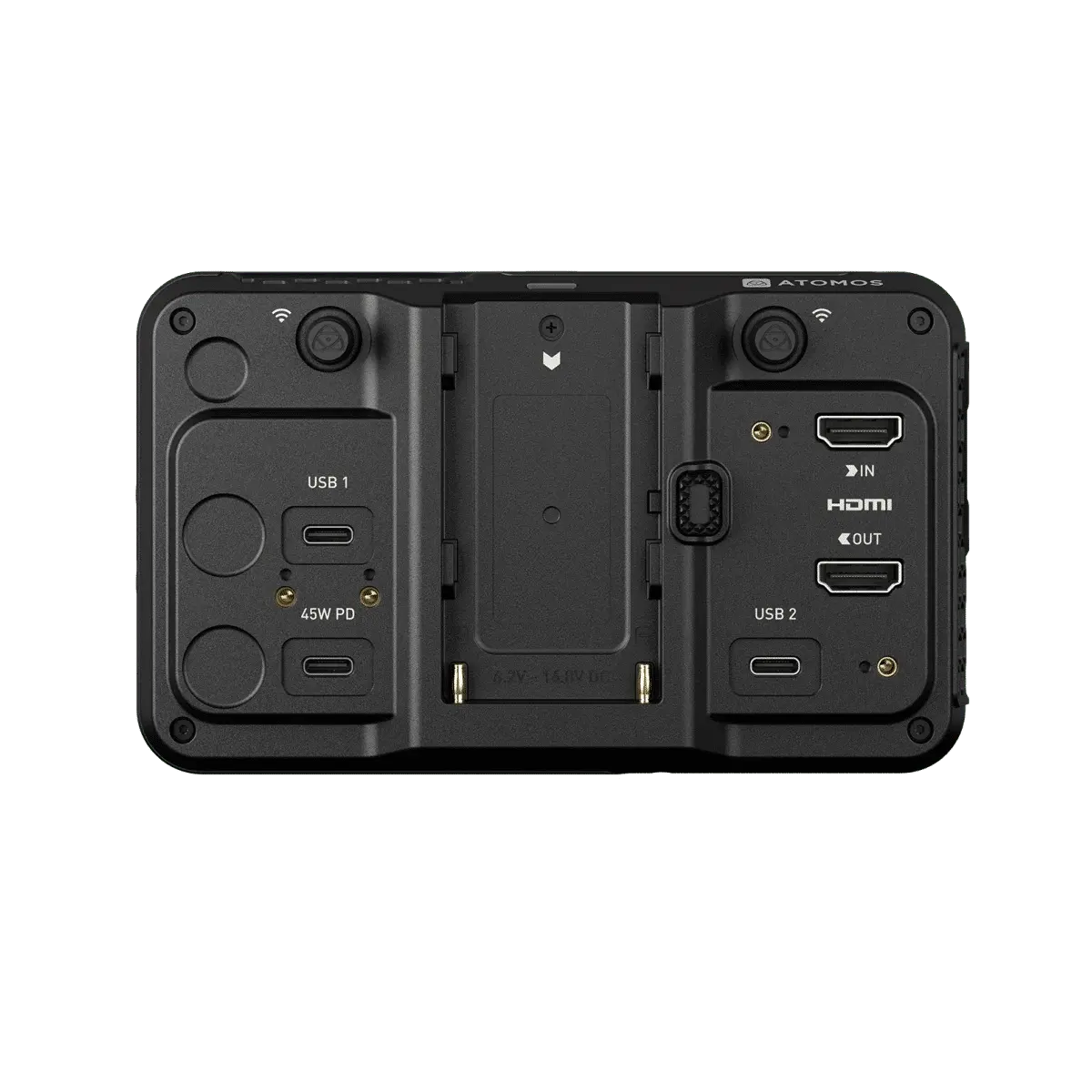

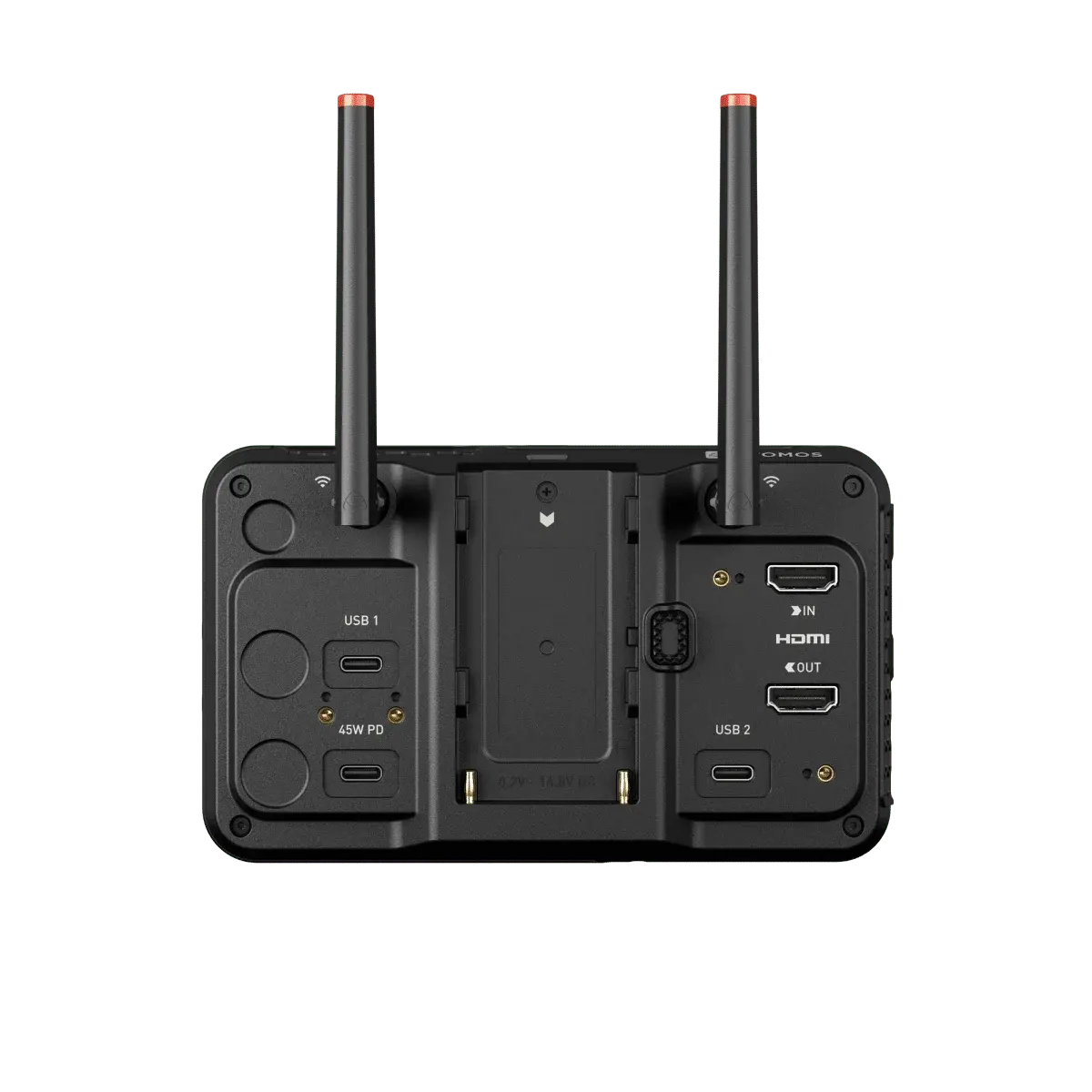

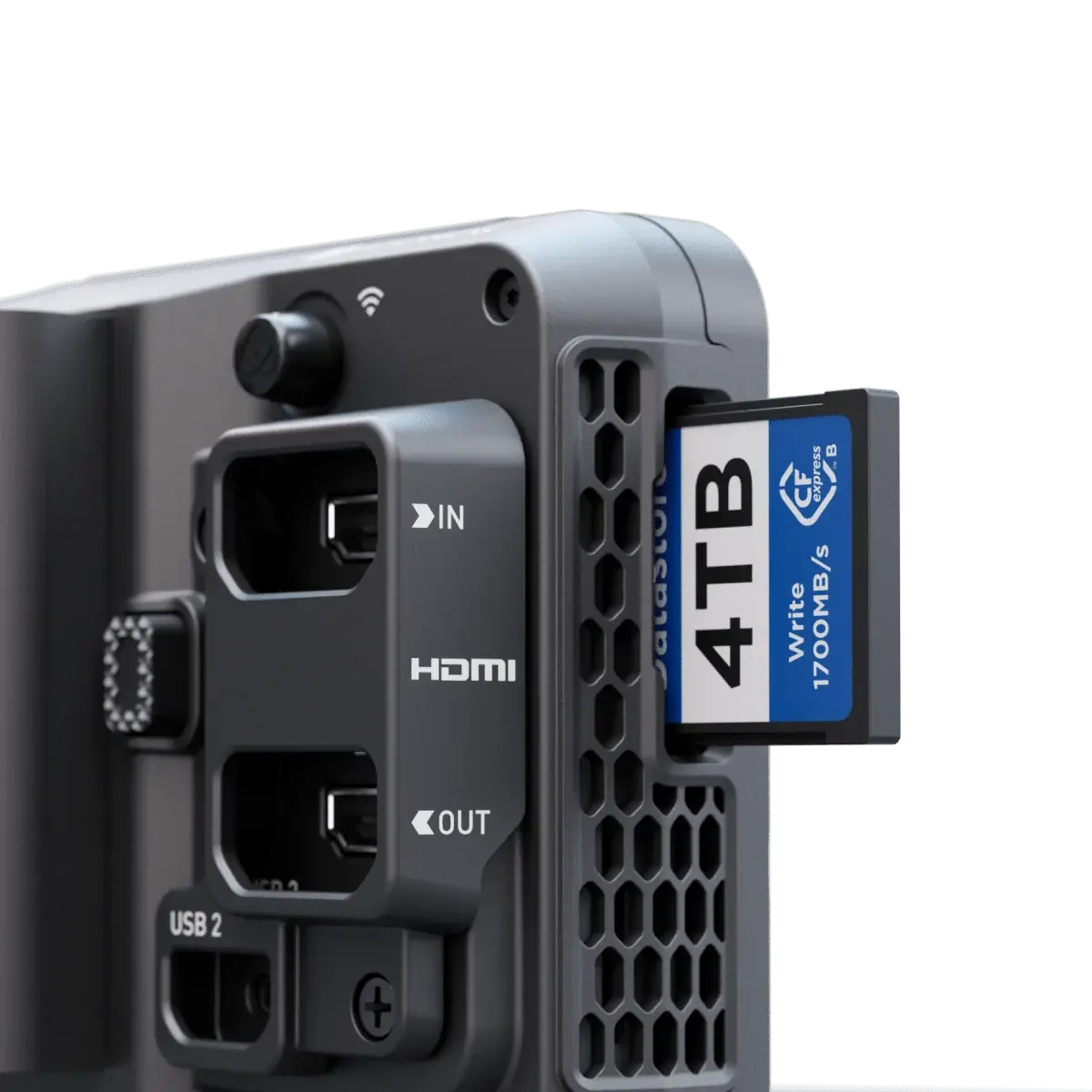

The device features a CFexpress slot, dual USB‑C ports, NP‑F battery support, 30W USB‑C PD power, and a rugged locking cable system for HDMI/USB‑C. A built‑in tally light provides clear recording/preview status for live production.
Category | Specification |
Dimensions | 151 mm × 92 mm × 36 mm |
Weight | 400 g |
Mount Points | 1× anti‑rotation 1/4‑inch / 3/8‑inch (top & bottom) |
Ambient Operating Temperature | Up to 40°C |
Body Material | Aluminium with ABS plastic |
Cooling System | Actively controlled fan + heat sink |
Input Voltage | 6.2V – 16.8V DC |
Operating Power | Up to 30W |
Multi‑Function Button | Power / Lock screen |
Continuous Power Options | NP‑F battery or USB‑C PD |
DC‑In Connector | Via Battery Eliminator (optional) |
D‑TAP Power | Up to 30W |
USB‑C PD Input | Requires 65W power supply |
USB‑C PD Output | Up to 13W |
Display Size | 5.2‑inch IPS touchscreen |
Display Resolution | 1920 × 1080 |
Backlight Type | Edge‑lit |
Brightness | 1500 nits |
Aspect Ratio | 16:9 |
Color Gamut | Rec.709 |
Calibration Support | Computer‑driven calibration |
Gamma Profiles | Sony SLog/SLog2/SLog3/HLG, Canon C‑Log/C‑Log2/C‑Log3, ARRI Log CEI160–1600, Panasonic V‑Log/HLG, JVC J‑Log, RED RedLogFilm/Log3G10/Log3G12, Fujifilm F‑Log, PQ (HDR10), HLG, Nikon N‑Log |
Gamut Profiles | BT.2020, DCI‑P3, DCI‑P3 D65, Rec.709, Sony S‑Gamut/S‑Gamut3/S‑Gamut3.cine, Canon Cinema DCI‑P3/DCI‑P3plus/Rec.709, Panasonic V‑Gamut, ARRI Alexa Wide Gamut, JVC LS300, RED DragonColor/DragonColor2/RedColor2/RedColor3/RedColor4/RedWideGamut |
3D LUT Display | .cube format |
3D LUT Downstream | Loop out |
3D LUT 50/50 Split | Yes |
Monitoring Modes | Native / HLG / PQ / 3D LUT |
HDR Output Conversion | Log/HDR → HLG/PQ |
HDMI Input | 1× HDMI 2.0 (up to 6Kp30) |
HDMI Input Locking Port | Optional |
Wi‑Fi (Input Section) | Wi‑Fi 6E (W52/W53 indoor bands) |
USB Ports (Input Section) | 2× USB‑C 2.0/3.0 |
Bit Depth (Input) | 8/10‑bit |
Chroma Subsampling (Input) | 4:2:2 |
HDMI Output | 1× HDMI 2.0 (up to 6Kp30) |
HDMI Output Locking Port | Optional |
Wi‑Fi (Output Section) | Wi‑Fi 6E |
USB Ports (Output Section) | 2× USB‑C 2.0/3.0 |
Bit Depth (Output) | 8/10‑bit |
Chroma Subsampling (Output) | 4:2:2 |
Metadata via HDMI | RAW: WB, EI, shutter angle, iris F‑stop, ISO, gamma, gamut |
Network Connectivity | Wi‑Fi 6E |
USB Connectivity | 2× USB‑C 2.0/3.0 |
Bluetooth | No |
LANC | Yes |
HDMI Audio | 8‑channel, 24‑bit |

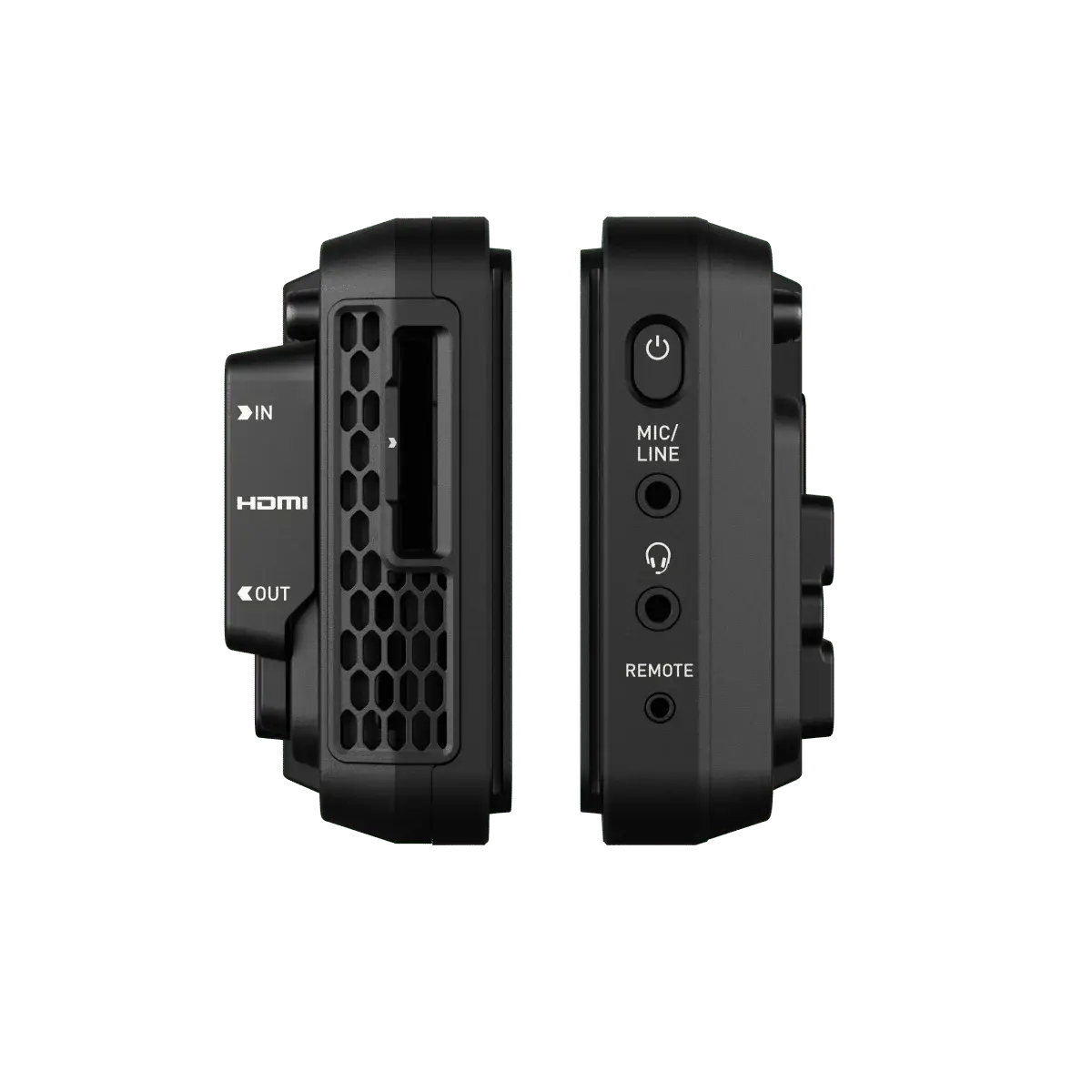

Analog Audio In | 3.5mm jack, 2‑channel |
Headphone Out | 3.5mm jack, 2‑channel |
Timecode | Embedded |
HDMI Time‑of‑Day | Yes |
Genlock Input | No |
LTC | No |
AirGlu RF/BT | No |
RAW Resolution Support | Up to 6Kp30 |
4K DCI Support | 23.98–60p |
4K UHD Support | 23.98–60p |
2K DCI Support | 2048 × 1080 |
1080p Support | 23.98–120p |
1080 PsF | Converted to P, looped out |
1080i Support | 50/59.94/60i |
720p Support | 50/59.94/60p |
CFexpress Media | Atomos‑certified Type B |
USB Media | Atomos‑certified USB 3.0 |
File System | ExFAT |
ProRes RAW Codecs | RAW, RAW HQ |
ProRes Codecs | LT, 422, 422 HQ |
Avid DNxHD | 220x, 220, 145, 36 |
Avid DNxHR | LB, SQ, HQ, HQX |
H.265 Codecs | LQ/MQ/HQ/XQ (8/10‑bit, 4:2:2 & 4:2:0) |
Playback Playlist | Yes |
Playback Loop | Yes (customizable in/out) |
Playback ProRes RAW | Yes |
Playback ProRes | Yes |
Playback DNx | Yes |
Playback H.265 | Yes |
Pre‑Roll Recording | ProRes, DNxHD only |
Timelapse Recording | Yes |
Simultaneous Proxy Record | Yes |
Waveform | 3 sizes, adjustable |
RGB Parade | 3 sizes, adjustable |
Vectorscope | 2 sizes, adjustable |
Zoom | 1:1 pixel mapping (4K), 2× zoom |
Focus Peaking | Color/threshold/mono/edges |

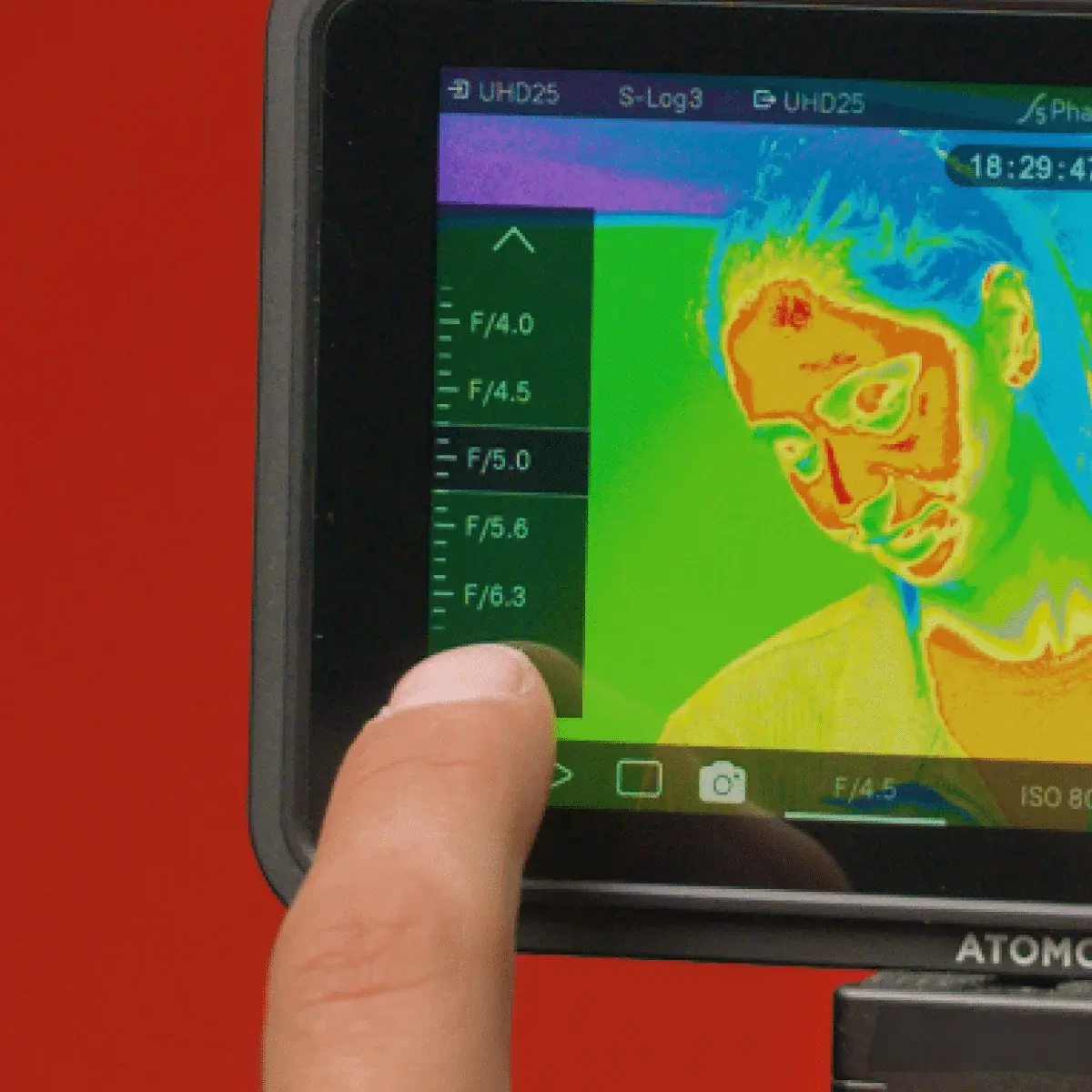

False Color | Atomos + ARRI |
EL Zone | Yes |
Zebra | Adjustable |
Isolate Color | Blue only |
Cine Frame Guides | 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
Social Frame Guides | 9:16, 1:1, 1.91:1, 4:5 |
Onion Skin | Yes |
Safe Areas | Action & graphic |
Grid Markers | 9‑grid |
Anamorphic De‑squeeze | 1.25×, 1.33×, 1.5×, 1.6×, 1.65×, 1.79×, 1.8×, 2× |
Display Flip | Vertical only |
Pulldown Removal | 24/25/30 PsF → P (2:2), 60i → 24p (3:2) |
4K → HD Downscale | Loop out |
DCI Crop | 17:9 → 16:9 loop out |
HDMI Remote Control | Auto trigger (Canon, Sony, Atomos) |
Serial 2.5mm | Calibration (optional cable) |

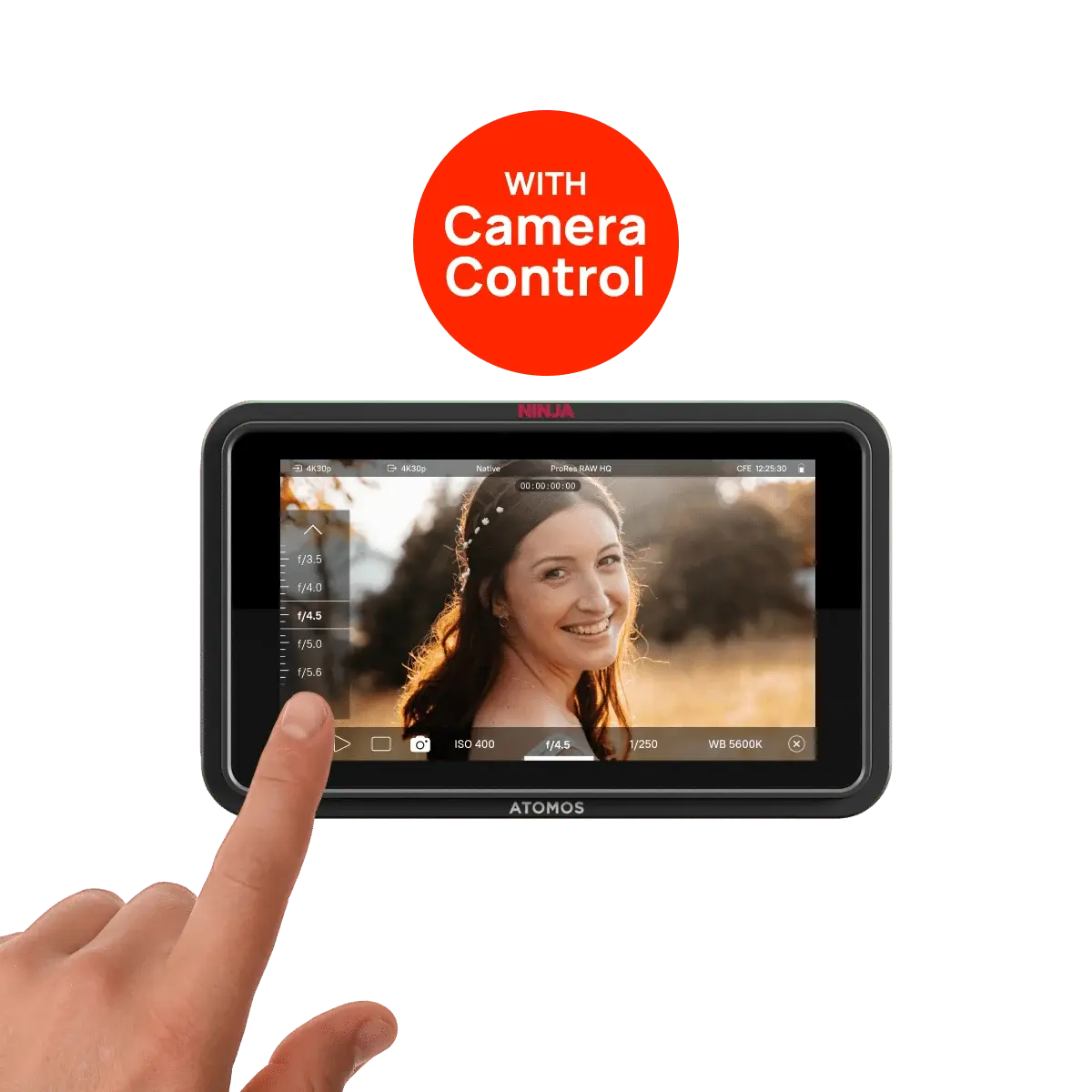

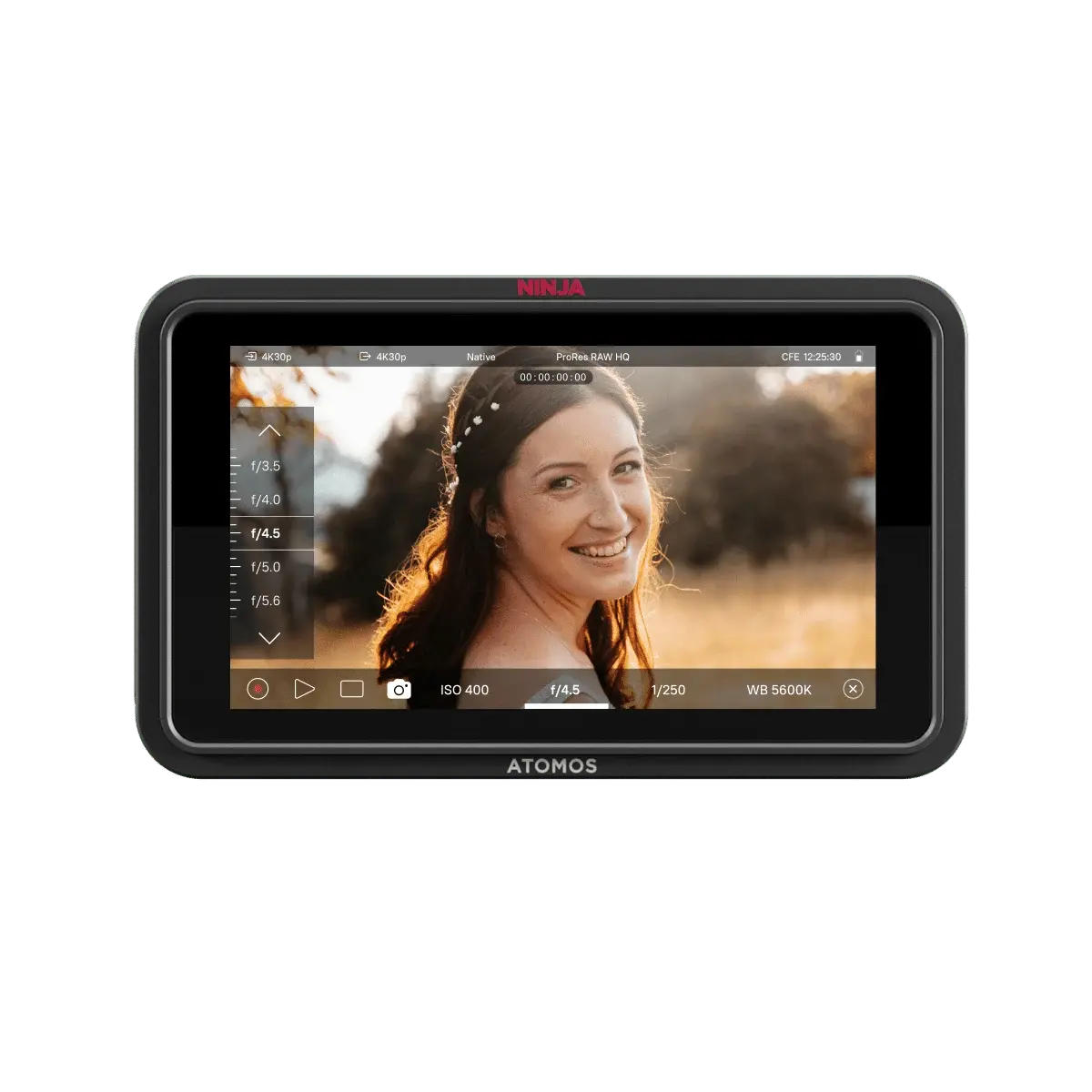

Camera Control (USB‑C) | Start/stop, ISO, shutter, aperture, WB, touch‑to‑focus |
Camera‑to‑Cloud (ATOMOSphere) | Direct progressive upload (20GB free) |
Frame.io Support | Direct upload (subscription required) |
Dropbox Support | Direct upload (subscription required) |
Included Accessories | Ninja TX GO, USB‑C locking adaptor, HDMI locking adaptor, 2× Wi‑Fi antennas, 5× antenna tips (black/white/yellow/green/red), 2× antenna caps, USB‑C locking cable (45cm), Quick Start Guide |
Box Dimensions | 190 mm × 130 mm × 75 mm |
Box Weight | 665 g |
