Key Features

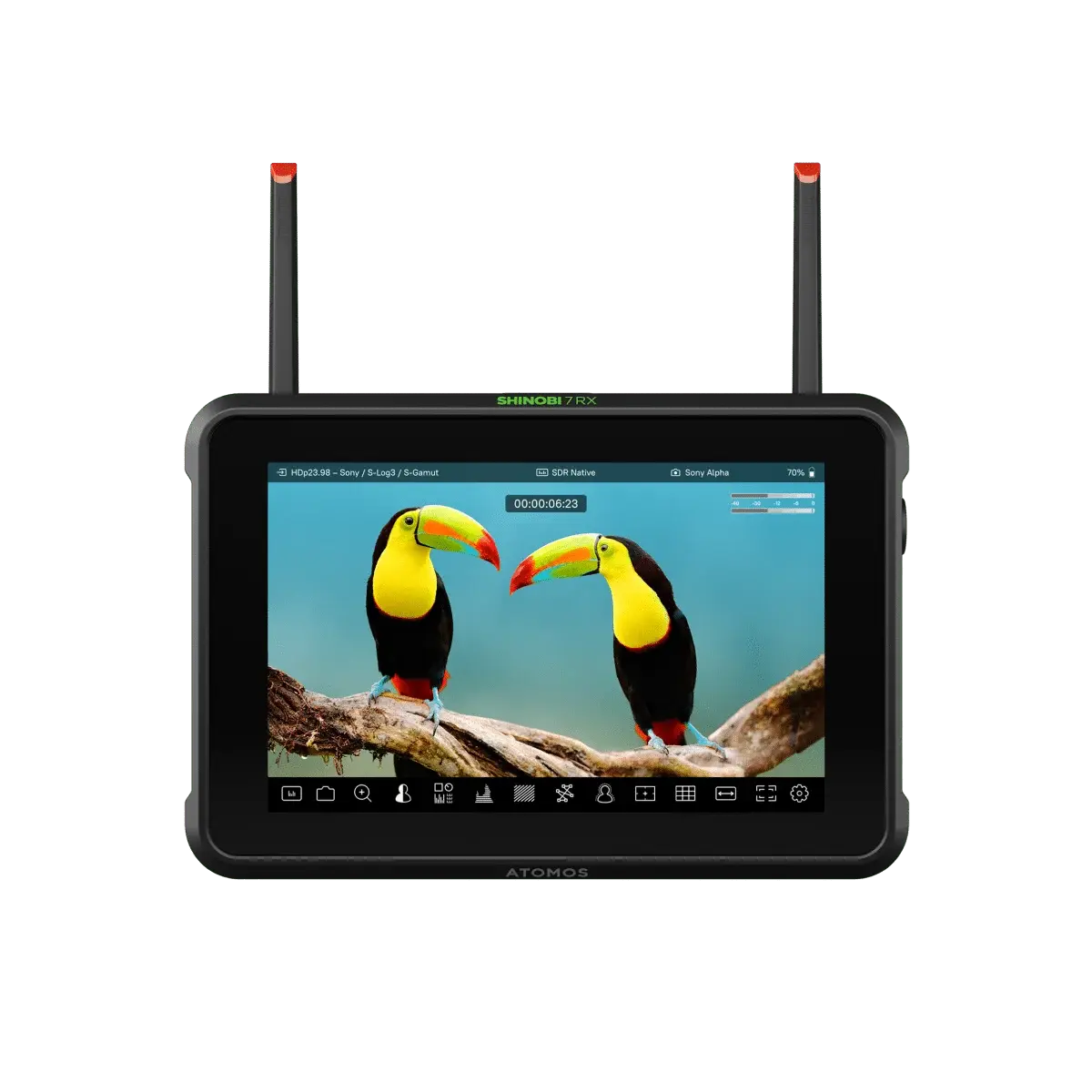

The Atomos Shinobi 7 RX is a bright, full‑featured 7-inch HDR monitor with built‑in wireless video receiving, delivering a powerful cable‑free monitoring solution for directors, ACs, clients, and camera operators. It receives up to 4Kp30 or 1080p60 video over 5GHz Wi‑Fi when paired with the Atomos TX transmitter, or via RTSP H.264 streaming—making it ideal for on‑set monitoring, preview displays, and remote viewing.
Powered by AtomOS 11, the Shinobi 7 RX includes advanced monitoring tools such as waveform, histogram, vectorscope, EL Zone, ARRI false color, frame guides, anamorphic de‑squeeze, and custom 3D LUT support. Its unique Analysis Mode displays multiple scopes at once for fast, accurate exposure and signal evaluation.

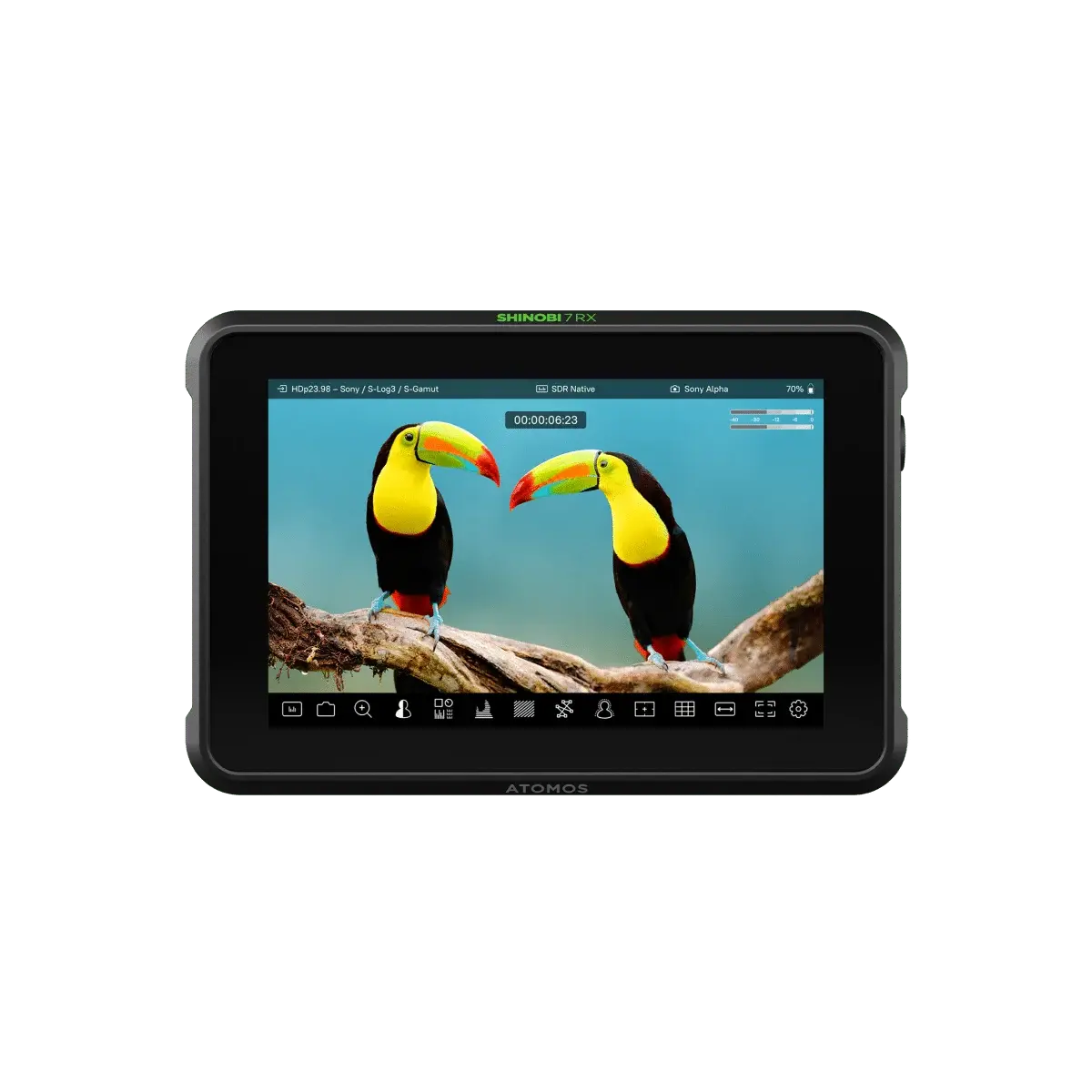

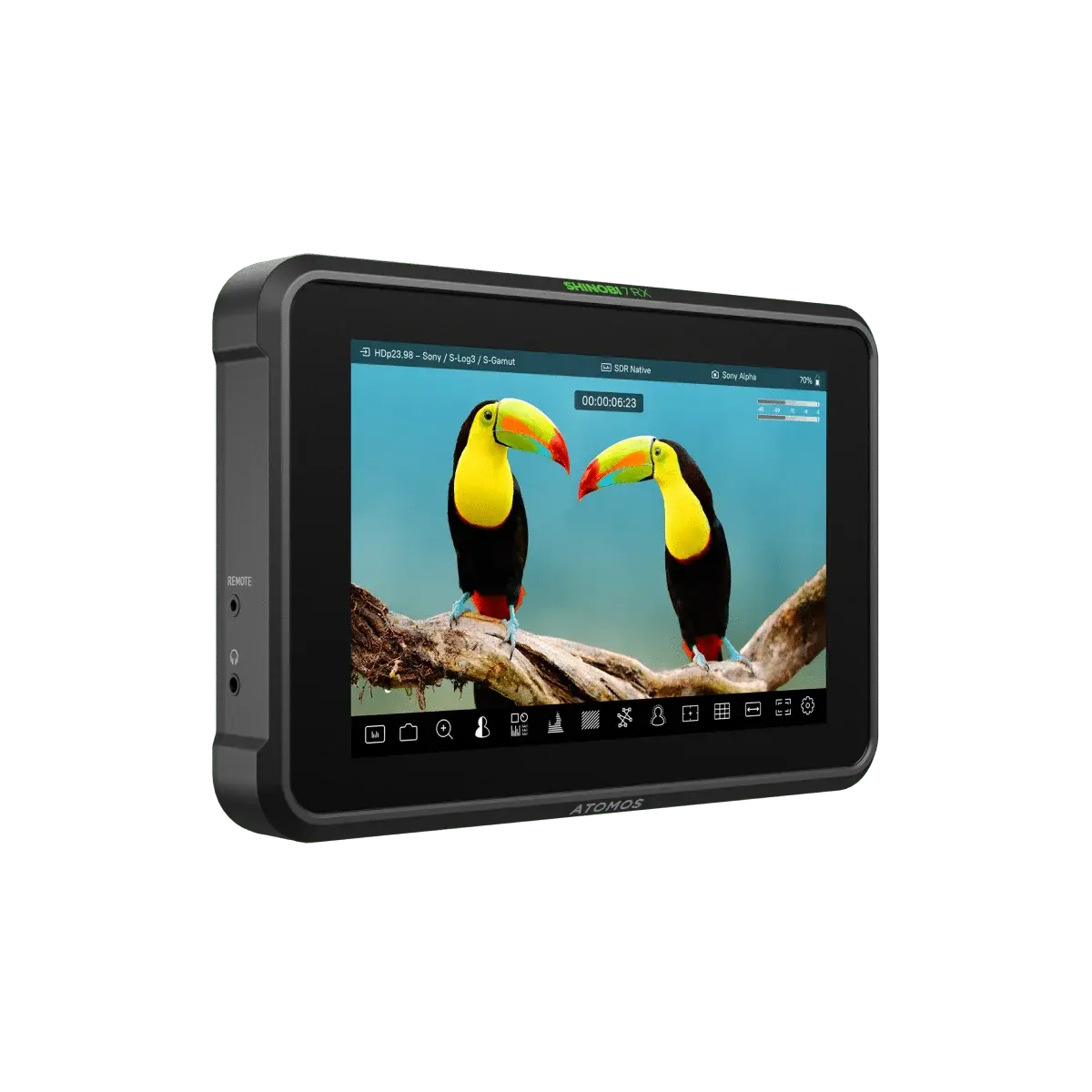

The 7-inch 1920×1200 touchscreen delivers 2200‑nit brightness, ensuring clear visibility indoors, outdoors, and in direct sunlight. It supports Rec.709, PQ, and HLG HDR monitoring for precise Log workflows.
Camera control is available via USB‑C for Canon, Fujifilm, Nikon, Panasonic, and Sony cameras, with Z CAM supported through an optional USB‑C to serial cable. Touch‑to‑Focus is supported on compatible cameras, enabling focus point selection directly on the monitor.

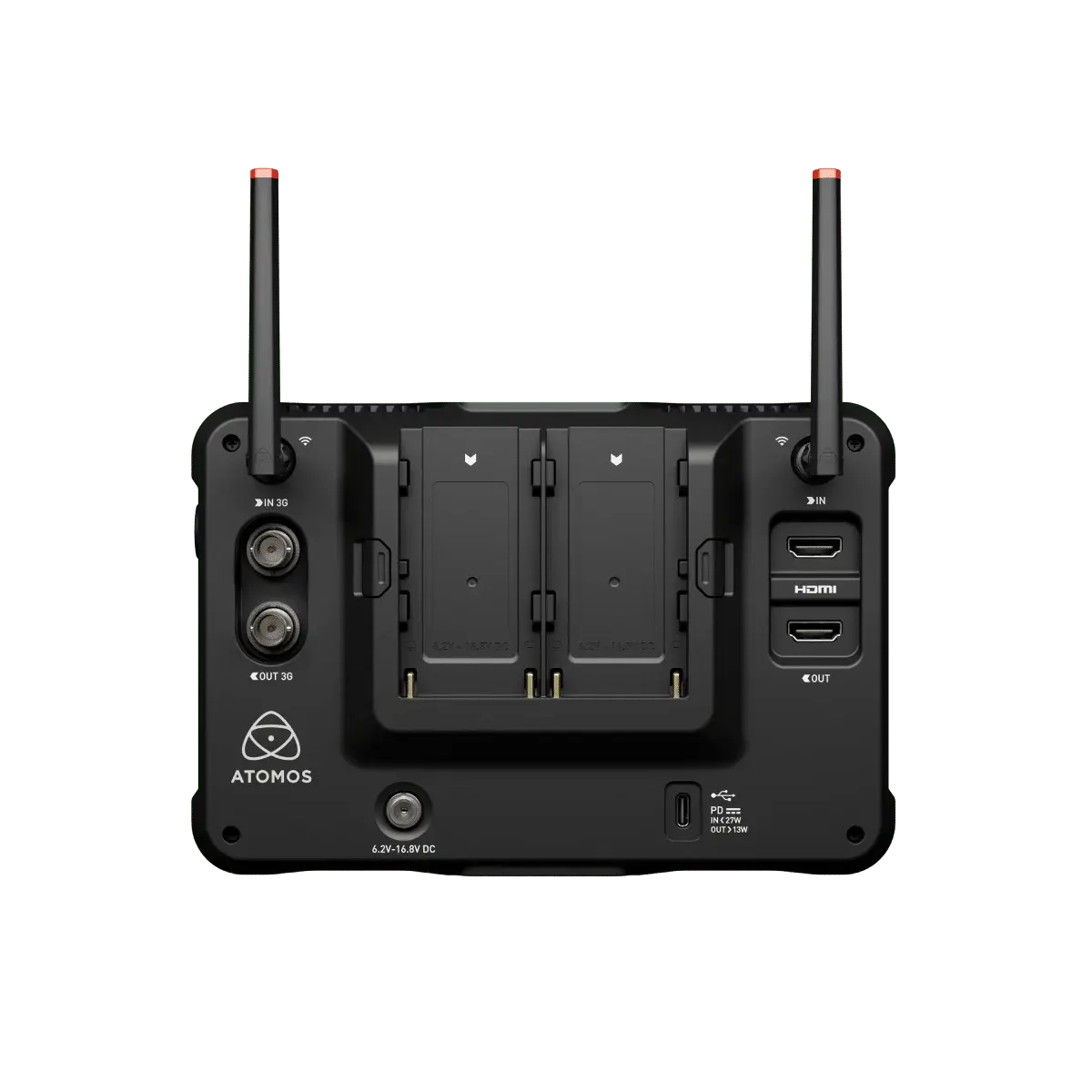

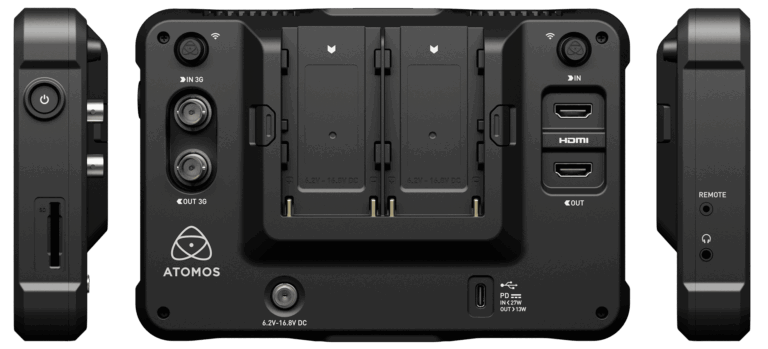

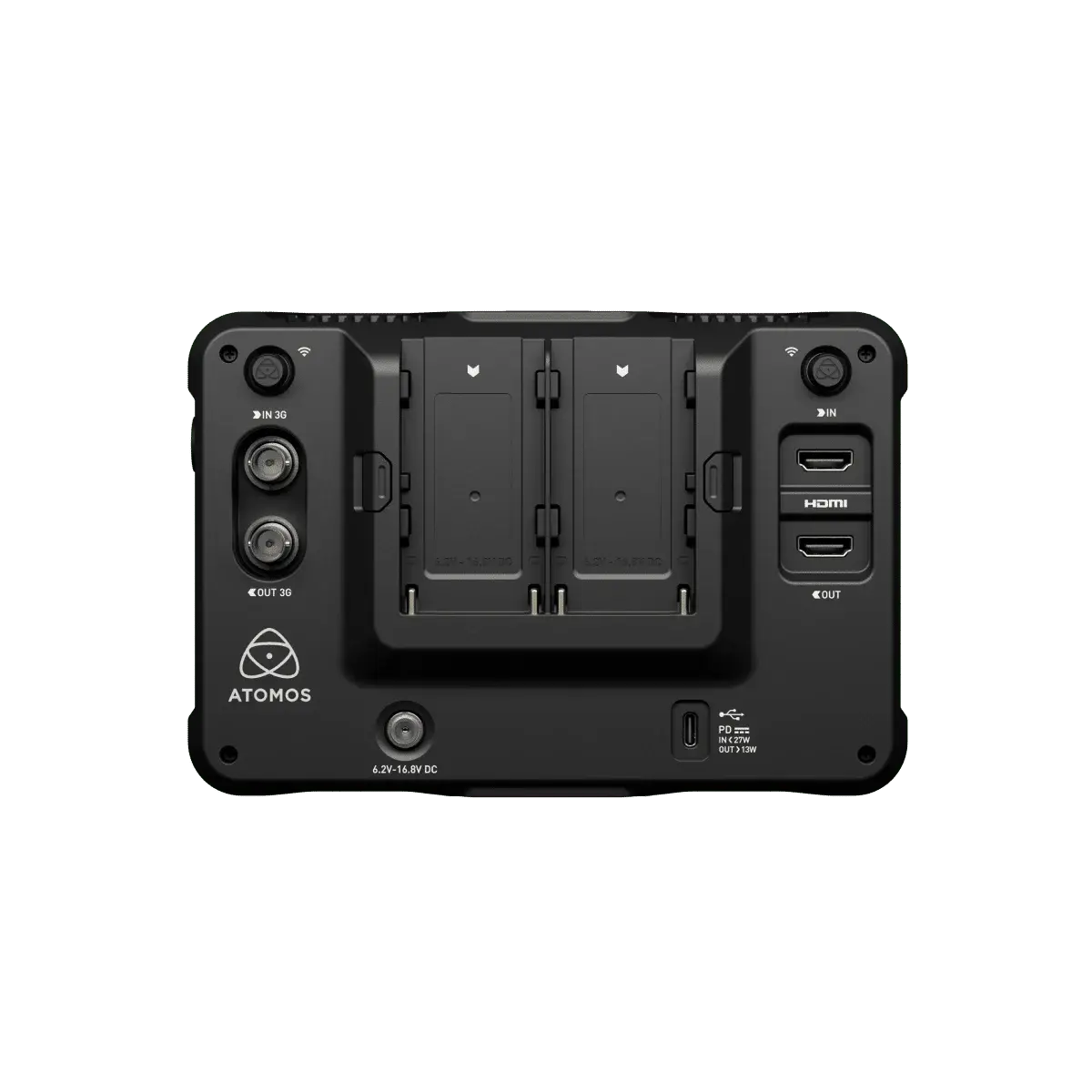

Built for production environments, the Shinobi 7 RX features a rugged yet lightweight design with dual NP‑F battery slots for hot‑swappable power, plus HDMI input/output for conventional wired monitoring. Whether handheld, rig‑mounted, or used as a director’s monitor, it provides a flexible, reliable solution for any workflow.
Category | Specification |
Dimensions (W × H × D) | 198 mm × 133 mm × 39 mm |
Weight | 580 g (excluding batteries & antennas) |
Mounting Points | 1× anti‑rotation 1/4‑inch (top & bottom) |
Ambient Operating Temperature | Up to 40°C |
Body Material | ABS polycarbonate |
Cooling System | Heat sink + actively controlled fan |
Input Voltage | 6.2V – 16.8V |
Operating Power | 26W |
Multi‑Function Button | Power / Lock screen |
Continuous Power | NP‑F battery or USB‑C PD |
DC‑In Connector | Via Battery Eliminator (optional) |
USB‑C PD Input | 45W capable (requires PD power supply) |
USB‑C PD Output | Up to 13W |
Display Size | 7‑inch HDR screen (calibrated 2200 nits) |
Display Resolution | 1920 × 1200 |
Backlight Type | Edge‑lit |
Brightness | 2200 nits |
Panel Ratio | 16:10 |
Color Gamut | Rec.709 |
Calibration Support | On‑device or computer‑driven calibration |
Gamma Profiles | Sony S‑Log/S‑Log2/S‑Log3/HLG, Canon C‑Log/C‑Log2/C‑Log3, ARRI Log CEI160–1600, Panasonic V‑Log/HLG, JVC J‑Log, RED RedLogFilm/Log3G10/Log3G12, Fujifilm F‑Log/F‑Log2, Nikon N‑Log/HLG, Olympus OM‑LOG400/FLAT, OM‑System OM‑LOG400/FLAT, Leica L‑LOG |
Gamut Profiles | BT.2020, DCI‑P3, DCI‑P3 D65, Rec.709, Sony S‑Gamut/S‑Gamut3/S‑Gamut3.cine, Canon Cinema DCI‑P3/DCI‑P3+/Rec.709, Panasonic V‑Gamut, ARRI Alexa Wide Gamut, JVC LS300, RED DragonColor/DragonColor2/RedColor2/RedColor3/RedColor4/RedWideGamut |
3D LUT Display | .cube format (17 & 33‑point LUTs) |
3D LUT Downstream | Loop out |
3D LUT 50/50 Split | Yes |
Monitoring Modes | SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT |
HDMI Input | 1× HDMI 2.0 |
SDI Input | Up to 1080p60 |
Wi‑Fi (Input) | Wi‑Fi 6 |
USB (Input) | 1× USB‑C 2.0/3.0 |
Input Bit Depth | 8/10‑bit |
Chroma Subsampling (Input) | 4:2:2 |
HDMI Output | 1× HDMI 2.0 |
SDI Output | 1× 3G‑SDI |
Wi‑Fi (Output) | Wi‑Fi 6 |
USB (Output) | 2× USB‑C 2.0/3.0 |
Output Bit Depth | 8/10‑bit |
Chroma Subsampling (Output) | 4:2:2 |
Metadata (HDMI) | N/A |
Network Connectivity | Wi‑Fi 6 |
LANC | Yes |
HDMI Audio | 2‑channel, 24‑bit |
SDI Audio | 8‑channel, 24‑bit |
Headphone Out | 3.5mm jack, 2‑channel |
Timecode | Embedded |
HDMI Time‑of‑Day | Display only |
Genlock Input | No |
LTC | No |
4K DCI Support | 23.98/24/25/29.9/30/50/59.94/60p |
4K UHD Support | 23.98/24/25/29.9/30/50/59.94/60p |
2K DCI Support | Yes (2048 × 1080) |
1080p Support | 23.98–120p |
1080 PsF | Converted to P, looped out |
1080i Support | 50/59.94/60i |
720p Support | 50/59.94/60p |
Supported Media | SD card (firmware & LUTs) |
File System | FAT32, NTFS |
MultiScope Analysis | Image, WFM, vector, histogram |
Waveform | 3 sizes, adjustable |
Histogram | 1 size, adjustable |
RGB Parade | 3 sizes, adjustable |
Vectorscope | 2 sizes, adjustable |
Zoom Levels | 1× (1:1 pixel), 2×, 4× |
Focus Peaking | 4 modes (color, B&W, outline, edge sharpening) |
False Color | Atomos + ARRI |
Zebra | Adjustable (50%–105%) |
Isolate Color Channel | Blue only |
Cine Frame Guides | 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
Social Frame Guides | 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
Safe Areas | SMPTE 93% & 90% |
Grid Markers | 9‑grid |
Anamorphic Desqueeze | 2×, 1.8×, 1.79×, 1.65×, 1.6×, 1.5×, 1.33×, 1.25× |
Display Flip | Horizontal & Vertical |
External Device Control (USB‑C) | Record trigger, WB, shutter speed/angle, aperture, ISO, overlays, record indicator, touch‑to‑focus; supports external calibrators |
External Device Control (2.5mm Serial) | Calibration via optional USB → Serial cable |
