Key Features

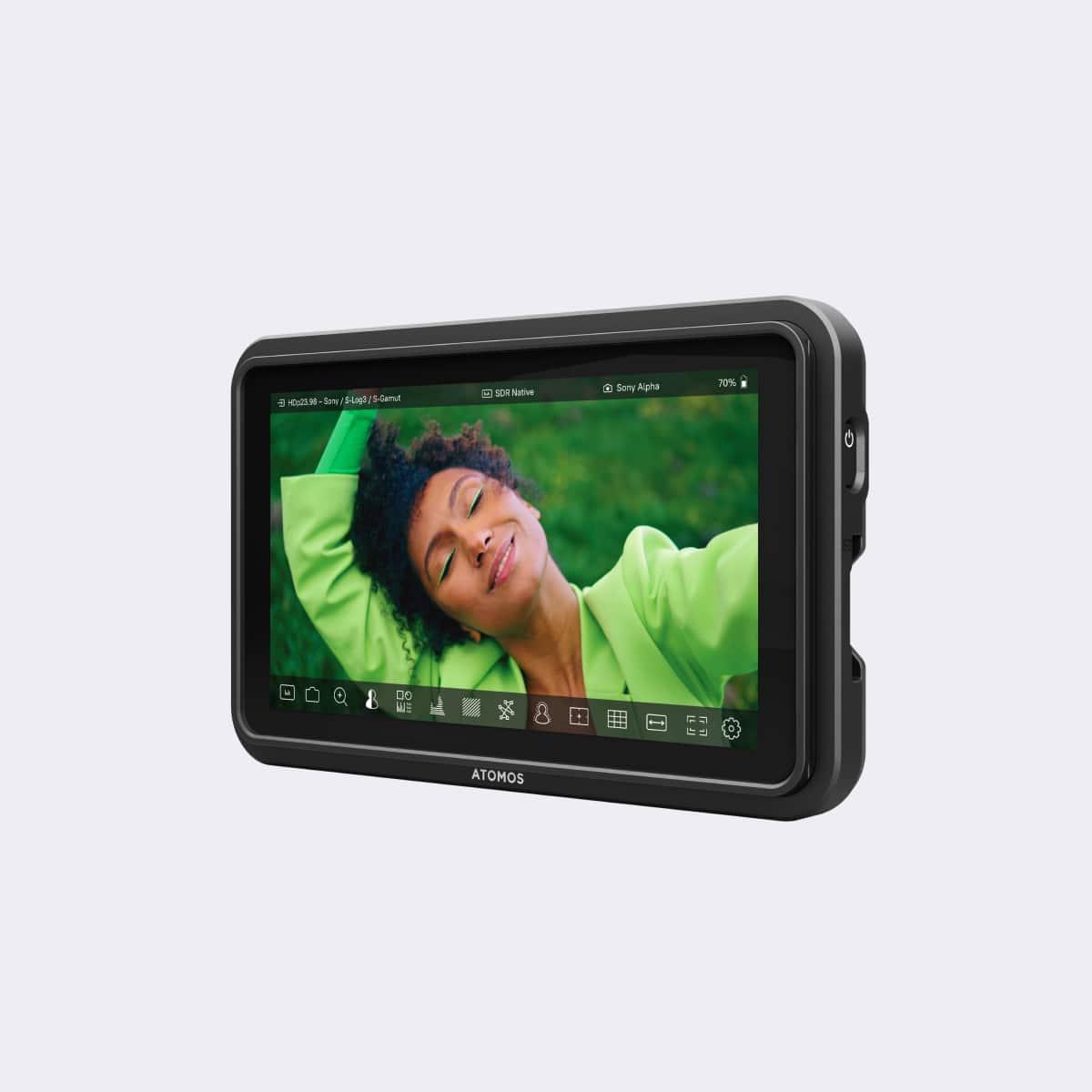

The Atomos Shinobi II is a brighter, slimmer, and more advanced 5″ HDMI HDR monitor designed for vloggers, photographers, and content creators. It features a 1920×1080 IPS touchscreen, 1500‑nit brightness, improved ergonomics, and highly efficient power consumption that enables full‑day operation from a single NP‑F battery.

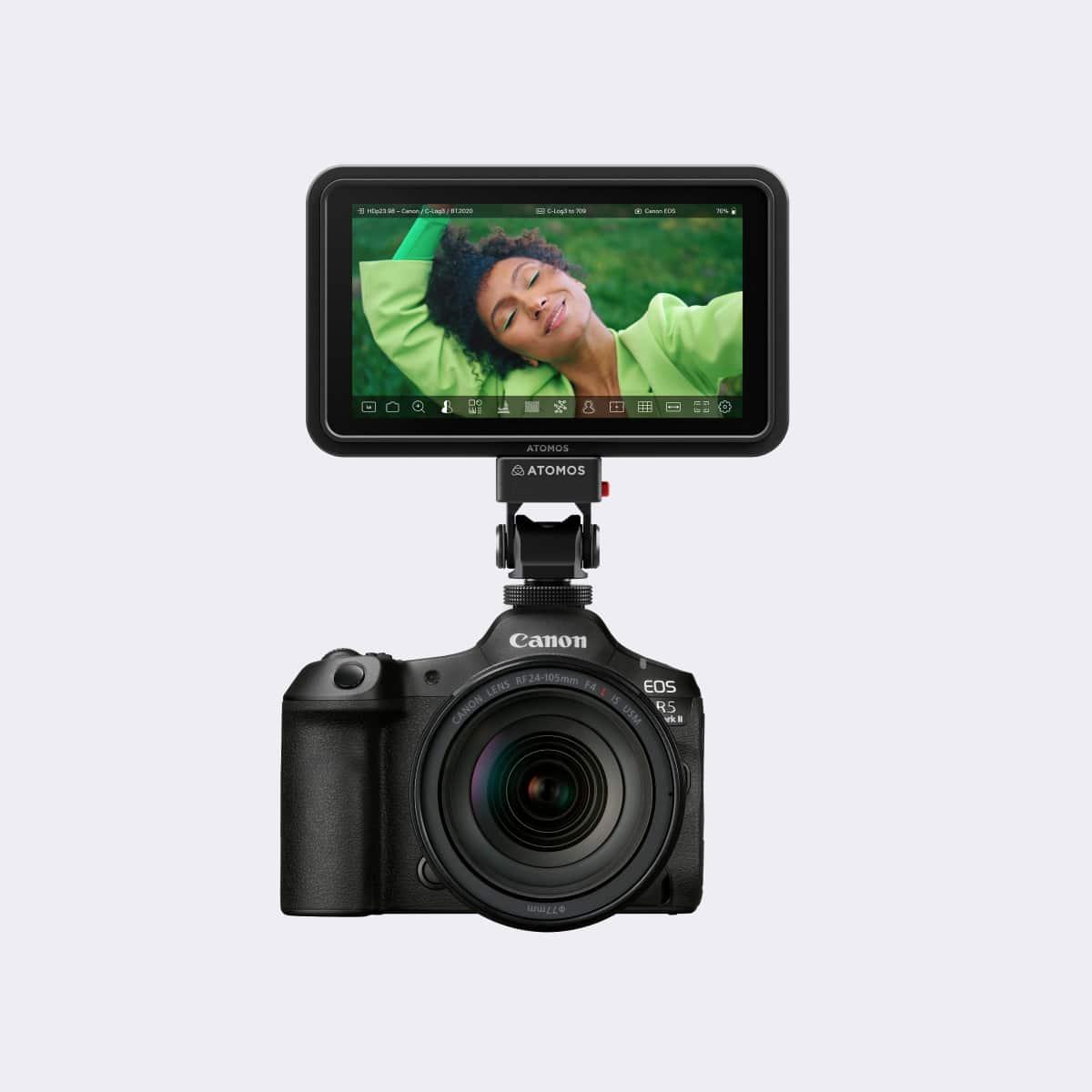

Shinobi II introduces USB‑C camera control with status indicators for Canon, Panasonic, Sony, and Z CAM cameras, with future firmware expanding support to FUJIFILM, Nikon, OM System, and Sigma. Powered by the redesigned AtomOS 11, it offers a cleaner interface, faster operation, and advanced monitoring tools including false color (Atomos, ARRI, EL Zone), waveforms, zebras, histograms, and frame guides for cinematic and social media formats.

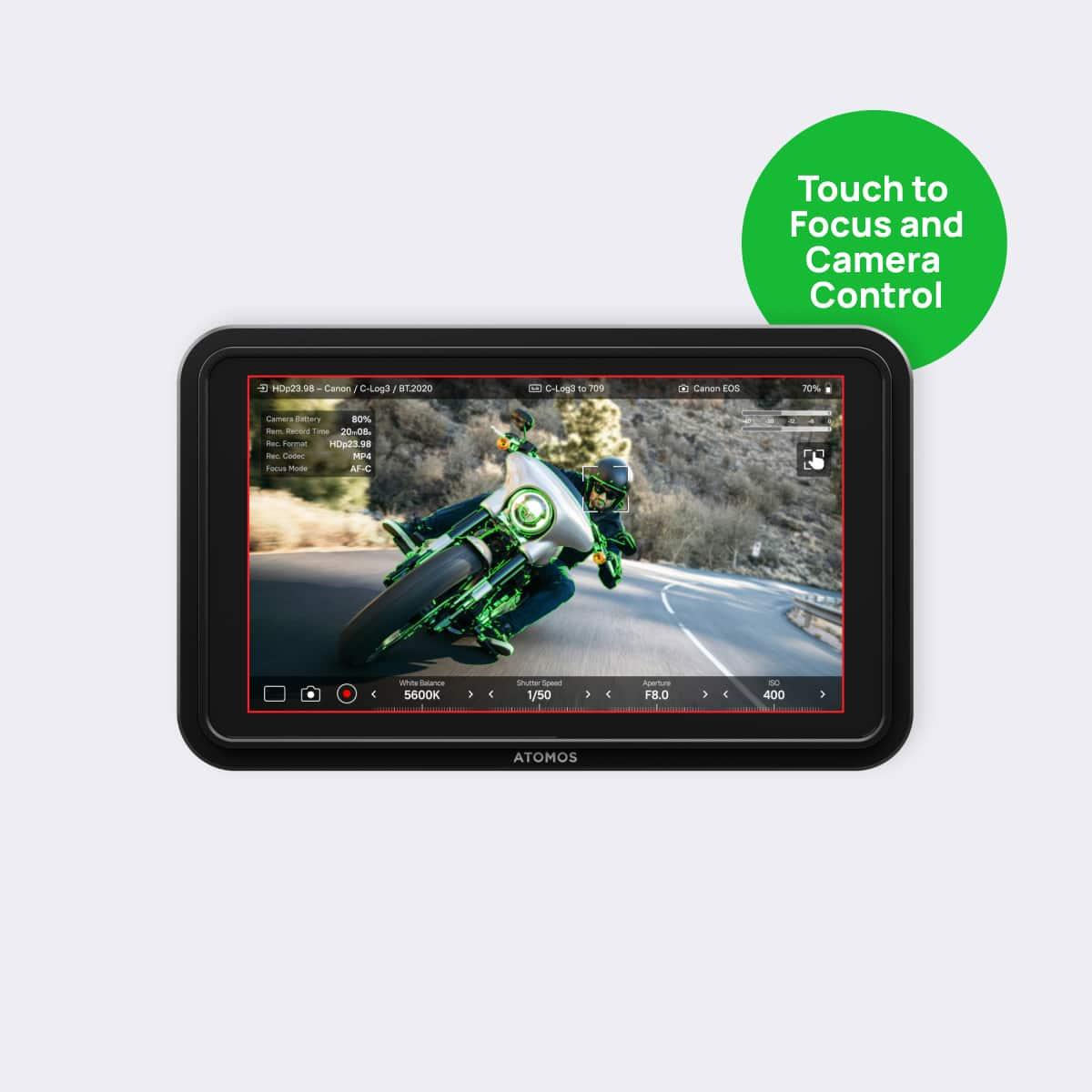

With Touch‑to‑Focus, supported cameras allow focus point selection directly on the Shinobi II screen. A new shutter release function enables photo capture from the monitor—ideal for HDR bracketing, focus stacking, and multi‑exposure workflows. Camera status indicators provide real‑time feedback on recording formats, battery life, and internal recording activity.
The HDMI 1.4 input supports DCI/UHD 4K up to 30 fps and 1080p up to 60 fps. HDR preview modes (HLG/PQ) and up to eight custom LUTs allow precise monitoring of Log footage. The lightweight 7.4‑oz design includes anti‑twist mounting points, a central battery plate, and a locking HDMI/USB‑C adapter for secure cable management.

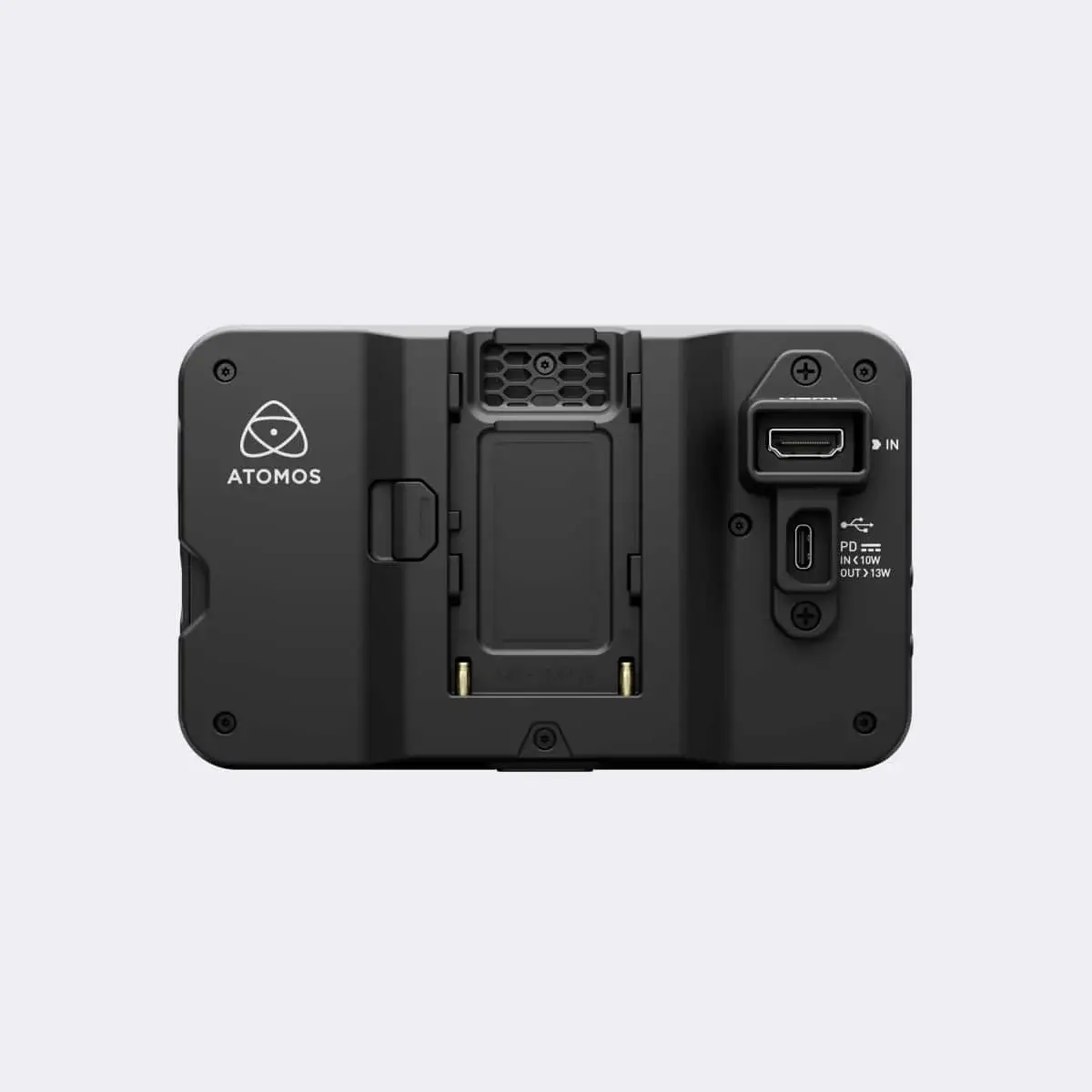

Power options include NP‑F batteries, DC input via dummy battery, and USB‑C PD (10W). The monitor can also output 13W USB‑C PD to power compatible cameras while maintaining camera control.
Category | Specification |
Dimensions (W × H × D) | 151 mm × 91.5 mm × 20.8 mm (28.5 mm with locking cable adaptor attached) |
Weight | 210 g / 7.4 oz |
Mounting Points | Bottom: 1× 1/4‑20 with anti‑rotation points |
Ambient Operating Temperature | Up to 40°C |
Body Material | ABS Polycarbonate Plastic |
Cooling System | Passive heat sink |
Multi‑Function Button | Power / Lock Screen |
Touch Screen | Capacitive touch |
Input Voltage | 6.2V – 16.8V |
Compatible Batteries | NP‑F / L‑Series |
Built‑in Battery | No |
Continuous Power | NP‑F battery or USB‑C PD |
DC‑In Connector | Via Battery Eliminator (sold separately) |
D‑Tap Power | Via Battery Eliminator or D‑Tap → DC‑Barrel cable |
Display Panel | SuperAtom IPS (capacitive touch) |
Display Size | 5.2‑inch |
Resolution | 1920 × 1080 |
Viewing Angle | 178° H/V |
PPI | 427 |
Bit Depth | 10‑bit (8+2 FRC) |
Backlight Type | Edge‑lit |
Brightness | 1500 nits |
Aspect Ratio | 16:9 |
Color Gamut | Rec.709 |
Calibration Support | On‑device or computer‑driven calibration |
Gamma Profiles | Sony S‑Log/S‑Log2/S‑Log3, Canon C‑Log/C‑Log2/C‑Log3, Panasonic V‑Log, ARRI LogCEI160–1600/LogC4, JVC J‑Log1, RED Log3G12/LogFilm/PQ10K/Log3G10, Fujifilm F‑Log/F‑Log2, Nikon N‑Log/HLG, Olympus OM‑LOG400/FLAT, OM‑System OM‑LOG400/FLAT, Leica L‑LOG |
Gamut Profiles | BT.2020, DCI‑P3, DCI‑P3 65, Sony SGamut/SGamut3/SGamut3.cine, Canon Cinema/DCI‑P3/DCI‑P3+/BT.2020, Panasonic V‑Gamut, ARRI Alexa Wide Gamut, Rec.709, JVC LS300, RED DragonColor/DragonColor2/REDColor2/REDColor3/REDColor4/REDWideGamut |
3D LUT Display | .cube format (17‑ & 33‑point LUTs) |
3D LUT 50/50 Split | Yes |
Monitoring Modes | SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT |
Display Controls | Backlight, Lift, Gamma, Gain |
AtomHDR | Technical Log → HDR EOTF |
3D LUT Loading | Load .cube files from SD card into 8 LUT slots |
HDMI Input | 1× HDMI 1.4 |
Input Bit Depth | 8 / 10‑bit |
Chroma Subsampling | YCbCr 4:2:0 & 4:2:2 |
Audio (HDMI Embedded) | 2‑channel, 24‑bit |
Headphone Out | 3.5mm jack, 2‑channel |
4K DCI Monitoring | 23.98/24/25/29.97/30p |
4K UHD Monitoring | 23.98/24/25/29.97/30p |
1080p Monitoring | 23.98/24/25/29.97/30/50/59.94/60p |
1080i Monitoring | 50i / 60i |
720p Monitoring | 50/59.94/60p |
Supported Media | SD card (firmware updates & LUT uploads) |
File System | FAT32, NTFS |
MultiScope Analysis | Image, waveform, histogram, vectorscope |
Waveform | 3 sizes, adjustable opacity & brightness |
Histogram | 3 sizes, adjustable opacity & brightness |
RGB Parade | 3 sizes, adjustable opacity & brightness |
Vectorscope | 1 size, adjustable opacity & brightness |
Zoom Levels | 1×, 2×, 4× (tap to zoom) |
Focus Peaking | 4 modes: color, B&W, outline, edge sharpening (adjustable color & intensity) |
Colorized Exposure | Atomos False Color, ARRI False Color, EL Zone System™ |
Zebra | Adjustable (50%–105%) |
Isolate Color Channel | Blue only |
Cine Frame Guides | 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
Social Frame Guides | 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
Safe Areas | SMPTE 93% & 90% |
Grid Markers | 9‑grid |
Anamorphic Desqueeze | 2×, 1.8×, 1.79×, 1.65×, 1.6×, 1.5×, 1.33×, 1.25× |
Display Flip | Horizontal & Vertical |
External Device Control (USB‑C) | Record trigger, WB, shutter speed, shutter angle, aperture, ISO, overlays, record indicator |
External Device Control (2.5mm Serial) | Camera control for Z CAM (via optional USB → Serial cable) |
