Key Features
Slim, Lightweight, Low-Profile Design
Budget, low-cost monitoring solution
5.2″ 1920 x 1080 Capacitive Touchscreen
USB PD Power
High 1500 cd/m² Brightness
4K HDMI Input, HDR/HLG/PQ Support
AtomHDR Mode with 10-Stop Dynamic Range
USB Calibration Support
Single Sony L-Series Battery Slot

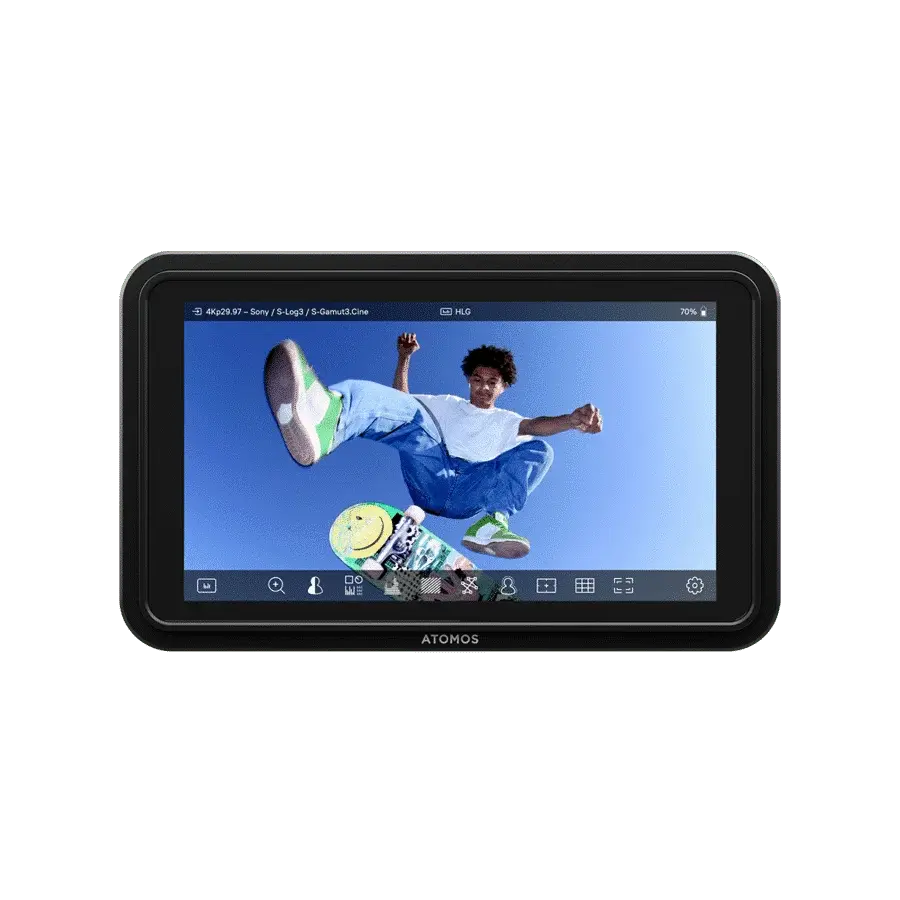

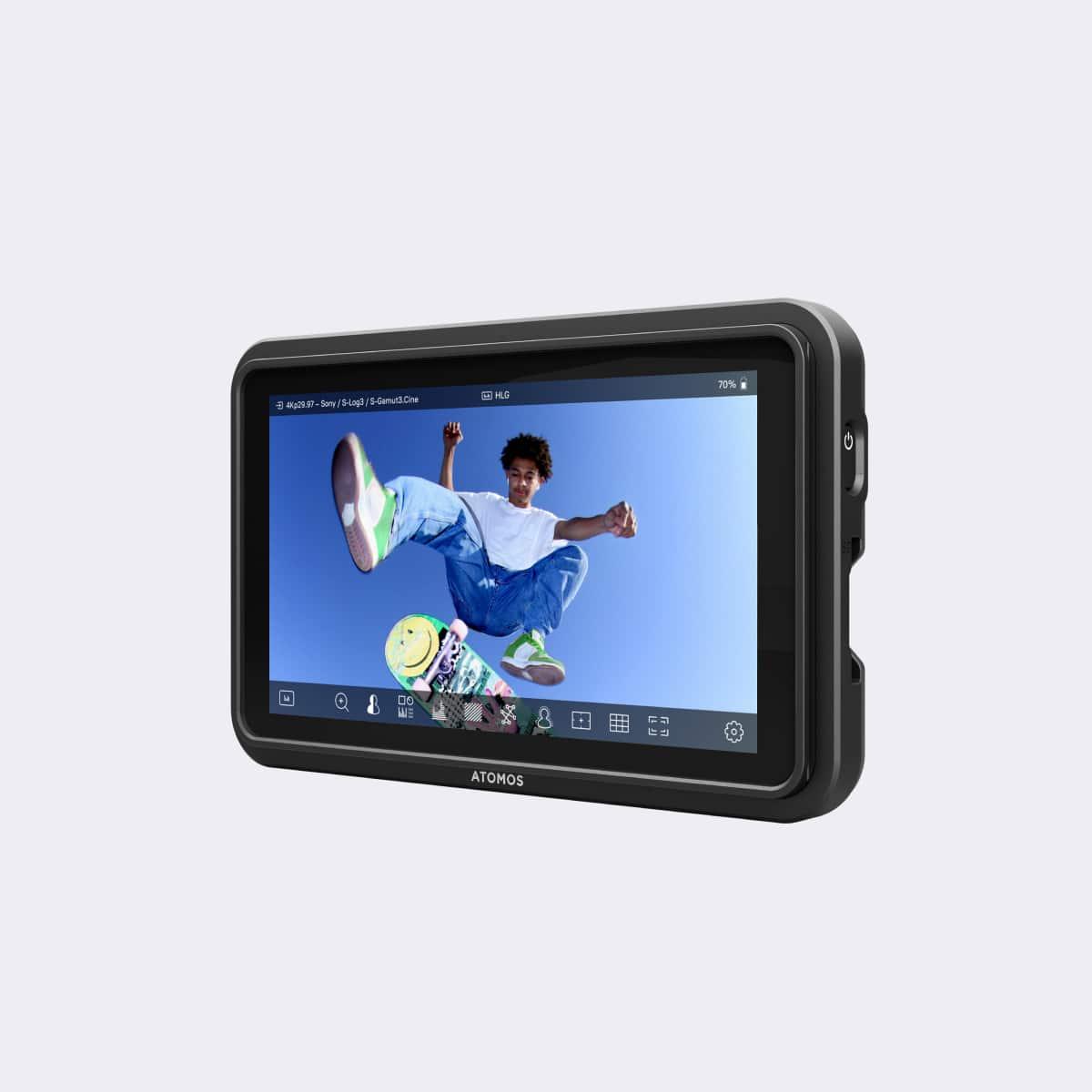

The Atomos Shinobi GO is a bright, lightweight, and cost‑effective 5.2″ HDR touchscreen monitor designed for video creators. It features a 1920×1080 IPS display, 1500‑nit brightness, edge‑lit backlighting, and full 3D LUT support for accurate monitoring in both photo and video workflows. Its HDMI 1.4 input supports up to UHD 4K30 and 1080p60, with a complete suite of built‑in exposure and focus tools.
Powered by the latest AtomOS, Shinobi GO includes professional monitoring features such as waveform, false color, zebras, histograms, and advanced frame guides for cinematic and social media aspect ratios. The monitor supports Log, PQ, and HLG HDR preview, offering over 10 stops of dynamic range and custom LUT loading for precise color evaluation.

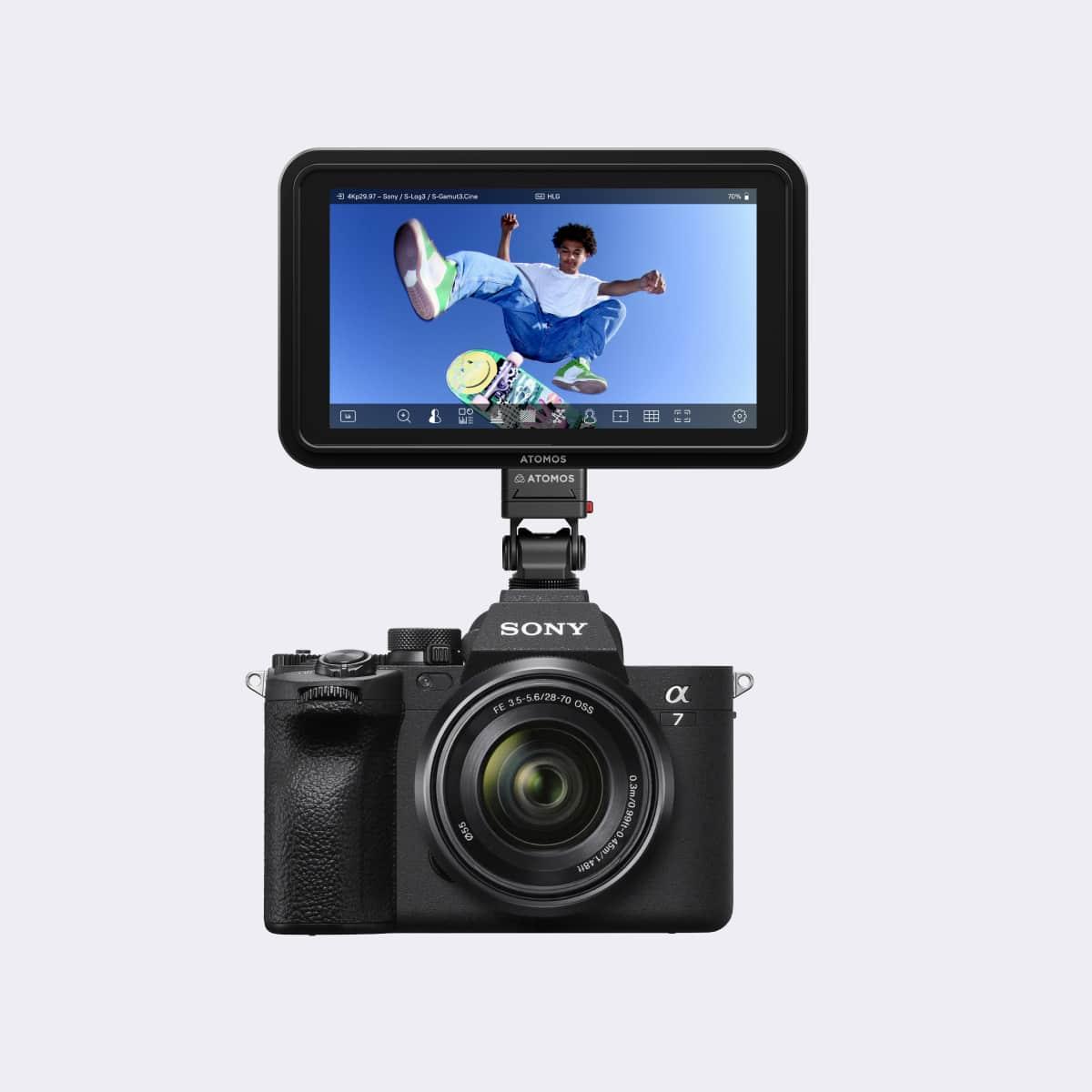

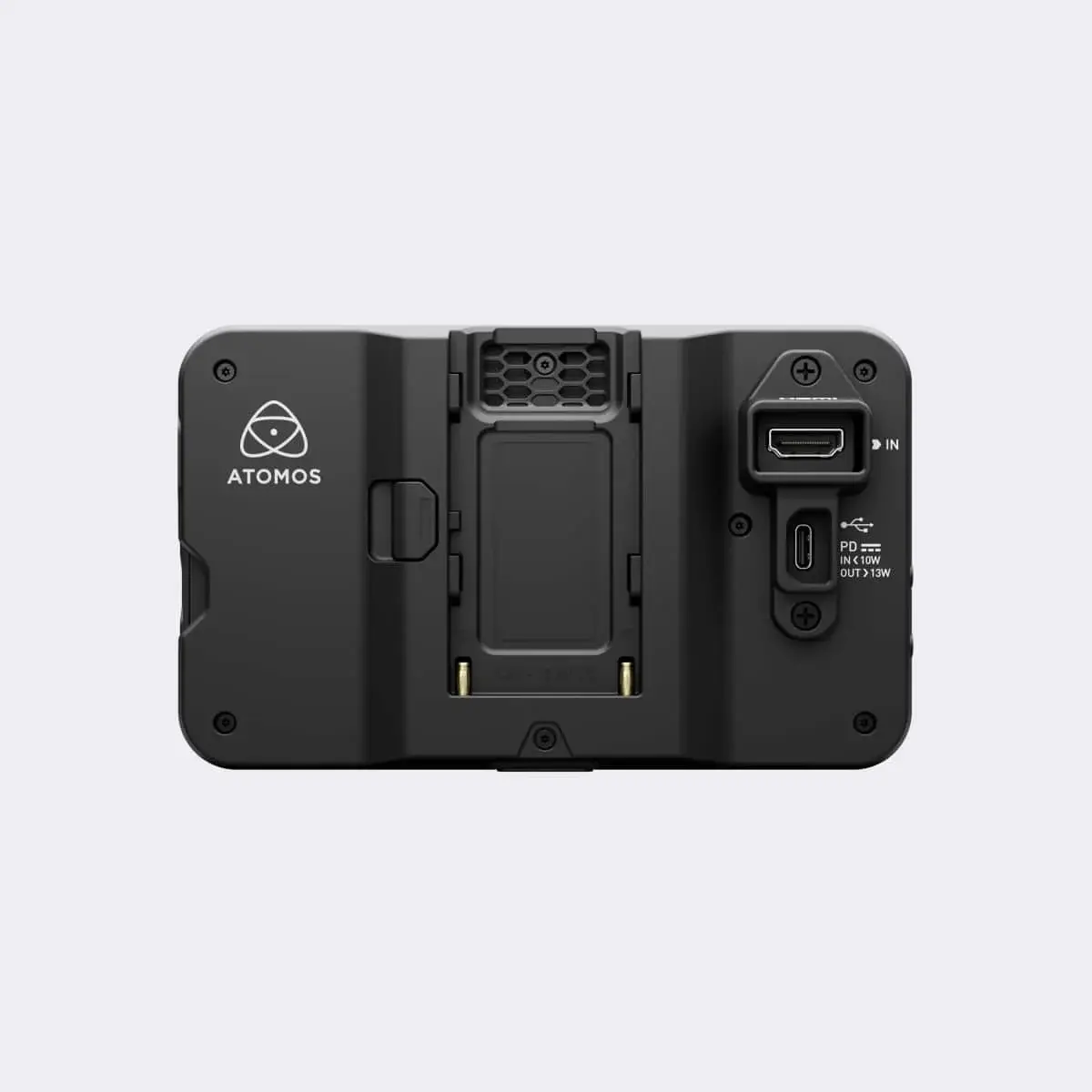

Designed for portability, Shinobi GO features a slim, lightweight body with 1/4″‑20 anti‑twist mounting points and a centrally positioned NP‑F battery plate. It can be powered via L‑series/NP‑F batteries or USB‑C PD, and can deliver up to 13W USB‑C PD output to power compatible cameras.
Remote calibration is supported through the LANC Remote port using Atomos Calibrator software and Calibrite devices. The monitor includes an HDMI/USB‑C locking adapter for secure cable connections, with optional swivel‑tilt mounting accessories available.
Category | Specification |
Dimensions (W × H × D) | 151 mm × 91.5 mm × 20.8 mm (28.5 mm with locking cable adaptor) |
Weight | 210 g / 7.4 oz |
Mounting Points | Bottom: 1× 1/4‑20 with anti‑rotation points |
Ambient Operating Temperature | Up to 40°C |
Body Material | ABS Polycarbonate Plastic |
Cooling System | Passive heat sink |
Multi‑Function Button | Power / Lock screen |
Touch Screen | Capacitive touch |
Input Voltage | 6.2V – 16.8V |
Compatible Batteries | NP‑F / L‑Series |
Built‑in Battery | No |
Continuous Power | NP‑F battery or USB‑C PD |
DC‑In Connector | Via Battery Eliminator (sold separately) |
D‑Tap Power | Via Battery Eliminator or D‑Tap → DC‑Barrel cable (sold separately) |
Display Panel | SuperAtom IPS (capacitive touch) |
Display Size | 5.2‑inch |
Resolution | 1920 × 1080 |
Viewing Angle | 178° H/V |
PPI | 427 |
Bit Depth | 10‑bit (8+2 FRC) |
Backlight Type | Edge‑lit |
Brightness | 1500 nits |
Aspect Ratio | 16:9 |
Color Gamut | Rec.709 |
Calibration Support | No |
Gamma Profiles | Sony S‑Log/S‑Log2/S‑Log3, Canon C‑Log/C‑Log2/C‑Log3, Panasonic V‑Log, JVC J‑Log1, Fujifilm F‑Log/F‑Log2, Nikon N‑Log/HLG, Olympus OM‑LOG400/FLAT, OM‑System OM‑LOG400/FLAT, Leica L‑LOG |
Gamut Profiles | BT.2020, DCI‑P3, DCI‑P3 65, Sony SGamut/SGamut3/SGamut3.cine, Canon Cinema/DCI‑P3/DCI‑P3+/BT.2020, Panasonic V‑Gamut, JVC LS300 |
3D LUT Display | .cube format (17 & 33‑point LUTs) |
3D LUT 50/50 Split | Yes |
Monitoring Modes | SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT |
Display Controls | Backlight, Lift, Gamma, Gain |
AtomHDR | Technical Log → HDR EOTF |
3D LUT Loading | Load .cube files from SD card into 8 on‑device LUT slots |
HDMI Input | 1× HDMI 1.4 |
Input Bit Depth | 8 / 10‑bit |
Chroma Subsampling | YCbCr 4:2:0 & 4:2:2 |
Audio (HDMI Embedded) | 2‑channel, 24‑bit |
Headphone Out | 3.5mm jack, 2‑channel |
4K DCI Monitoring | Not supported |
4K UHD Monitoring | 23.98/24/25/29.97/30p |
1080p Monitoring | 23.98/24/25/29.97/30/50/59.94/60p |
1080i Monitoring | 50i / 60i |
720p Monitoring | 50/59.94/60p |
Supported Media | SD card (firmware updates & LUT uploads) |
File System | FAT32, NTFS |
MultiScope Analysis | Image, waveform, histogram, vectorscope |
Waveform | 3 sizes, adjustable opacity & brightness |
Histogram | 3 sizes, adjustable opacity & brightness |
RGB Parade | 3 sizes, adjustable opacity & brightness |
Vectorscope | 1 size, adjustable opacity & brightness |
Zoom Levels | 1×, 2×, 4× (tap to zoom) |
Focus Peaking | 4 modes: color, B&W, outline, edge sharpening (adjustable color & intensity) |
Colorized Exposure | Atomos False Color |
Zebra | Adjustable (50%–105%) |
Isolate Color Channel | Blue only |
Cine Frame Guides | 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
Social Frame Guides | 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
Safe Areas | SMPTE 93% & 90% |
Grid Markers | 9‑grid |
Display Flip | Horizontal & Vertical |
External Device Control | Supported |
